4-Channel HD-SDI/3G-SDI Video Optical Fiber Media Converter

Shenzhen Pioneer Goods Communication Co., Ltd.

4-Channel HD-SDI/3G-SDI Video Optical Fiber Media Converter thumbnail-2

4-Channel HD-SDI/3G-SDI Video Optical Fiber Media Converter photo-1

4-Channel HD-SDI/3G-SDI Video Optical Fiber Media Converter photo-2

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

1999

Annual Export Value:

US$1 Million - US$1.5 Million

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

4-Channel HD-SDI/3G-SDI video optical fiber media converter

Product Overview

HD-SDI/3G-SDI video digital optical converter adopts international advanced all-digital gigabit optical fiber transmission technology, the HD-SDI/3G-SDI video signal can be transmitted through 1 fiber with non- Distortion, high-quality, long-distance transmission.This series of video to fiber converter has Stable performance, clear picture quality., and high Stability with LED Status Indication on the body of device. The working status of devices can be visually observed. At the same time, the switch value, voltage, working status and other reverse useful signal information can be controlled by RS485 or RS232.This makes our devices more flexible when different customers’ request comes.

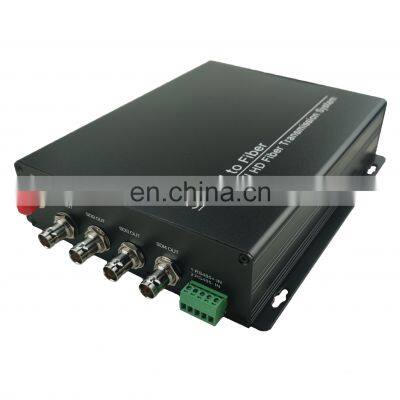

Product Appearance

Product Features

þ Extends uncompressed multi-rate 3G-SDI, HD-SDI or SD-SDI video over fiber

þ Supports SMPTE 424M, SMPTE 292M, SMPTE 259M or DVB-ASI compliant

þ With clock recovery, clock shaping

þ Pass Pathological (extreme harsh environment) test

þ Supports embedded digital audio stream

þ Single-Mode Fiber Support for Distances up to 60 km

þ Real-Time Video Transmission for Exceptional Quality and Resolution

þ LED Status Provide Rapid Indication of Operating Parameters

þ No EMI or RFI and no ground loops

þ Support hot swap,stand alone or rack-mount

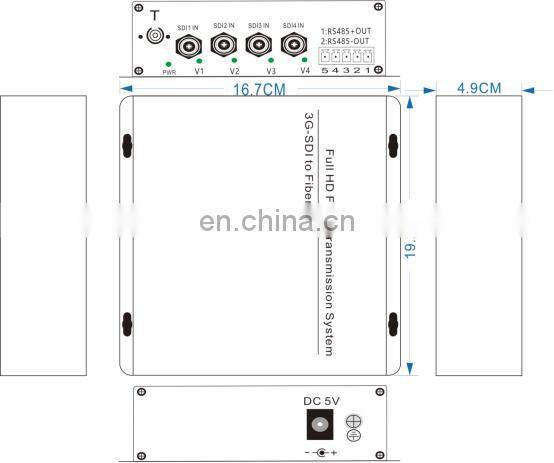

Standalone Dimensions

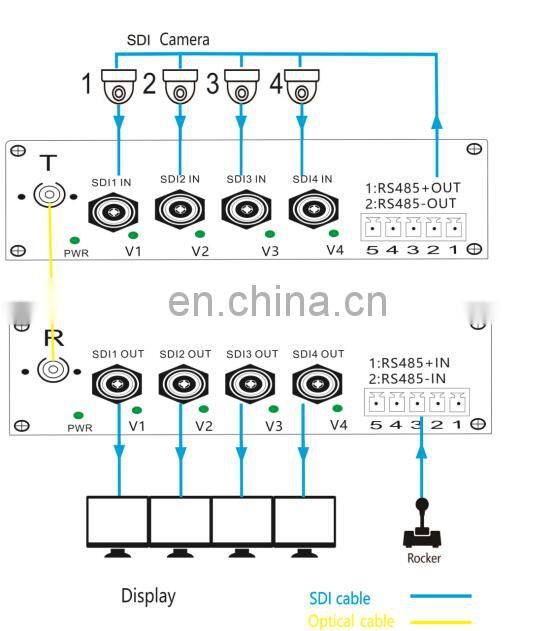

Connection Diagram

Technical Parameters

Optical	Wavelength	1310nm&1470nm-1610nm
	Fiber Type	Single mode, single fiber(default)
	Distance	0km~60km
	Fiber Interface	FC(default) LC/SC/ ST (optional)
SDI Video	Video Interface Number	4
	Physical Interface	BNC
	Max Resolution	1920 x 1080 @ 60Hz
	Video Input and Output Impedance	75Ω (unbalanced)
	Video Input/out put Voltage	Typical:1Vpp,Min 0.5Vpp, Max 1.5Vpp
	Video Bits Rate	Max 2.97Gb/s
	Video SDI standard	270Mbps(SD-SDI),1.485Gbps/M(HD-SDI),SMPTE425M3Gb/s Mapping(3G-SDI),SMPTE424M 3Gb/s serial interface(3G-SDI)
Data	Physical Interface	The industry standard connecting terminal
	Interface Signal	RS485/RS422/RS232/Manchester
	Baud Rate	0-400Kbps
	BER	< 10 -9
	Operation Mode	Full duplex / half duplex
Audio	Physical Interface	The industry standard connecting terminal
	Input Impedance	10K Ohm
	Output Impedance	50 Ohm
	Max input/output voltage	3.0Vp-p
	Frequency Response	10 Hz~44.1kHz @±3dB
	SNR	> 70dB
Contact Closure	Physical Interface	The industry standard connecting terminal
	Signal Input	Alarm or switching value Input ,support TTL, Rs-232/422/485 or switches, buttons
	Signal Output	Alarm or switching value output ,support TTL, Rs-232/422/485 or contact relay output.
Ethernet	Physical Interface	RJ45
	Operating Mode	Full duplex / half duplex
	Support Agreement	IEEE802.3 10M, 100M, 10/100/1000M adaptive
Telephone	Physical interface	RJ11
	Voice bandwidth	8kHz
	Special function	Support the call display,With hands-free function
	Working mode	Point to point link, SPC Exchanges metho
Electrical & Mechanical	Input Power Requirements	DC 5V
	Power Adapter	AC 100V~240V
	Dimensions	16.719.24.9cm
	Packing	34.5219cm
	Weight	1.35kg
Environmental	Operating temperature	-20°C ~ +75°C
	Storage temperature	-40°C ~ +85°C
	Working humidity	0% ~ 95% (non-condensing)
	MTBF	>100,000 hours
