PG-M600B 1310/1550nm 26/24dB,touch operate screen mini pro otdr with vfl kit
Product overview:

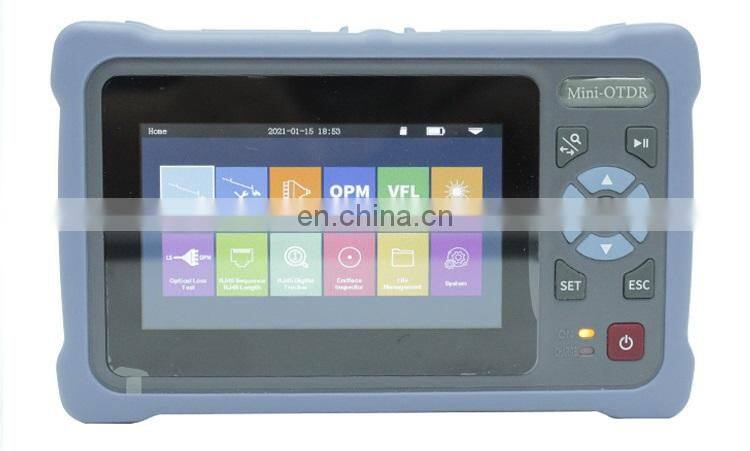

PG-M600B Mini Pro series OTDR adopts 4.3-inch capacitive touch screen.It integrates 12 functions,such as auto OTDR,expert OTDR,event map,OPM,RJ45 cable tracker,and”computer level” file management to meet various test requirements in different occasions.OTDR has a maximum dynamic range of 26dB,8G memory,and can store more than 200,000 curves;it is equipped with 4000mAh hagh-density polymer lithium battery.intelligent power saving management,measuring time of more than 8 hours,and supporting power supply and charging of the power bank.
PG-M600B series are used to measure the length,loss,connection quality and other parameters of optical fiber.It is widely used in FTTX,secondary backbone network engineering construction,maintenace and emergency repair test,and production measurement of optical fiber and cable.
Produce features:
1. Expert OTDR:Professional measurement,curve/list/map are displayed simultaneously
2. OPM supports CW/270/330/1K/2KHz frequency identification
3. LS supports CW/modulation mode output with adjustable output power
4. Auto OTDR,expert OTDR ,event map,OPM,LS,VFL,RJ45 cable tracker,RJ45 cable sequence,RJ45 cable length,end face detection,flashlight optical loss test

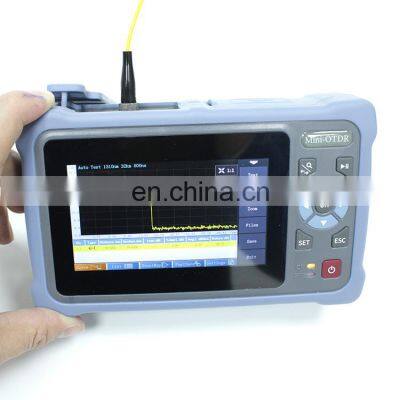

5. Auto OTDR:no complex settings,one key test
6. VFL and LS can run in the background,multi task can be operated simultaneouslt

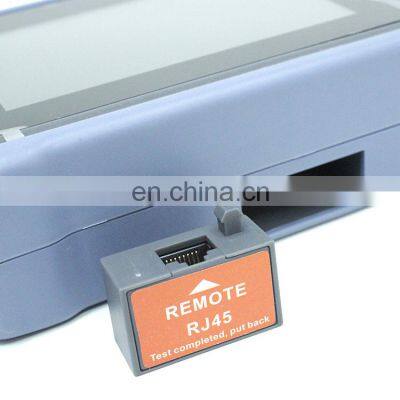

7. RJ45 cable tracker of digital radar,stronger anti-jamming ability
8. RJ45 cable sequence/cable length tese,up to 300m
9. One click screen capture,easy to save the interface
Technical specifications:
|
OTDR |
|
|
Model |
PG-M600B-D |
|
Wavelength |
1310nm/1550nm |
|
Dynamic Range |
26dB/24dB |
|
Event Blind Zone |
2.5M |
|
ATT Blind Zone |
8M |
|
Test Range |
500m/1km/2km/4km/8km/16km/32km/64km/100km |
|
Pulse Width |
3ns/5ns/10ns/20ns/30ns/50ns/80ns/160ns/320ns/500ns /800ns/1μs/2μs/3μs/5μs/8μs/10μs/20μs |
|
Ranging Accuracy |
±(1m+Sample interval+0.005%*Test distance) |
|
Linearity |
≤0.05dB/dB |
|
Sample Points |
16K-128K |
|
Sample Resolution |
0.05m-8m |
|
Loss Resolution |
0.001dB |
|
Loss Threshold |
0.20dB |
|
Range Resolution |
0.001m |
|
Refractive Index |
1.00000-2.00000 |
|
Reflection Accuracy |
±3dB |
|
File Format |
SOR Standard File Format |
|
Loss Analysis |
4-point method/5-point method |
|
Laser Safety Level |
Class II |
|
Connector |
FC/UPC(Interchangeable SC,ST) |
|
Refresh Rate |
3Hz(Typ.) |
|
Multitasking |
Support |
|
Wave Range |
800nm~1700nm |
|
Ca libration Wave |
850/980/1300/1310/1490/1550/1625/1650nm |
|
Test Range |
-70~+10dBm/-50~+26dBm |
|
Resolution |
0.01dB |
|
Uncertainty |
±5% |
|
Frequency Identification |
CW/270/330/1k/2kHz(Use inner LS) |
|
Connector |
Universal FC/SC/ST |
|
Wave Recognition |
Support |
|
LS |
|
|
Wavelength |
Conslstent with OTDR |
|
Laser Type |
FP/LD |
|
Power |
≥-5dBm |
|
Stablity |
CW,±0.5Db/15min(After 15min of preheating) |
|
Connector |
FC/UPC(Interchangeable SC,ST) |
|
Mode |
CW/270Hz/330Hz/1kHz/2kHz |
|
Wave Recognition |
Support |
|

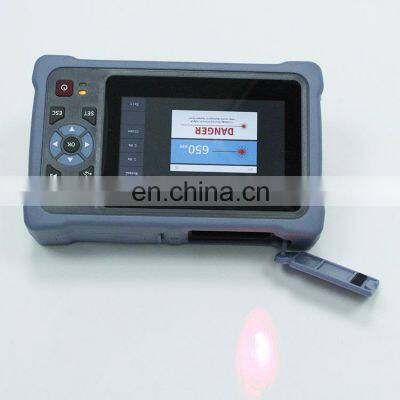

VFL |
|
|
Wavelength |
650nm± 20nm |
|
Output Power |
≥10mW |
|
Mode |
CW/1Hz/2Hz |
|
Connector |
FC/UPC(Interchangeable SC,ST) |
|
Laser Safety Level |
ClassIII |
|
Others |
|
|
Display |
4.3 inches 800*480 IPS TFT-LCD Multi touch capacitive touch screen |
|
Power Supply |
AC/DCadapter:input:100V~240V,50/60Hz,0.6A output:5V,2A,Lithium battery:3.7V,4000mAh |
|
Battery Working |
|
|
Data Storage |
Internal storage:8GB,≥20 thousand curves |
|
Data Interface |
USB Type C |
|
Working Temperature |
-10℃~+50℃ |
|
Storage Temperature |
-40℃~+70℃ |
|
Relative Humidity |
0~95% Non Condensing |
|
Weight |
≤0.5kg(Battery included) |
|
Size |
173mm*109mm*45mm |
