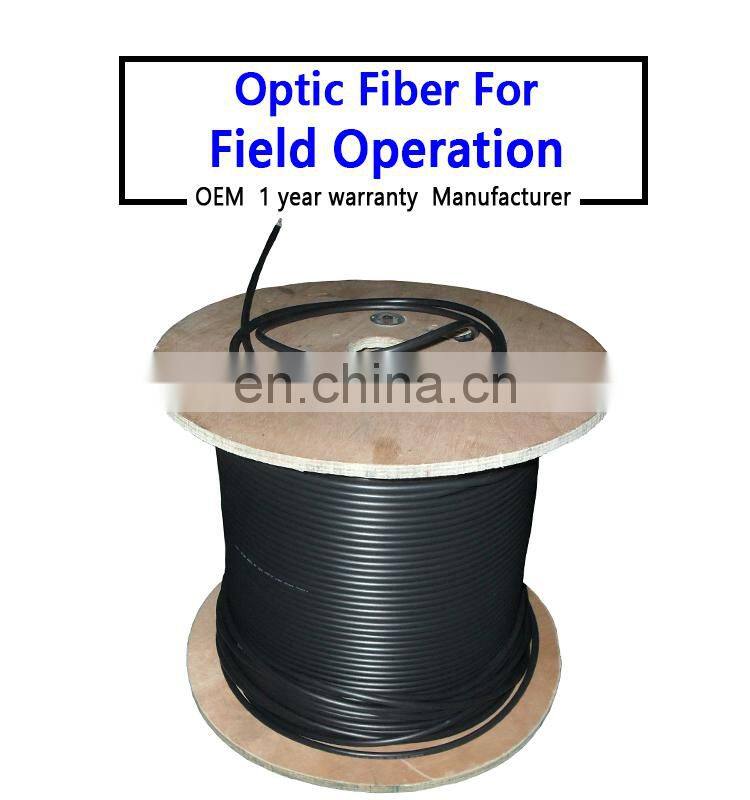

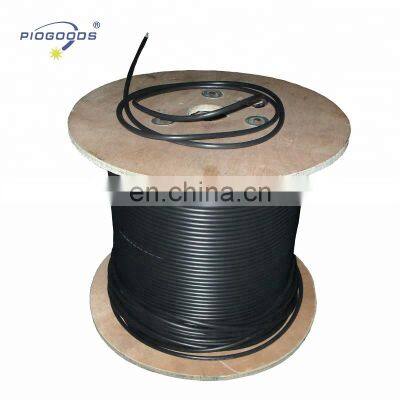

Optic Fiber For Field Operation fiber optical G.655
Features:
1, Good mechanical and environmental characteristics;
2, The mechanical characteristics meet the requirements of relevant standards;
3, High intensity and light weight;
4, Easy to splice and convenient laying, and with big capacity data transmission;
5, Meet various requirements of market and custome.
Product Details
Applications
1, Used as field cable;
2, Used in outside cabling;
3, Used in poor condition outside cabling;
4, Used in temporary cabling, meets the requirements of repeat cabling.
Product Parameters
Fiber Count | Cable Dimensionmm
mm | Cable Weight
kg/km | Tensile | Crush | Min. Bend Radius | Range of Temperature | |||
| N | N/100mm | mm | |||||||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 2 | 5.2 | 24 | 600 | 1500 | 700 | 1500 | 20D | 10D | -80 |
| 4 | 5.2 | 24 | 600 | 1500 | 700 | 1500 | |||
| 6 | 6 | 31 | 600 | 1500 | 700 | 1500 | |||
| 12 | 6.5 | 31 | 600 | 1500 | 700 | 1500 | |||
| Note: | 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simple cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; 4. The minimum bend radius (static) is 5D when G657 fiber is used. | ||||||||
Options:
1, Fiber Type: G652, G655 or G657 single-mode fiber, A1a or A1b multi mode cable, or other types of fiber;
2, Fiber Count: The fiber count is usually 1-6, or other contracted fiber count;

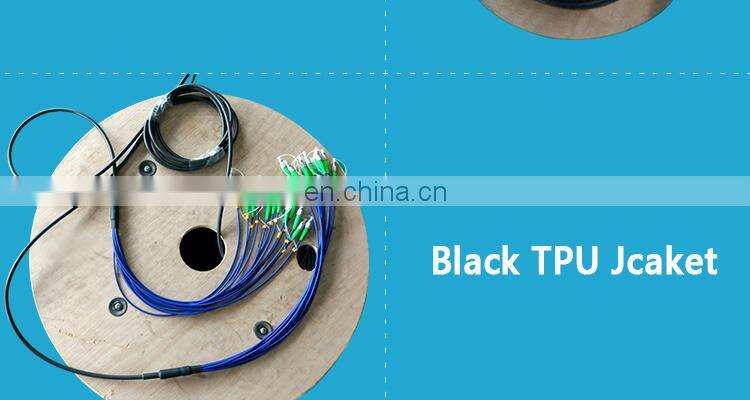

3, Jacket Material: Thermoplastic polyurethane(TPU), or other contracted material;
4, Jacket Color: Black, or other contracted color.
5, Cable Dimension: The nominal cable dimension, or other contracted dimension;
6, Delivery Length: 1km or 2km, or other contracted length;
7, Other Requirements: Other contracted special request.

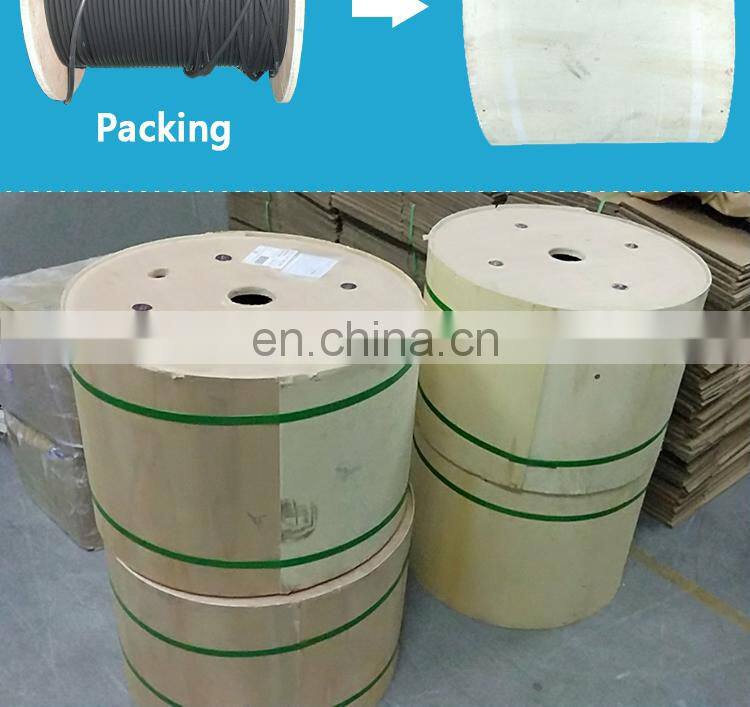

Transportation
