Armored Outdoor Cable Assembly With DLC Connector for Base Station Fiber Optic Patch Cord

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Armored Outdoor Cable Assembly with DLC Connector

for Base Station Fiber Optic Patch Cord

Application:

Mainly used in wireless base station horizontal and vertical cabling

Features:

1. Good mechanical and environmental characteristics;
2. Flame retardant characteristics meet the requirements of relevant standards;
3. The mechanical characteristics of jacket meet the requirements of relevant standards;
4. Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
5. Meet various requirements of market and clients

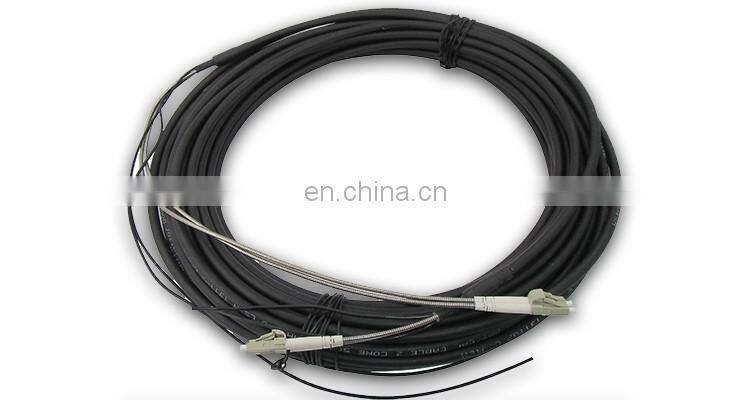

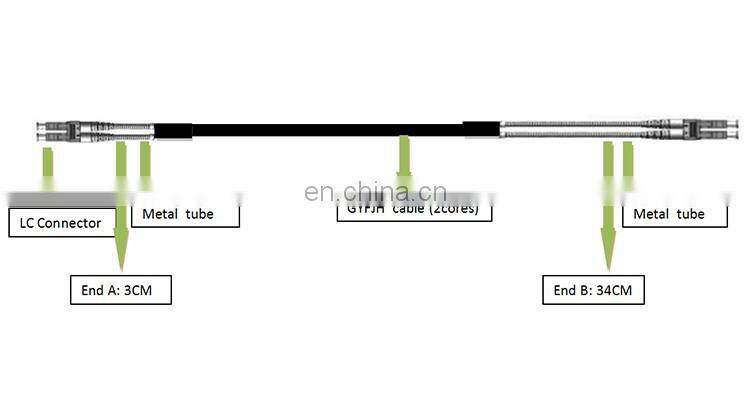

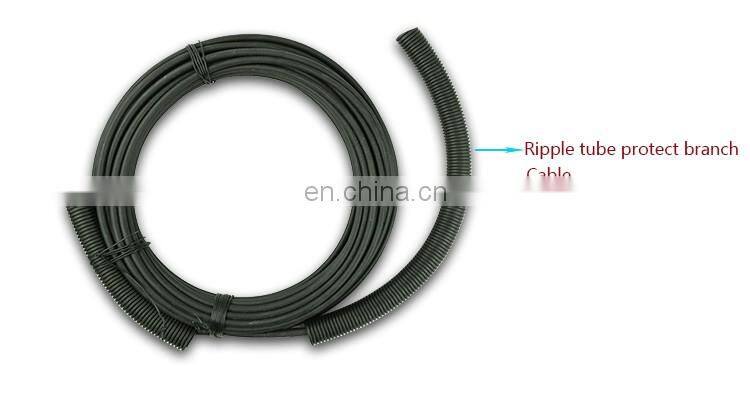

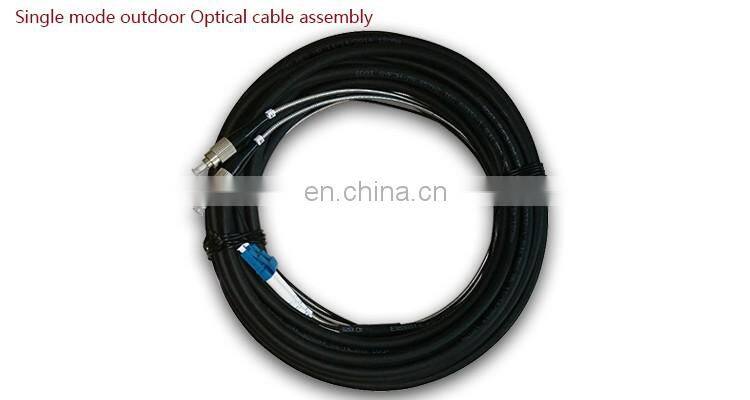

Detailed Images

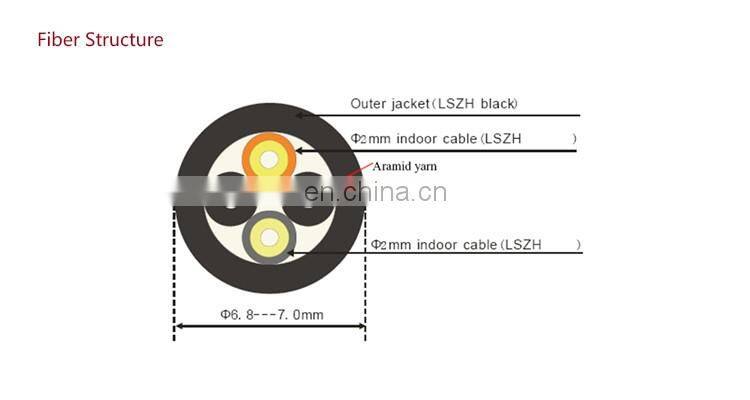

Fiber Count

Cable Dimension
mm

Cable Weight
kg/km

Tensile(N)

Crush
N/100mm

Min. Bend Radius
mm

Range of Temperature

Long Term

Short Term

Long Term

Short Term

Dynamic

Static

7.0

42.3

200

400

1100

2200

20D

10D

-30-+70

Note:

1. All the values in the table, which are for reference only, are subject to change without notice;
2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter;
3. D is outer diameter of the round cable;

Fiber Specification:
Fiber type	50/125,9/125
Core Diameter	50 + 2.5
Core Non-Circularity	<=5.0 %
Cladding Diameter	125.0+1.0um
Cladding Non-Circularity	<=1.0 %
Coating Diameter	245+7
Coating-Cladding Concentricity Error	<=12.0um
Coating Non-Circularity	<=6.0um

Connecton Specification
ITEM	PARAMETER
Connector type	DLC/UPC
Insertion Loss	<=0.3db
Return Loss	>=35db
Fiber mode	Multi-mode,50/125,single mode,9/125
Operating wavelength	850nm, 1300nm,1310,1550nm
Test wavelength	850nm, 1300nm
Repeatability	<=0.1
Interchangeability	<=0.2dB
Durability	<=0.2dB
Fiber Length	1m, 2m….. any length optional.
Length and tolerance	10cm
Operating Temperature	-40C ~ +85C
Storage Temperature	-40C ~ +85C

Our Service

1. Factory Price

2. OEM

3. Fast delivery,low freight

4. Customize service
