Best Price CTBU130X250X160 Railway Bearing TBU130X250X160
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
TAROL100/175-R-TVP Railway Bearing Class D 5 1/2xl0 Bearing
-
Best Price TAROL110/180-R-TVP Railway Bearing
-
Long Life Train Railway Carriage Bearing TAROL5-1/2X10-U-JP
-
Rich Stock Railway Bearing 160JRx01/C4 Train Bearing
-
Class G 7x12 Railway Bearing 177.787*276.225*185.725 mm
-
Tapered Roller Bearing TBU130X230X160 Railway Bearing TBU130X230X150
Product Description
Product Description
Product Name | CTBU130X250X160 Railway Bearing TBU130X250X160 |
Size | 130X250X160mm |
Sample | Available |
Clearance | C1,C2,C0, C3,C4,C5 |
Stock | Rich |
Feature | Long work lift exceed 5 years |

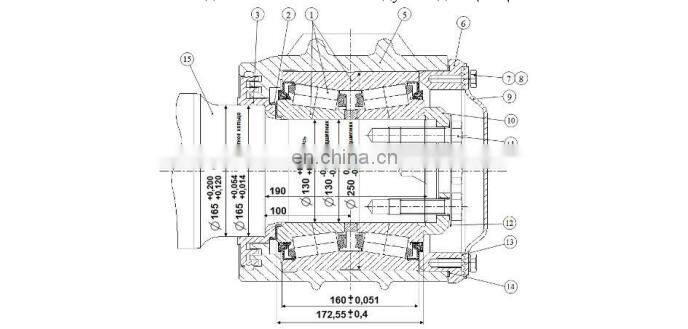

Number | Name | Number | Name | Number | Name |
1 | CTBU130X250X160 Railway Bearing | 7 | Bolt М12х35 | 13 | Gasket (sealing rubber sight covers) |
2 | Gasket The polymer | 8 | Spring Washer Bolt М12х35 | 14 | The ring sealing (rubber fixing covers) |
6 | Fastening cover | 11 | Bolt М20х60 end face fastenings | 15 | Axis type RU1Sh |
Specification
Compact Tapered Roller Bearing Units (CTBU).
The compact tapered roller bearing unit is a tapered roller bearing unit of compact design. In addition to the characteristics of TBU, it also has the following technical characteristics:
* Reduced journal length, increased bearing life
* Using the plastic-steel spacer to prevent fretting and abrasion, the bearing scrap rate is lower
* Longer bearing life due to reduced fretting inside the bearing
* Reduced risk of bearing failure and higher reliability
Benefits to customers.
* Improve safety and reliability
* Reduce life cycle costs
* Extended maintenance cycle
* Better and longer performance
Bearing Numbers
Specification | Model Number | d mm | D mm | B mm | C mm |
TBU 120x195x131.35 | 1639609 DE | 120 | 195 | 126 | 131.35 |
TBU 130x230x150 | 197726 | 130 | 230 | 150 | 150 |
TBU 130x230x160 | BT2-8546 | 130 | 230 | 150 | 160 |
TBU 150x250x160 | 353130-2RS | 150 | 250 | 154.5 | 160 |
CTBU 130x230x150 | BT2-8670-01 | 130 | 230 | 166.35 | 150 |
CTBU 130x230x160 | BT2-8671 | 130 | 230 | 176.35 | 160 |
CTBU 150x250x160 | 353130B | 150 | 250 | 180.6 | 160 |
CTBU 150x250x160 | BT2-8720 BD | 150 | 250 | 180.6 | 160 |
Company Profile
Kenworth Machinery Equipment International Co.,Ltd.
————Professional Manufacturer————
Why choose us?
* Reliable International company
* Contact us 24 hours a day
* Fast and flexible shipping options
* No order too big or small
* Only authentic parts from trusted manufacturers
* Fast and flexible shipping options
* No order too big or small
* Only authentic parts from trusted manufacturers
Trusted Manufacturers
We supply full model metric sizeTBU&CTBU
series and inch sizeB(4*8),C(5*9), D(51/2*10),E(6*11),F(61/2*12), G(7*12),GG(7)series railway freight car bearings and all bearings components including seals,ring,cap,locking plate,grease. We also supply railwaylocomotive bearing.
Packing & Delivery
1.Individual Package+Cartons
2.Individual Package+Cartons+Pallets
