Home > Products > Pillow Block Bearing > 5/8" Pillow Block Bearing UCP202-10
5/8" Pillow Block Bearing UCP202-10
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Low Friction Pillow Block Bearing UKP209+H2309
-
Original Bearing Price UCP 205 Bearing Pillow Block Bearing
-
Pillow Block Bearing P207 P205 P206 Pillow Block Sizes
-
KFL08 Pillow Block Bearing 8mm Flange Bearing For CNC
-
Pillow Bearings Pillow Block Bearing Bearings Bracket FY 25 TF
-
Pillow Block Bearing High Quality Pillow Block Bearing UCP209
Product Description
5/8" Pillow Block Bearing UCP202-10
Product Description
Basic Dimensions | ||||
Shaft Size | Shaft Height | Bolt Distance | Overall Length | Overall Height |
5/8 | 1.31" | 3.78" | 5" | 2.51" |

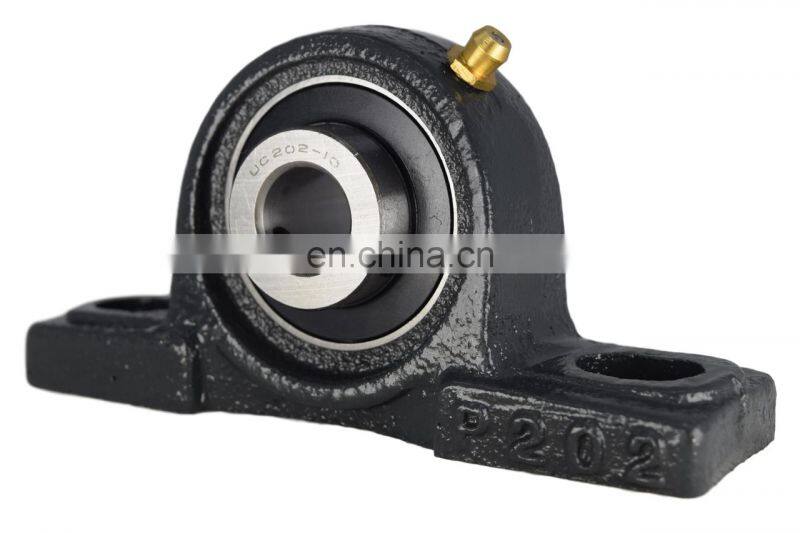

The UCP202-10 5/8" pillow block bearing unit is equipped with two specially designed setscrews positioned in the inner ring of the ball bearing to lock onto the shaft. The pillow block set screws are placed at a 90-degree angle to optimize balance between holding power and inner ring distortion. The UCP202-10 5/8" pillow block bearings are relubricatable and offer a full-width inner ring for added stability.
The UCP202-10 pillow block bearing also features a positive-contact, three-piece, fiber-imbedded R-seal to protect against harmfull contaminants and retain lubricant. The setscrew locking mechanism on the pillow block bearing is easy to install and well suited for reversing applications and normal loads.
Applications for the UCP202-10 5/8" pillow block bearing include: Construction, Conveyors, Food and Beverage, Packaging and General Industrial Equipment.
The UCP202-10 pillow block bearing also features a positive-contact, three-piece, fiber-imbedded R-seal to protect against harmfull contaminants and retain lubricant. The setscrew locking mechanism on the pillow block bearing is easy to install and well suited for reversing applications and normal loads.
Applications for the UCP202-10 5/8" pillow block bearing include: Construction, Conveyors, Food and Beverage, Packaging and General Industrial Equipment.
Related Pillow Block Bearing Stock List:
| BEARING CODE | ID | OD | WD |
| (mm) | (mm) | (mm) | |
| UCP203 | 17 | 27.4 | 129 |
| UCP204 | 20 | 30 | 134 |
| UCP205 | 25 | 34.1 | 142 |
| UCP206 | 30 | 38.1 | 167 |
| UCP207 | 35 | 42.9 | 172 |
| UCP208 | 40 | 49.2 | 186 |
| UCP209 | 45 | 49.2 | 192 |
| UCP210 | 50 | 51.6 | 208 |
| UCP211 | 55 | 55.6 | 233 |
| UCP212 | 60 | 65.1 | 243 |
| UCP213 | 65 | 65.1 | 268 |
| UCP214 | 70 | 74.6 | 274 |
| UCP215 | 75 | 77.8 | 300 |
| UCP216 | 80 | 82.6 | 305 |
| UCP217 | 85 | 85.7 | 330 |
| UCP218 | 90 | 96 | 356 |
| UCP220 | 100 | 108 | 390 |
| UCP305 | 25 | 38 | 175 |
| UCP306 | 30 | 43 | 180 |
| UCP307 | 35 | 48 | 210 |
| UCP308 | 40 | 52 | 220 |
| UCP309 | 45 | 57 | 245 |
| UCP310 | 50 | 61 | 275 |
| UCP311 | 55 | 66 | 310 |
| UCP312 | 60 | 71 | 330 |
| UCP313 | 65 | 75 | 340 |
| UCP314 | 70 | 78 | 360 |
| UCP315 | 75 | 82 | 380 |
| UCP316 | 80 | 86 | 400 |
| UCP317 | 85 | 96 | 420 |
| UCP318 | 90 | 96 | 430 |
| UCP319 | 95 | 103 | 470 |
| UCP320 | 100 | 108 | 490 |
| UCP321 | 105 | 112 | 490 |
| UCP322 | 110 | 117 | 520 |
| UCP324 | 120 | 126 | 570 |
| UCP326 | 130 | 135 | 600 |
| UCP328 | 140 | 145 | 620 |
For More Details,Please contact Us.
