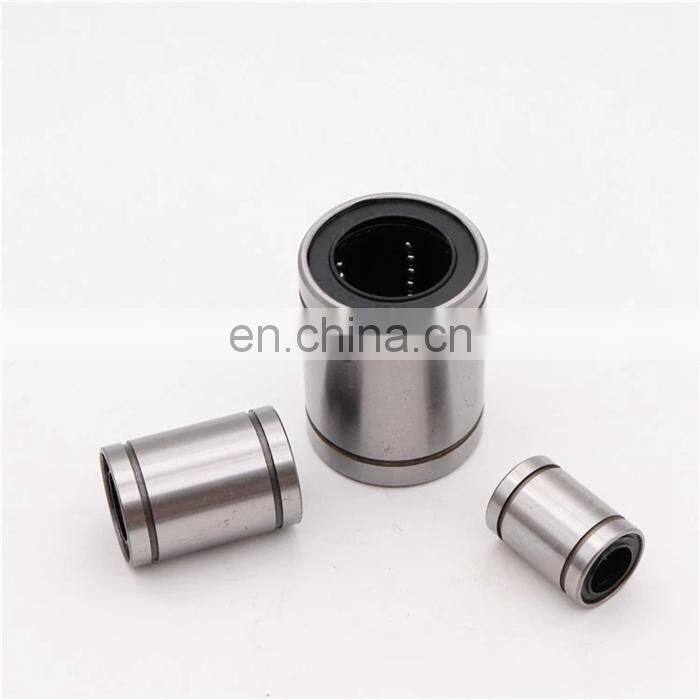

High Precision Linear Bearing LMT8UU

Linear bearing is a linear motion system, used for linear travel and cylindrical axis.Due to coat point contact ball bearing with bearing, steel ball roll with minimum friction resistance, so the linear bearing small friction, and relatively stable, not over bearing speed changes, and can obtain high sensitivity, high precision of stationary linear motion.

The consumption of linear bearing also has its limitation. The most important one is that the bearing has poor impact load capacity and poor bearing capacity.Linear bearing quick and easy to optimize automatic selection included.

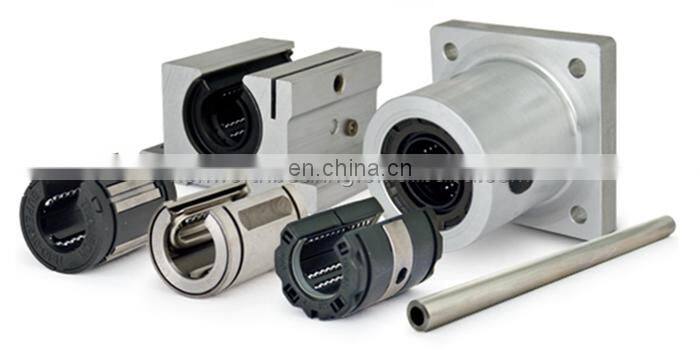

• Straight cylindrical bearing
• Flanged linear bearing

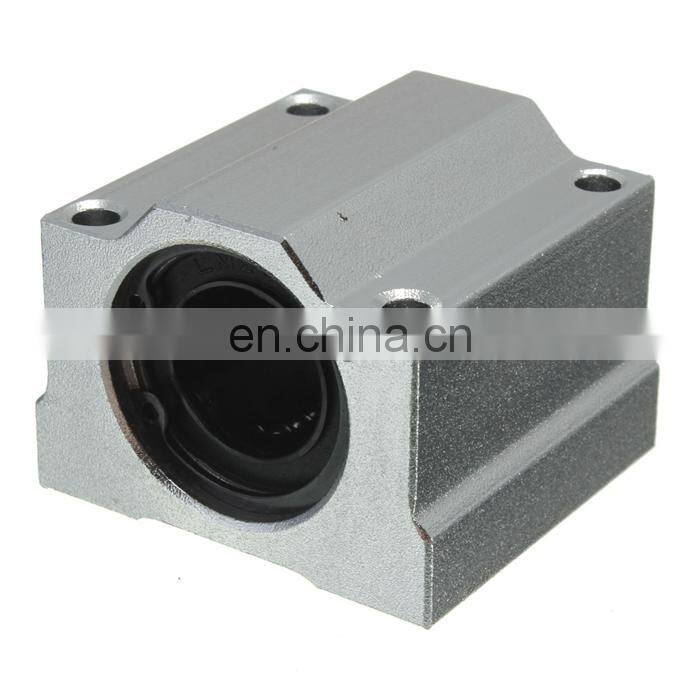

• Box linear bearing
• Linear bearing with clamping handle

Linear bearing material:

1. Outer ring - SUJ2 / SUS440C (GCr15/9Cr18)

2. Retainer---resin/stainless steel

3. Rolling steel ball---SUJ2/SUS440C

4. Sealing ring --- nitrile rubber / stainless steel / carbon steel

•  The friction resistance is minimal

• The precision is high

• The motion is fast

Various Types:

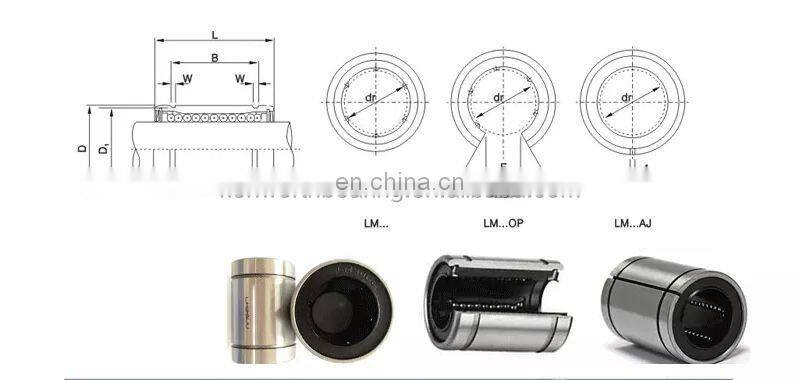

• Standard types:    LM 3UU----LM 100UU / LM 3LUU----LM 60LUU
• Adjustable types:  LM 5UU-AJ----LM 100UU-AJ
• Open type:   LM 10UU-OP----LM 100UU-OP

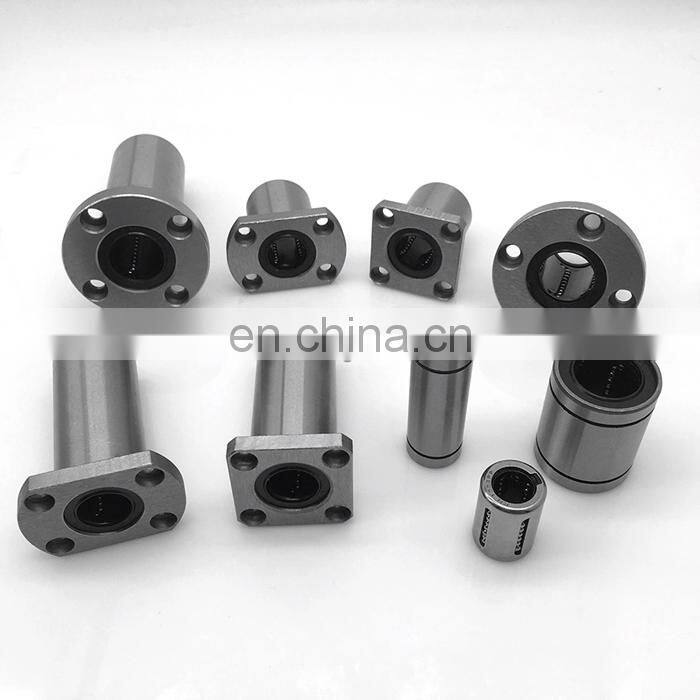

• Flange type: LMF 6UU---LMF 100UU / LMF 6LUU---LMF 60LUU
                        LMK 6UU---LMK 100UU / LMK 6LUU---LMK 60LUU
                        LMH 6UU---LMK 30UU / LMK 6LUU---LMK 30LUU
• With E type:    LME 5UU---LME 80UU
                           LME 8LUU---LME 60LUU
                           LME 5UU-AJ---LME 80UU-AJ
                           LME 12UU-OP--- LME 80UU-OP
• KH types :    KH0622, KH0824, KH1026, KH1228, KH1428, KH1630, KH2030, KH2540, KH3050, KH4060, KH5070

Other bearings:

If you have any needs,please feel free to contact us!

Linear bearings are used widely in the precision equipment or special industrial machinery. Such as electronic equipment, food machinery, packing machinery, medical machine, printer, textile machinery, the robot, CNC machine tools cars, and digital three-dimensional coordinate measuring device.

Linear bearing installation precautions:

1. When inserting the guide shaft into the linear bearing, please align the center and insert it slowly, otherwise the ball will fall off or the retainer will be deformed;

2. When pressing the linear bearing into the bearing housing, do not directly hit the outer cylinder side end retaining ring and oil seal, and need to use a special tool to evenly enter;

3. Due to structural characteristics, linear bearings are only used for linear motion and are not suitable for rotary motion, otherwise it will affect the service life of linear bearings.

Kenworth is now a leading bearing supplier in China for a series of original worldwide famous brands of bearings.
Having extensive inventory of various bearings and quick delivery. Also we have great advantage over any other sources in supplying the above bearings With perfect products,professional services,competitive prices and fast delivery promotes our sales network to be bigger and bigger in the world
It would be our great honor to develop business relationships with esteemed companies all over the world.

Advantages:

1. USA and Europe customer's favorite bearing
2. Gurantee time 18 month( 6 month longer than other supplier )
3. Good quality help you win more orders.
4. Authorised certificate&Certificate of Original are available.

Our Main Brand:

1. China Brand
2. Japan Brand
3. Germany brands
4. Sweeden brands
5. Other brands.
6. OEM is available.

Our Main Products:

1. we can offer OEM, non-standard, if you have detail drawing / samples, we can also produce.
vide technical support
3. 24-hour response line
4. quality assurance for 12 months quality warranty period
5.100% test the quality and packing before delivery
6. Free sample available.

 WIN MORE, PLEASE CHOOSE US!
