Home > Industrial Equipment & Components > Bearing > Taper Roller Bearing > Railway Bearing TBU150X250X160 Tapered Roller Bearing CTBU150X250X160

Railway Bearing TBU150X250X160 Tapered Roller Bearing CTBU150X250X160

Kenworth Machinery Equipment (Shandong) Co., Ltd.
Railway Bearing TBU150X250X160 Tapered Roller Bearing CTBU150X250X160 thumbnail-1
Railway Bearing TBU150X250X160 Tapered Roller Bearing CTBU150X250X160 thumbnail-2
Railway Bearing TBU150X250X160 Tapered Roller Bearing CTBU150X250X160 thumbnail-3
Railway Bearing TBU150X250X160 Tapered Roller Bearing CTBU150X250X160 thumbnail-4

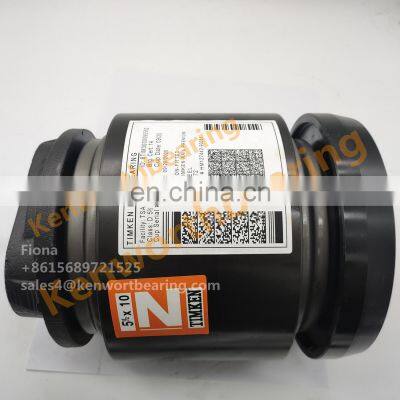

Railway Bearing TBU150X250X160 Tapered Roller Bearing CTBU150X250X160 photo-1
Railway Bearing TBU150X250X160 Tapered Roller Bearing CTBU150X250X160 photo-2
Railway Bearing TBU150X250X160 Tapered Roller Bearing CTBU150X250X160 photo-3
Railway Bearing TBU150X250X160 Tapered Roller Bearing CTBU150X250X160 photo-4
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2006
Annual Export Value:
US$1 Million - US$1.5 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
Product Name
TBU150X250X160 Railway Bearing CTBU150X250X160
Size
150X250X160mm
Sample
Available
Clearance
C1,C2,C0, C3,C4,C5
Stock
Rich
Feature
Long work lift exceed 5 years
Number
Name
Number
Name
1
Bearing
4.5
Compensation ring
2
Sealing
7
Lock washer
3
Front bearing cover
8
Rear thrust ring
Specification
Tapered Roller Bearing Units (TBU).
Tapered roller bearing units are based on sealed and factory pre-lubricated bearing units that are ready for installation. Main technical features: * Optimum design of raceway micro-geometry * Optimized design of roller ball base surface and inner ring rib contact surface * The roller adopts logarithmic curve profile to effectively prevent edge stress * Safe and reliable plastic-steel cage
Benefits to customers.

* High safety and reliability * Low energy consumption * Convenient press fitting * Low life cycle cost
Bearing Numbers
Specification
Model Number
d
mm
D
mm
B
mm
C
mm
TBU 120x195x131.35
1639609 DE
120
195
126
131.35
TBU 130x230x150
197726
130
230
150
150
TBU 130x230x160
BT2-8546
130
 230
150
160
TBU 150x250x160
353130-2RS
150
250
154.5
160
CTBU 130x230x150
BT2-8670-01
130
230
166.35
150
CTBU 130x230x160
BT2-8671
130
230
176.35
160
CTBU 150x250x160
353130B
150
250
180.6
160
CTBU 150x250x160
BT2-8720 BD
150
250
180.6
160
Class C (5″x9″)
BT2-8735 BB
119.008
195.263
36.525
142.875
Class D (5 1/2″xlO”)
BT2-8547 BB
131.775
207.963
146.75
152.4
Class E(6″xll”)
BT2-8516 BB
144.475
220.663
155.575
163.51
Class F (6 1/2″x12″)
BT2-8612 BB
157.175
252.413
177.8
184.15
CTBU Class K (6 1/2″x9″)
BT2-8606
157.175
250
180.6
160
CTBU 150x260x160
150
260
180.6
160
CTBU 160x270x170
160
270
195
170
Bearing number
d
mm
D
mm
T
mm
B
mm
Mass
kg
HM120848/HM120817XD
38.1
65.088
19.812
18.288
0.24
26880-26822
39.688
79.375
23.812
25.4
0.55
HM801349-HM801310
40.483
82.55
29.37
28.575
0.73
LM501349-LM501310
41.275
73.431
19.558
19.812
0.32
HM803145-HM803110
41.275
88.9
30.162
29.37
0.9
HM803146-HM803110
41.275
88.9
30.162
29.37
0.89
HM803149-HM803110
44.45
88.9
30.162
29.37
0.84
HM903249-HM903210
44.45
95.25
30.958
28.575
1
HM807040-HM807010
44.45
104.775
36.12
36.512
1.62
LM102949-LM102910
45.242
73.431
19.558
19.812
0.31
LM503349-LM503310
45.987
74.976
18
18
0.3
T411
101.6
215.9
46.038
-
8.89
T441
111.76
223.52
55.88
-
11.4
HM89249-HM89210
36.512
79.375
29.37
28.829
1.02
JL69349-JL69310
38
63
17
17
0.19
LM29749-LM29710
38.1
65.088
18.034
18.288
0.22
HM120848
HM120817XD
HM120848/HM120817XD
101.6*165.1*114.3
HM120846
100*165.1*114.3
HM124646
HM124618XD
HM124646/HM124618XD
119.06*195.26*142.9
HM124649
HM124616XD
HM124649/HM124616XD
120*195*131.4
HM127446
HM127415XD
HM127446/HM127415XD
131.75*207.96*152.4
HM127442
HM127417XD
HM127442/HM127417XD
130*210*132
HM127746
H127715XD
HM127746/HM127715XD
130*230*160
NP178837
NP023784
NP178837/NP023784
130*250*159
HM129848
HM129814XD
HM129848/HM129814XD
144.45*220.66*163.5
HM129843
HM129813XD
HM129843/HM129813XD
140*220*140
HM133444
HM133416XD
HM133444/HM133416XD
157.15*252.41*184.2
HM133436
HM133413XD
HM133436/HM133413XD
150*250*160
HM133448
160*250*160
HM136948
HM136916XD
HM136948/HM136916XD
177.79*276.23*185.7
H337840
H337816XD
H337840/H337816XD
165.09*301.7*196.85
H337844
174.61
NP891226
NP379567
NP891226/NP379567
144.45*219.87*140
NP877824
NP335917
NP877824/NP335917
157.15*249.87*160
NP239427
NP540329
NP239427/NP540329
165.09*263.53*166.7
Company Profile
Kenworth Machinery Equipment International Co.,Ltd.
————Professional Manufacturer————
Why choose us?

* Reliable International company
* Contact us 24 hours a day
* Fast and flexible shipping options
* No order too big or small
* Only authentic parts from trusted manufacturers
Trusted Manufacturers
We supply full model metric sizeTBU&CTBU series and inch sizeB(4*8),C(5*9), D(51/2*10),E(6*11),F(61/2*12), G(7*12),GG(7)series railway freight car bearings and all bearings components including seals,ring,cap,locking plate,grease. We also supply railwaylocomotive bearing.
Packing & Delivery
1.Individual Package+Cartons 2.Individual Package+Cartons+Pallets
