Product Description
3d wood carving cnc router/Desktop mini metal cnc milling machine
Utechl hobby cnc router 3040 is the small and simple structure under the special design. Various materials can be applied by the machine, such as PVC, Acrylic, wood, PCB, even some soft metal like aluminum and copper.
|
Model |
UT-6040(Optional) |
UT-3040 |
UT-3020(Optional) |
|
Max working travel |
XYZ=400*570*75mm |
XYZ=290*380*60mm |
XYZ=210*300*60mm |
|
Machinable material thickness |
≤100mm |
≤70mm |
≤70mm |
|
Dimensions |
750*570*390mm |
525*400*290mm |
440*310*290mm |
|
Frame material |
6061-T5 aluminium alloy |
6061-T5 aluminium alloy |
6061-T5 aluminium alloy |
|
Track type |
Chrome-plated + linear bearing |
Chrome-plated + linear bearing |
Chrome-plated + linear bearing |
|
Spiral type |
Ball screw, diameter of 16mm, Thread pitch 5mm |
T-screw, diameter of 12mm, Thread pitch 2mm |
T-screw, diameter of 12mm, Thread pitch 2mm |
|
Ball screw, diameter of 12mm, Thread pitch 4mm |
Ball screw, diameter of 12mm, Thread pitch 4mm |
||
|
Mechanical resolution |
XYZ axis:0.0025mm/step |
XYZ axis:0.0025mm/step |
XYZ axis:0.0025mm/step |
|
PositionaI accuracy |
0.05mm |
0.05mm |
0.05mm |
|

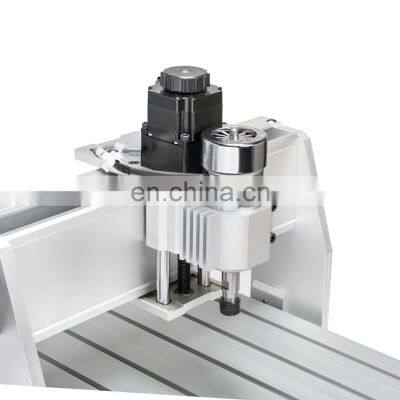

Spindle motor |

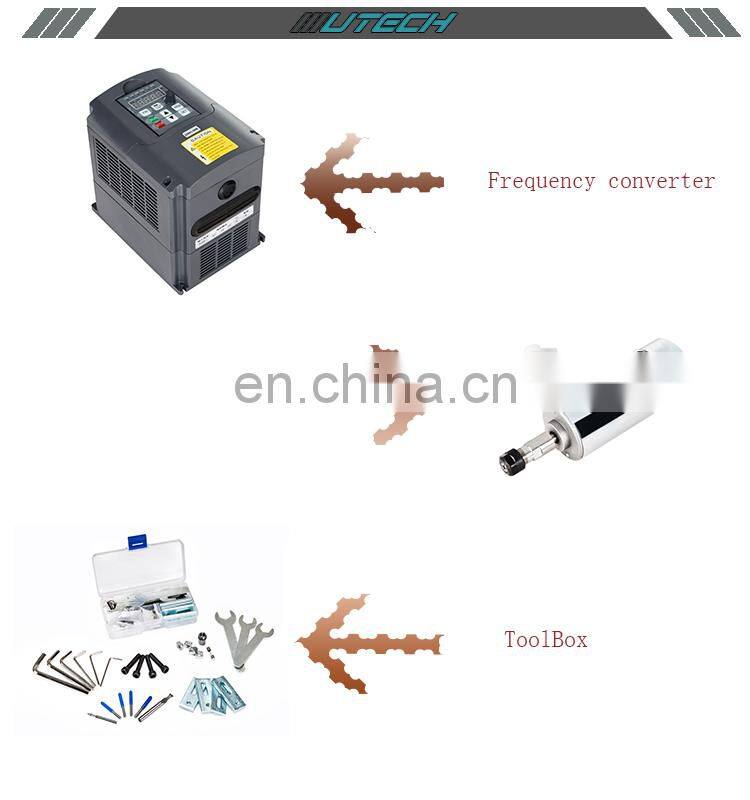

Frequency conversion spindle, 0.8kw |
2-300W DC spindle |
2-300W DC spindle |
|
Revolving speed |
24000rpm/min |
11000rpm/min |
11000rpm/min |
|
Holder |
ER11(3.175mm,6mm) |
ER11(3.175mm,6mm) |
ER11(3.175mm,6mm) |
|

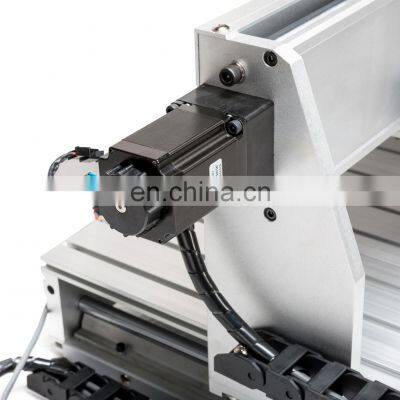

XYZ motor |
Stepper motor JK57HS76-4204B-01AF |
Stepper motor JK57HS41-2004XB-01AF |
Stepper motor JK57HS41-2004XB-01AF |
|
Stepper driver |
High performance, independent of each axis |
High performance, independent of each axis |
High performance, independent of each axis |
|
Feed rate |
2000mm/min |
1500mm/min |
1500mm/min |
|
Communication Interface |
USB2.0 |
USB2.0 |
USB2.0 |
|
System requirement |
WIN-XP or WIN-7 |
WIN-XP or WIN-7 |
WIN-XP or WIN-7 |
|
Instruction code |
G code/.nc/.ncc/ .tab/.txt |
G code/.nc/.ncc/ .tab/.txt |
G code/.nc/.ncc/ .tab/.txt |
|
Voltage |
Input 85V-240VAC(400HZ) |
Input 85V-240VAC(400HZ) |
Input 85V-240VAC(400HZ) |
|
Operating environment |
Temperature: 5℃-40℃; Humidity: 35%-80% |
Temperature: 5℃-40℃; Humidity: 35%-80% |
Temperature: 5℃-40℃; Humidity: 35%-80% |
|
Packaging size |
45.8kg (86*62*48mm) |
28.5kg(63*51*42 mm) |
22kg(51*40*38.5mm) |
1. Milling and engraving CNC machines allow to realize any of your ideas. All you need is to prepare a model / vector in the program and submit the job to the machine , the rest themselves.
2. UTECH 3040 3axis 800W - is a professional mini- size machine with working area 300 x 400 mm (30 x 40 cm). Has the most powerful ruler in the spindle: XYZ. The spindle has a water cooling - it provides reliability and long service life.
3. Difficult to think of the problem, which cannot handle this car. The only limitation to the possibilities in front of large and heavy brethren: Stage size and speed of processing, and in the aggregate: functionality, compactness and price - out of competition.
4. The machine can easily be placed in a small workshop or home. Will apply for relief 3d- treatment (three-dimensional objects , reliefs, souvenirs, cliche) , engraving (personalization items , creating labels , jewelry , engraving PCBs ) , all types of
cutting (letters and labels , signs , models ) , drilling.
1.Are you a factory or trading company?
We are the manufacturer. As only the machine made by ourself ,quality can be trusted,
and most important thing is we can do better serivce after sales.
we know how to fix the problem in each parts easliy. so welcome to visit to our factory.
2. If machine has any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will provide 24-hour telephone and online service support.
3. Does U-MAY have maintenance manual and operation manual?
Each cnc machine leaving the factory will be along with related series or model the English instructions including maintenance manual and operation manual. Attached documentations may also include cnc controller instruction, parts instruction you bought(like rotary, oil cooler)
