Granite and Marble Cutting Machine with Automatic Tool Changer

Name: Granite and Marble Cutting Machine with Automatic Tool Changer
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

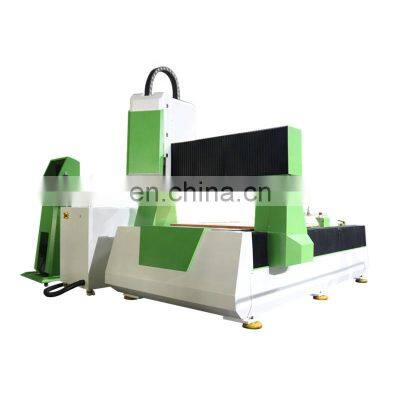

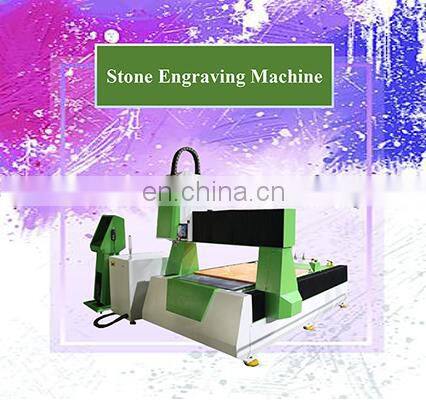

Granite and Marble Cutting Machine with Automatic Tool Changer

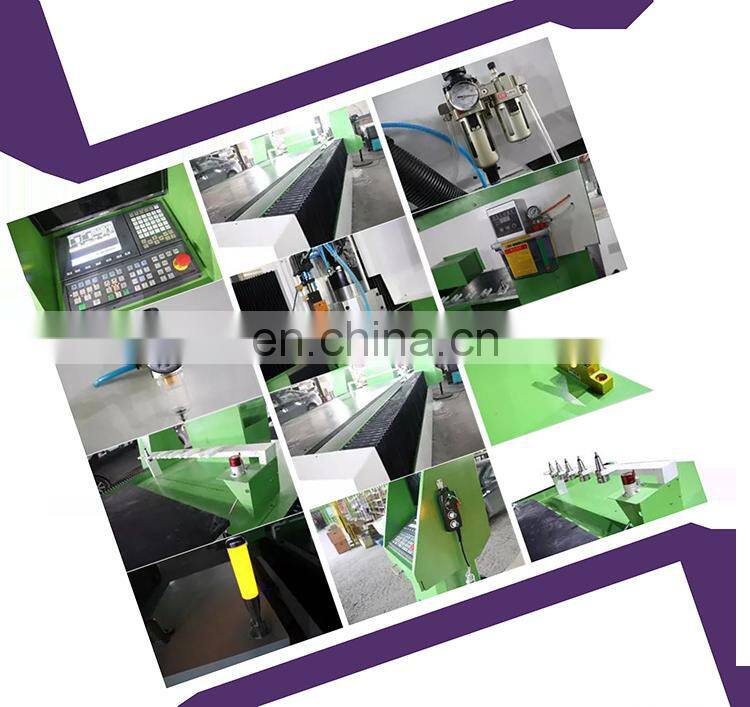

Main Features:

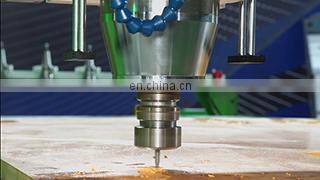

1. The raw material of I-beam is mainly iron and steel. Its impact resistance and wear resistance are better than the substitutes of other materials, with aging resistance and long service life; 2. The machining precision of the automatic tool change water-cooled spindle is very high, the high-speed operation ensures the machining precision, and greatly improves the working stability of the engraving machine; 3. The teeth of German VASTUN helical rack are flat and uniform, and the operation is smooth without deviation and jumping; 4. YASKAWA servo motor has good high-speed performance. Generally, the rated speed can reach 2000-3000 rpm. Secondly, it has strong anti overload ability and can bear three times of the rated torque load. Thirdly, it runs stably at low speed. Fourthly, the dynamic response time of motor acceleration and deceleration is short, generally within tens of milliseconds. Fifthly, the heating and noise are significantly reduced.

Application Industry

Applicable industry:

stone, tombstone processing, advertising, decoration, wood furniture, handicraft industries. It can be for murals, marble, granite, tombstone, milestones, tile and other stone carvings for text and graphics engraving and relief. glass, wooden fish stone and other hard materials engraving and cutting.

Product Paramenters

Model	UT-1020
Working Area	10002000450mm
Table structure	I-beam load-bearing heavy duty table+PVC plate
Transmission Device	German VASTUN helical rack
Travel speed	0-25000mm/min
Working speed	0-18000mm/min
Driving mode	Yaskawa 750w servo motors and driver+ Z axis brake servo motor+ Japan SHIMPO reducer
Spindle power	7.5kw stone special ATC water cooling spindle
Spindle speed	0-24000rpm
Tool changer	BT40 Automatic tool changer*6
Command code	HPGL G-code
Working voltage	AC220V/Hz
Device interface	Standard PCI/USB interface optional
Resolution	0.01mm
Machine size(WDH)	330020002260mm
Reducer	Japan SHIMPO reducer
Weight	1500kg

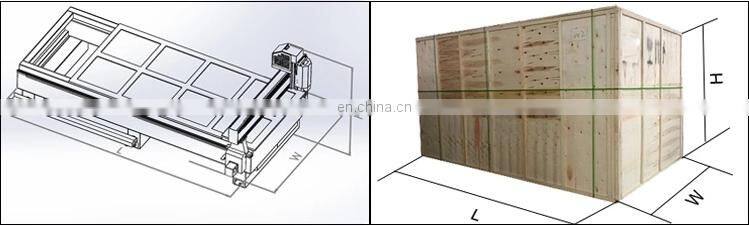

Product packaging

Packing Wooden Case L*W*H (mm) Machine Size 3300*2000*2260 mm

1. All the spare parts of the machine were covered by some soft materials, mainly avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.

2. The outmost is standard wooden case with fixed formwork. The bottom of the wooden case has firm iron jack, convenient to handling and transport.

Certifications

Company Profile

Shandong U-MAY CNC Technology CO., LTD.

Shandong U-MAY CNC Technology CO., LTD. Is located in Jinan, the spring city of China. The brand name on the market is UTECH, which is a new brand launched by the company since its construction in 2014. The main products of the company are CNC machine tools, laser engraving machines, plasma engraving machines, fiber laser marking machines, etc. Regarding products, we have been adhering to the business philosophy of "Smart Solution, Better Tomorrow", aiming to provide the CNC engraving machines with high quality and excellent guarantee for the whole world. In recent years, our company has followed the development of The Times and entered the transition period. By 2019, our carving machines are more actively sold to North America, the Middle East, Western Europe, southeast Asia, Africa, South America and other regions, and have a stable dealer agency in some regions.

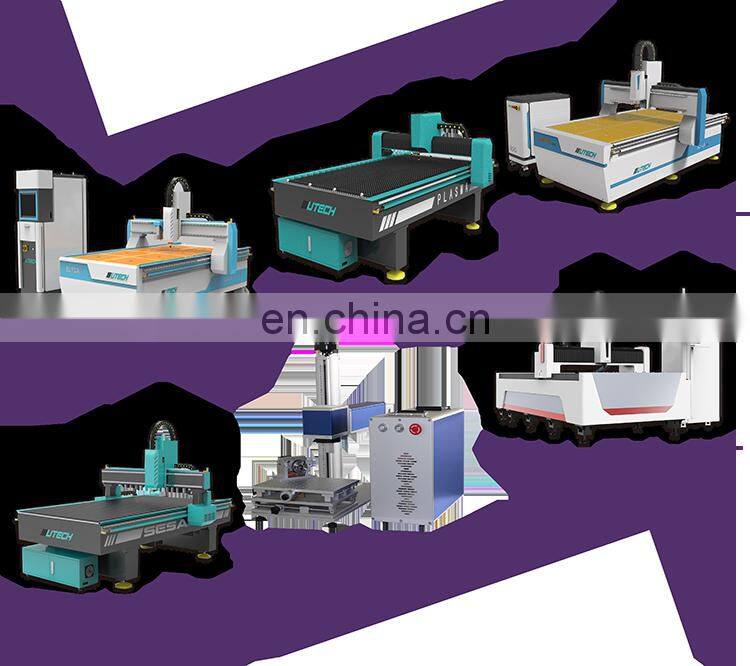

Our Products

Exhibition

Team elegant demeanour

Customer Feedback

Our Service

Pre-Sales Service

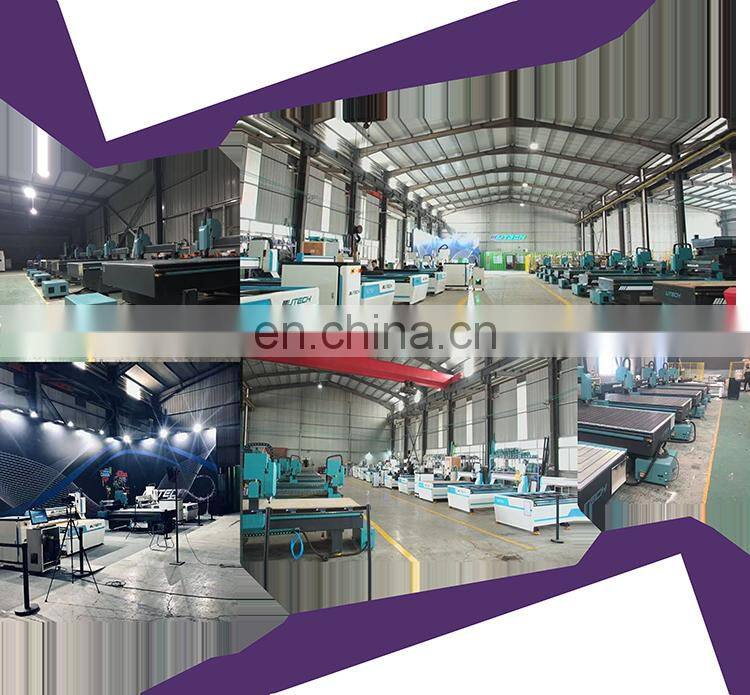

Ⅰ Inquiry and consulting support. 10 working days to produce the machine, meanwhile, we will report the production process in time. Ⅱ Sample testing support. Ⅲ View our Factory

After-Sales Service

Ⅰ Training how to install the machine, training how to use the machine by internet. 24 hours technical support by email, calling , if u have any problems, we will within 12 hours to solve it. Ⅱ Some machine parts ( quality problems ) can be free charge to replace it within warranty.

FAQ

1. How to guarantee the product to me? Is the purchase procedure complicated? After you purchase Stone CNC Router, we will keep in touch with you. The specific delivery process is in accordance with international trade practices, you can rest assured. If there is any doubt on some matters, the two sides can negotiate and deal with it. 2. What should I do if the product is found defective upon receipt of the goods? Under normal circumstances, we will make strict inspection and test before the product leaves the factory. Video inspection is allowed if conditions permit. If you have time, you can come to our factory for on-site inspection. We will mail the missing parts and components in time. 3. How is the product packaged? Product packaging is divided into three layers. The outer box is made of wood craft box.In the middle, the machine is covered with foam to protect it from vibration. The inner layer is waterproof and moisture-proof with thickened plastic bags. 4. Why can you trust us? Our products are of high quality. We import important parts and components from Taiwan, Japan, etc., and have a series of relevant certificates as the basic guarantee. The whole process of assembly and processing has a full range of monitoring.In addition, the after-sales treatment is quite rigorous, and we will have technical staff to answer questions online in time. 5. What kind of factory is it? Our company belongs to typical industrial and trading a shape, a statement that it is very important, because the factory can control the machine quality, and trade departments can correct fully introduce to the buyer, integrating two department, not only guarantee the product quality, and can do real-time docking factories and sales staff, saving problem to deal with the wait time for you.
