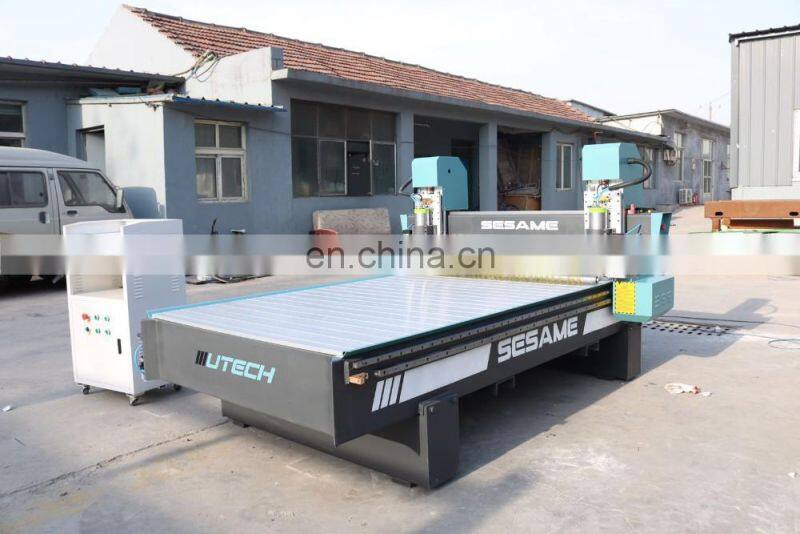

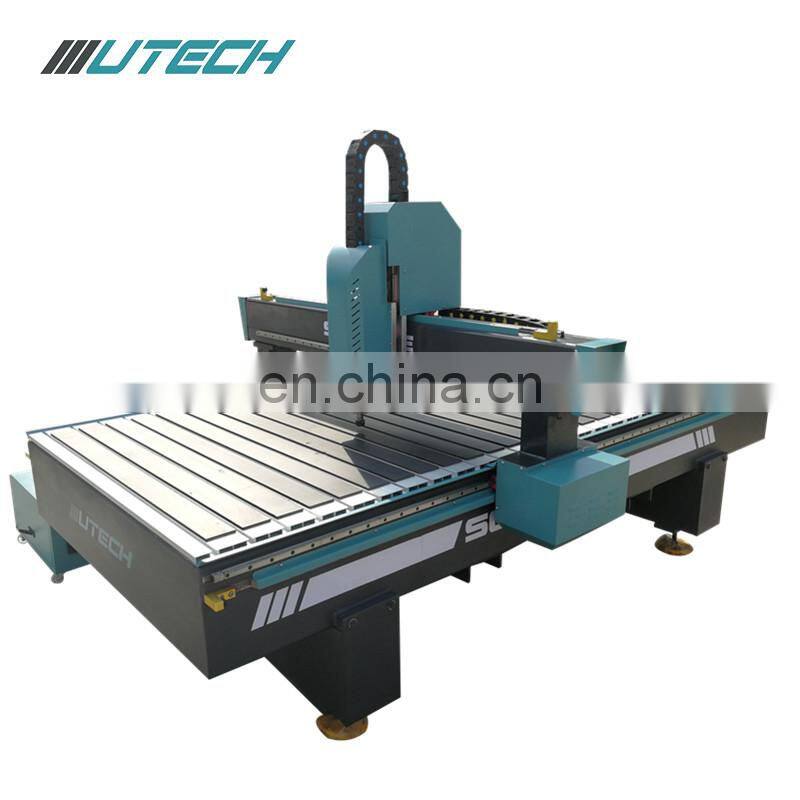

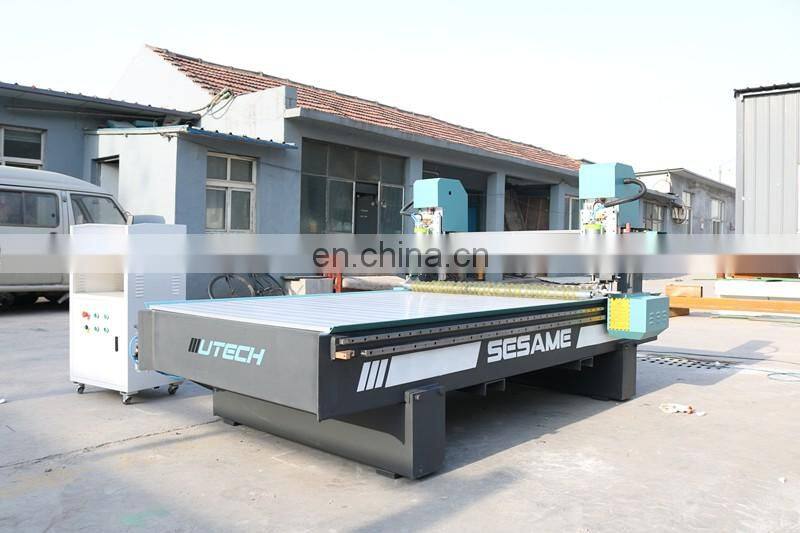

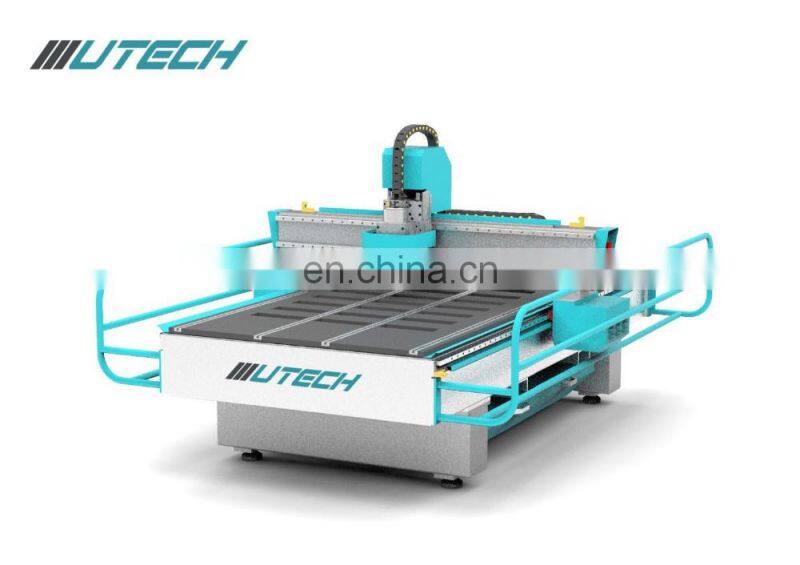

Double Head Cnc Router Machine Cnc Router 1325 CNC Woodwork Machine

double head cnc router machine cnc router 1325 CNC Woodwork Machine

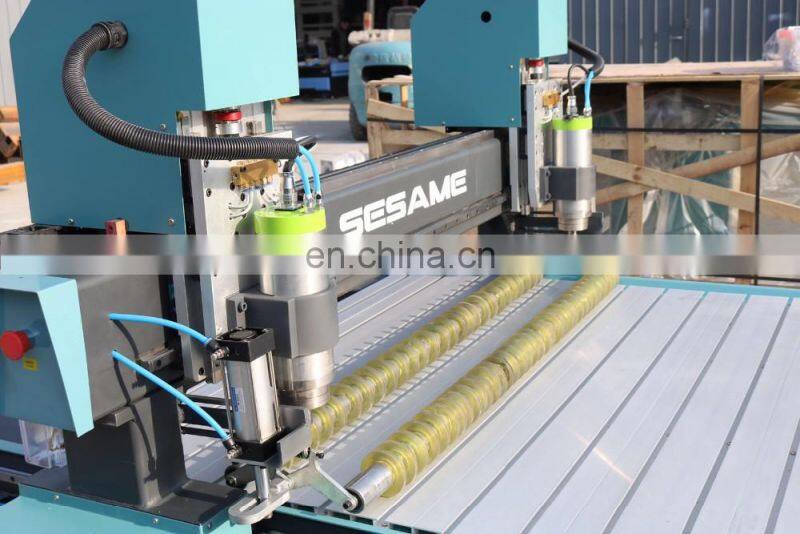

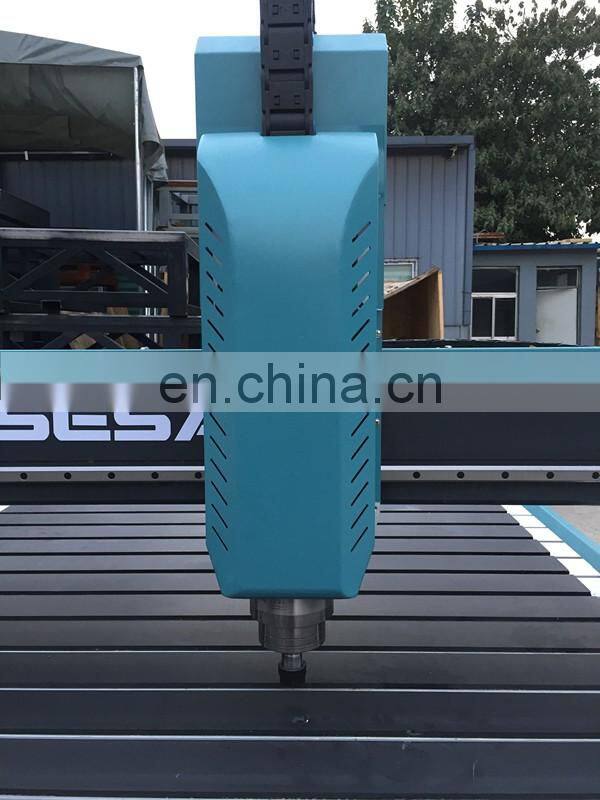

Because the accuracy of cnc router machine greatly depends on the spindle. The High-quality SESAME series CNC Router machine comes with 3.2kw water or 3.5 air cooled high-frequency spindle. This precision spindle requires no maintenance, uses industry standard ER collects. Fully programmable speeds from 6000 to 24000RPM, and comes complete with pneumatically retractable vacuum hood.

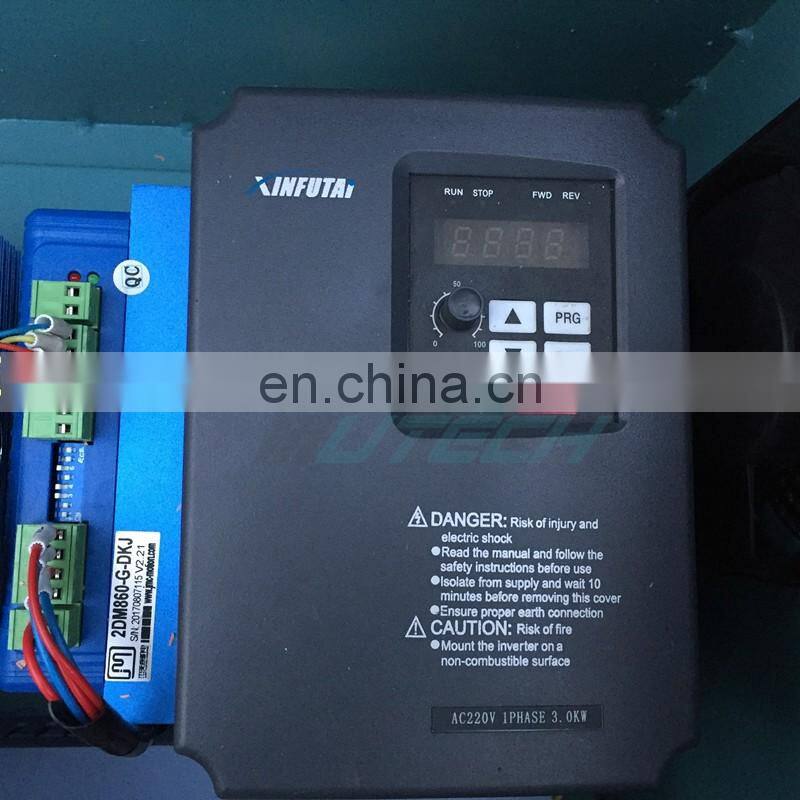

3.7kw Xinfutai/Fuling Inverter(VFD).

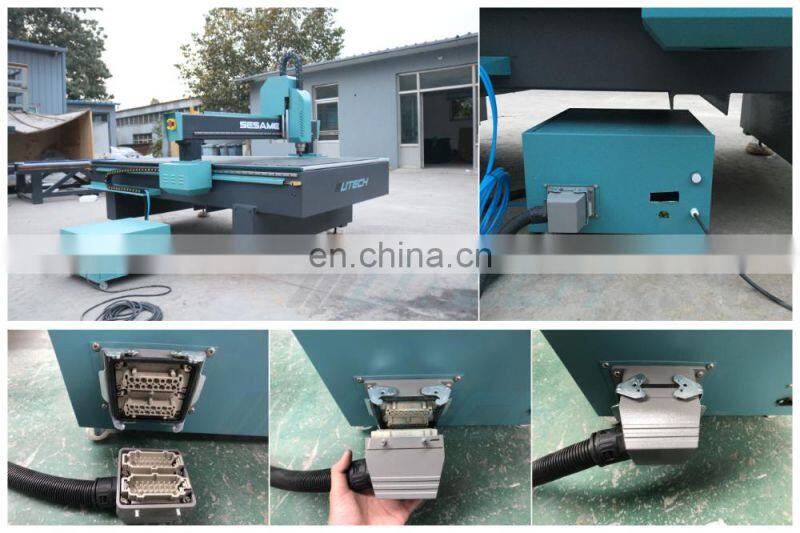

The whole electrical system is consisting of a CNC machine, variable frequency drive, time relay, and brake assembly.
We adapt 3.7kw VFD, Greatly improve the machining accuracy and production efficiency of CNC machine, play an important role in product quality improvement, production increase, cost decrease, automation level increase, and maintenance reduced.

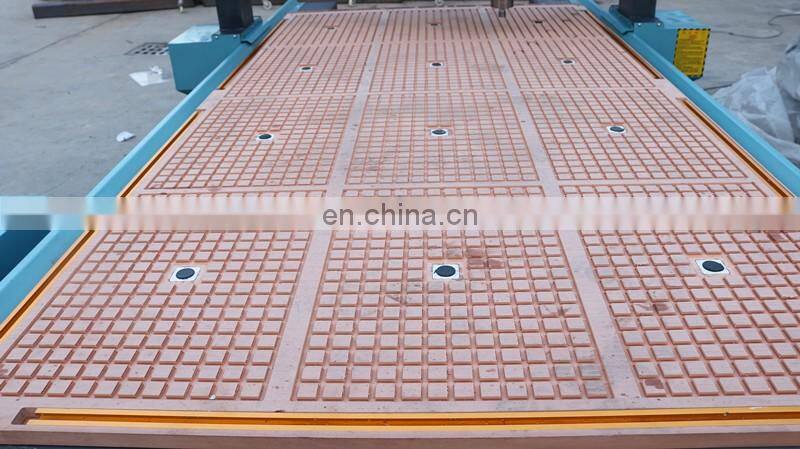

Vacuum table with T-slot.

Vacuum tables are devices that use suction to securely hold workpieces during machining. They are most commonly used during CNC cutting, whether with a mill or router or with a drag knife. They can be various sizes, and they are comprised of a perforated table top connected to the vacuum chamber, and a vacuum pump that continuously applies suction.

you can also choose T-slot table

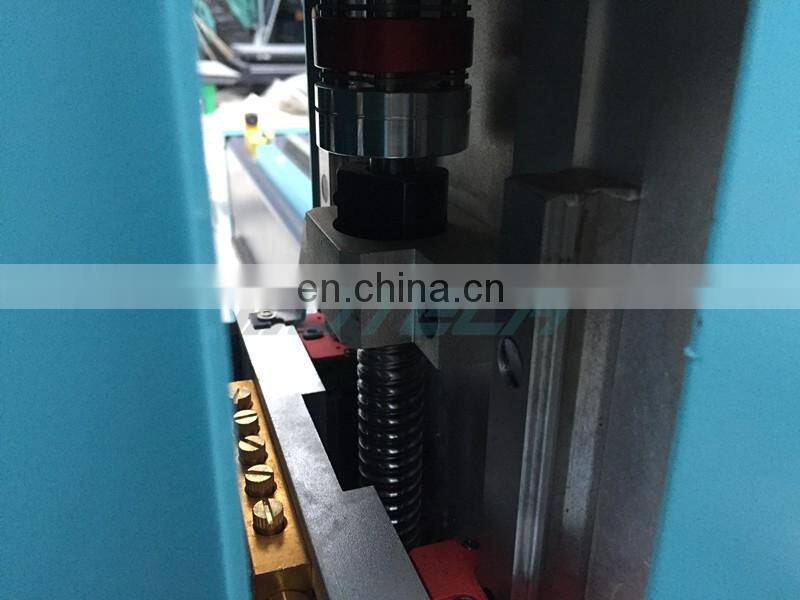

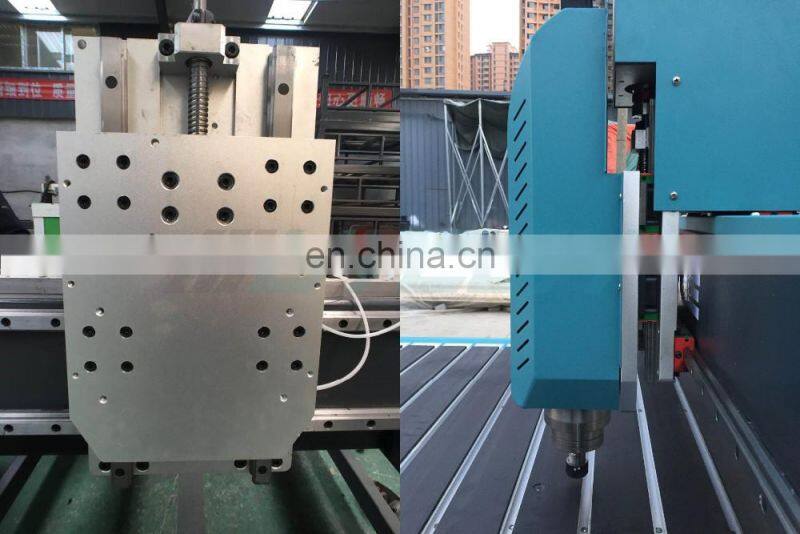

Z-axis Transmission Way.

TBI High-Precision Ball-screw Transmission (Taiwan)

X, Y axis Transmission Way.

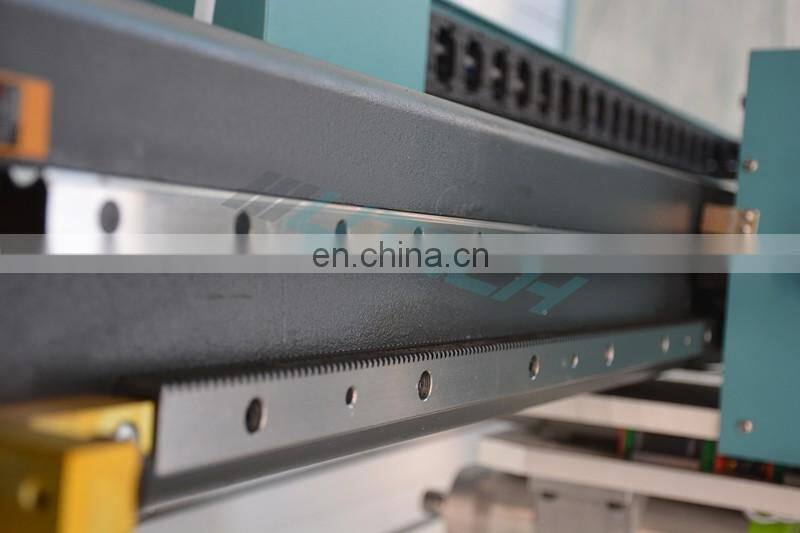

Precision 1.25 module helical rack gear.

Helical teeth gears provide continuous engagement along the tooth length and are often quieter and more efficient than straight tooth gears and also offer higher loading for same rack width. Helical tooth gears resemble spur gears in the plane of rotation but include teeth that are twisted along a helical path in the axial direction.

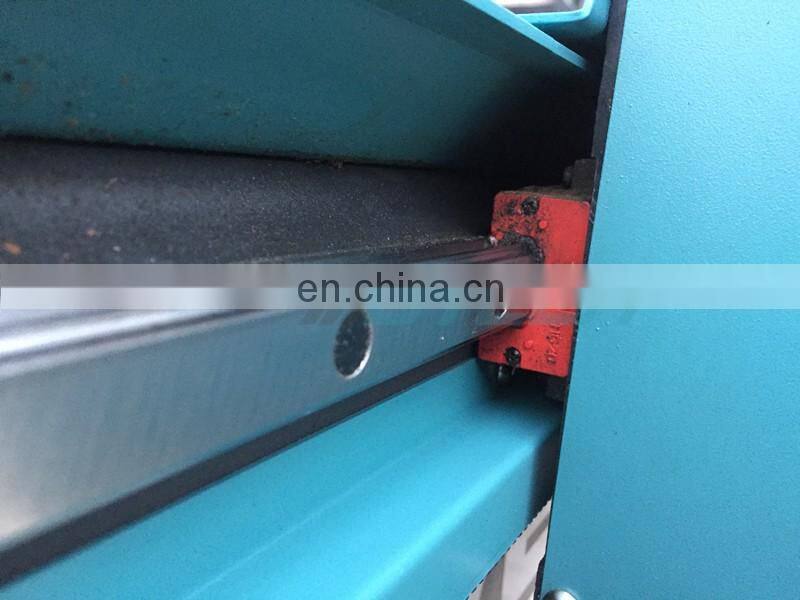

Transmission guide.

PMI Linear guide+High assembly Flange slider
(1)High positioning accuracy, high repeatability
(2) Low frictional resistance, high precision maintained for the long period
(3) High rigidity with four-way load design
(4) Suitable for high-speed operation
(5) Easy installation with interchangeability

Stepper motor.

The stepper motors are installed on all axes to ensure precise positioning of the gantry and the spindle in accordance with a predetermined program at high speed. Stepper motors are well proven high degree of reliability.
The machine is installed 4 sets of motors and Driver. Y-axis

use double motors drivers way.

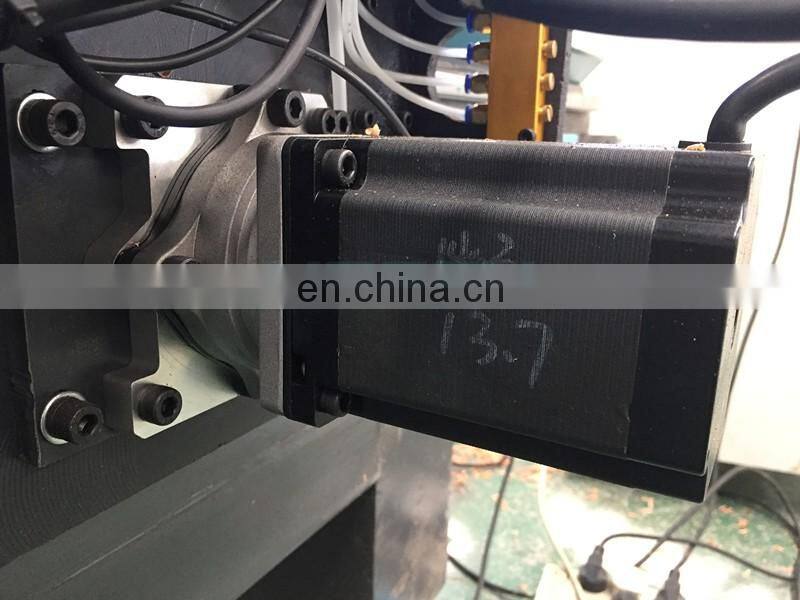

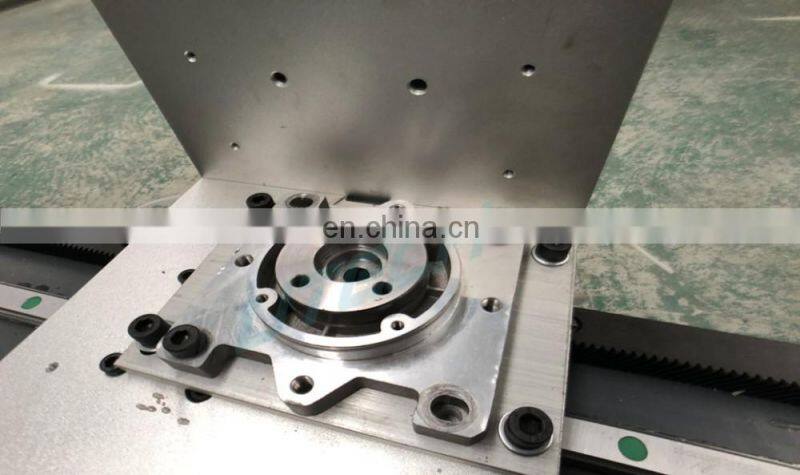

Utech Patent 1:4 Reducer Structure.

Patent design 1:4 gear reducer install on the driving motor, makes the motor is more powerful, and having a long time service life.

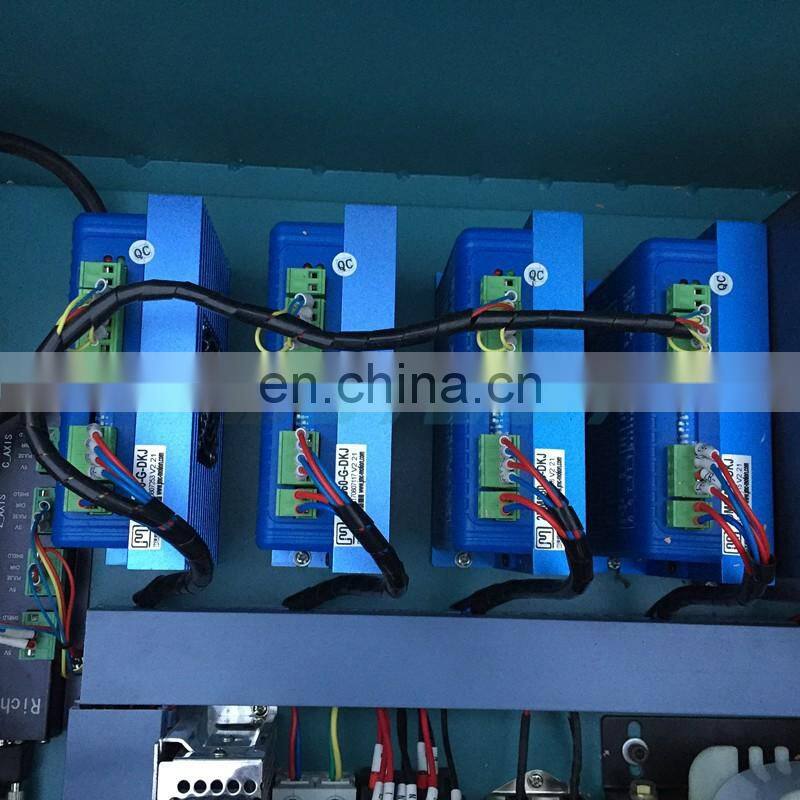

Stepper Driver.

Selecting a chopper driver and configuring it for a specific motor requires a good understanding of both the motor and the controller. Mismatched motors and drivers can result in disappointing performance. Or worse: damage to the motor and/or controller. we deal with the most important part: making sure that your motor and driver are compatible

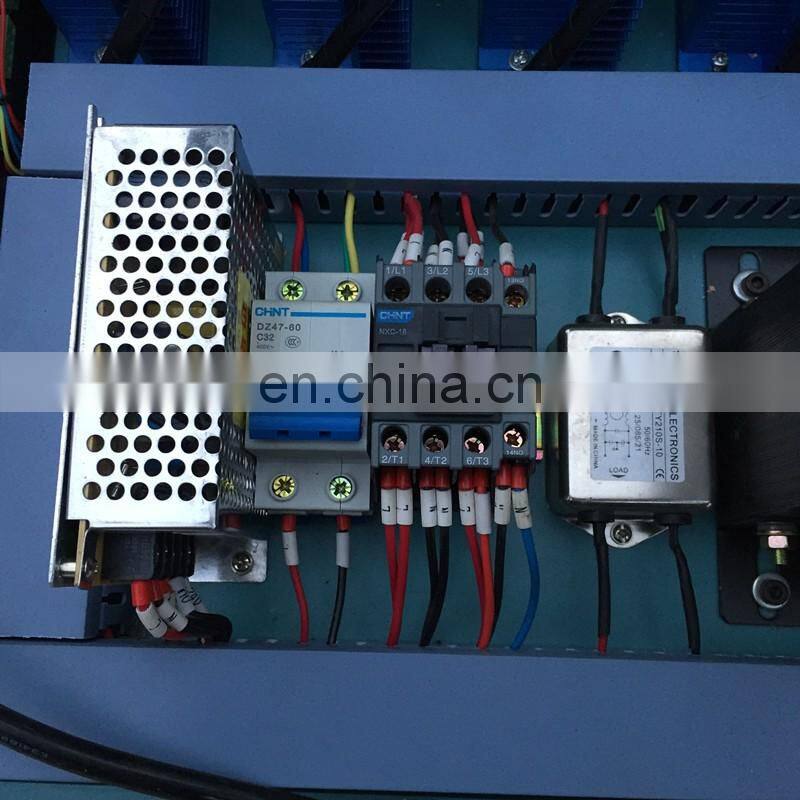

Famous electrical components.

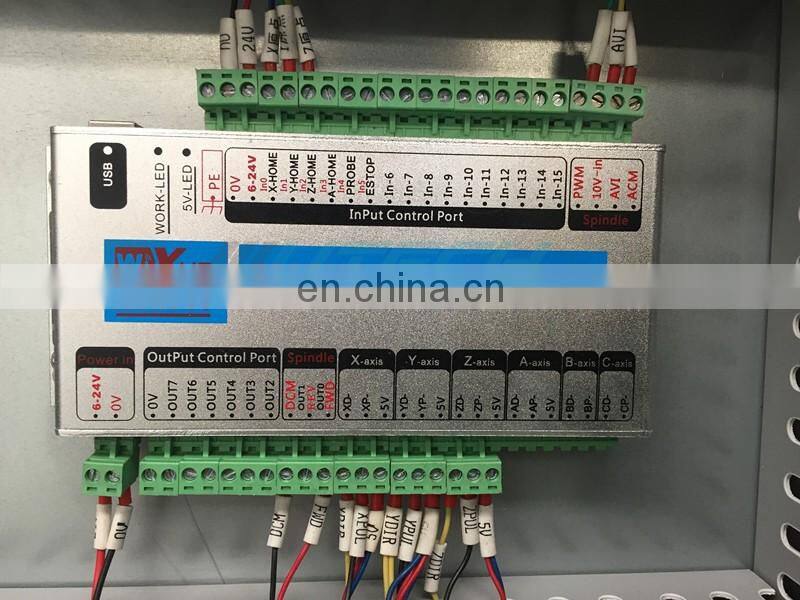

Mach3 control system.

You can choose Richauto A11DSP controller

Mach4(Ethernet Controller), Weihong DSP controller,

Taiwan Syntec, NC-studio 53C,95A with Wifi controller

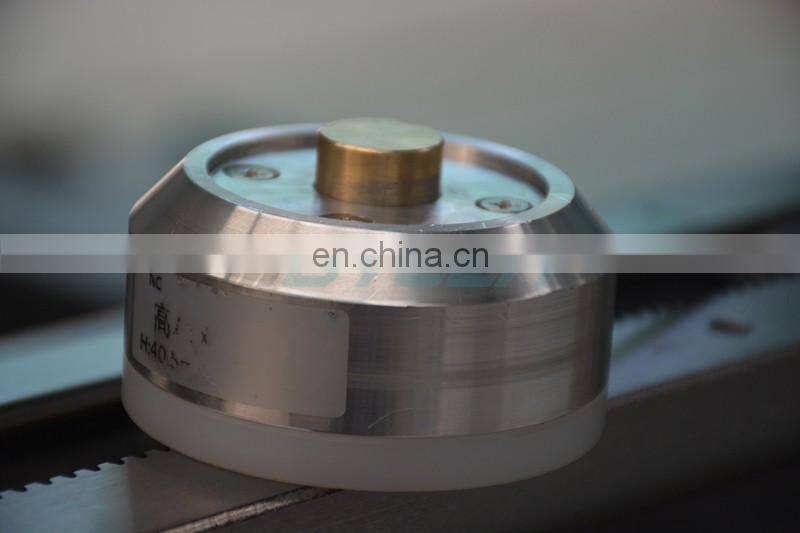

Tool sensor.

This device takes the guesswork out of tool changes and ensures that every tool path that you run is accurate. Consistent Z height across tool changes is critical, especially when running multi-tool jobs like cabinet work, raised panel doors and intricate 3D carving projects.
CNC Tool Sensor allows for easy and accurate "Z" zero position for single and multiple tool changes through the program.

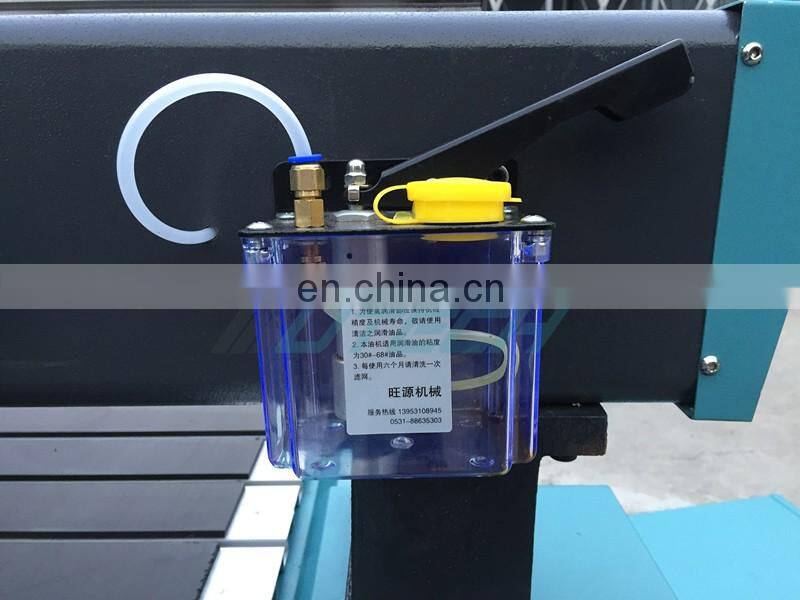

Manual oil lubrication system.

Protecting machinery is an ongoing responsibility. To guarantee high performance over the course of time requires both long-term and spontaneous maintenance. A manual lubricator not only distributes grease or lubrication for a variety of large machinery, but it also allows operators to do so in a timely manner.

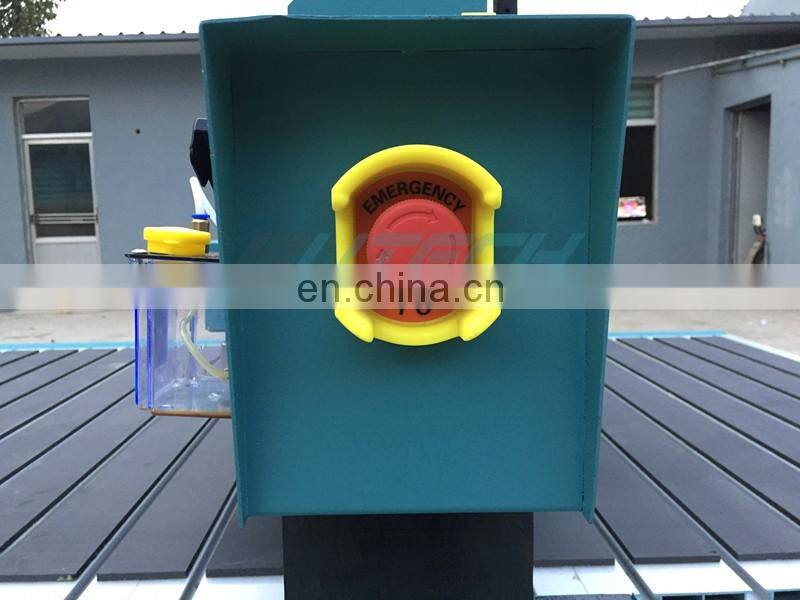

Double Insurance Emergency Stop Button.

There is double insurance emergency stop switch. In case of any emergency, the worker can press any emergency stop button and the machine will stop working.
