UTECH CNC Router Machine Manual Router Woodworking With Low Price CNC

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

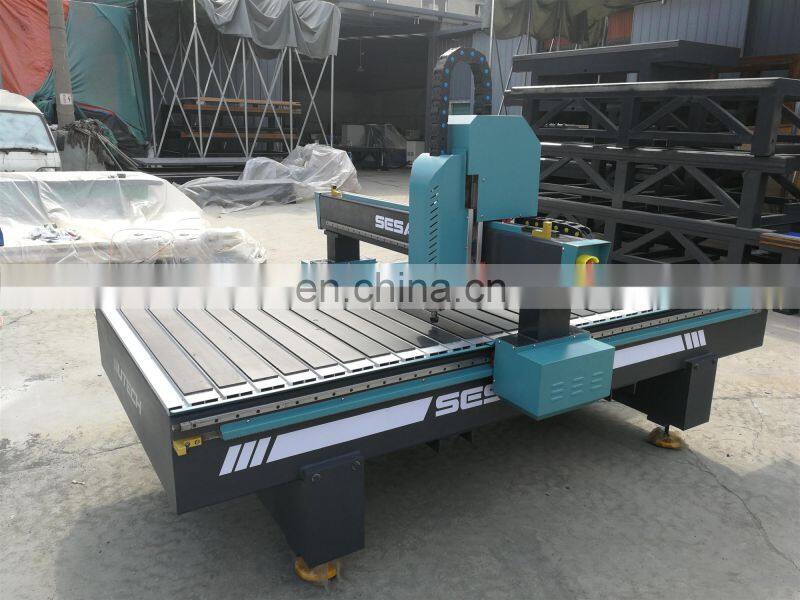

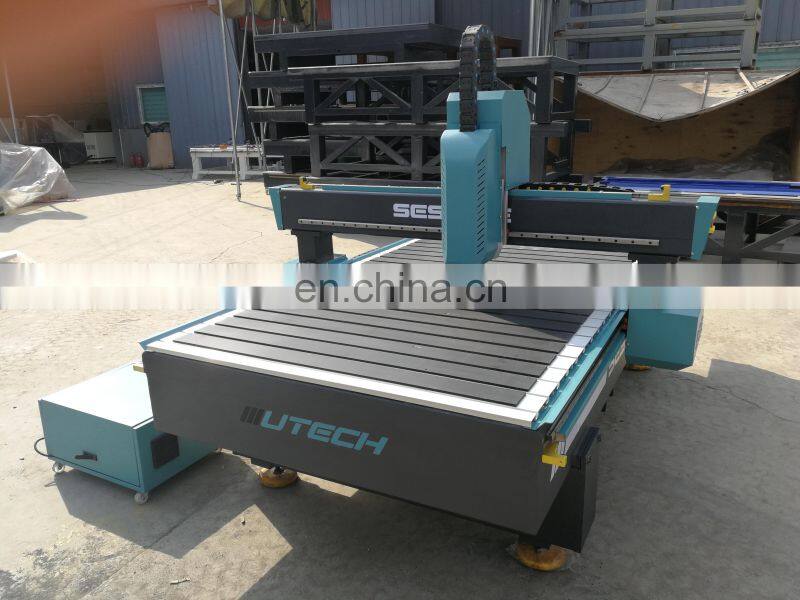

UTECH CNC router machine manual router woodworking with low price CNC

Product Description

Automatic furniture making machine 1325 wood CNC machine price for wood door in the most used engraving model number.The maximum processing size of this type of woodworking carving machine is 250cm in length, 130cm in width and 20cm in height.Mainly used in wood doors, density board cutting and carving.1325 woodworking carving machine according to the configuration level, also generally divided into 1325 automatic knife change woodworking carving machine and ordinary single or double head woodworking carving machine.

Performance parameters:

Description	Parameter
X, Y, Z Working Area	1300x2500x200mm
Table Surface	Aluminum T-slot or vacuum working table
Structure	Square pipe welding bed structure+150*200mm gantry
X, Y Structure	XY axis by helical rack transmission
Z Structure	Taiwan TBI Ball screw and Taiwan PMI 20 Linear guide
X, Y Resolution	<0.01mm

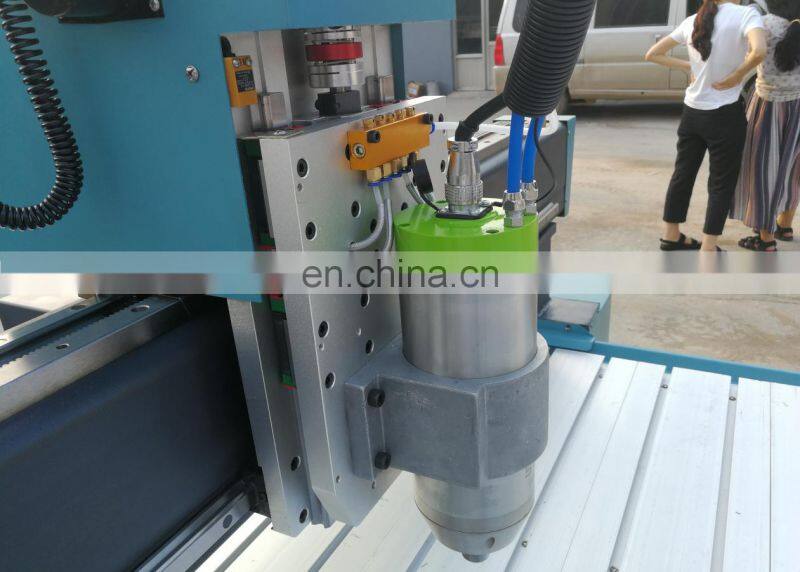

Spindle Power	3.5KW HQD air cooling spindle/Utech 3.2kw water cooling spindle
Spindle Speed	0-24000RPM
Drive Motors	Stepper motor and drive(Servo is optional)
Inverter	3kw Inverter
Control System	Nc-studio or DSP A11 handle controller with USB port
Lubrication	Manual Lubrication system
Tool sensor	Manual tool sensor calibration
Option A	dust collector with 2 pockets (according to your needs)
Option B	Vacuum table and 5.5kw vacuum pump (according to your needs)
Option C	Servo motor&driver+Japan SHIMPO reducer
Option D	Oil mist cooling system
Option E	Rotary axis
Option F	CCD camera
Option G	Oscillating knife
Option H	Auto tool changer
Control box	Independent Control box
Limit switch	Japan OMRON limit switch for X, Y, Z axis
Command Language	G Code
Computer Interface	USB
Software Compatibility	ARTCAM software, (Option: JD Paint, Ucancam, Type3 Software)
Running Environment Temperature	0 - 45 Centigrade
Relative Humidity	30% - 75%

Detailed Images

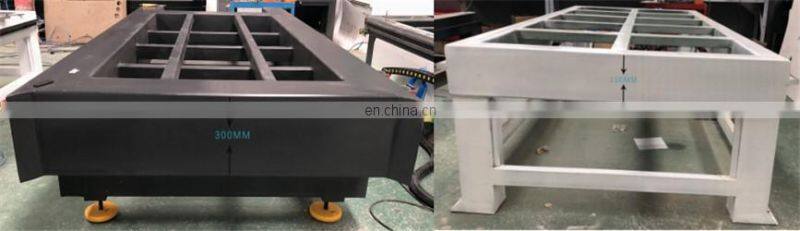

Ordinary engraving machine body part with cast steel pipe welding, bearing capacity is insufficient, the stability is not strong, easy to use for a period, deformation, the serious influence the use of engraving machine performance, the original use 200 * 300 mm heavy thickening bed, obviously improve the bearing capacity, good stability, long-term use of deformation, to further improve the overall performance of engraving machine.

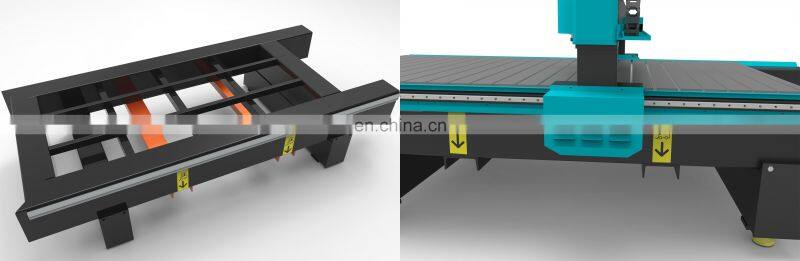

Forklift loading and unloading reserve space, can better protect the body and cargo's carrying capacity.

Sesame is the most prominent feature of the bed body and the bed frame can be separated freely, which can be easily disassembled and installed, saving transportation cost for customers

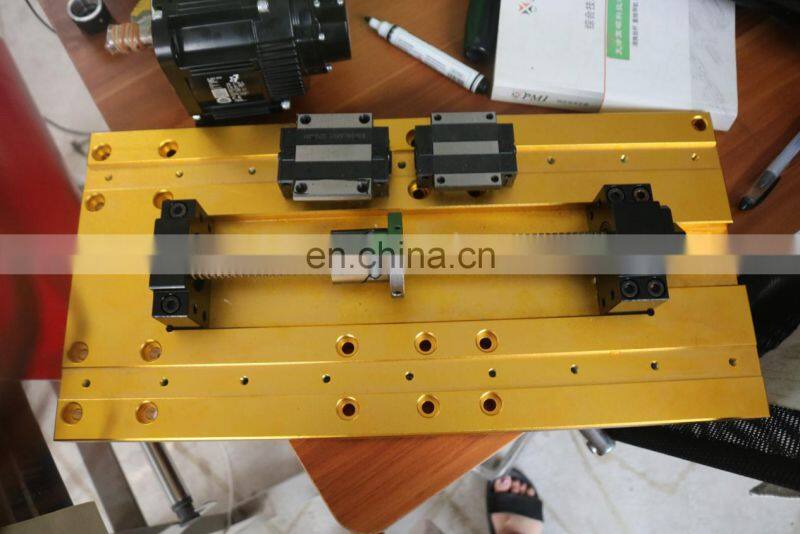

Aircraft Aluminum Headboard

Aviation aluminum is a kind of ultra-high strength deformation aluminum alloy, which is widely used in aviation industry.It has good mechanical and processing properties, good plasticity after solid solution treatment, good heat treatment strengthening effect, generally under 150℃(or more) has high strength, good toughness, is an ideal structural material

TBI ball screw

TBI leads are more efficient than sliding leads and require less than 30% of the required torque.It is easy to convert straight motion into rotary motion.TBI screws maintain smooth performance even when preloaded.

Double dustproof structure

PMI guide rail and rack with dual dustproof structure, can effectively protect the rack and guide rail

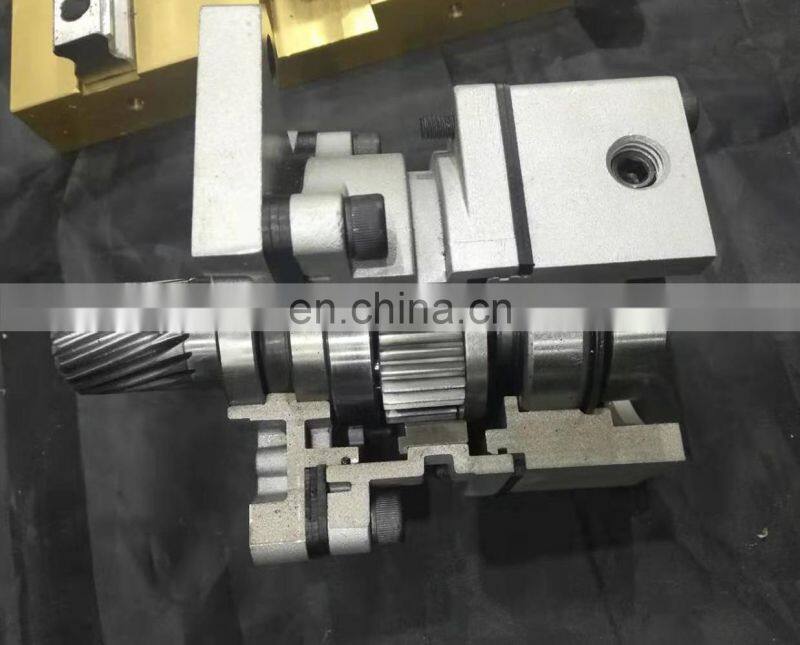

UTECH patented stepping reducer

The patented reducer replaces the traditional belt drive and is equipped with a 1:4 high-precision stepping motor, which can effectively increase the stability of operation

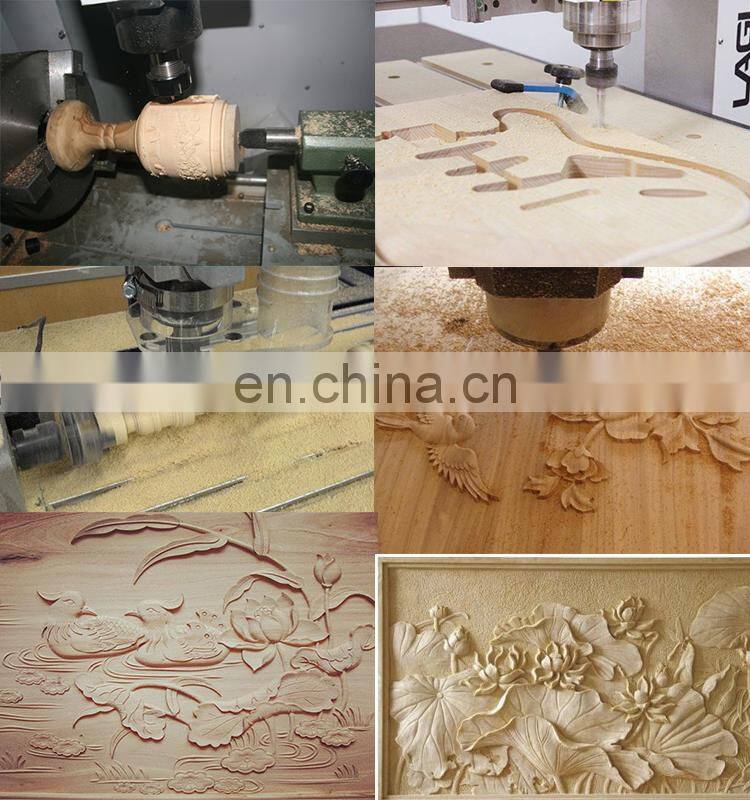

Application Industry

It is suitable for mass processing of solid woods, MDF, Composite boards, Alucobond, PVC, Rigid plastics,Acrylic Sheets, Glass, Organic glass, Aluminum plates and other materials.

//Furniture Industry
they can be used to engrave Text, Pictures, Imagines on solid Wood doors, Composite gates, Cupboard

doors, interior doors, sofa legs, headboards, antique furniture and other panel furniture.
//Decoration Industry
They are applicable to engrave various decorative patterns on the surface of decorative paintings, screens, three-dimensional wave boards, and acoustic boards.
//Musical Instrument Industry
They are suitable to engrave decorative patterns on the head of musical instruments, or to process the semi-finished guitars. It also can make three dimensional curved surfaces.
//Mould Industry
They can make wood moulds, evaporated pattern casting moulds, food moulds, and other moulds.
//Craft Industry
They are used to engrave decorative patterns on relief craftworks, pendants, automobile accessories and other craftworks.
//Advertising Industry
They are applied to cut or engrave patterns on acrylic. It also can make acrylic adsorption moulds,

chest cards and various label plates.

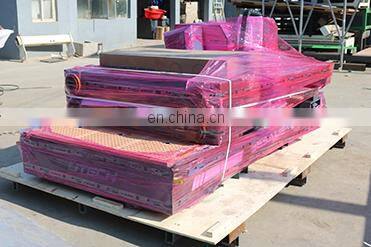

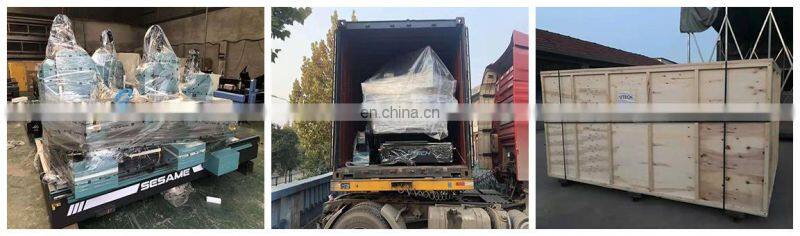

Packing&Shipping

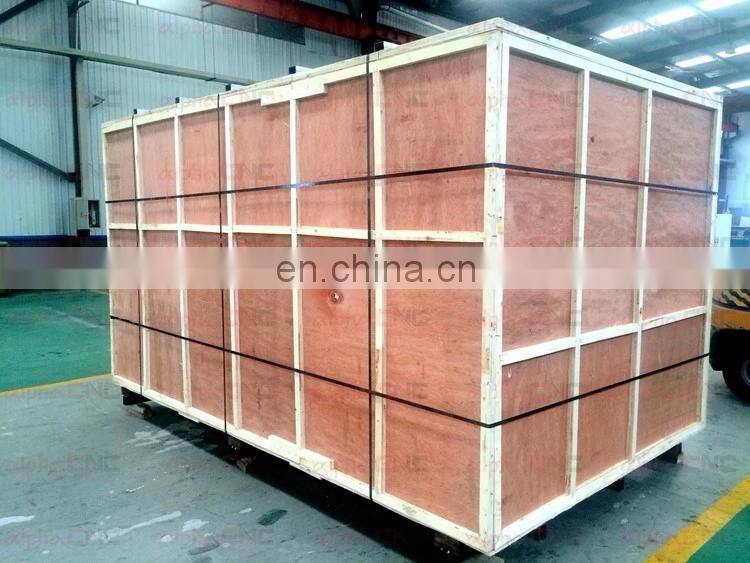

1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.

After Sales Service

Our Services & Strength

The original product is popular with overseas customers, our customers and agent distribution in many countries, we have good after-sales experience, if you need we can also provide training engineers door installation, all the machine warranty for a year, even out of the warranty period, we can also provide consulting service for you and will replace any accessories agent price, your trust is greater than all.

Related Products

Company Introduction

Our company is dedicated to research and development and production of engraving machine industry and trade company, we have professional engineers and sales team to solve your problems and provide you with the most satisfactory machines, we are very welcome you to visit the factory.

FAQ

Q1. How can I trust your company and your products?

The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of the factory. The testing video and pictures will be available before delivery.

Q2. What certificate the machine in your company get?
We’ve passed the ISO9001 Quality System Approval and CE Certification.

Q3. Can I visit your factory?

Yes! We greatly welcome customers to visit our factory!

Q4. What's your date of delivery?

For standard machine, about 15 working days; For customized machine, about 20 working days.

Q5. MOQ?

Our MOQ is 1 set machine. We could send a machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.

Q6. Does your company accept customized offer, we have special need.

U-May is a company that focuses on research and manufacture of modular cnc machines. We have a very rich experience and strong machine tool research and development capability. We are very willing to offer you customized highly-efficient equipment as long as you have certain amount of needs.

Q7. What I would do for the machine failure?

If the machine malfunction and users are unable to resolve, please email us for consultation. Our service department will respond within 24 hours.
