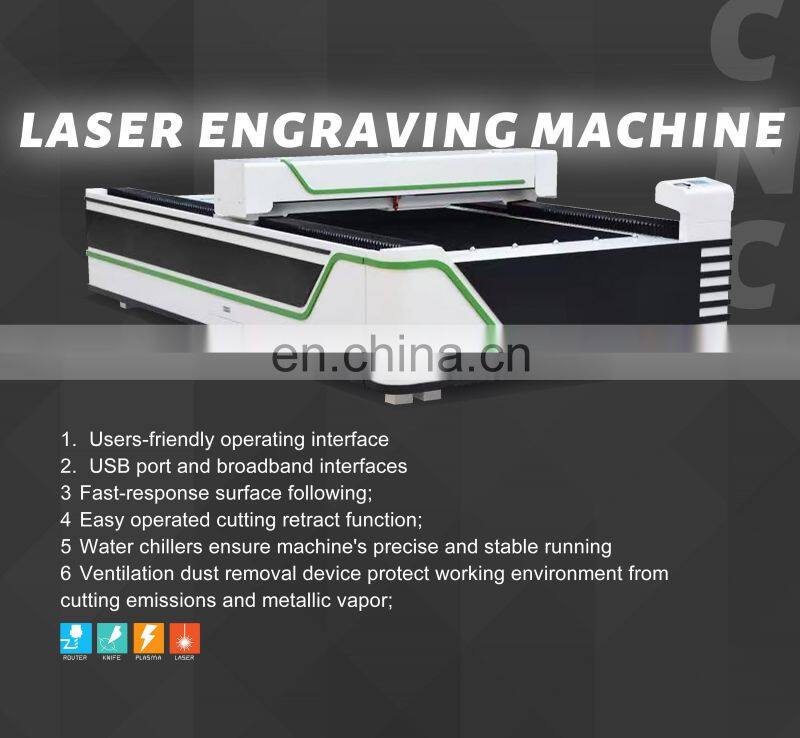

Best Seller Co2 Laser Machine Price Laser Cutting Machine Acrylic Co2 Laser Machine 80w
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Durable Co2 Laser Machine Acrylic Laser Engrave Machine 150w Laser Cutting Machine
-
High Quality Co2 Laser Engraver and Cutter Machine Co2 Laser Machines With Reci Laser Cutter And Engraver
-
Factory Wholesale Best Co2 Laser Machine Wood Laser Engraving Machine Co2 Laser Machine Price
-
Best Seller Co2 Laser Cutting Machine Acrylic Laser Cutting Machine Laser Engraving Cutting Machine
-
Durable Co2 Laser Machines 150w Co2 Laser Cutter Machine 1390 Co2 Laser Engraving Machine
-
Best Seller Co2 Laser Engraving Machine for Wood Co2 Laser Engraving Cutting Machine Foam Board Laser Cutting Machine
Product Description
Recommend Products
Product Description
1. Imported linear motion guides are used to ensure the durability of the machine. (Taiwan PMI or Japan CSK)
2. The optical lens adopts a high-strength gold-plated silicon wafer and aspheric focusing lens. Therefore, the lens is resistant to paint and high temperature and does not need to be replaced frequently, which greatly reduces the cost of use. The small focusing diameter of the aspheric lens makes the cutting effect better.
3. All-optical frames are simple in structure design, easy to adjust, and easy to maintain the lenses. (Optical subdivision threaded knob)

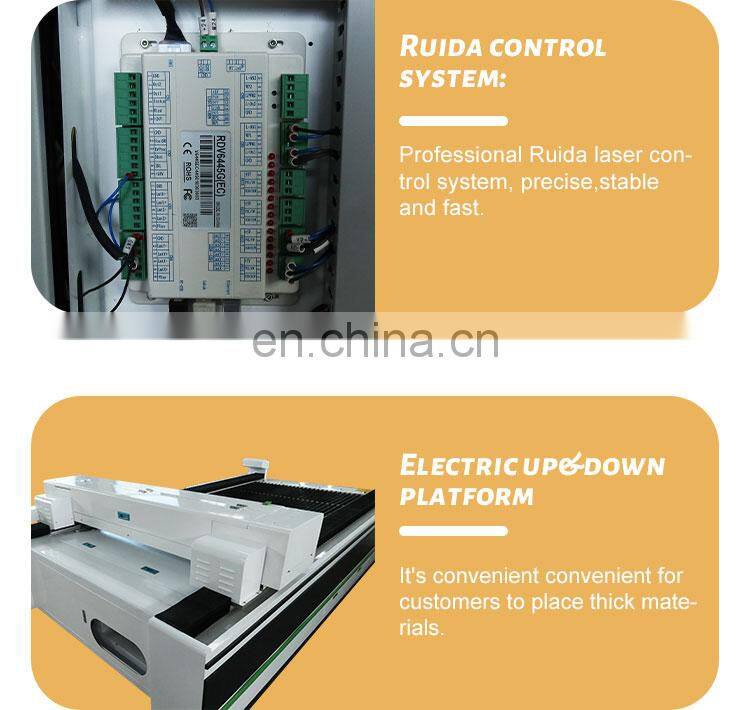

4. Adopt DSP motion control system, running smoothly. Modular unified design, installation, strong anti-interference ability, easy to repair and replace accessories.
5. The laser tube adopts forced water cooling, automatic temperature control, and water shortage alarm to ensure that the laser tube can work continuously. (CW5200 model)
6. Knife bar aluminum profile tabletop fence type is convenient for picking up and cutting.
7. Emergency stop switch device.
8. Filter, improve the anti-interference of the machine.
9. DC switching power supply.
10. Chinese and English operation panels can be selected arbitrarily.
11. Lightpath system that can be adjusted quickly.
12. Two 550W suction fans to ensure the removal of cutting smoke and dust.
13. Rack drive to ensure cutting accuracy.
14. Safety switch leakage protector to ensure personal safety.
15. Install the driver of the imported chip. (Strong stability of Leisai drive combination)
16. The mechanical system adopts a unique deceleration design, and the movement is stable and smooth. The cutting edges are smooth. The software adopts the continuous curve algorithm, and the cutting speed is faster.
Product parameter
Model | UTECH Laser Cutting Machine UT1325L | ||

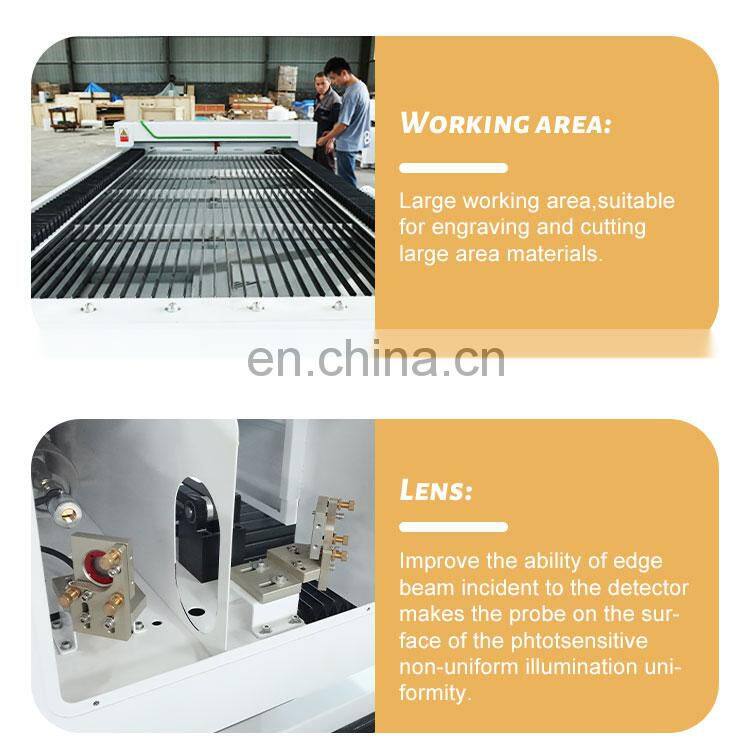

Working area | 1300*2500mm | ||
Laser power | 130W-300W (Reci/Yongli/EFR, etc) | ||
Laser tube type | Sealed CO2 glass laser tube | ||
laser tube cooling type | S&A Industrial Water Chiller CW5200 | ||
Cutting speed | 0-24000mm/min, 0-60000mm/min | ||
Repositioning accuracy | ±0.2mm | ||
Working voltage | AC 110 - 220V±10%, 50 - 60Hz | ||
Consuming power | <1000w | ||
Laser control system | RDC6442G control system | ||
Driving system | Stepper motor&driver (Leadshine, Yako, etc) | ||

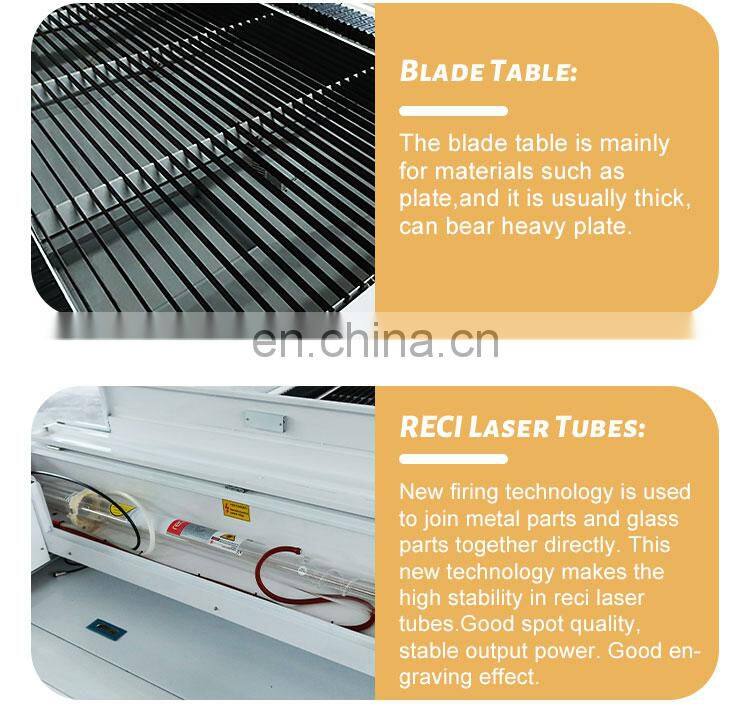

Working table | Knife Blade table | ||
Linear guide | Taiwan HIWIN/PMI, or Japan CSK | ||
Lens and mirror | American Mirrors | ||
Graphic format supported | DXF, AI, PLT, DST, DSB, BMP, JPG, GIF, PNG, MNG | ||
Software supported | CorelDraw, Photoshop, AutoCAD | ||
Minimum letter size | English:1mm x1mm; Chinese: 2mm x 2mm | ||
Running environment | Temperature: 0°c-45°c; humidity: 5%-95% | ||
Auxiliary device | Air Pump, Exhaust Fan, Water Chiller, Tool box | ||
Details Images
Application Industry
Applicable materials: wood, plexiglass, plastic, clothes, paper, leather, rubber, marble, and other non-metallic materials.
Applicable industries: advertising, handicrafts, shoes, toys, computer embroidery, and cutting, stone carving, clothing industry, model, construction industry.
Company Profile
Product packaging
For laser cutting machine 1325, usually, package via standard export wooden box. When packing, use stretch film and EPE foam for protection, no need to disassemble any parts, easy installation.
Deliver via sea, railway, or land transportation.
