Durable Fiber Laser Cutting Machine 1500w 1530 Laser Cutting Machine 3000w Fiber Laser Cutting Machine

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

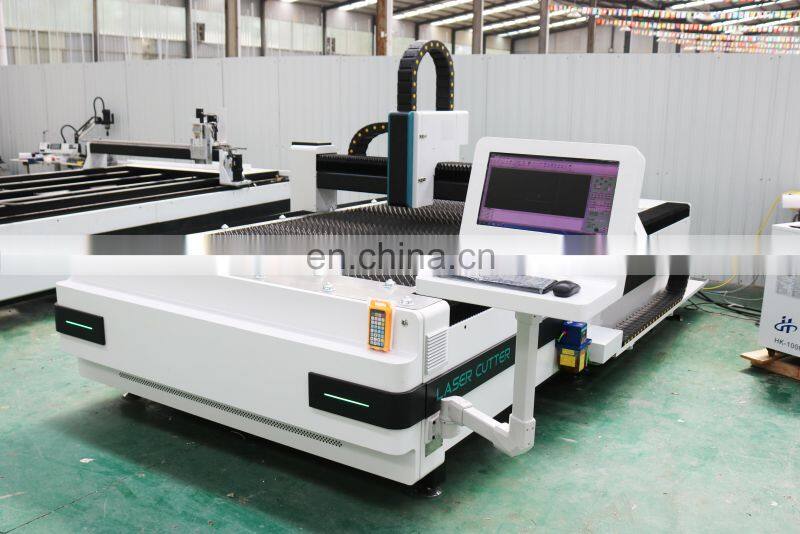

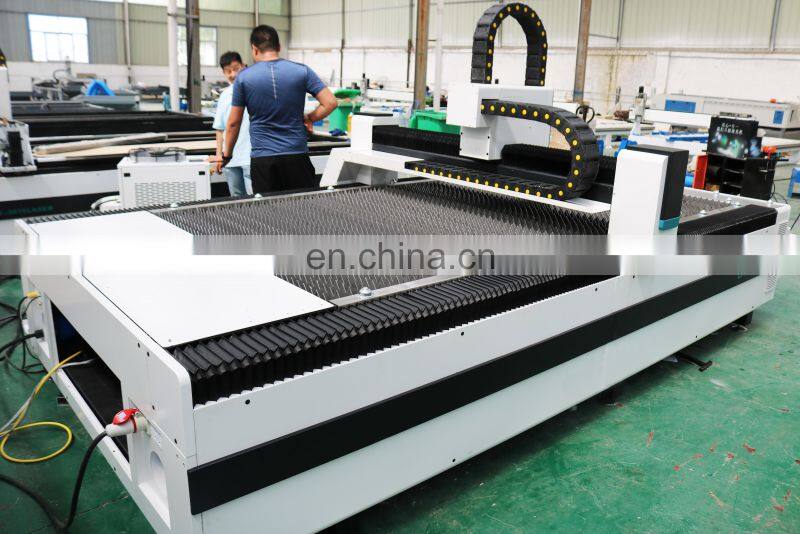

3000*1500mm Single Bed Metal CNC Fiber Laser Cutting Machine

Characteristics

1. The HT250 material is integrally cast and has stable vibration absorption performance. The machine tool cuts at high speed reduce machine resonance and have higher cutting precision. 2. One-piece casting beam, solid solution treated by T6, hardness above 90°, solid and durable casting, high acceleration stability 3. German Bo guide rail slider, stable operation, high precision, low noise, with unique stainless steel anti-collision device, waterproof and dustproof design at the bottom, strong universal replacement 4. Taiwan YYC rack, made of the world's most advanced grinding technology, non-working surface with one-time forming end grinding technology, with better verticality and parallelism, stable operation under heavy load 5. Automatically focus the laser head. Autofocus function, capacitive sensing, fully automatic follow-up system; 6. Planetary reducer, reducer products with high precision, high rigidity, high torque, and high load capacity waiting point 7. High-quality stainless steel cold water circulation pump with high flow, high lift, low noise, and long service life; 8. The control system adopts LCD Chinese-English bilingual conversion computer controller, CPU automatic control, can realize man-machine dialogue, and the operation is simple and intuitive. 9. American Bechle lubrication system, intelligent automatic lubrication system device, timing, and quantitative forced lubrication to ensure long-term high-precision operation of moving parts.

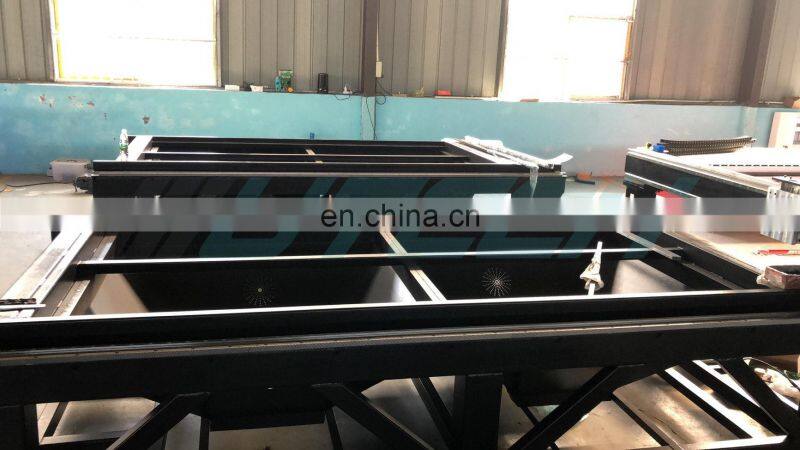

Lathe Bed

It is made of HT250 monolithic casting material, leading the industry. After thermal aging treatment, it will not deform for 30 years, and it has good stability and vibration absorption performance.

Machine Gantry

One-piece casting forming beam, T6 solution treatment, hardness above 90°, solid and durable integral casting, not easy to resonate, and high acceleration stability.

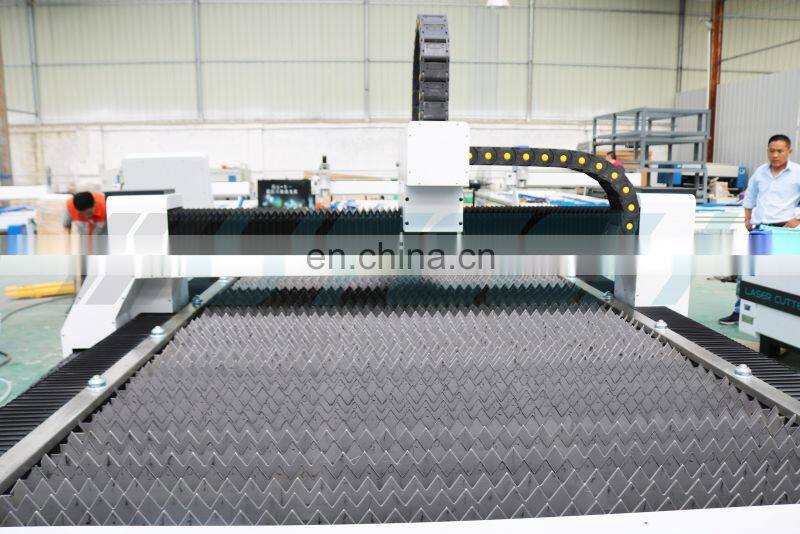

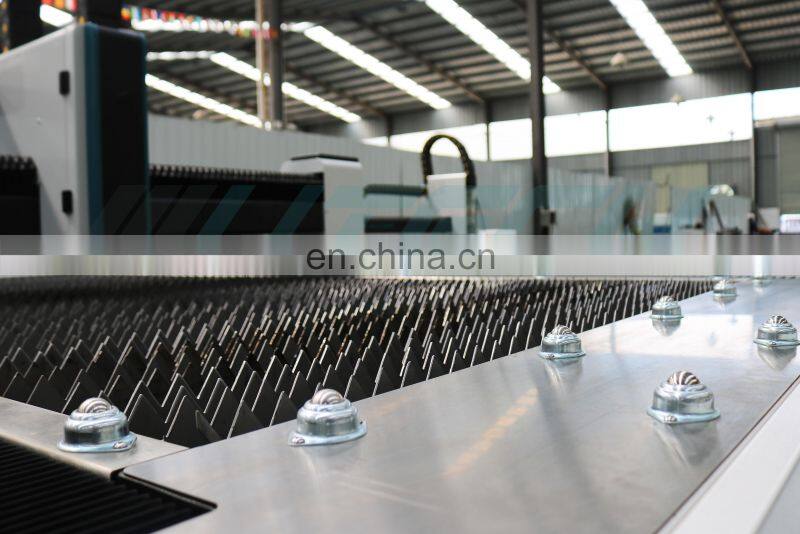

Sawtooth Table

The steel serrated table can withstand heavier work pieces and has only a small area to touch the workpiece when cutting, maximizing the melting of the table surface by the heat of the laser. The tabletop is encrypted and detachable, which is convenient to move and increase the bearing capacity.

Cooling System

The main function of the electric control cabinet air conditioner is to maintain the constant temperature inside the cabinet. Especially for areas that are too hot or too cold, it can extend the life of electrical components in the cabinet and ensure the normal working of electrical components.

Feeding roll

The machine comes with a feeding roll. The feeding roll will help the worker feed the material easily.

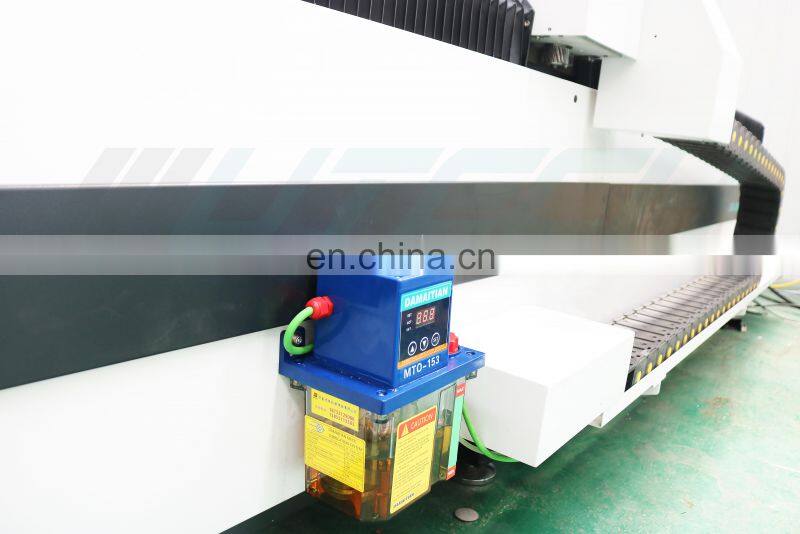

Automatic lubricator

The function of the automatic oil pump is mainly to perform regular quantitative oiling on the easily wearable guide rail, ball screw, and rack gear. It is by the digital controller to control the lubrication pump working cycle; lubrication time and intermittent time.

Details Images

Working Area	15003000mm/15004000/20004000/25006000
Total Power	14-25kw
Max Table Load Bearing	1100kg
Optional Laser Power	1000w/2000w/3000w/4000w/6000w/8000w
Repositioning Resolution	0.02mm
Max Linkage Speed	60-90m/min
Positioning Accuracy	0.03mm
Plate Cutting Thickness	1-30mm
Lathe Bed	HT250 casting
Gantry	Integrated casting, T6 solid solution treatment
Laser Device	IPG/RAYCUS/MAX (Optional)

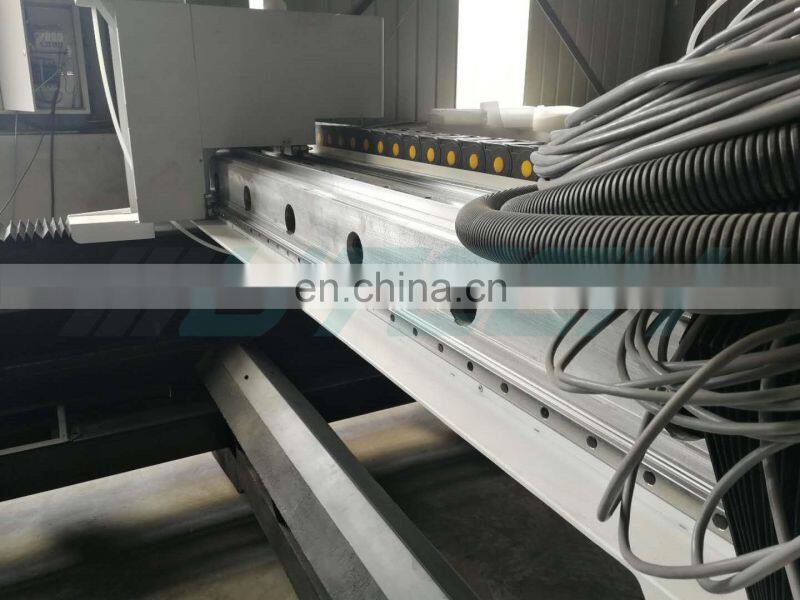

Guide Rail	Germany Bosch Rexroth P class guide rail sliders
Fine Grinding Rack	Taiwan YYC rack
Laser Head	Automatic private server focusing
Motor	YASKAWA motor, Japan
Reducer	Planetary reducer
Cooling System	Stainless steel water cooled circulating pump
Lubrication System	American BIJUR lubrication system
Working Voltage	AC380v/50hz
Graphic Format	AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Control Software	PRECITEC/CYPCUT

Application Industry

Applied Industry

1. Widely used in sheet metal processing, advertising sign production, kitchen utensils, all kinds of hardware products, saw blades, mechanical parts etc. 2. Specifically speaking, fiber laser cutting machine can be applied to the kitchen utensils industry, pipe processing, crafts/gifts/nameplate production, sheet metal cutting, glasses/jewelry industry, electrical and electronic industry, mechanical parts production and processing, lighting industry and engineering projects and a series of metal-related processing work.

Company Profile

Shandong U-MAY CNC Technology CO., LTD.

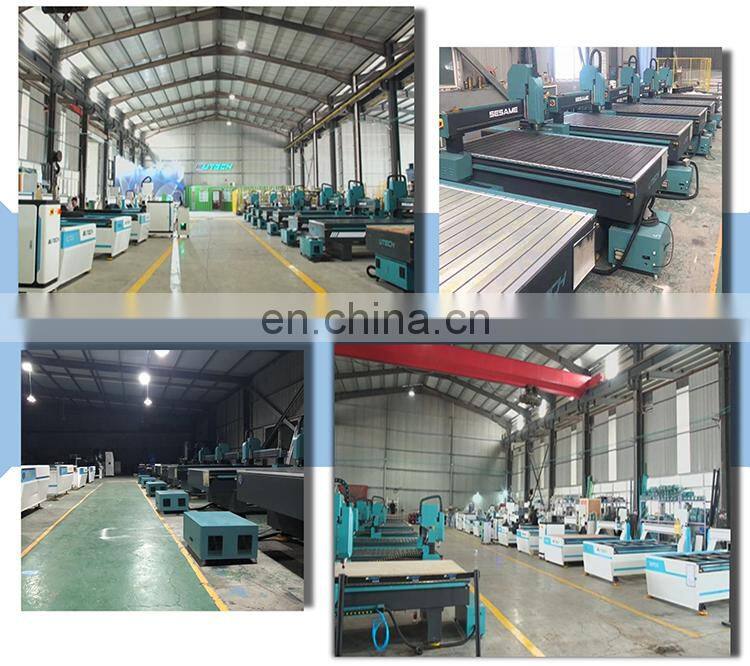

Shandong U-MAY CNC Technology CO., LTD. Is located in Jinan, the spring city of China. The brand name on the market is UTECH, which is a new brand launched by the company since its construction in 2014. The main products of the company are CNC machine tools, laser engraving machines, plasma engraving machines, fiber laser marking machines, etc. Regarding products, we have been adhering to the business philosophy of "Smart Solution, Better Tomorrow", aiming to provide the CNC engraving machines with high quality and excellent guarantee for the whole world.

In recent years, our company has followed the development of The Times and entered the transition period. By 2019, our carving machines are more actively sold to North America, the Middle East, Western Europe, southeast Asia, Africa, South America and other regions, and have a stable dealer agency in some regions.

Certifications

Our Service

Pre-Sales Service

Ⅰ Inquiry and consulting support. 10 working days to produce the machine, meanwhile, we will report the production process in time. Ⅱ Sample testing support. Ⅲ View our Factory

After-Sales Service

Ⅰ Training how to install the machine, training how to use the machine by internet. 24 hours technical support by email, calling , if u have any problems, we will within 12 hours to solve it. Ⅱ Some machine parts ( quality problems ) can be free charge to replace it within warranty.

Product packaging

Ⅰ The parts are individually wrapped in plastic film and carton, the whole machine will be protected by the foam board； Ⅱ The middle layer is wrapped with environmental protection material； Ⅲ And the outermost layer is wrapped with PE stretch film, finally add a wooden plywood base. 1. In general, the size of fiber laser machine no more than 1325 (1300*2500mm) will be packaged with wooden case. Before that, the machine parts will be put on the machine bed except for the chiller, the machine will be protected by the foam board of the four corners and wrapped with the film before shipping. 2. Fiber laser machines of which the size is over 1530 (1500*3000mm) cannot be packaged plywood case because the width of the machine exceeds the container’s. The machine will be fix on the pallet. 3. Fiber laser machine 1530 size (1500*3000mm) with enclosed cover and exchange table need to be shipped with 20 feet frame rack and the 20 feet container. If the size is bigger, the packaging and the shipping way needs to be confirmed.

FAQ

1. How to guarantee the product to me? Is the purchase procedure complicated?

After you purchase Fiber Laser Cutting Machine, we will keep in touch with you. The specific delivery process is in accordance with international trade practices, you can rest assured. If there is any doubt on some matters, the two sides can negotiate and deal with it. 2. What should I do if the product is found defective upon receipt of the goods? Under normal circumstances, we will make strict inspection and test before the product leaves the factory. Video inspection is allowed if conditions permit. If you have time, you can come to our factory for on-site inspection. We will mail the missing parts and components in time. 3. How is the product packaged? Product packaging is divided into three layers. The outer box is made of wood craft box.In the middle, the machine is covered with foam to protect it from vibration. The inner layer is waterproof and moisture-proof with thickened plastic bags. 4. Why can you trust us? Our products are of high quality. We import important parts and components from Taiwan, Japan, etc., and have a series of relevant certificates as the basic guarantee. The whole process of assembly and processing has a full range of monitoring.In addition, the after-sales treatment is quite rigorous, and we will have technical staff to answer questions online in time. 5. What kind of factory is it? Our company belongs to typical industrial and trading a shape, a statement that it is very important, because the factory can control the machine quality, and trade departments can correct fully introduce to the buyer, integrating two department, not only guarantee the product quality, and can do real-time docking factories and sales staff, saving problem to deal with the wait time for you.
