transformer radiator making machine
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Automatic transformer radiator production line
-
Automatic Transformer Radiator Forming and Welding Line
-
transformer radiator fin forming machine
-
Power transformer radiator production line
-
Silicon steel core cut to length line for transformer core cutting
-
Vacuum Drying Furnace for Power and Distribution Transformers
Product Description
Product Description

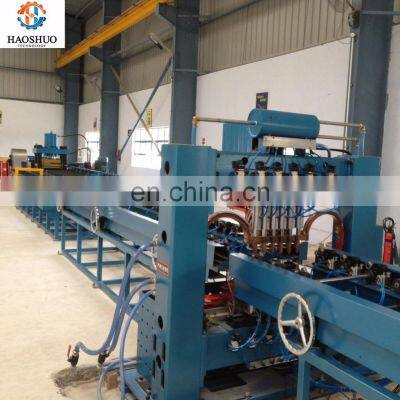

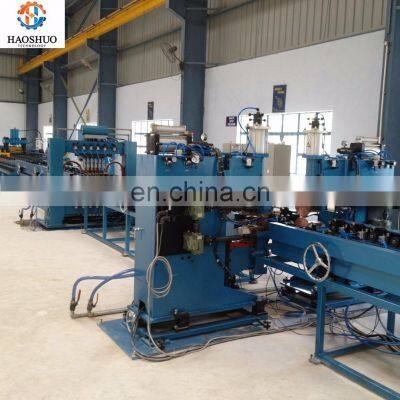

Radiator Production Line for Transformer
| Radiator Production Line for Transformer | |||
| Item | Procedure | Components | Qty |
| 1 | Roll forming | Hydraulic decoiler | 1 set |
| Main roll forming machine | 1 set | ||
| Press and cutting device | 1 set | ||
| Output and forwarding device | 1 set | ||
| 2 | ERW (electric resstance welding) | Feeding device | 1 set |
| LDN-AX125-6 multi-spot welding machine | 1 set | ||
| Forwarding device after multi-spot welding | 1 set | ||
| FZP-180-BX2 seam welding machine | 1 set | ||
| Forwarding device after seam welding | 1 set | ||
| FZP-180-B end welding | 1 set | ||
| Forwarding device after end welding | 1 set | ||

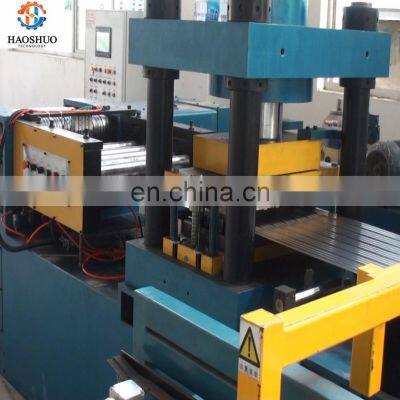

| 3 | Head cutting | 63T press machine | 1 set |
| Head cutting mould | 1 set | ||
| Positioning device | 1 set | ||
| 4 | Shearing | 4X4000mm radiation fins shearing machine | 1 set |
The radiator panel size is 320, 460, 480, 520, 535, or custom-design (as per client’s actual requirement), panel length is 1500mm-4000mm. The whole line is fully automatic, the product quality is good, and the performance reaches the first-rate in the world.

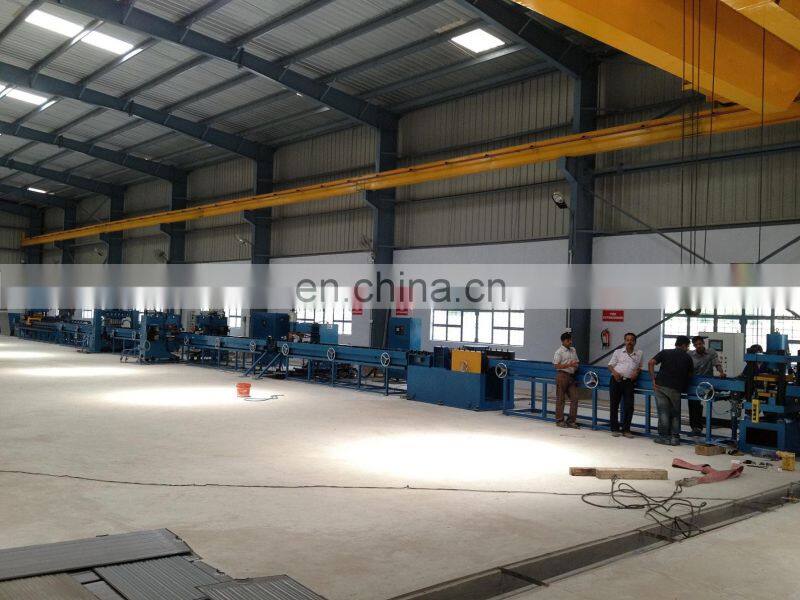

The work flow of this line is as follows: automatic decoiling – roll forming – hydraulic punching and cutting – spot welding – seam welding – panel head welding – head cutting – edge shearing – run-out.
Packaging & Shipping
Five 40 feet containers for shipment
seaworthy nude packing, using steel wire and wood block to fix the machine inside container, and using film cover the machine for dustproof
