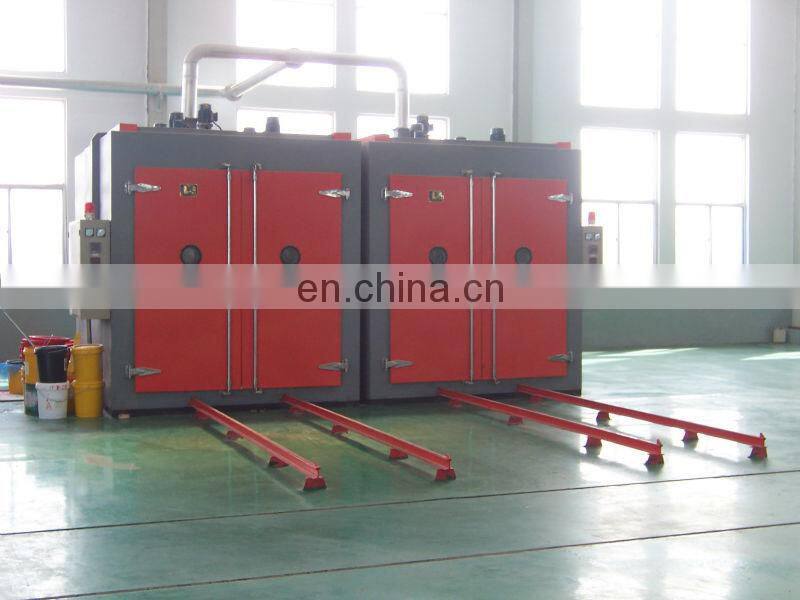

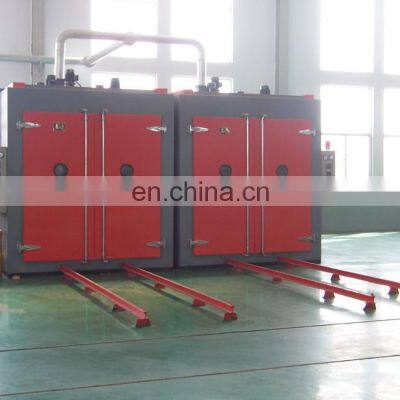

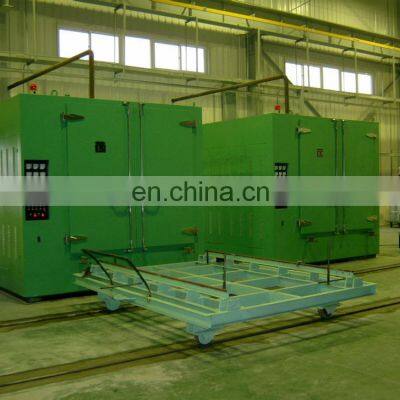

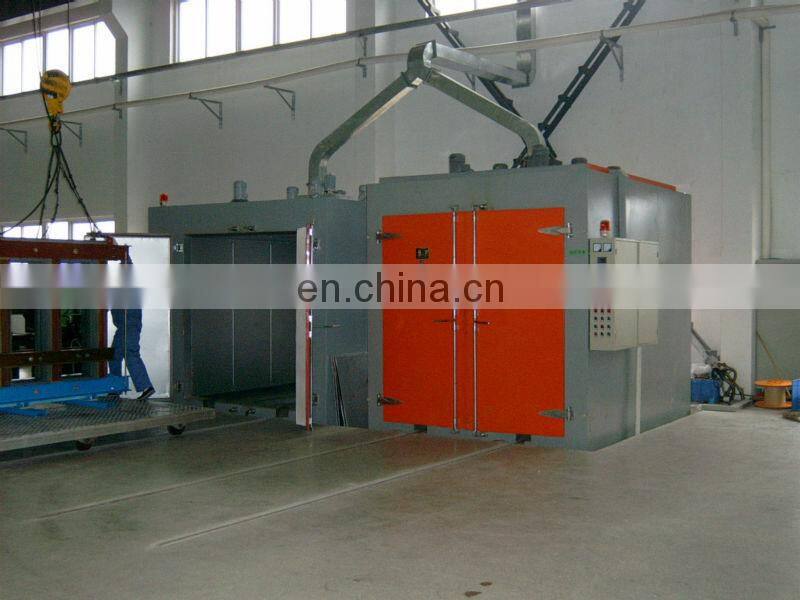

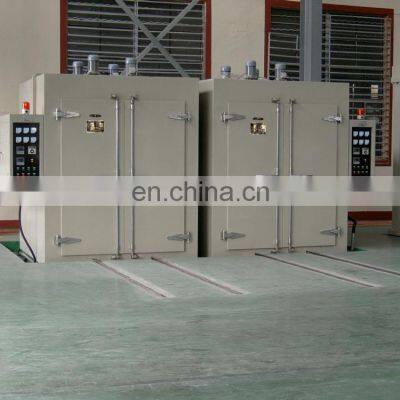

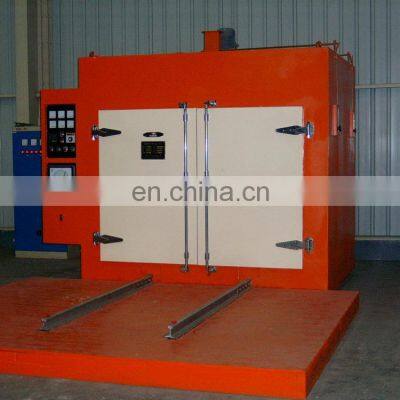

Electrical Heating Drying Oven for coil, motor, transformer drying
- 1000 per Month
- T/T Credit Card
-
Transformer corrugated fin tank forming machine
-
Corrugated fin forming machine for making steel transformer corrugated tank
-
Vacuum Pressure Resin Casting Chamber for Dry Type Transformers
-
High quality CRGO silicon steel slitting machine
-
Vacuum drying and oil filling plant for transformer use
-
VPI Vacuum Pressure Impregnating Equipment for transformer making and motor repairing
Product Description
Drying oven
This oven is circular ventilation drying equipment with automatic control of the whole process. It is equipped with high temperatureresistant centrifugal blower. Heating chamber installed in the oven can heat hot air. Blower make the hot air circulate in the oven, hot air will heat exchange with work pieces, then backflow to air duct. Then air be heated again and circulated in the oven again and again to make the inner temperature meet technological requirements
The oven has features of high precision temperature control, easy operation, energy saving, safety and high reliability, are widely used in the production of transformer industry, transformer coil impregnation drying (solidifying) process and epoxy pouring solidifying process, etc.
Oven body structure | |
Work space | 2000×4000×2000mm(W×L×H) |
Outside | Q235 cold rolled steel byanti-rusttreatment,spray acrylic air-dry paint |
Inside | Q235 cold rolledsteel byanti-rusttreatment,spray high temperature resistant silver paint |
Heat insulating material | silicate cottoninsulation |
Door open | double-door |
Seal material | asbestos rope |
Observation window | two sets |
Technical data | |
Operation temperature | Room temperature~200°C |
temperature fluctuation | ≤±1°C |
Temperature stability | ≤±2 |
Temperature uniformity | ≤±2.5%°C(max temperature empty test) |
temperature rise | ≤room temperature+25°C |
temperature rate | ≤90min(empty test) |
heating power | 63KW(2 groups) |
Blower power | 1.5KW×6 sets |
Exhaust power | 0.75KW×1 set |
Power supply | As per customer’s request |
Blowing system | |
Air supply mode | bottom to top forced hot air circulation |
Air out way | left and right sides bottom |
Airflow control | double layer multihole adjusting panel |
Air return method | multihole panel on the top of heating chamber |
Blower motor | low noise centrifugal blower, noise below 65db |
Heating system | |
Electric heater | star connection 220V 50HzU-shaped heating tube |
Location | in air duct of left and right sides |
Control system | |
Control cabinet | independent type control cabinet |
Controller | AI708P programmable intelligent temperature controller with temperature sensing element PT100 |
Over-temperature alarm | digital temperature controller with temperature sensing element PT100 |
Heating control | SSR solid state relay contactpower adjustment |
Lighting | high temperature resistant lights2 sets |
Protect system | 1. Over-temperature alarm system 2. Motor over-current protection 3. Electric heater overcurrent protection 4. Electrical and heating interlock 5. Control circuit protection 6. Air switch |
Accessories | |
Intake valve | Manual adjust according to work pieces conditions |
Exhaust valve | Manual / automatic intermittent exhaust system, flange interface |
Body color | As per customer’s request |
Work piece trolley | Manual traction, capacity 6 tons, 1 set |
Outside guide | For trolley movement |
