Steel Panel Radiator Production Line
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
1995
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cheap VPI Vacuum Pressure Impregnating Equipment for Dry Type Transformer and MotorsNegotiableMOQ: 1 -
VPI Vacuum Pressure Impregnating Equipment for Motors and TransformersNegotiableMOQ: 1
-
Epoxy Resin Casting Molding Equipment for Dry Type Transformer UseNegotiableMOQ: 1
-
Transformer Core Turning & Stacking Assembly TableNegotiableMOQ: 1
-
Transformer Core Turning & Stacking TableNegotiableMOQ: 1
Radiator production line
Product description
This steel panel radiator can be used in producing different specification radiators, with width among 535, 520, 480, 460, 320, 310 and center distance more than 500mm.
This machine has high automation degree, high forming quality, and high efficiency. The property of this machine has reached world-class quality.

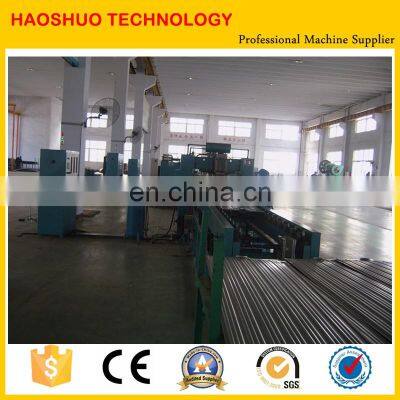

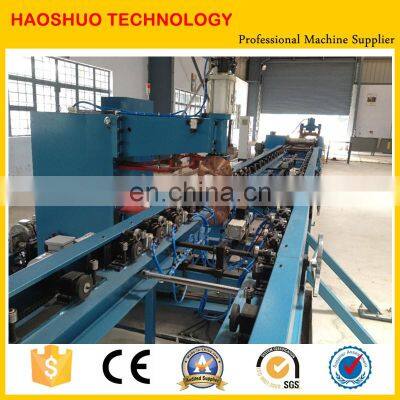

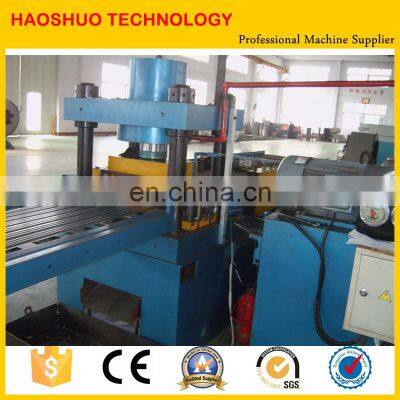

steel panel radiator line
| Item | Procedure | Components | Qty(Set) | Remark |
| 1 | Forming | Hydraulic decoiler | 1 |
Panel spec: 320, or 480, or 520, or 535mm or design as per client's need, design fee extra charge. If need one machine to produce multi-specs panel, additional charge $60000USD for one spec. Panel length: 1500-4000mm Work speed: 3-6m per minute Control system: PLC automatic control, fully automatic Electric system: all electric elements use international famous brand products Total power: about 315Kw Total area: 46.5 x 3.5m |
| Main roll forming machine | 1 | |||
| Press and cutting device | 1 | |||
| Output and turn-over device | 1 | |||
| 2 |
ERW (electric resstance welding) |
Servo feeding device | 1 | |
|
LDN-4X200-6 multi-spot welding machine |
1 | |||
|
Forwarding device after multi-spot welding |
1 | |||
|
FZN-2×130-ZP-A seam welding machine |
1 | |||
|
Forwarding device after seam welding |
1 | |||
|
FN-200×2-B end welding machine |
1 | |||
|
Forwarding device after end welding |
1 | |||
| 3 |
Side shearing |
GJ-200 levelling and side shearing machine |
1 | |
| 4 |
Head cutting |
Forwarding device after shearing |
1 | |
| 120T press machine | 1 | |||
| Head cutting mould | 1 | |||
| Positioning device | 1 | |||
|
Run-out conveyer for finished radiator fin |
1 |

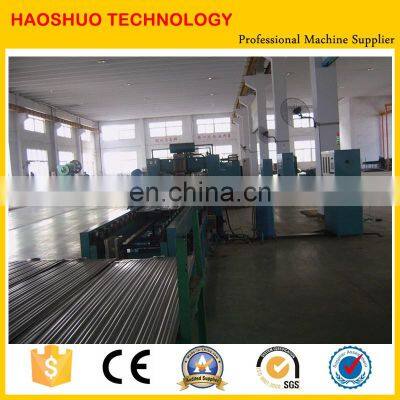

steel panel radiator line
Working process
automatic decoiling – roll forming – hydraulic punching and cutting – spot welding – seam welding – panel head welding – head cutting – edge shearing – run-out
Our service
One stop service for customized machine
Overseas installation & operating training
One year warranty of the whole machine
Life-long technical support

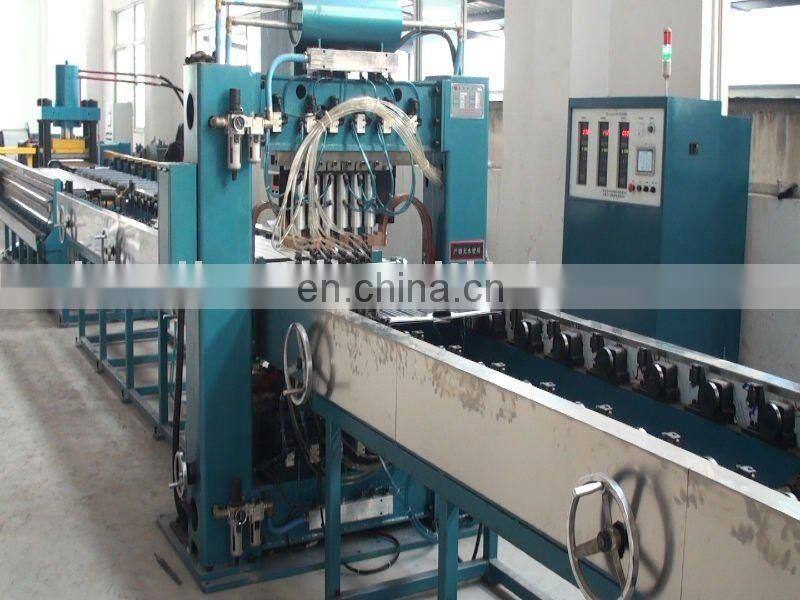

steel panel radiator line
steel panel radiator line
