Tps3808g30drvr Monitoring and Reset Chip Ti Original Stock

Features of tps3808

Power on reset generator has adjustable delay time: 1.25ms to 10s

Ultra low quiescent current: 2.4 µ a (typical value)

High threshold accuracy: 0.5% typical value

Provide a fixed threshold voltage of 0.9V to 5V for standard voltage rail and adjustable voltage as low as 0.4V

Manual reset (MR) input

Open drain reset output

Temperature range: - 40 ° C to 125 ° C

Small SOT-23 and 2mm × 2mm WSON package

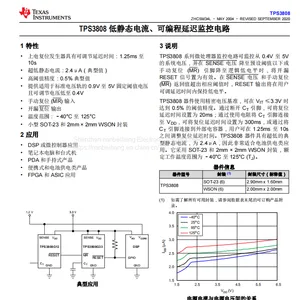

Description of tps3808

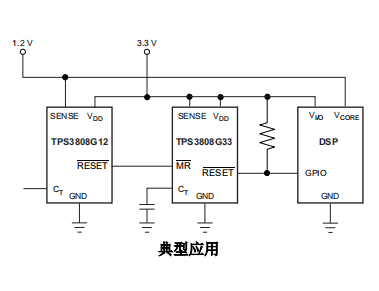

Tps3808 series microprocessor monitoring circuit can monitor the system voltage from 0.4V to 5V, and set the open drain reset signal to be valid when the sense voltage drops below the preset threshold or the manual reset (MR) pin drops to the logic low level. When the sense voltage and the return value of manual reset (MR) exceed the corresponding threshold, the reset output will remain low within the user adjustable delay time.

The tps3808 device uses a precision voltage reference, which can achieve a threshold accuracy of 0.5% when Vit ≤ 3.3V. By disconnecting the CT pin, the reset delay time can be set to 20ms; By connecting the CT pin to VDD with a resistor, the reset delay time can be set to 300ms, or by connecting the CT pin to an external capacitor, the user can adjust the reset delay time between 1.25ms and 10s. The tps3808 device has an ultra-low typical quiescent current of 2.4 µ a, so it is very suitable for battery powered applications. It uses SOT-23 and 2mm × 2mm WSON package with a rated operating temperature range of – 40 ° C to 125 ° C (TJ).
