Stm8af6226tay st (st) Original Stock

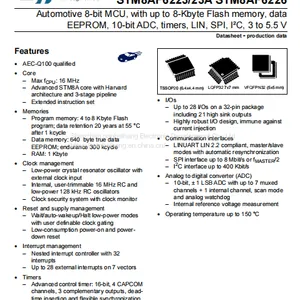

Stm8af6226tay st (st) Original Stock thumbnail-1
Stm8af6226tay st (st) Original Stock photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
st
Place of Origin:
Alderney
Model Number:
Stm8af6226tay
Contact Supplier Request Quote Chat Now
Shenzhen Nanbeihang Electronic Development Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name st
Place of Origin Alderney
Model Number Stm8af6226tay
Type Drive IC
Package 7500
D/C 250
Description
The STM8AF6213, STM8AF6213A, STM8AF6223, STM8AF6223A and STM8AF6226
automotive 8-bit microcontrollers offer 4 to 8 Kbytes of Flash program memory, plus
integrated true data EEPROM. The STM8S series and STM8AF series 8-bit
microcontrollers reference manual (RM0016) refers to devices in this family as low-density.
They provide the following benefits: performance, robustness and reduced system cost.
Device performance and robustness are ensured by advanced core and peripherals made
in a state-of-the-art technology, a 16 MHz clock frequency, robust I/Os, independent
watchdogs with separate clock source, and a clock security system.
The system cost is reduced thanks to an integrated true data EEPROM for up to
300 k write/erase cycles and a high system integration level with internal clock oscillators,
watchdog, and brown-out reset.

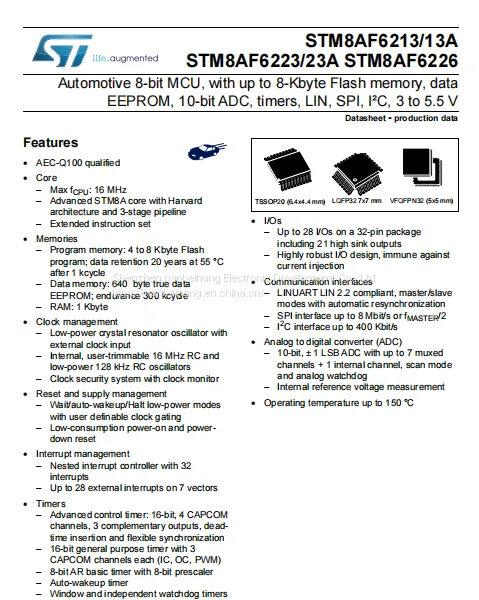

Features

• AEC-Q100 qualified
• Core
– Max fCPU: 16 MHz
– Advanced STM8A core with Harvard
architecture and 3-stage pipeline
– Extended instruction set
• Memories
– Program memory: 4 to 8 Kbyte Flash
program; data retention 20 years at 55 °C
after 1 kcycle
– Data memory: 640 byte true data
EEPROM; endurance 300 kcycle
– RAM: 1 Kbyte
• Clock management
– Low-power crystal resonator oscillator with
external clock input
– Internal, user-trimmable 16 MHz RC and
low-power 128 kHz RC oscillators
– Clock security system with clock monitor
• Reset and supply management
– Wait/auto-wakeup/Halt low-power modes
with user definable clock gating
– Low-consumption power-on and powerdown reset
• Interrupt management
– Nested interrupt controller with 32
interrupts
– Up to 28 external interrupts on 7 vectors
• Timers
– Advanced control timer: 16-bit, 4 CAPCOM
channels, 3 complementary outputs, deadtime insertion and flexible synchronization
– 16-bit general purpose timer with 3
CAPCOM channels each (IC, OC, PWM)
– 8-bit AR basic timer with 8-bit prescaler
– Auto-wakeup timer
– Window and independent watchdog timers
• I/Os
– Up to 28 I/Os on a 32-pin package
including 21 high sink outputs
– Highly robust I/O design, immune against
current injection
• Communication interfaces
– LINUART LIN 2.2 compliant, master/slave
modes with automatic resynchronization
– SPI interface up to 8 Mbit/s or fMASTER/2
– I2C interface up to 400 Kbit/s
• Analog to digital converter (ADC)
– 10-bit, ± 1 LSB ADC with up to 7 muxed
channels + 1 internal channel, scan mode
and analog watchdog
– Internal reference voltage measurement
• Operating temperature up to 150 °C


Product Tags: Stm8af6226tay , st , in stock
