Drv5033ajqdbzr digital latch Hall effect sensor Ti original stock

Features of drv5033

Digital all pole switch Hall sensor

Excellent temperature stability

BOP ± 10% within the temperature range

Multiple sensitivity options (bop/brp):

± 3.5/ ± 2Mt (FA, see)

± 6.9/ ± 3.5Mt (AJ, see)

Detect the North-South magnetic field

Support wide voltage range

2.5V to 38V

No external regulator required

Wide operating voltage range

TA = -40 to 125 ° C (Q, see)

Open drain output (30mA perfusion current)

35 µ s fast power on time

Small package size

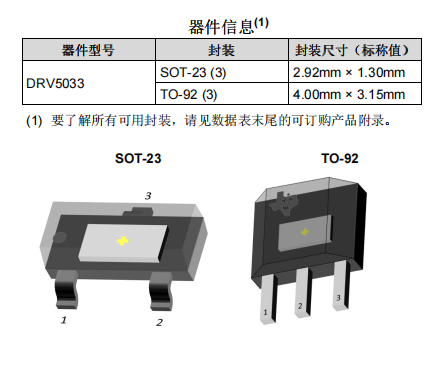

Surface mount 3-pin small overall size transistor (SOT) -23 (DBZ)

2.92mm × 2.37mm

Plug in 3-pin TO-92 (LPG)

4.00mm × 3.15mm

Protection characteristics

Reverse power protection (up to -22v)

Support load shedding up to 40V

Output short circuit protection

Output current limit

application

Docking inspection

Door switch detection

Proximity sensing

Valve positioning

Pulse count

Description of drv5033

Drv5033 device is a chopper stabilized Hall effect sensor, which can provide magnetic field sensing function with excellent sensitivity stability and integrated protection characteristics in the whole temperature range.

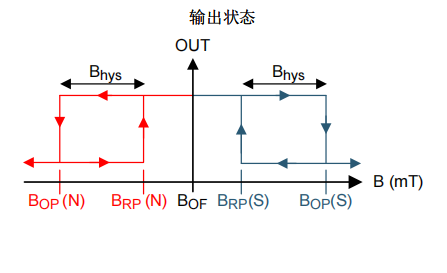

Drv5033 has the same response to the two pole directions of the magnetic field. When the applied magnetic flux density exceeds the BOP threshold, the drv5033 open drain output becomes low. The output will remain low until the magnetic flux density drops below BRP and then becomes high impedance. The output current filling capacity is 30mA. The wide working voltage range (2.5 to 38V) with reverse polarity protection up to -22v makes this device widely applicable to various industrial signals.

The device provides internal protection against reverse power supply conditions, sudden load drop, and output short-circuit or overcurrent faults.
