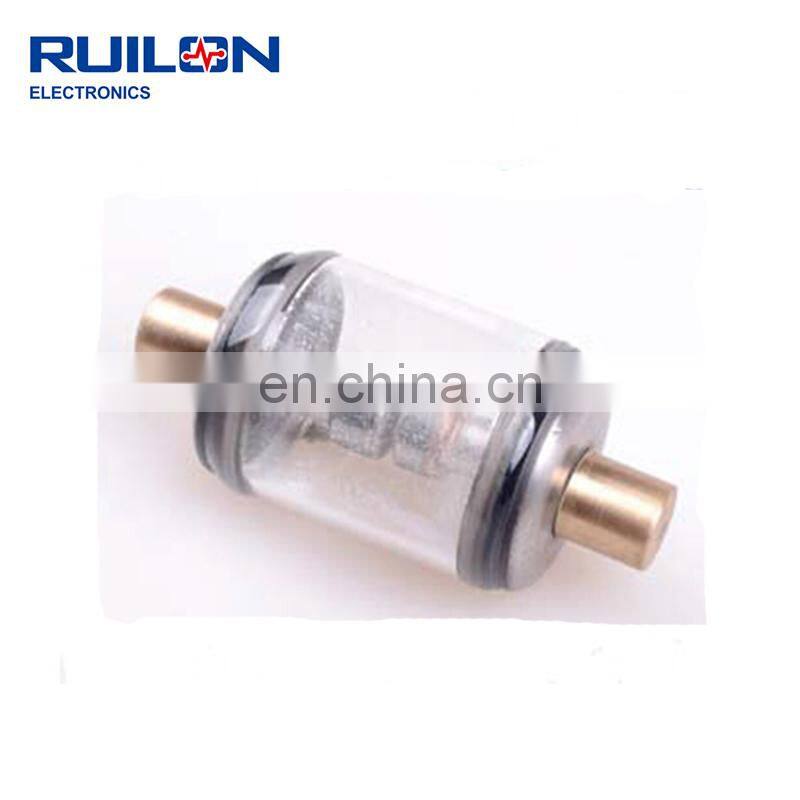

2-Electrode Spark Gaps High Current Discharge Tube 500v to 5000v High Energy Discharge Tubes for Medical Equipment

2-Electrode Spark Gaps High Current Discharge Tube 500v to 5000v High Energy Discharge Tubes for Medical Equipment

Features of high current discharge tube:

Sealed in a glass/metal shell, light weight, voltage range: 0.5kv to 12kv, large ignition energy level, strong structure

High current discharge tube application:

Single-shot pulse generator

Surge voltage protection circuit

Turbine engine ignition circuit

Medical lithotripsy

High energy switch

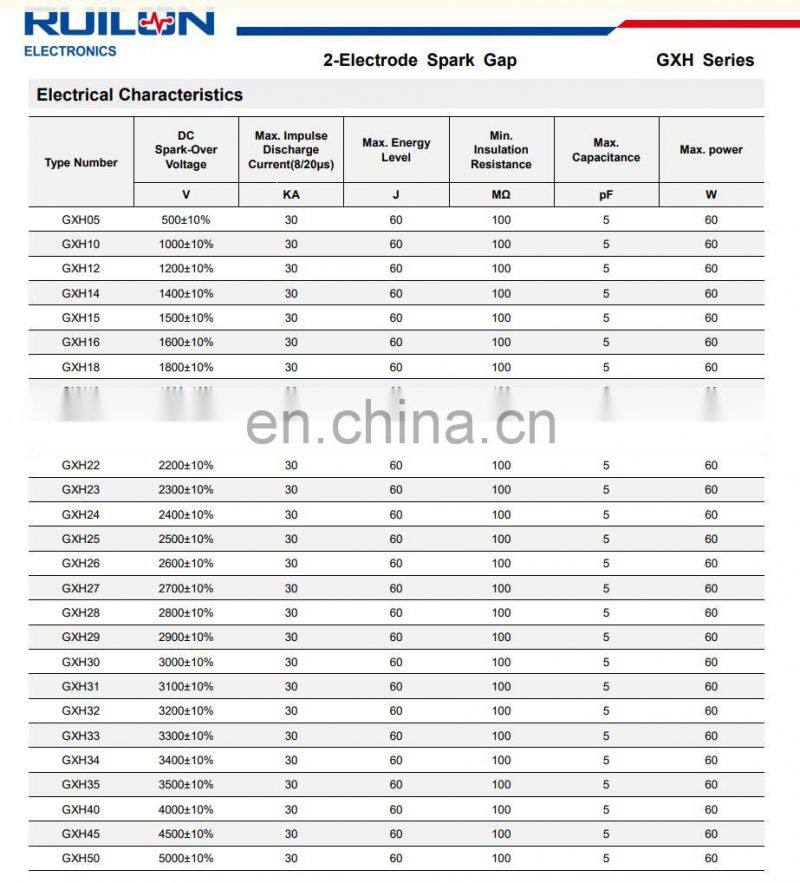

Electrical and physical characteristics:

All ratings given in this data sheet are reliable asynchronous ratings. It is the responsibility of the equipment designer to ensure that they are not exceeded. Spark gap life depends on circuit conditions, such as peak discharge current and duration, charge transfer per discharge and repetition rate.

charge transfer, single discharge (8/20ms waveform): 0.5C

Cumulative charge transfer: 6000C, 0.81mC, 1Hz per discharge

Working temperature: -55 ~ +125℃

mechanical shock, half sine (for B.S.2011test Ea): 40g 4ms

installation: screw installation

Radioactivity: Tritium (3H), maximum 5.44 MBq (147 mCi) per device

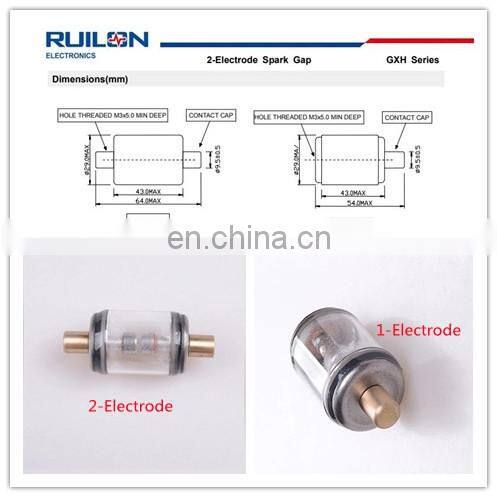

Dimensions(mm):
