Solar PV DC SPD 1000V 1200V 1500V Pluggable 40kA 24dc Surge Arrester for Panel
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Top Brand 2p/4p 385v AC Surge Protector 20kA Surge Lightning Arrester Power Surge Protect SpdNegotiableMOQ: 1 -
DK 2P 600VDC 20KA 40ka Power Din Rail Oxide Lightning Arrestor Spd Surge Protection Device for PV Solar Power SystemNegotiableMOQ: 1
-
32 YEARS New Gadgets 2020 DC110V /220v Surge Protector TV Broadcasting DiKai DC Surge ProtectorNegotiableMOQ: 1
-
DK Surge Protector Series Connection Ip67 10ka Led Street Lights Surge Protection Devices SpdNegotiableMOQ: 1
-
LED 10ka 10kv Street Lighting SPD LED Surge Protector Device AC 20kv Spd Surge Protector SpdNegotiableMOQ: 1
Product Description

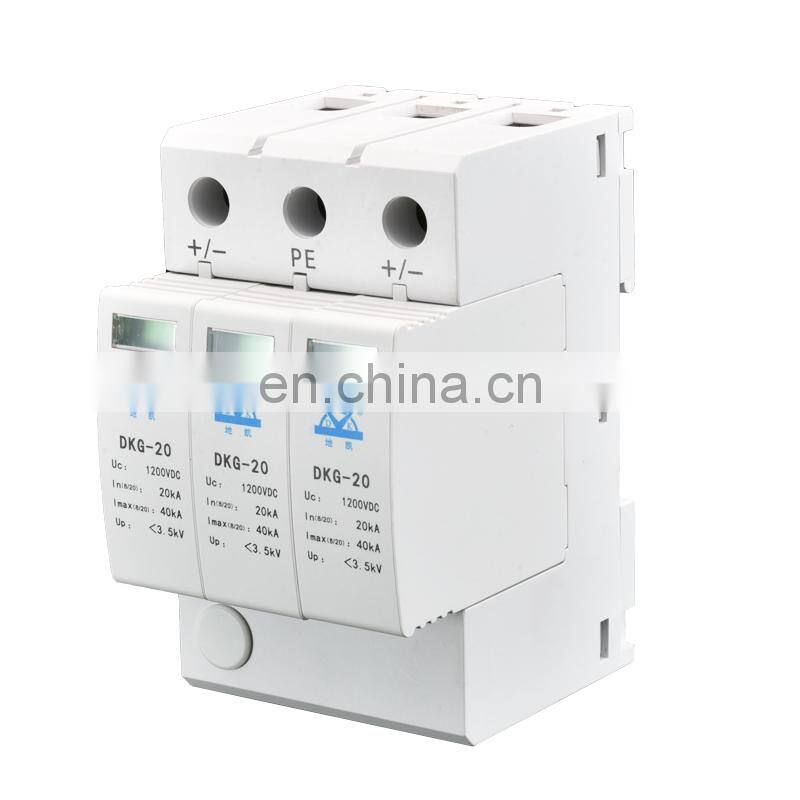

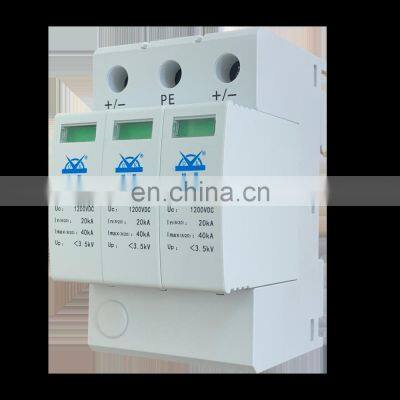

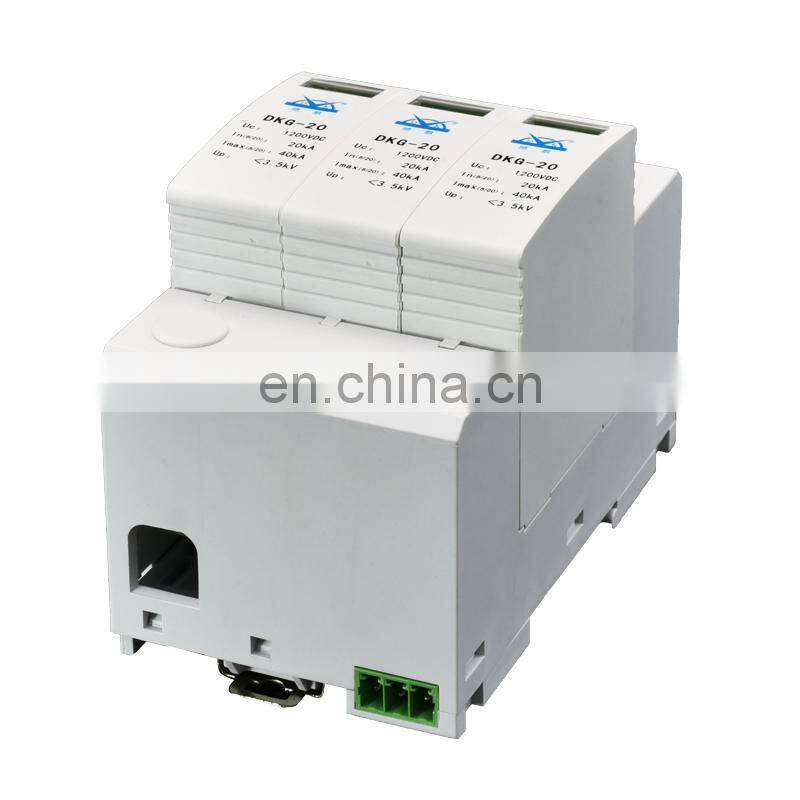

1000V DC 3 Poles 40kA 3P PV Solar Power Surge Protective Device
DKG-20 1000V DC 3 Poles 40kA 3P PV Solar Power Surge Protective Device(short for SPD) is a parallel type module DC power surge
protection device. Adopted high temperature and resistant flame retardant plastic shell, it is dedicated to the lightning protection of pv DC power distribution system. With features of good sealing, beautiful appearance, easy installation, dust-proof,anti-corrosion and flame retardant, it can work stably under the harsh environment. This product is used for lightning protection of DC power distribution equipment, such as PV combiner box, PV DC power distribution cabinet and grid tie inverter. The lightning protection mode is Positive-PE, Negative-PE.
protection device. Adopted high temperature and resistant flame retardant plastic shell, it is dedicated to the lightning protection of pv DC power distribution system. With features of good sealing, beautiful appearance, easy installation, dust-proof,anti-corrosion and flame retardant, it can work stably under the harsh environment. This product is used for lightning protection of DC power distribution equipment, such as PV combiner box, PV DC power distribution cabinet and grid tie inverter. The lightning protection mode is Positive-PE, Negative-PE.
Application Scope
DKG-20 3P photovoltaic DC surge protective device is dedicated to the lightning protection of photovoltaic DC power distribution
system.
system.
Installation Wiring Diagram
(The appearance in kind prevail)
Specification
Technical Parameter | ||
Product Name | Photovoltaic Surge Protective Device | |
Item | DKG-20 | |
SPD Type | One Port (Parallel) | |
One Port (Parallel) | PV DC Power Distribution System | |
Maximum Continuous Operating Voltage Uc | DC1200Vand DC1500V Optional | |
Rated Voltage Un | DC1000V | |
Nominal Discharge Current In(8/20μs) | 20kA | |
Maximum Discharge Current Imax(8/20μs) | 40kA | |
Voltage Protection Level Up | <3.5kV | |
Leakage Current | ≤30μA | |
Response time tA | ≤10ns | |

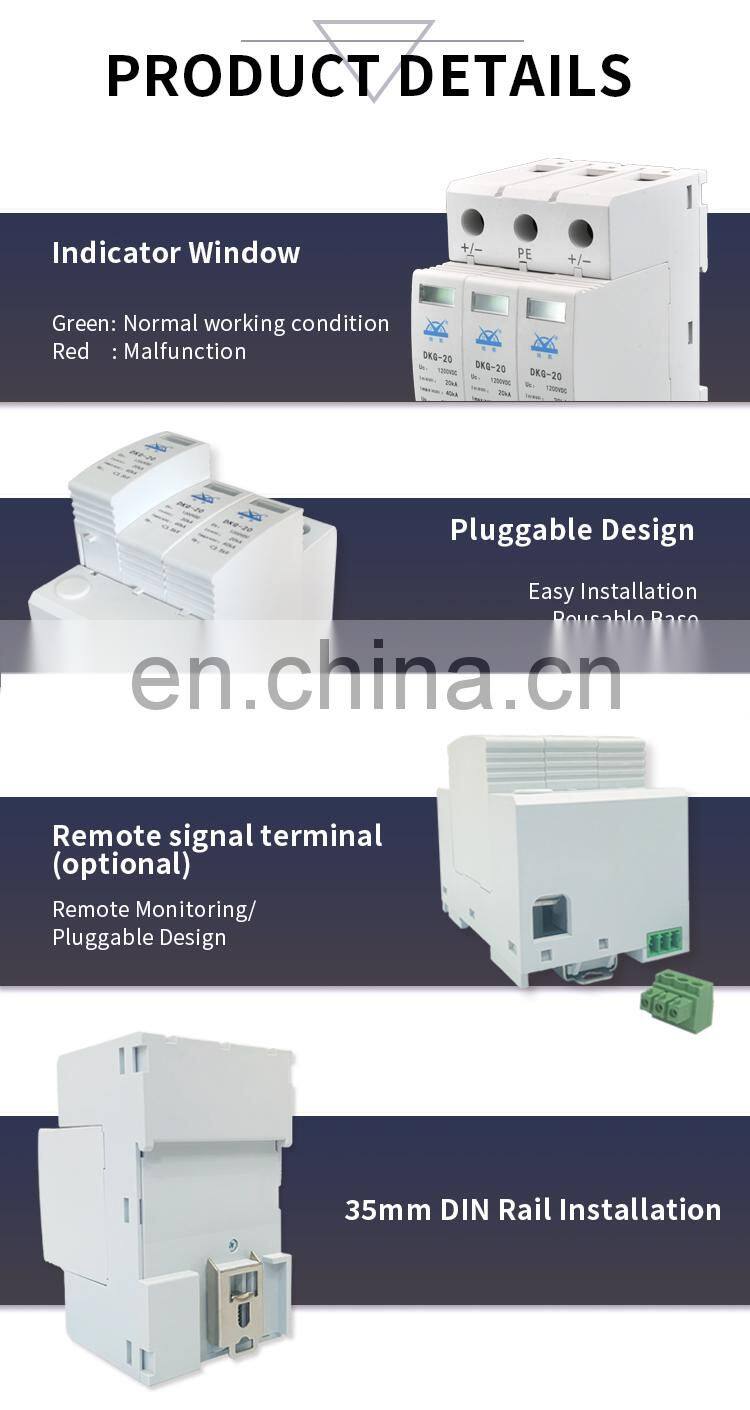

Indication Method | Indication Window: turns red when it breaks down. | |
Maximum Wiring Connection Range | BVR25 mm2 | |
Method of Installation | 35mm Din Rail Mounted | |
Material of Shell | PA6 | |
Flame Retardant Rating of Outer Shell | UL94-V0 | |
Protection Level of Outer Shell | IP20 | |
Working Temperature | -25℃~+70℃ | |
Relative Humidity | ≤ 95%RH | |
Installation Location | Front end of equipment to be protected | |
Dimension(mm) | 54*91*68 | |
Protection Mode | +-PE,--PE | |
