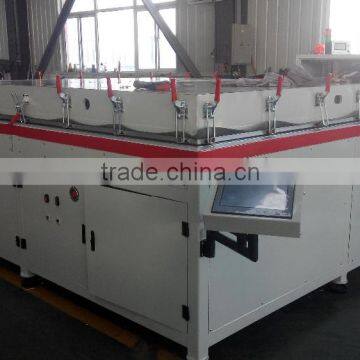

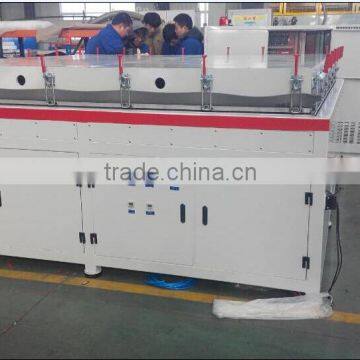

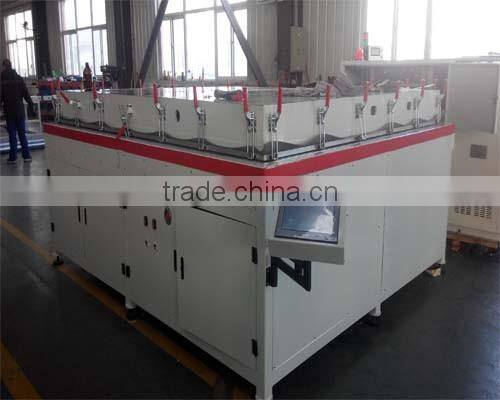

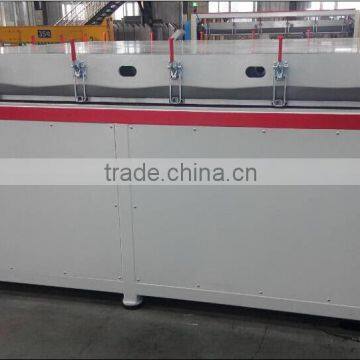

Full-Automatic Solar Energy Solar Laminator With PLC Touch Screen Oil Heating System
2200*1100mm / 2200*220mm / 2200*3600mm
Free Layout Desing / Free Installation & Trainning
| Type: | KLT-G1-6 | Power | AC380V Three Phase Five Wires |
| Lamination Area: | 2200*2200mm | Dimension: | 3905*2605*1360mm |
| Weigth: | 7.5T | Power: | 37KW |
| Compressed Air Flow: | 0.4-0.8m3/Min | Compressed Air Pressure: | 0.4-0.8Mpa |
| Heating Mode: | Oil Heating | Temperature Control: | PLC Intelligent Control |
| Laminating Time: | 2-10 Minutes | Vacuuming Time | 5-6 Minutes |
| Temperature Precision: | +/- 1 ℃ | Temperature Uniformity: | +/- 2 ℃ |
| Temperature Range: | +/- 160 ℃ | Module Height: | 25mm |
| Pumping Speed: | 70L/S | Air Supply: | 0.6-1.0 MPa |
PV Laminating Advantage:

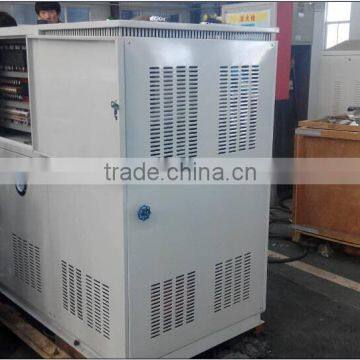

Heating Mode:

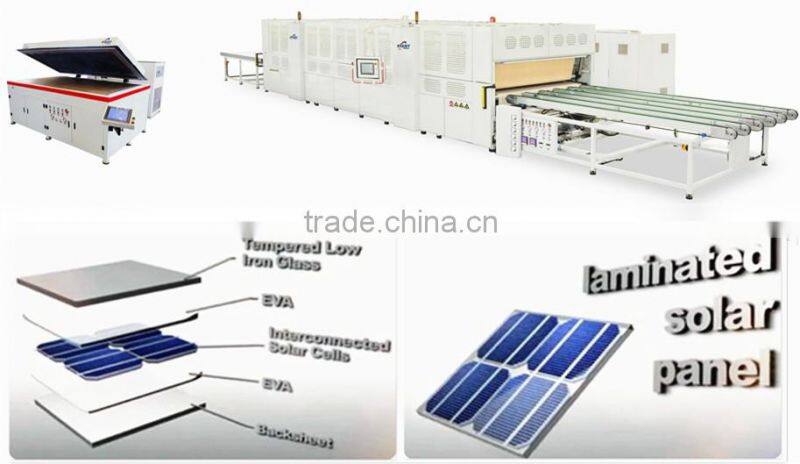

Laminating Process:
1> Laminating Process is Composed to Three Sections With Adjusted Speed and Pressure for Each.
2> We are the ONLY ONE IN China Who use this advanced technology in Laminating Process.
3> It Improves the Quality rate of finished Modules.
Safe Operation:
Protection Lock:Ensure cover safety when meeting accident.
Emergency Button:Ensure the cover keep opening safely when power supply cut off in accident.
Emergency Lid Open System:When the power failed, the cover can be opened to take modules away.
Alarming Systems:Powerful alarming systems, including over temperature alarm, oil lack alarm, lower vacuum alarm,and other alarm function.Machine safety signs in English
| Type | Laminating Area (mm) | Weight (T) | Power (KW) | Pumping Speed (L/S) | Solar Module Power (W) | Annual Production Capacity (MW) |
| kLT-G1-8 | 2200*2200 | 7.5 | Max 37 | 70 | 160 | 5.2 |
| 200 | 6.4 | |||||
| 270 | 8.7 | |||||
| The Production Capacity is Based On 20 Working Hours Per Day in 300 Days Per Year (For you Reference) | ||||||
Solar PV Laminating Component List:
| No. | Description | Brand |
| 1 | AC Coonnector: | Schneider |
| 2 | PLC Controller: | Siemens/Schneider |
| 3 | Module: | Siemens/Schneider |
| 4 | Touching Screen: | Siemens / Schneider |
| 5 | Electromagnetiv Valve: | SMC |
| 6 | Pneumatic Valve: | Flowx italian |
| 7 | Heating System: | Fuxin Hongda |
| 8 | Vacuum Pump: | Huaxin Nanguang (Optional) |
| 9 | Digital Pressure Sensor | SMC |
| 10 | Silicon Sheet | Keqiang |
♥♥♥ Contact Simmer
Jiangsu Keyland Laser Tecnology
Tel: +86-27-87970567 / Mobile // What's App +86-159-2648-1511 Fax: +86-27-87970568
Skype:simmer991
Website: /
Clear your requirement,suggest you right machine
