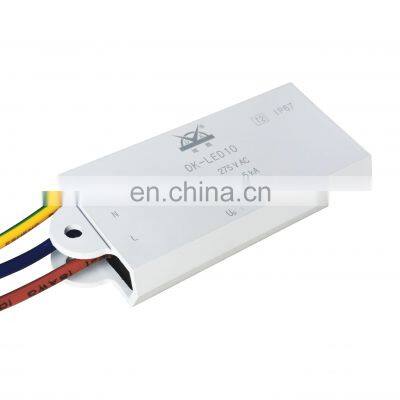

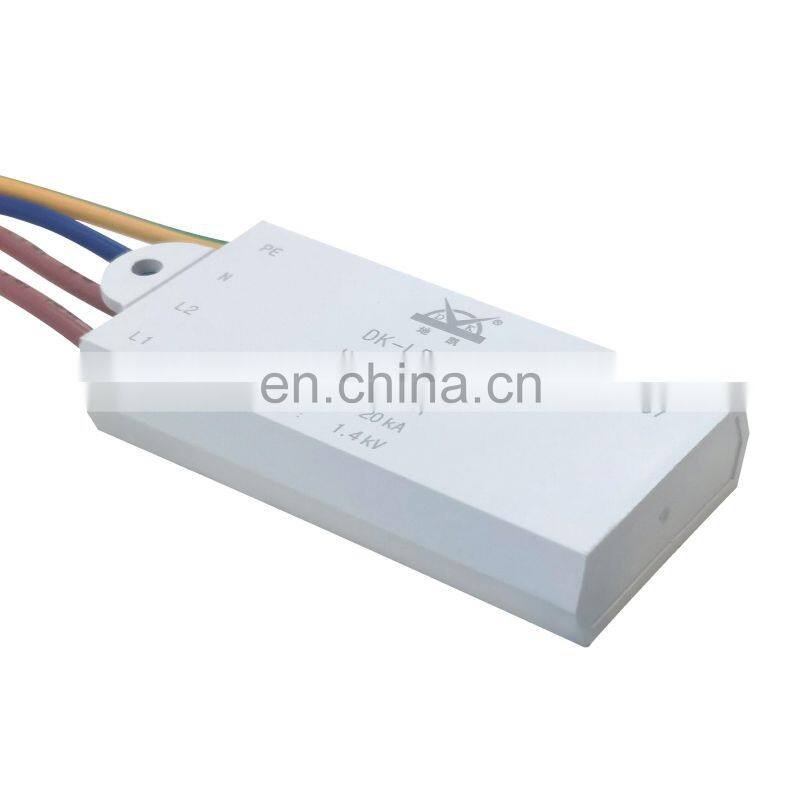

DK Surge Protector Series Connection Ip67 10ka Led Street Lights Surge Protection Devices Spd
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LED 10ka 10kv Street Lighting SPD LED Surge Protector Device AC 20kv Spd Surge Protector SpdNegotiableMOQ: 1 -
1000V Solar Photovoltaic DC Power SPD\\/Surge Protector Solar Surge Protective DeviceNegotiableMOQ: 1
-
DK DC SPD 800v 1000v 1500v 20-40kA Lightning Protector Solar Surge Protection DeviceNegotiableMOQ: 1
-
DIKAI Factory OEM Power Over Ethernet POE IP Camera Network RJ45 Surge Protective DeviceNegotiableMOQ: 1
-
Whole Sale Price of a Lightning Rod Design Ese Advanced Discharge Lightning Rod Lighting RodNegotiableMOQ: 1
DK Surge Protector Series Connection Ip67 10ka Led Street Lights Surge Protection Devices Spd
Product Description
Surge Protection Devices Spd | Led Surge Protection Devices SPD | |||
Item | DK-LED10 | DK-LED20 | ||
OEM | Acceptable | |||
Moq | 10 pcs | |||
Certificate | ISO9001/CE | |||
Dimension | 70*38*13 mm(without mounting ears) | |||
Protection Level of Outer Shell | IP67 | |||
Nominal Discharge Current | In | 5KA | 10 KA | |
Maximum Discharge Current | Imax | 10 KA | 20 KA | |
Voltage Protection Level | Up | 1.0KV | 1.4KV | |
Nominal Operating Voltage | UC | 275 V AC | 320V AC | |
Response Time | tA | ≤25 ns | ||
Voltage | 110-275V AC | |||
Application | dampproof/waterproof/dustproof/fireproof/Commercial LED Lighting | |||
Testing Standard | IEC61643- 11:2012/EN61643-11:2012 | |||
Full Protection | Yes,protect the surge between: 1.L&N2.N&ground wires3.ground wires&L wires | |||
Temperature Range | -40~+85℃ | |||
The parameters can be customized
Click here to consult product parameters
Surge Protectors for the LED lighting system
Nevertheless, this attractive technology has an important weakness: its sensitivity to transient voltages created by lightning or by power switch operations on the AC network.
Due to its scattered and over-exposed location, an LED lighting system will face induced surges which will create failure of its power supply, damage LED components or loss of the lighting efficiency. For these reasons, the use of relevant surge protectors located upstream the LED lighting systems is highly recommended.
Features
• Build-in LED Indication saves maintenance time by identifying replacement need
• Thermally Protected
• Suitable for use in a luminaire with Class I or Class II insulation
• From 5kA to 10kA Maximum Discharge Current (Imax), 8/20μs
• High line-to-earth/ground resistance
• IP67: Dust-tight and water-resistant
• Parallel or Series connected options
• IEC 61643-11/EN 61643-11 recognized
Applications
• Outdoor and Commercial LED Lighting
• Roadway lighting
• Traffic lighting
• Digital signage
• Wall wash lighting
• Parking garage lighting
• Flood lighting
• Tunnel lighting
• Street lighting
Maintenance
The product does not require special maintenance. When the system is running abnormally, the surge protective device can be removed and restored to the original operating state of the system. If the system returns to the normal state, the surge protective device needs to be replaced.When the work indicator is on, it indicates that the operation is normal, otherwise it indicates that the product is working abnormally. It is recommended to replace the surge protective device.
