Singflo 12v/24v dc Submersible Solar Water Pump Price for Irrgation/solar Water Pump Controller

Singflo 12v/24v dc Submersible Solar Water Pump Price for Irrgation/solar Water Pump Controller photo-1
Singflo 12v/24v dc Submersible Solar Water Pump Price for Irrgation/solar Water Pump Controller photo-2
US$ 80 - 90 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Singflo
Model Number:
YM2440-30
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB China port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Fujian, China
Brand Name Singflo
Model Number YM2440-30
Type Other, solar submersible pump

  Singflo 12v/24v dc submersible solar water pump price for irrgation/solar water pump controller :



The solution to your remote water pumping needs. This pump is rugged.durable and builtto last. This pump delivers a steady 162GPH(600LPH) at its maximum depth of 230 feet (70m) when supplied with 24VDC. Its unique water-tight power connector stops water wicking and prevents potential condensation problems. Great for livestock watering.irrigation,pondaeration,remote homes and cabins.



 Description:

*Model: YM2440-30
*Volts: 24V
*Amps: 4.0A
*Flow Rate: 6LPM
*Maximum Lift: 230 Feet(70meters)
*Maximum (Submersible): 100Feet (30 Meters)
*Packing Size: 355*130*110mm
*N.W./G.W.: 2.9/3.0kgs
Packing: 10pcs/Ctn.  N.W.:28kgs   G.W.:30kgs

WARRANTY: 12 Months



Features:

*Long-life 24VDC operation

*Fo 4'' wlls or larger

*Quick disconnect with "Watertight-Gland" Design Pat Pend

*Corrosion-proof housing with stainless-steel fasteners

*Runs dry without damage

*50 mesh stainless steel inlet screen

*State of the art solid diaphragm



Technical Specifications:

Pump Design Positive Displacement 3 Chamber Diaphragm Pump
Motor Permanent Magnet, Thermally Protected
Voltage 24VDC Nominal
Amps 4.0A Maximum
Internal Bypass 105-110PSI Max.(7.2-7.5 Bars)
Maximum Lift 230 feet Maximum (70 Meters)
Maximum Submersion 100 Feet Maximum (30 meters)
Outlet Port 1/2'' (12.7mm) Barbed Fitting
Inlet: 50Mesh Stainless Seel Screen
Materials High Strength Engineered Plastics,Stainless Steel Fasteners
Typical Applications Potable Water Well Pump





Pictures reference:

 Singflo 12v/24v dc submersible solar water pump price for irrgation/solar water pump controller

Singflo 12v/24v dc submersible solar water pump price for irrgation/solar water pump controller



Singflo 12v/24v dc submersible solar water pump price for irrgation/solar water pump controller





Singflo 12v/24v dc submersible solar water pump price for irrgation/solar water pump controllerSingflo 12v/24v dc submersible solar water pump price for irrgation/solar water pump controller

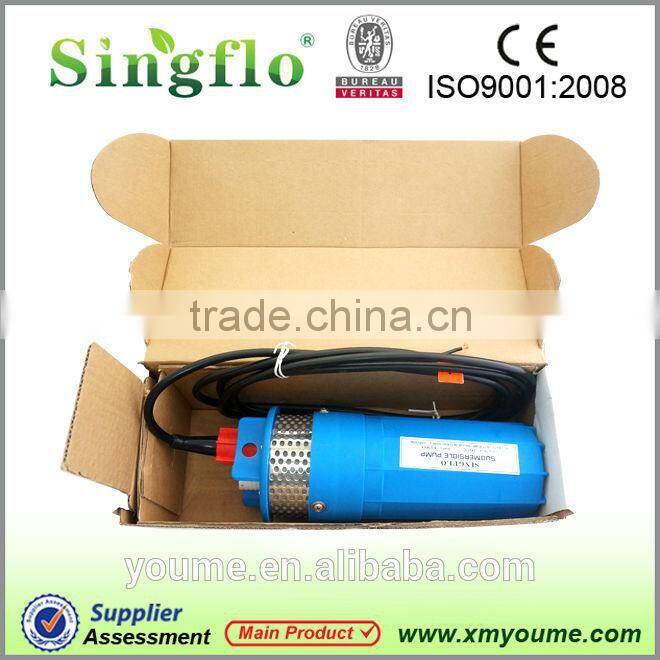

Package:

Singflo 12v/24v dc submersible solar water pump price for irrgation/solar water pump controller



If you're interested in our  solar pump,pls don't hesitate to contact us!



Trade manager: cn1501674438



Skype: singflo.pump5



Sample for testing is welcomed !!!
