dc Surg Arrester SPD 1000V Price Solar Arrester Lightning Protection Spd Solar
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
110~275V AC IP67 Outdoor 20kA Led Street Light Surge Protector Lightning Arrester SpdNegotiableMOQ: 1 -
Solar PV DC SPD 1000V 1200V 1500V Pluggable 40kA 24dc Surge Arrester for PanelNegotiableMOQ: 1
-
China Top Brand 2p/4p 385v AC Surge Protector 20kA Surge Lightning Arrester Power Surge Protect SpdNegotiableMOQ: 1
-
DK 2P 600VDC 20KA 40ka Power Din Rail Oxide Lightning Arrestor Spd Surge Protection Device for PV Solar Power SystemNegotiableMOQ: 1
-
32 YEARS New Gadgets 2020 DC110V /220v Surge Protector TV Broadcasting DiKai DC Surge ProtectorNegotiableMOQ: 1
Product Description
Installation Wiring Diagram
(The appearance in kind prevail)
Application Scope

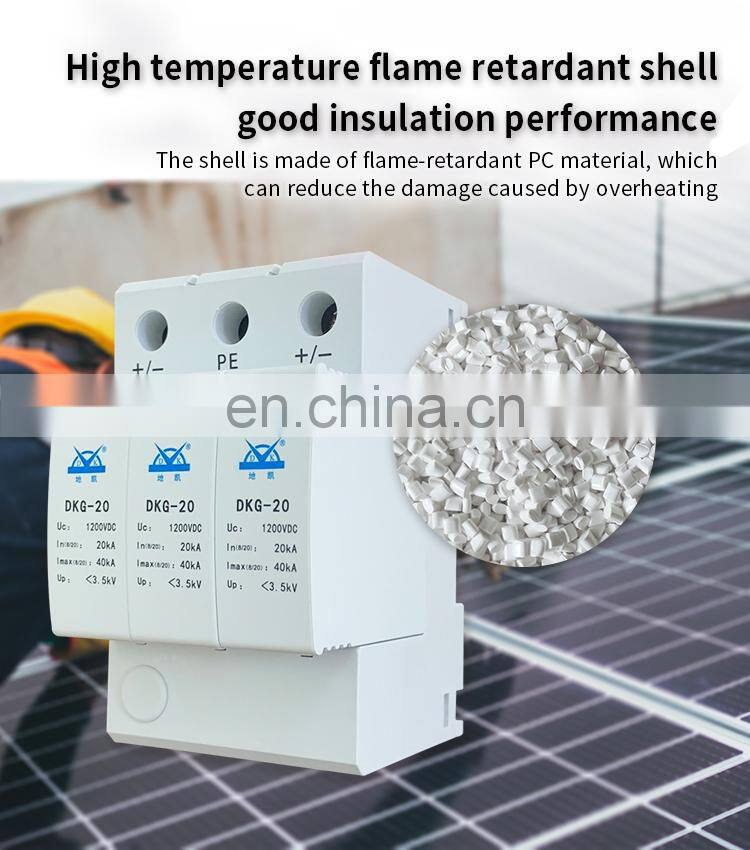

DKG-20 3P photovoltaic DC surge protective device is dedicated to the lightning protection of photovoltaic DC power distribution system.
Specification
Rated voltage(Uo) | Maximum continuous operating voltage(Uc) | Voltage Protection Level (Up) | |
DK-PV600-40 2P | 600 | 800 | 3000 |
DK-PV600-40 3P | 600 | 800 | 3000 |
DK-PV800-40 2P | 800 | 1000 | 3400 |
DK-PV800-40 3P | 800 | 1000 | 3400 |
DK-PV1000-40 2P | 1000 | 1200 | 3500 |
DK-PV1000-40 3P | 1000 | 1200 | 3500 |
DK-PV1500-40 2P | 1500 | 1800 | - |
DK-PV1500-40 3P | 1500 | 1800 | - |
Technical Parameter | ||

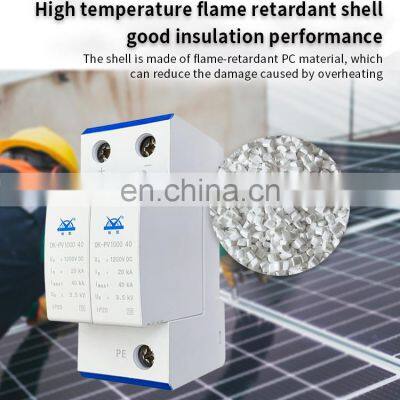

Product Name | Photovoltaic Surge Protective Device | |

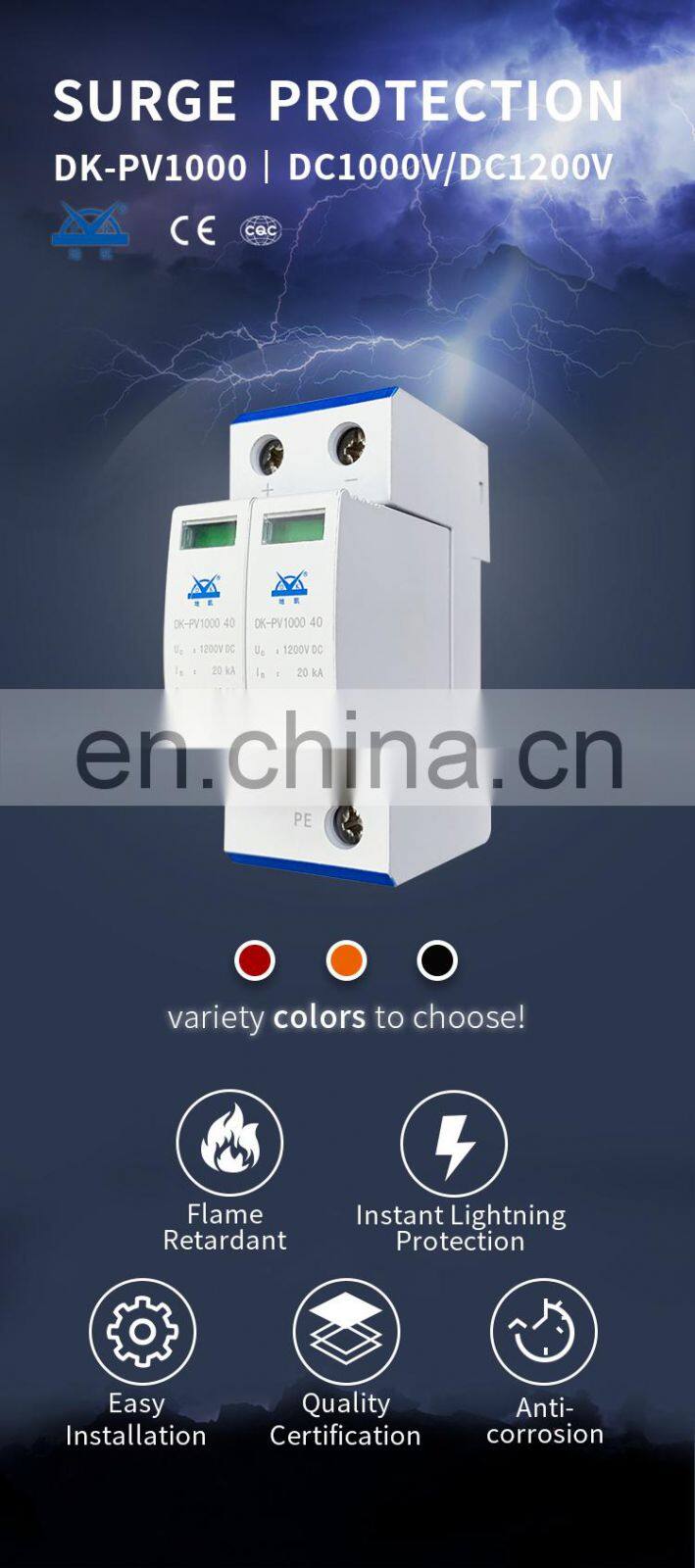

Item | DK-PV1000 | |
SPD Type | One Port (Parallel) | |
One Port (Parallel) | PV DC Power Distribution System | |
Maximum Continuous Operating Voltage Uc | DC600V/800V/1000V/1500V/Customization | |
Rated Voltage Un | DC1000V | |
Nominal Discharge Current In(8/20μs) | 20kA | |
Maximum Discharge Current Imax(8/20μs) | 40kA | |
Voltage Protection Level Up | <3.5kV | |
Leakage Current | ≤30μA | |
Response time tA | ≤10ns | |
Indication Method | Indication Window: turns red when it breaks down. | |
Maximum Wiring Connection Range | BVR25 mm2 | |
Method of Installation | 35mm Din Rail Mounted | |
Material of Shell | PA6 | |
Flame Retardant Rating of Outer Shell | UL94-V0 | |
Protection Level of Outer Shell | IP20 | |
Working Temperature | -25℃~+70℃ | |
Relative Humidity | ≤ 95%RH | |
Installation Location | Front end of equipment to be protected | |
Dimension(mm) | 54*91*68 | |
Protection Mode | +-PE,--PE | |
Company Profile
LABORATORY AND TESTING
◆Strict screening and assessment of raw material suppliers, screening and inspection before storage
◆Automatic machine + manual double inspection before products are shipped, to ensure product consistency
Packing & Delivery
FAQ
Q1:who are we?
A1:We are based in Guangxi, China, start from 1989,sell to Oceania(25.00%),Western Europe(10.00%),EasternAsia(10.00%),Mid East(10.00%),Domestic Market(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),NorthAmerica(5.00%).
Q4:Could I have a sample or small order first for testing?
A4:Of course, sample order and small order are acceptable, especially for new customers under certain condition.
Q5: Is there a discount for larger orders?
There are total about 101-200 people in our office.
Q2:Which certificate do you have for your equipment?
A2:Wehave established a complete quality management, supply chain and after-sales service system. Continuously introduce 6S international advanced concepts in management, and have successively passed ISO9001,CNAS National Laboratory, CQC certification,CE certification, Rohs certification.
Q3:how can we guarantee quality?
A3:Strict screening and assessment of raw material suppliers, screening and inspection before storage Always a pre-production sample before mass production; Automatic machine +manual double inspection before products are shipped, to ensure product consistency.
Q4:Could I have a sample or small order first for testing?
A4:Of course, sample order and small order are acceptable, especially for new customers under certain condition.
Q5: Is there a discount for larger orders?
A5: For new customers, there is a small discount, but when the value of the order is increased, we will provide a larger discount.For previous customers, we are happy to provide a discount for your loyalty.
Q6:what can you buy from us?
Q6:what can you buy from us?
A6:Surge Protector,Lightning Rod,PV Supporting Equipments,power cord,signal protection
Q7:why should you buy from us not from us not from other suppliers?
A7:Guangxi Dikai Sci & Tech Co., Ltd.has been specialized in producing lightning protective products, researching development of lightning protective technology, consulting lightning protection service, and engineering lightning protection cases for 30 years.
Q8.what services can we provide?
A8:Accepted Delivery Terms:FOB,CIF,EXW,Express Delivery； Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C,Western Union,Cash; Language Spoken:English,Chinese,Spanish.
Q9.Can I only buy some spare parts from you?
A9:Of course, we can sell everything from spare parts to finished products.
Q10.Can you can design the equipment according to our size?
A10:Of course, we can customize any product according to customer requirements, and we can all provide design solutions and solutions.
Should you have any questions, please do not hesitate to contact us.
