110~275V AC IP67 Outdoor 20kA Led Street Light Surge Protector Lightning Arrester Spd
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Solar PV DC SPD 1000V 1200V 1500V Pluggable 40kA 24dc Surge Arrester for PanelNegotiableMOQ: 1 -
China Top Brand 2p/4p 385v AC Surge Protector 20kA Surge Lightning Arrester Power Surge Protect SpdNegotiableMOQ: 1
-
DK 2P 600VDC 20KA 40ka Power Din Rail Oxide Lightning Arrestor Spd Surge Protection Device for PV Solar Power SystemNegotiableMOQ: 1
-
32 YEARS New Gadgets 2020 DC110V /220v Surge Protector TV Broadcasting DiKai DC Surge ProtectorNegotiableMOQ: 1
-
DK Surge Protector Series Connection Ip67 10ka Led Street Lights Surge Protection Devices SpdNegotiableMOQ: 1
Product Description
Product performance description
The LED power supply lightning surge protective device is a three-level power supply lightning surge protective device. The surge protective device uses common mode and differential mode full protection, with leakage and continuous current interruption functions.

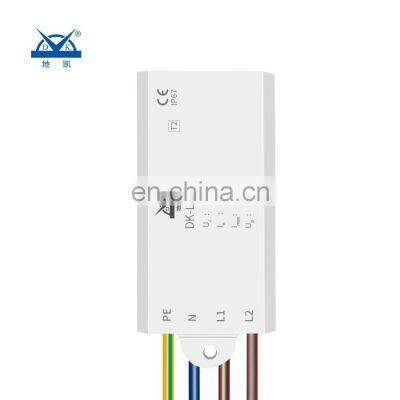

The LED street light power supply lightning surge protective device is suitable for the 110~275V AC inlet end of the LED street light power supply. It has a fully sealed shell, waterproof and dustproof IP67 protection, etc. The surge protection device has a variety of wiring combinations, and at the same time meets the needs of series and parallel wiring.
Dimension | 70*38*13 mm(without mounting ears) |
Protection Level of Outer Shell | IP67 |
Nominal Discharge Current In | 10KA |
Maximum Discharge Current Imax | 20KA |
Voltage Protection Level Up | 1.4KV |
Product Usage

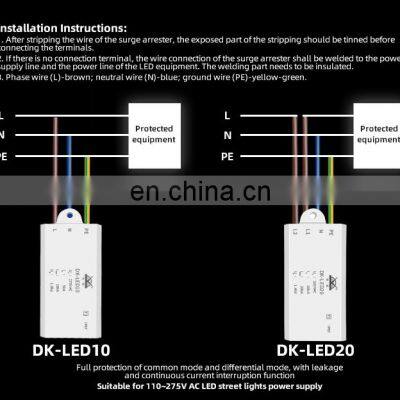

Installation Instruction

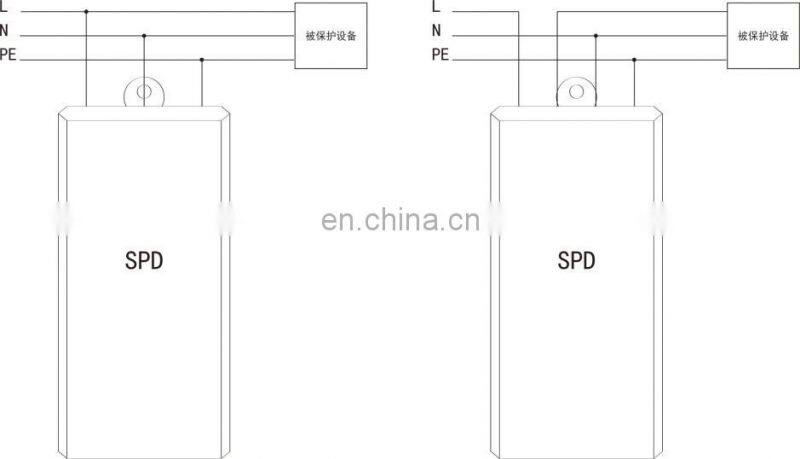

1.Surge protective device and protected equipment are connected in series or parallel.
2.When installing, strip the connecting wire of the surge protective device about 15mm of copper. The copper core part needs to be tinned before connecting the terminals. The connection should be firm. If there is no terminal, the connecting wire of the surge protective device needs to be connected to the power cord. The wire ends are connected by welding, and the welding part needs to be insulated.
3.Phase wire (L)-brown; neutral wire (N)-blue; ground wire (PE)-yellow-green.
2.When installing, strip the connecting wire of the surge protective device about 15mm of copper. The copper core part needs to be tinned before connecting the terminals. The connection should be firm. If there is no terminal, the connecting wire of the surge protective device needs to be connected to the power cord. The wire ends are connected by welding, and the welding part needs to be insulated.
3.Phase wire (L)-brown; neutral wire (N)-blue; ground wire (PE)-yellow-green.
The product does not require special maintenance. When the system is running abnormally, the surge protective device can be removed and restored to the original operating state of the system. If the system returns to the normal state, the surge protective device needs to be replaced.When the work indicator is on, it indicates that the operation is normal, otherwise it
indicates that the product is working abnormally. It is recommended to replace the surge protective device.
indicates that the product is working abnormally. It is recommended to replace the surge protective device.
