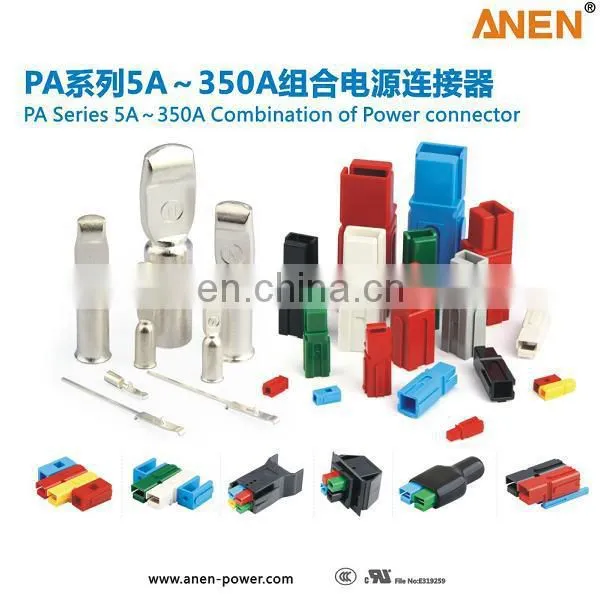

Help CenterHermaphrodite Connector 120A 600V CE/RoHS Certificated With Terminals
Related Products
-
Anen Terminal Connector SH175 SB175 SC175 175A 600V CE/RoHS CertificatedNegotiableMOQ: 1 -
Anen Power Product PCB Connector 45A 600V Folk Lift Connector With TerminalNegotiableMOQ: 1
-
Anen50 SH50 SC50 Fast Power Connector 50A.600V Electric Plays Connector With TerminalsNegotiableMOQ: 1
-
SA120 Anen Power Connector 120A 600V Multi-function Connector Electrical ConnectorsNegotiableMOQ: 1
-
Anen IC300 Connector Industrial Round Connectors DC/AC High Power ConnectorNegotiableMOQ: 1
Hermaphrodite Connector 75A 600V UL/CUL/CE/SGS/RoHS Certificated
<1> Flat wiping contact system
Minimal contact resistance at high current, wiping action cleans contact surface during connection/ disconnection
<2>Structured color-coded
Prevents accidental mating of components operating at different voltage levels.
<3> Interchangeable genderless design
Makes assemble easy and reduces stock.
<4>Flexible application
Meet cable to cable connection and cable to board requirement.
<5> Finger proof
Helps prevent fingers (or probes) from accidentally touching live contacts.
<6> Molded-in dovetails
Secures individual connectors into “keyed” assemblies which prevents misconnection with similar configurations.
<7> Locking dovetail design
Provides positive mechanical spring latch, including lockable/un-lockable and other type.
<8> Horizontal/ Vertical mounting wings or surface
Except retaining pins, allows horizontal or vertical mounting.
<9> Molded side groves
Allows for a secure panel mounting fit.
<10> Auxiliary contacts
Provides additional poles up to 30 amps for auxiliary
Hermaphrodite Connector 75A 600V UL/CUL/CE/SGS/RoHS Certificated
|

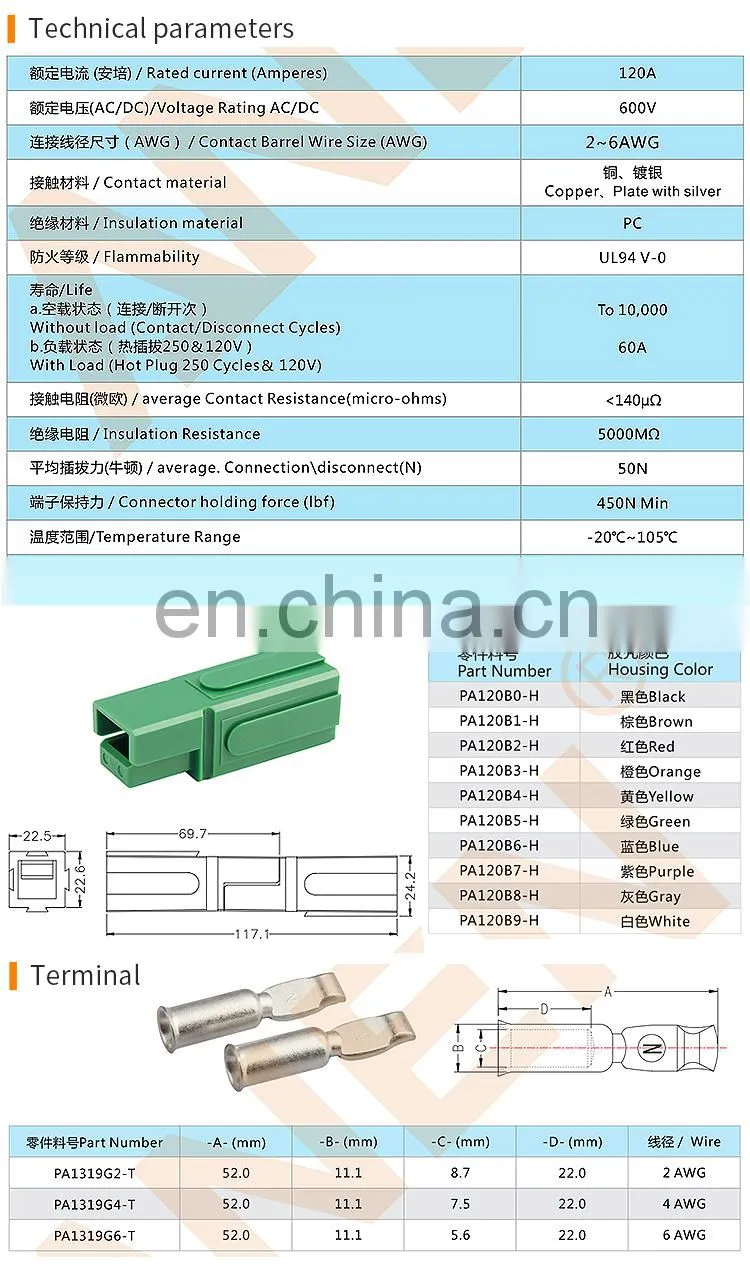

Rated current (amperes): |
45-350A |
|
|
Rated voltage (volts): |
600V |
|
|
Contact barrel wire size (AWG) : |
1-20(AWG) |
|
|
Contact material: |
copper, plate with silver |
|
|
Insulation material: |
PC |
|
|
Flammability: |
UL94-V0 |
|
|
Life |
without load (contact/disconnect cycles): |
To 10,000 |
|
with load (hot plug 250 cycles & 120V): |
20-100A |
|
|
Average contact resistance (micro-ohms): |
<500 |
|
|
Insulation resistance: |
5000MΩ |
|
|
Average connectiondisconnection(N) |
15-280N |
|
|
Connector holding force(lbf) |
250 N Min |
|
|
Environment temperatures(℃) |
-20℃...+75℃ |
|
