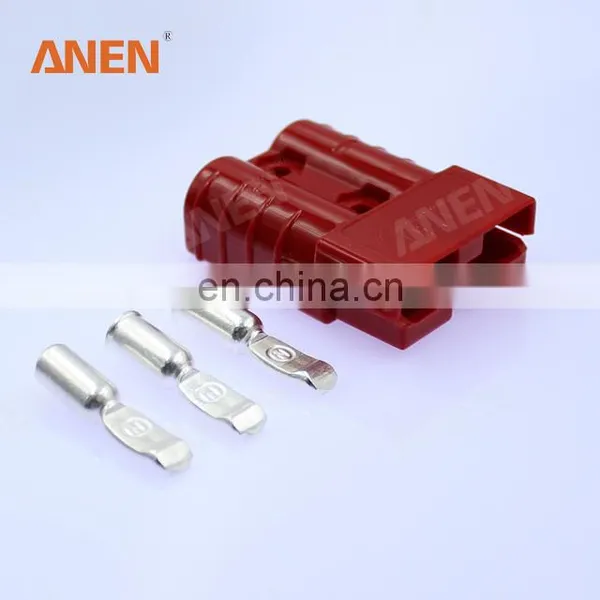

Anen50 SH50 SC50 Fast Power Connector 50A.600V Electric Plays Connector With Terminals photo-4
Anen50 SH50 SC50 Fast Power Connector 50A.600V Electric Plays Connector With Terminals photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2001
Annual Export Value:
US$10 Million - US$50 Million
Contact Supplier Request Quote Chat Now
Dongguan NBC Electronic Technological Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

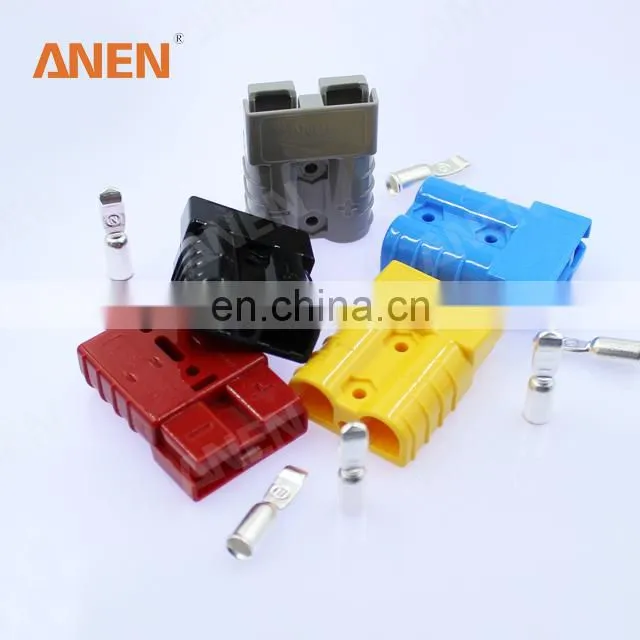

Anen50 SH50 SC50 fast power Connector 50A.600V Electric Plays connector with Terminals



Features

Flat wiping contact system

Minimal contact resistance at high currentwiping action cleans contact surface during connection/disconnection

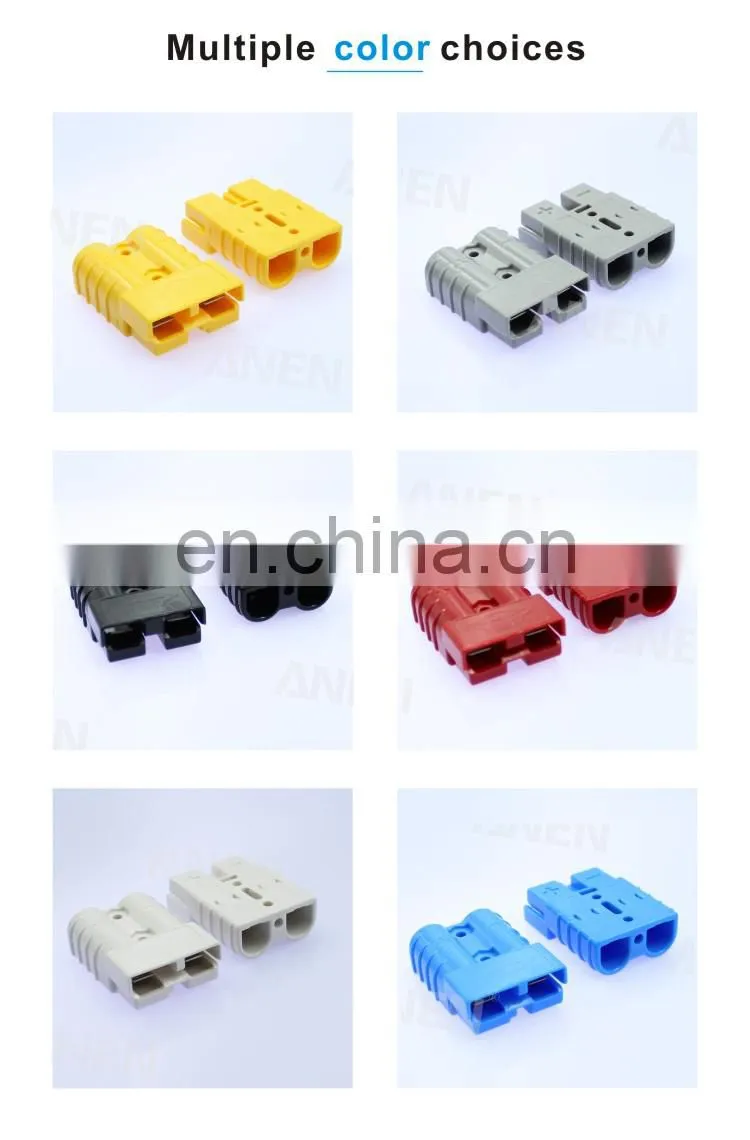

Structured color-coded

prevents accidental mating of components operating at different voltage levels



Interchangeable genderless design

Makes assembly easy and reduces stock

Flexible application

Meet cable to cable connection and cable to board requirement









Technical Parameters

Rated current (Amperes)

50A

Voltage Rating AC/DC

600V

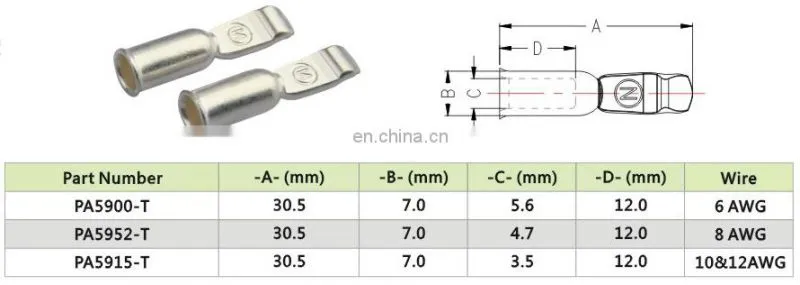

Contact Barrel Wire Size (AWG)

6~12AWG

Contact material

Copper Plate with silver

Insulation material

PC

Flammability

UL94 V-0

Life

a. Without load (Contact/Disconnect Cycles)

b. With Load (Hot Plug 250 Cycles&120V)

To 10,000

40A

average Contact Resistance(micro-ohms)

<500μΩ

Insulation Resistance

5000MΩ

average. Connectiondisconnect(N)

55N

Connector holding force (Ibf)

250N Min

Temperature Range

-20°C~105°C

Dielectric Withstanding Voltage

2200 Volts AC
