Anen Power Product PCB Connector 45A 600V
Home>> All Series>>Connectors>>Single Pole Wire Connector >>PA45

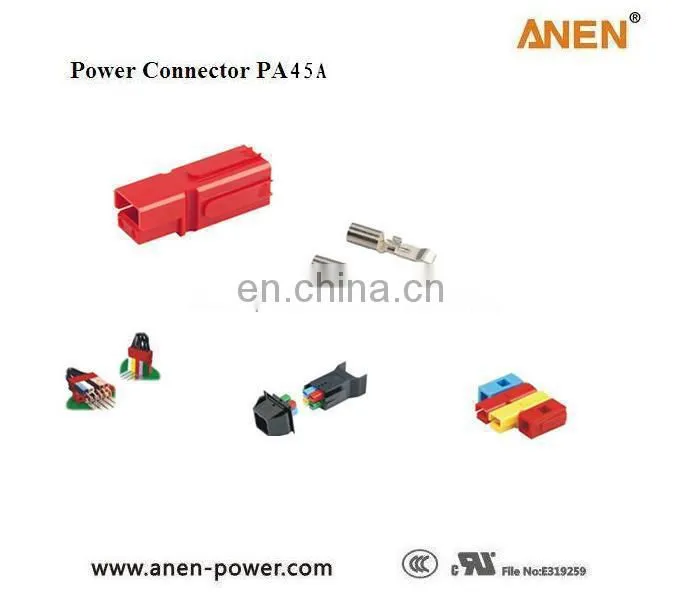

Anen PA Series Power Connector provides cost-effective reliability, design flexibility and safety for your products' manufacture, installation and maintenance. The housings are modular and genderless. Anen PA connectors’ provide 600 Volts continuous, AC or DC operation. Wire sizes range from 12AWG 16 AWG. Contacts are available in reeled and loose piece designs to support all production needs from engineering prototype, low volume and high volumes products.
ANEN PA45 PCB Connefctor Features
- Rated Current Reach 45A & 600V
- Fingger Proof
-Interchangeable Genderless Design
-Flat Wiping Contact System
-iso9001, iso14001, ul,cul...certifications

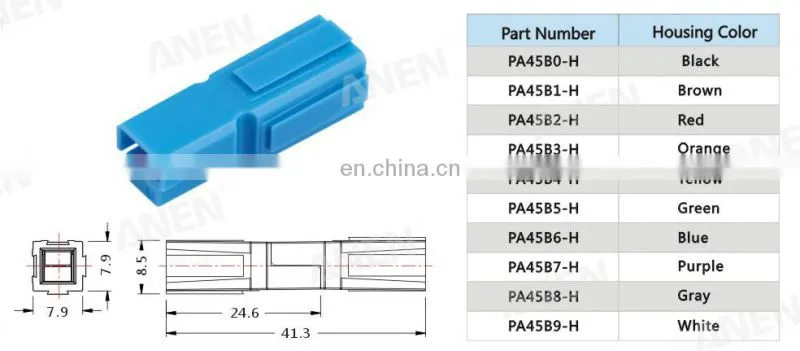

ANEN PA45 PCB Connector Parameters
|
Item |
Value |
|
Rated Current |
45A |
|
Rated Voltage |
600V |
|
Wire Size (AWG) |
04-1/0 AWG |
|
Contact Materal |
Copper, Plated With Silver Or Tin |
|
Insulation Material |
PC |
|
Flammability |
94 V-0 |
|
Without Load, Contact/Disconnect Cycles |
To 10,000 |
|
With Load (Hot Plug 250 Cycles & 120V) |
75A |
|
Average Contact Resistance (Mico - Ohms) |
<95 |
|
Insulation Resistance |
5000 |
|
Average Connection/ Disconnect (N) |
150 |
|
Connector Holding Force (lbf) |
150N Min |
|
Environment Temperatures |
-20···+75 Degree |

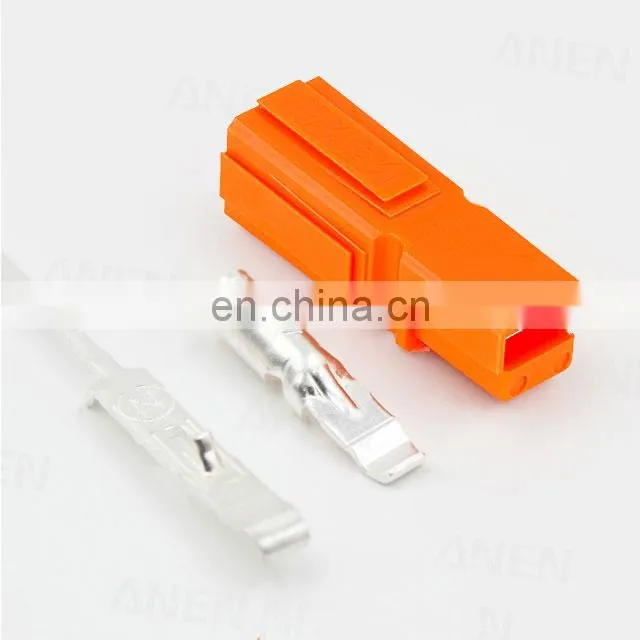

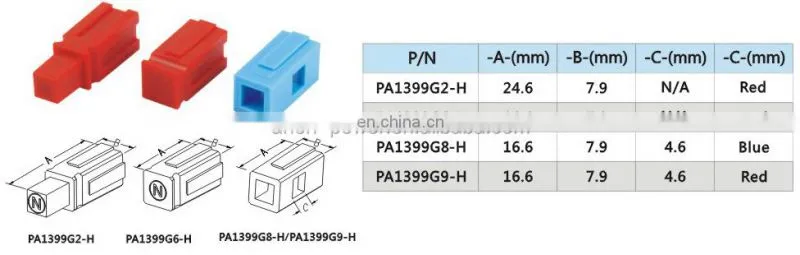

ANEN PA45 Wiring Connector Terminal Parameters
|

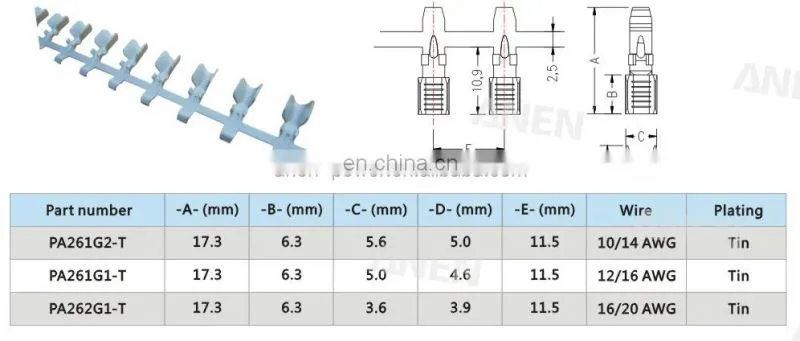

PA45 PCB Connector Pin: PA261G2-T |
10/14 AWG |
|
PA45 PCB Connector Pin: PA261G1-T |
12/16 AWG |
|
PA45 PCB Connector Pin: PA262G1-T |
16 & 20 AWG |
|

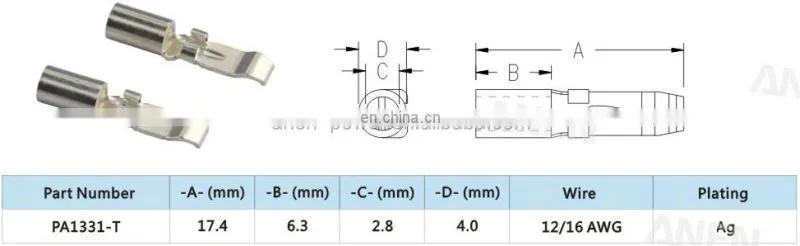

PA45 PCB Connector Pin: PA1331-T |
12/16 AWG |
|

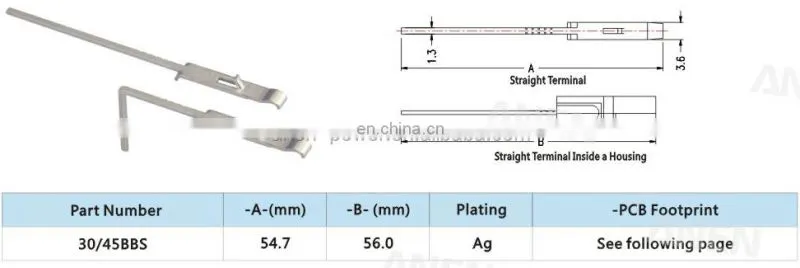

PA45 PCB Connector Pin: 30/45BBS |
N/A |
ANEN PA45 PCB Connector Applications
This safety quick connect/disconnect connector kits are widely applied in various field. This kits always are equipped in Electrical, folk lift, electric folk truck, golf car, tour bus and many other power-driven tools to solve the power-out problem. The terminal pins are made of red copper coated by silver, which has a strong electrical conductivity and can reduce the resistance to make the current and voltage stable. The mark of positive and negative are printed in the connector to avoid the miss plug. In the kit, a couple of boot caps are included to protect this quick connect and disconnect kits from the dust.
ANEN PA45 PCB Connector Installations
1. Strip the insulation to fit the terminal pins.
2. Insert the cable into the terminal pins.
3. Crimp the terminal pins.
4. Insert terminal pins in housing with notched side of tongue next to spring.
5. Final adjustment Push contacts and cable into housing until the notched tongue snaps over end of spring; tug slightly to make sure contact is locked into place.
