Anen IC300 Connector Industrial Round Connectors DC/AC High Power Connector
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2001
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Anen PA180 Wire Connector Electric Vehicles Power Connector Single-Pole Quick ConnectorsNegotiableMOQ: 1 -
2Pin Quick Battery Plug 350A 600V UPS Connector Equipment AC/DC Power ConnectorNegotiableMOQ: 1
-
SA120 Power Connector Rated Current Anen 2 Pin Wire Connector Battery Plug SocketNegotiableMOQ: 1
-
Anen SA3175 Connector 175A 600V 3 Poles Housing Mutipole Power ConnectorNegotiableMOQ: 1
-
Anen 175A 600V Power Connector 3 Pole Housing Electric Car Power ConnectorNegotiableMOQ: 1
Product Description
Industrial Connector Manufacturer
Chinese Manufacturer for DC/ACIndustrial Connector
* The product is designed according to IEC,EN 60900, IEC and EN 60664, which can be matched with other brands in the industry.
* It has high power, soft plug, double crown spring contact design, high level of touch and safety factor.
* Adapt to power station, emergency power generation car, power supply equipment, power grid, ship dock, mining and other industries.
Chinese Manufacturer for DC/ACIndustrial Connector
* The product is designed according to IEC,EN 60900, IEC and EN 60664, which can be matched with other brands in the industry.
* It has high power, soft plug, double crown spring contact design, high level of touch and safety factor.
* Adapt to power station, emergency power generation car, power supply equipment, power grid, ship dock, mining and other industries.
Technical Parameter of Industrial Connector |
||
Products |
IC300 Series Industrial Round Connectors |
|
Rated current (Amperes) |
300A |
|
Rated voltage (Volts) |
1000V |
|
Contact Barrel Wire Size (AWG) |
50~150mm² |
|
Contact material |
Copper,Plate with silver |
|
Insulation material |
PA |
|
Flammability |
UL94 V-0 |
|
Life Without load (Contact/Disconnect Cycles) Without load (Hot plug 250 cycles&120V) |
To 4,000 No |
|
Average Contact Resistance (micro-ohms) |
20 |
|
Insulation Resistance |
5000MΩ |
|
Average.Connectordisconnect (N) |
120N |
|
Insulation Withstanding Test Voltage |
3000V AC |
|
Environment Temperature (℃) |
-20℃…+75℃ |
|

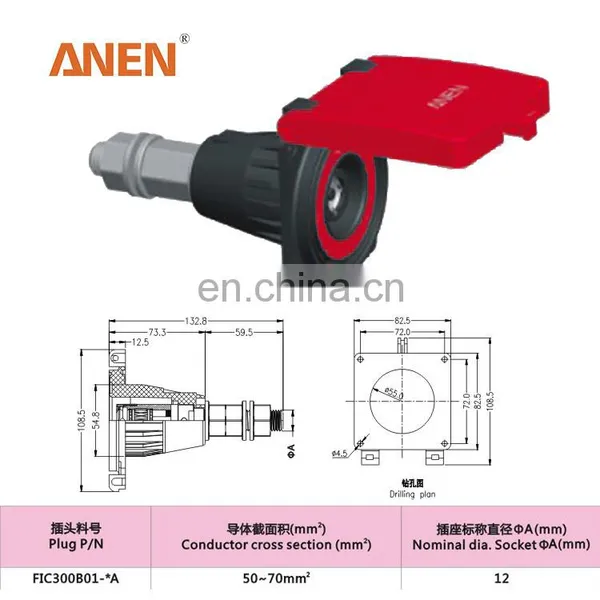

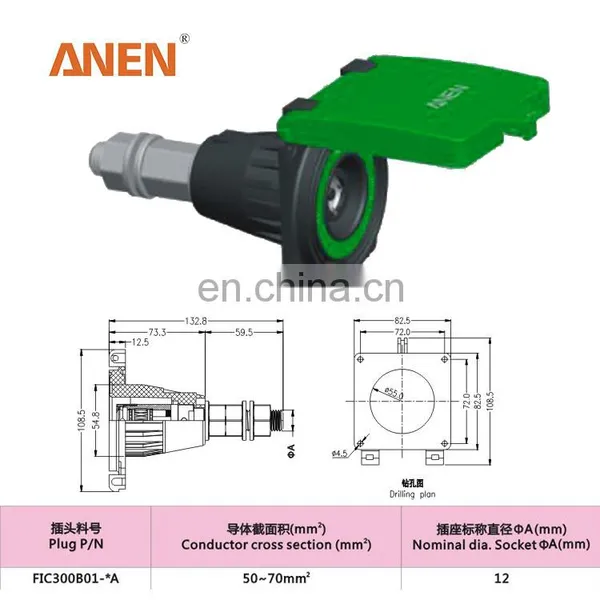

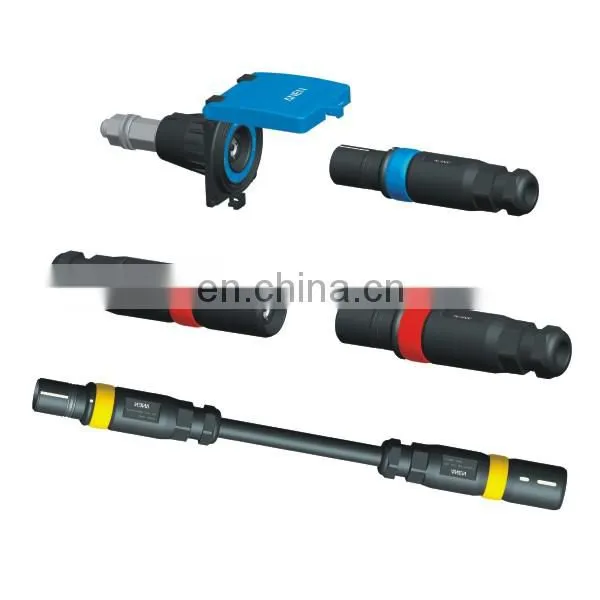

Detailed Images
Applicaion
As a professional connector manufacturer, our connectors can apply in standby power supply, power-driven tools, ups system, electric equipment, etc
Standby Power Supply
UPS Power Car
Our Company
NBC Electronical Technology Co.,Ltd
Leading Industrial Connector Manufacturer
Location : Dongguan, Guangdong
Founded in : 2006
Brand:ANEN
Main production line:
*Full series of power connectors
*Electroacoustic hardware
Services:
Design&Tooling
CNC machining, laser welding，Metal Injection Molding
DFM, prototyping, 3-D printing
Metal Stamping,Plastic Injection,Cable Assembly Surface Finishing
Services:
Design&Tooling
CNC machining, laser welding，Metal Injection Molding
DFM, prototyping, 3-D printing
Metal Stamping,Plastic Injection,Cable Assembly Surface Finishing
