Aac 477mcm Bare Strand Conductor Aac All Aluminium Conductors Bs215 Centipede

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

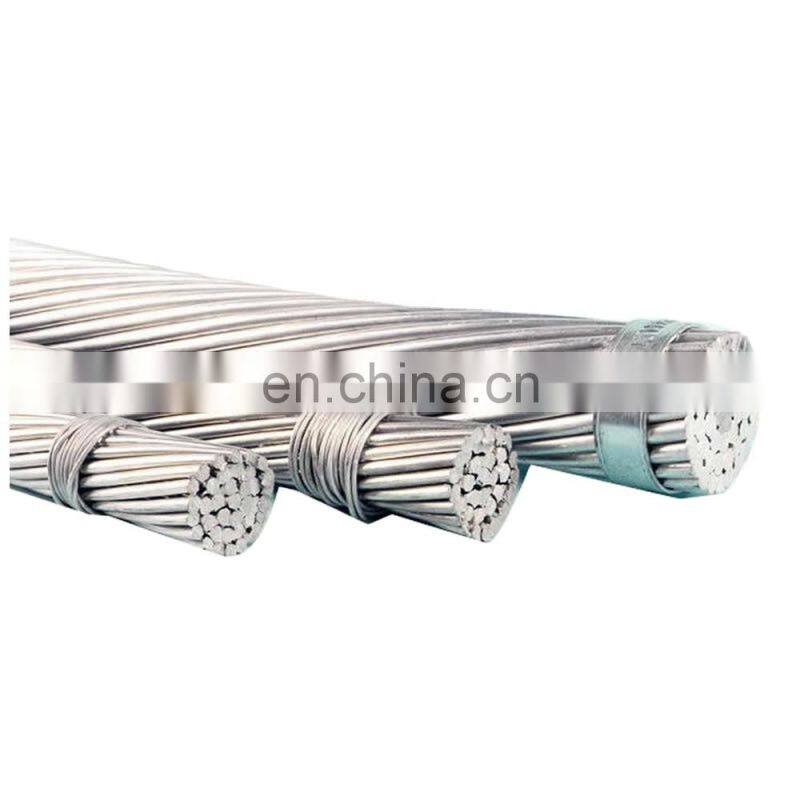

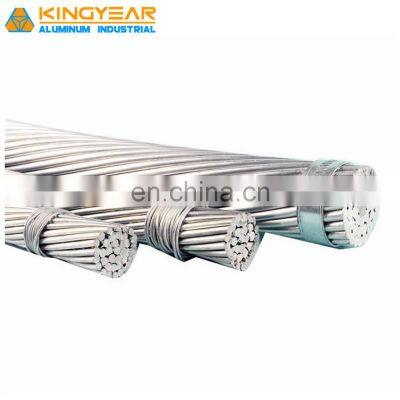

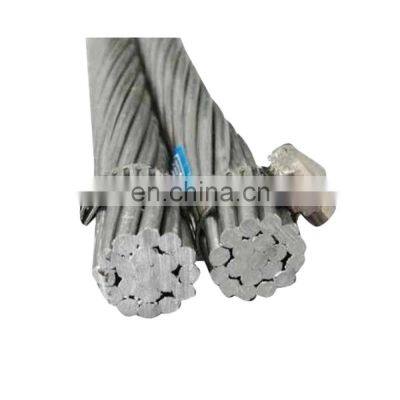

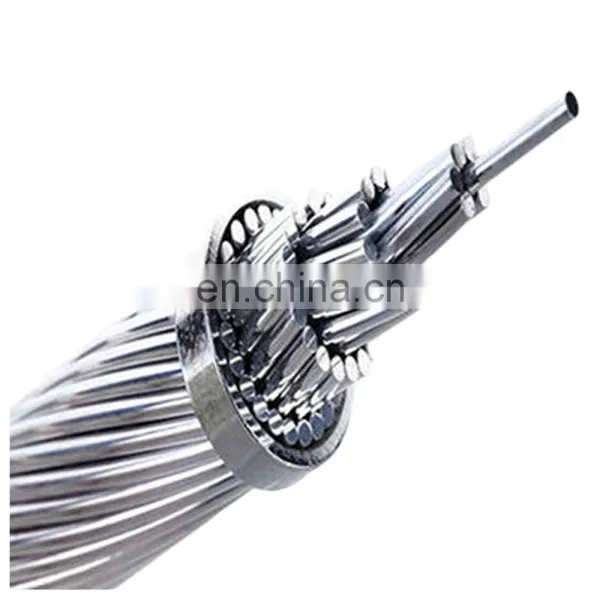

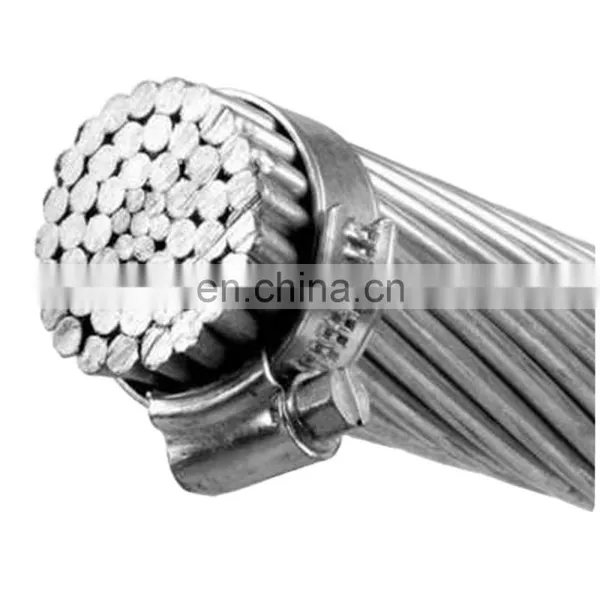

aac 477mcm bare strand conductor aac all aluminium conductors bs215 centipede

Products Description

Applications:
Concentric lay stranded Aluminium Conductor ( AAC) is made up of one or more strands of hard drawn 1350 aluminum alloy. These conductors are used in low, medium and high voltage overhead lines. AAC has seen extensive use in urban areas where spans are usually short but high conductivity us required. The excellent corrosion resistance of aluminium has made AAC a conductor of choice in coastal areas. Because of its relatively poor strength to weight ratio, AAC had limited use in transmission lines and rural distribution because of long spans utilized.

The excellent corrosion resistance of aluminium has made AAC a conductor of choice in coastal areas.Although aluminium-to-copper connections can be made, it is better to use aluminium conductors for service connections, as various forms of covered cable are
available for this purpose.

Advantage:
1. High Current Carrying Capacity.
2. Excellent resistance to corrosion.
3. Ideal for use in coastal area.
4. Suitable for low & medium voltage lines in urban area.

Standard
ASTM B 231, BS 215, IEC 61089, DIN 48201, BS EN 50182

The technical data of AAC(All Aluminum Bare Conductor Cable) as below for reference,any customized is available.

Product parameters

IEC 61089
IEC 61089
Code Name	Nominal	No./Nominal diameter of wires	Approximate Overall Diameter	Approximate Weight	Nominal Breaking Load	Nominal DC Resistance at 20°C


		mm2	No./mm	mm	kg/km	KN	ohm/km
10	10	7/1.35	4.05	27.4	2	2.8633
16	16	7/1.71	5.13	43.8	3	1.7896
25	25	7/2.13	6.39	68.4	4.5	1.1453
40	40	7/2.70	8.1	109.4	6.8	0.7158
63	63	7/3.39	10.17	172.3	10.4	0.4545
100	100	19/2.59	12.95	274.8	17	0.2877
125	125	19/2.89	14.45	343.6	21.3	0.2302
160	160	19/3.27	16.35	439.8	26.4	0.1798
200	200	19/3.66	18.3	549.7	32	0.1439
250	250	19/4.09	20.45	687.1	40	0.1151
315	315	37/3.29	23.03	867.9	52	0.0916
400	400	37/3.71	25.97	1102	64	0.0721
450	450	37/3.94	27.58	1239.8	72	0.0641
500	500	37/4.15	29.05	1377.6	80	0.0577
560	560	37/4.39	30.73	1542.9	89.6	0.0515
630	630	61/3.63	32.67	1738.3	100.8	0.0458
710	710	61/3.85	34.65	1959.1	113.6	0.0407
800	800	61/4.09	36.81	2207.4	128	0.0361
900	900	61/4.33	38.97	2483.3	144	0.0321
1000	1000	61/4.57	41.13	2759.2	160	0.0289
1120	1120	91/3.96	43.56	3093.5	179.2	0.0258
1250	1250	91/4.18	45.98	3452.6	200	0.0231
1400	1400	91/4.43	48.73	3866.9	224	0.0207
1500	1500	91/4.58	50.38	4143.1	240	0.0193

ASTM B231
ASTM B231
Code Name	Total Area			Stranding and Wire Diameter	Overall Diameter	Liner Mass	Nominal Breaking Load	Max. D.C. Resistance at 20ºC


		AWG or MCM	mm²	mm	mm	kg/km	daN	Ω/km
Peachbell	6	13.29	7/1.554	4.67	37	249	2.1692
Rose	4	21.16	7/1.961	5.89	58	396	1.3624
Iris	2	33.61	7/2.474	7.42	93	597	0.8577
Pansy	1	42.39	7/2.776	8.33	117	732	0.6801
Pappy	1/0	53.48	7/3.119	9.36	147	873	0.539
Aster	2/0	67.42	7/3.503	10.51	186	1100	0.4276
Phlox	3/0	85.03	7/3.932	11.8	234	1347	0.339
Oxlip	4/0	107.23	7/4.417	13.26	296	1698	0.2688
Valerian	250	126.71	19/2.913	14.57	349	2062	0.2275
Sneezewort	250	126.71	7/4.80	14.4	349	2007	0.2275
Laurei	266.8	135.16	19/3.01	15.05	373	2200	0.2133
Dalsy	266.8	135.16	7/4.96	14.9	373	2141	0.2133
Peany	300	152	19/3.193	15.97	419	2403	0.1896
Tulip	336.4	170.45	19/3.381	16.01	470	2695	0.1691
Daftodil	350	177.35	19/3.447	17.24	489	2804	0.1625
Canna	397.5	201.42	19/3.673	18.36	555	3184	0.1431
Goldentufl	450	228	19/3.909	19.55	629	3499	0.1264
Syringa	477	241.68	37/2.882	20.19	666	3849	0.1193
Cosmos	477	241.68	19/4.023	20.12	666	3708	0.1193
Hyacinth	500	253.35	37/2.951	20.65	698	4035	0.1138
Zinnia	500	253.35	19/4.12	20.6	698	3888	0.1138
Dahlia	556.5	282	19/4.346	21.73	777	4327	0.1022
Mistletoe	556.5	282	37/3.114	21.79	777	4362	0.1022
Meadowsweet	600	304	37/3.233	22.63	838	4703	0.0948
Orchid	636	322.25	37/3.33	23.31	888	4985	0.0894
Heuchera	650	329.35	37/3.366	23.56	908	5095	0.0875
Flag	700	354.71	61/2.72	24.48	978	5146	0.0813

BS 215 Part 1
BS 215 Part 1
Code name	Nominal	No./Nominal diameter of wires	Sectional Area	Overall	Weight	Calculated Breaking Load	Max.D.C. Resistance at 20ºC


		mm²	No./mm	mm²	mm	kg/km	daN	Ω/Km
Midge	22	7/2.06	23.33	6.18	64	399	1.227
Aphis	25	3/3.35	26.44	7.22	74	411	1.081
Gnat	25	7/2.21	26.85	6.63	73	459	1.066
Weevil	30	3/3.66	31.56	7.89	86	486	0.9082
Mosquito	35	7/2.59	36.88	7.77	101	603	0.7762
Ladybird	40	7/2.79	42.8	8.37	117	687	0.6689
Ant	50	7/3.10	52.83	9.3	145	828	0.5419
Fly	60	7/3.40	63.55	10.2	174	990	0.4505
Bluebottle	70	7/3.66	73.65	10.98	202	1134	0.3881
Earwig	75	7/3.78	78.55	11.34	215	1194	0.3644
Grasshopper	80	7/3.91	84.05	11.73	230	1278	0.3406
Clegg	90	7/4.17	95.6	12.51	262	1453	0.2994
Wasp	100	7/4.39	106	13.17	290	1600	0.2702
Beetle	100	19/2.67	106.4	13.35	293	1742	0.2704
Bee	125	7/4.90	132	14.7	361	1944	0.2169
Cricket	150	7/5.36	157.9	16.08	432	2385	0.1818
Hornet	150	19/3.25	157.6	16.25	434	2570	0.1825
Caterpillar	175	19/3.53	185.9	17.65	511	2863	0.1547
Chafer	200	19/3.78	213.2	18.9	587	3240	0.1349
Spider	225	19/3.99	237.6	19.95	654	3601	0.1211
Cockroach	250	19/4.22	265.7	21.1	731	4040	0.1083
Butterfly	300	19/4.65	322.7	23.25	888	4875	0.08916
Moth	350	19/5.00	373.1	25	1027	5637	0.07711
Drone	350	37/3.58	372.4	25.06	1027	5745	0.07741
Locust	400	19/5.36	428.7	26.8	1180	6473	0.0671
Centipede	400	37/3.78	415.2	26.46	1145	6310	0.06944
Maybug	450	37/4.09	486.1	28.63	1340	7401	0.05931
Scorpion	500	37/4.27	529.8	29.89	1461	7998	0.05441
Cicada	600	37/4.65	628.3	32.55	1732	9495	0.04588
Tarantula	750	37/5.23	794.9	36.61	2192	12010	0.03627

DIN 48201 Part 5
Nominal Area	Calculated Area	Stranding and Wire Diameter	Overall Diameter	Weight	Calculated Breaking Load	Max.DC Resistance at 20° C


mm2	mm2	No.xmm	mm	kg/km	daN	Ω/Km
16	15.89	7/1.70	5.1	44	290	1.8018
25	24.25	7/2.10	6.3	67	425	1.1808
35	34.36	7/2.50	7.5	94	585	0.8332
50	49.48	7/3.00	9	135	810	0.5786
55	48.35	19/1.80	9	133	860	0.595
70	65.81	19/2.10	10.5	181	1150	0.4371
95	93.27	19/2.50	12.5	256	1595	0.3084
120	116.99	19/2.80	14	322	1910	0.2459
150	147.11	37/2.25	15.8	406	2570	0.196
185	181.62	37/2.50	17.5	501	3105	0.1587
240	242.54	61/2.25	20.3	670	4015	0.1191
300	299.43	61/2.50	22.5	827	4850	0.0965
400	400.14	61/2.89	26	1105	6190	0.0722
500	499.83	61/3.23	29.1	1381	7600	0.0578
625	626.2	91/2.96	32.6	1733	9690	0.04625
800	802.1	91/3.35	36.8	2219	12055	0.03611
1000	999.71	91/3.74	41.1	2766	14845	0.02897

COMPANY PROFILE

HENAN KINGYEAR GROUP was founded in 2006,located in the Gongyi industry area of Henan Province.Occupies more than 1200,000 square meters,more than 800 employees.Our company consists of 3 main subsidiaries,Business specialized in development,manufacture and distribution of aluminum and cable products.Mainly including aluminum plate,aluminum coil,bare aluminum conductor,aerial bundled cable,Low voltage and medium voltage power cable,Electrical wire,control cable,etc... _{CLICK MORE}

PLANT AND OFFICE SHOWN:

3 workshops of All Aluminum Bare Conductor Aac Conductor. 1 office building of international trade.

TESTING MACHINE SHOWN: Aac all aluminium conductors testing :

CERTIFICATE SHOWN:

ISO,CE,CCC,ROHS,UL,VDE of aac all aluminium conductors.

CUSTOMER

After more than 20 years of development, our customers have spread to more than 40 countries and regions around the world, And more than 50% are old customers.The power cable,control cable,ABC cable,bare conductor(AAC/AAAC/ACSR) are more favorited by them.We are proud of our good quality---KINGYEAR CABLE.

PACKAGE

PACKAGING FLOW of All Aluminum Bare Conductor Aac Conductor as below, customized is accepted.

Some of our products packaging records shown:

They are about all luminum bare conductor Aac Conductor and power cable.

FAQ

Q:I didn't find the all luminum bare conductor aac Conductor which I need in this page?

A:If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.

Q:What's your minimum order quantity?

A:It is not so sure, you can confirm it with us. Normally, it will be 1000 meters.

Q:What's your delivery time?

A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.

Q:How can I get a sample from your company? Is the sample free?

A:If you need the sample to check the quality, please contact us,we will send you the free sample, but the freight charge should be paid.

Q:How to ensure quality ?

A:For any quality problems, we will arrange the technical personnel to solve or return the goods as soon as possible, and bear the corresponding customer losses.

Q:What if the cable which we need have some differences on specifications from yours?

A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.
