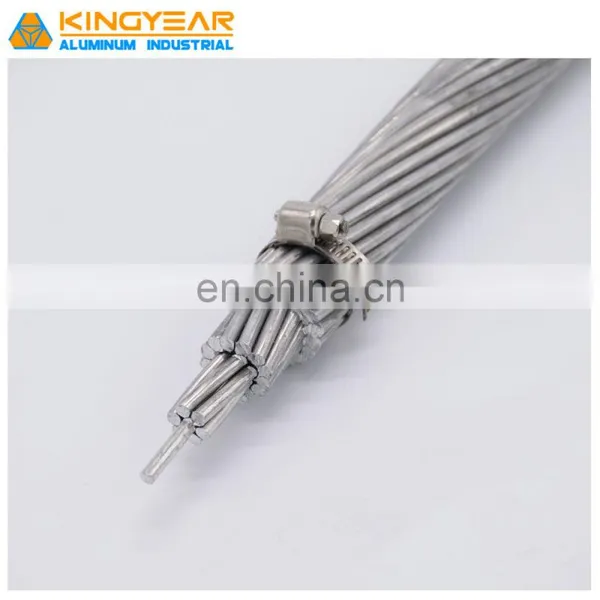

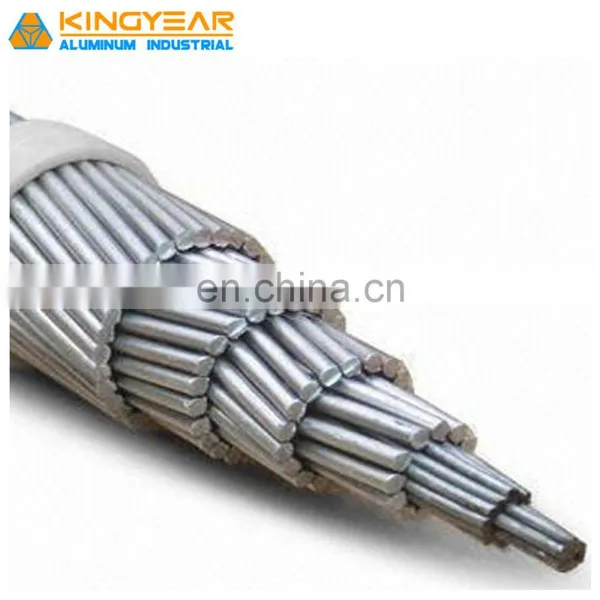

556.5MCM ACSR Cable Osprey Overhead Bare ACSR Conductor 556.5MCM Dove Parakeet ASTM B232
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1998
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AAAC 500mcm All Aluminium Alloy Conductor Aaac 95 Triplex 20 Cable Aaac NakedNegotiableMOQ: 1 -
ACSR Conductor 500 Mcm Cable With CE CertificateNegotiableMOQ: 1
-
50mm2 100mm2 Acsr Aluminium Conductor Kabel/CableNegotiableMOQ: 1
-
Almelec Conductor Acsr 185/30 ConductorsNegotiableMOQ: 1
-
Factory Price Acsr-bear Conductor 7/2.0 Acsr Conductor Sizes Electrical Wire Made In ChinaNegotiableMOQ: 1
556.5MCM ACSR Cable Osprey Overhead Bare ACSR Conductor 556.5MCM Dove Parakeet
PRODUCT DESCRIPTION
Application:
* Used as bare overhead transmission line and as primary and secondary distribution.
* ACSR offers the best strength for line design.
* Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
* Used as bare overhead transmission line and as primary and secondary distribution.
* ACSR offers the best strength for line design.
* Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
Features:
Features:
* Very efficient conductivity and high tensile strength.
* Most economical solution for overhead power transmission and distribution projects.
* Excellent weather-resistance property.
* Dependable and stable performance up to 40 years. Standard: BS EN50182 , IEC 61089, ASTM B232, BS 215-2, CSA C49M, GOST 839, NFC 34-120, GB/T1179-2008 Construction:
* Concentric-lay stranded.
* 1 up to 4 layers aluminum wires stranded, 6 to 84 aluminum wires.
* 1 up to 3 layers steel wires as core, 1 to 37 steel wire.
* Al/St 6/1, 7/1, 8/1, 12/7, 16/19, 18/1, 24/7, 26/7, 30/7, 30/19, 36/1, 54/7, 54/19, 72/7, 76/19, 84/19.
* Coating od zinc, Zn-5A1-MM, high strength, Extra and Ultra available.
* Can-do both left-hand lay and right hand lay.
Features:
* Very efficient conductivity and high tensile strength.
* Most economical solution for overhead power transmission and distribution projects.
* Excellent weather-resistance property.
* Dependable and stable performance up to 40 years. Standard: BS EN50182 , IEC 61089, ASTM B232, BS 215-2, CSA C49M, GOST 839, NFC 34-120, GB/T1179-2008 Construction:
* Concentric-lay stranded.
* 1 up to 4 layers aluminum wires stranded, 6 to 84 aluminum wires.
* 1 up to 3 layers steel wires as core, 1 to 37 steel wire.
* Al/St 6/1, 7/1, 8/1, 12/7, 16/19, 18/1, 24/7, 26/7, 30/7, 30/19, 36/1, 54/7, 54/19, 72/7, 76/19, 84/19.
* Coating od zinc, Zn-5A1-MM, high strength, Extra and Ultra available.
* Can-do both left-hand lay and right hand lay.
IEC 61089 for 556.5MCM ACSR Cable Osprey Overhead Bare ACSR Conductor 556.5MCM Dove Parakeet
BS 215 Part 2 for 556.5MCM ACSR Cable Osprey Overhead Bare ACSR Conductor 556.5MCM Dove Parakeet
Code name |
Nominal Alum. Area |
Stranding and wire diameter |
Approx. overall diameter |
Approx. Weight |
Nominal breaking load |
Nominal DC resistance at 20°C |
||
Alum. |
Steel |
|||||||
mm² |
No./mm |
No./mm |
mm |
kg/km |
kN |
Ohm/km |
||
SQUIRREL |
20 |
6/2.11 |
1/2.11 |
6.33 |
85 |
7.88 |
1.368 |
|
GOPHER |
25 |
6/2.36 |
1/2.36 |
7.08 |
106 |
9.61 |
1.093 |
|
WEASEL |
30 |
6/2.59 |
1/2.59 |
7.77 |
128 |
11.45 |
0.9077 |
|
FOX |
35 |
6/2.79 |
1/2.79 |
8.37 |
149 |
13.20 |
0.7822 |
|
RABBIT |
50 |
6/3.35 |
1/3.35 |
10.05 |
214 |
18.35 |
0.5426 |
|
BEAVER |
70 |
6/3.99 |
1/3.99 |
11.97 |
302 |
25.70 |
0.3825 |
|
HORSE |
70 |
12/2.79 |
7/2.79 |
13.95 |
538 |
61.20 |
0.3936 |
|
RACOON |
75 |
6/4.10 |
1/4.10 |
12.30 |
320 |
27.20 |
0.3622 |
|
OTTER |
80 |
6/4.22 |
1/4.22 |
12.66 |
339 |
28.80 |
0.3419 |
|
CAT |
90 |
6/4.50 |
1/4.50 |
13.50 |
386 |
32.70 |
0.3007 |
|
HARE |
100 |
6/4.72 |
1/4.72 |
14.16 |
425 |
36.00 |
0.2733 |
|
DOG |
100 |
6/4.72 |
7/1.57 |
14.15 |
394 |
32.70 |
0.2733 |
|
LEOPARD |
125 |
6/5.28 |
7/1.75 |
15.81 |
492 |
40.70 |
0.2184 |
|
COYOTE |
125 |
26/2.54 |
7/1.91 |
15.89 |
522 |
46.40 |
0.2187 |
|
COUGAR |
125 |
18/3.05 |
1/3.05 |
15.25 |
419 |
29.80 |
0.2189 |
|
TIGER |
125 |
30/2.36 |
7/2.36 |
16.52 |
602 |
58.00 |
0.2202 |
|
WOLF |
150 |
30/2.59 |
7/2.59 |
18.13 |
726 |
69.20 |
0.1828 |
|
DINGO |
150 |
18/3.35 |
1/3.35 |
16.75 |
506 |
35.70 |
0.1815 |
|
LYNX |
175 |
30/2.79 |
7/2.79 |
19.53 |
842 |
79.80 |
0.1576 |
|
CARACAL |
175 |
18/3.61 |
1/3.61 |
18.05 |
587 |
41.10 |
0.1563 |
|
PANTHER |
200 |
30/3.00 |
7/3.00 |
21.00 |
974 |
92.25 |
0.1363 |
|
LION |
225 |
30/3.18 |
7/3.18 |
22.26 |
1095 |
109.60 |
0.1212 |
|
BEAR |
250 |
30/3.35 |
7/3.35 |
23.45 |
1213 |
111.10 |
0.1093 |
|
GOAT |
300 |
30/3.71 |
7/3.71 |
25.97 |
1489 |
135.70 |
0.0891 |
|
SHEEP |
350 |
30/3.99 |
7/3.99 |
27.93 |
1718 |
155.90 |
0.07704 |
|
BISON |
350 |
54/3.00 |
7/3.00 |
27.00 |
1444 |
120.90 |
0.07573 |
|
JAGUAR |
200 |
18/3.86 |
1/3.86 |
19.30 |
671 |
46.55 |
0.1367 |
|
DEER |
400 |
30/4.27 |
7/4.27 |
29.89 |
1971 |
178.50 |
0.06726 |
|
ZEBRA |
400 |
54/3.18 |
7/3.18 |
28.62 |
1621 |
131.90 |
0.0674 |
|
PACKAGING&TRANSPORT
PACKAGING FLOW of 556.5MCM ACSR Cable Osprey Overhead Bare ACSR Conductor 556.5MCM Dove Parakeet

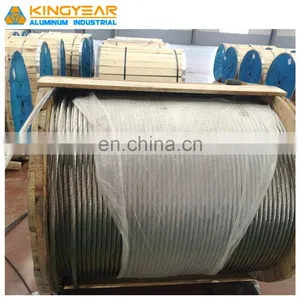

Different cable drum of 556.5MCM ACSR Cable Osprey Overhead Bare ACSR Conductor 556.5MCM Dove Parakeet
