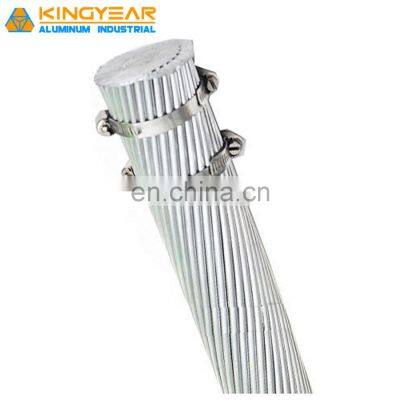

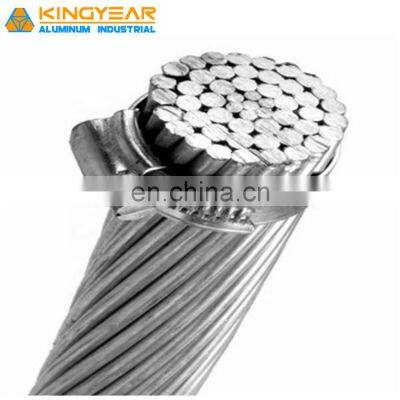

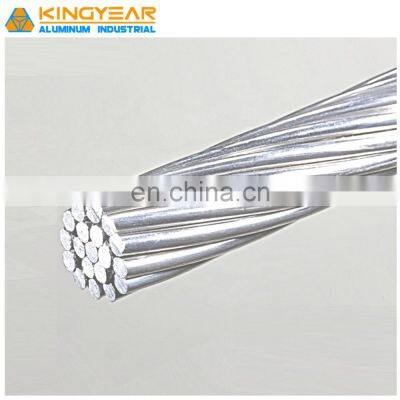

150 Mm2 1000mm2 Kabel 240mm2 Oiled Aaac Conductor Overhead Stranded Aluminum Alloy Cable
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1998
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
50mm2 AAC/AAAC/ACSR Aluminum Bare Conductor Bare Cable Factory Wholesale PriceNegotiableMOQ: 1 -
7/2.5mm Bare Conductor Factory Price AAAC All Aluminium Conductor IEC 61089NegotiableMOQ: 1
-
AAC/AAAC/ACSR Stranded Aluminum Cable Overhead Bare Conductor Electrical WireNegotiableMOQ: 1
-
19/3.18 Mulberry Aaac Conductor All Aluminum Alloy Concentric Cable Factory Direct PriceNegotiableMOQ: 1
-
AAC/AAAC/ACSR Conductor ASTM B399 Standard 6201 Aluminum AAAC Wire KableNegotiableMOQ: 1
150 mm2 1000mm2 Kabel 240mm2 Oiled Aaac Conductor Overhead Stranded Aluminum Alloy Cable
WHY CHOOSE US
PRODUCT DESCRIPTION
KINGYEAR Cable is one of the leading cable products production enterprise in China,our mainly products are electric wire,power cable, control cable,bare conductor (AAC/AAAC/ACSR),ABC overhead cable.
AAAC-Aluminum Alloy Overhead Bare Conductor is mainly used as bare overhead transmission cable and as primary and secondary distribution cable. It is also suitable for laying across basins, rivers and valleys where special geographical teatures exist.
Specification
Product Name |
150 mm2 1000mm2 Kabel 240mm2 Oiled Aaac Conductor Overhead Stranded Aluminum Alloy Cable |
Place of Origin |
Henan, China |
Brand Name |
Kingyear |
Model Number |
bare conductor, AAAC Conductor |
Insulation |
Non |
Voltage type |
High Voltage/Medium Voltage/Low Voltage |
Application |
Overhead |
Conductor Type |
Aluminum Alloy |
Standard |
ASTM B399,IEC61089,GBT 1179,BS 324,DIN 48201,AS 1531 |
More Applications |
Overhead, Power Station,Project |
Hot Sale Countries |
Philippine,Yemen,Vietnam, Indonesia,Indonesia |
Certificate |
ISO, CCC, CE, RoHS, VDE |
Price Quota |
Normal Type 6hours,If Customized 12hours |
Delivery |
10-25days After Received The Prepayment |
Sample |
Free |
The technical data of all aluminum alloy conductor AAAC as below for reference, any customized is available.
ASTM B399 |
||||||||||||||||
Code Name |
Area |
Size & Stranding of ACSR with Equal Diameter |
No. & Diameter of wires |
Overall Diameter |
Weight |
Nominal Breaking Load |
||||||||||
Nominal |
Actual |
|||||||||||||||
MCM |
mm2 |
AWG or MCM |
Al/Steel |
mm |
mm |
kg/km |
kN |
|||||||||
Akron |
30.58 |
15.48 |
6 |
6/1 |
7/1.68 |
5.04 |
42.7 |
4.92 |
||||||||
Alton |
48.69 |
24.71 |
4 |
6/1 |
7/2.12 |
6.35 |
68.0 |
7.84 |
||||||||
Ames |
77.47 |
39.22 |
2 |
6/1 |
7/2.67 |
8.02 |
108 |
12.45 |
||||||||
Azusa |
123.3 |
62.38 |
1/0 |
6/1 |
7/3.37 |
10.11 |
172 |
18.97 |
||||||||
Anaheim |
155.4 |
78.65 |
2/0 |
6/1 |
7/3.78 |
11.35 |
217 |
23.93 |
||||||||
Amherst |
195.7 |
99.22 |
3/0 |
6/1 |
7/4.25 |
12.75 |
273 |
30.18 |
||||||||
Alliance |
246.9 |
125.1 |
4/0 |
6/1 |
7/4.77 |
14.31 |
345 |
38.05 |
||||||||
Butte |
312.8 |
158.6 |
266.8 |
26/7 |
19/3.26 |
16.30 |
437 |
48.76 |
||||||||
Canton |
394.5 |
199.9 |
336.4 |
26/7 |
19/3.66 |
18.30 |
551 |
58.91 |
||||||||
Cairo |
465.4 |
235.8 |
397.5 |
26/7 |
19/3.98 |
19.88 |
650 |
69.48 |
||||||||
Darien |
559.5 |
283.5 |
477.0 |
26/7 |
19/4.36 |
21.79 |
781 |
83.52 |
||||||||
Elgin |
652.4 |
330.6 |
556.5 |
26/7 |
19/4.71 |
23.54 |
911 |
97.42 |
||||||||
Flint |
740.8 |
375.3 |
636.0 |
26/7 |
37/3.59 |
25.16 |
1035 |
108.21 |
||||||||
Greely |
927.2 |
469.8 |
795.0 |
26/7 |
37/4.02 |
28.14 |
1295 |
135.47 |
||||||||
Contact Us If the other standard you request:(IEC 61089 / BS EN50182 / DIN 48201) |
||||||||||||||||

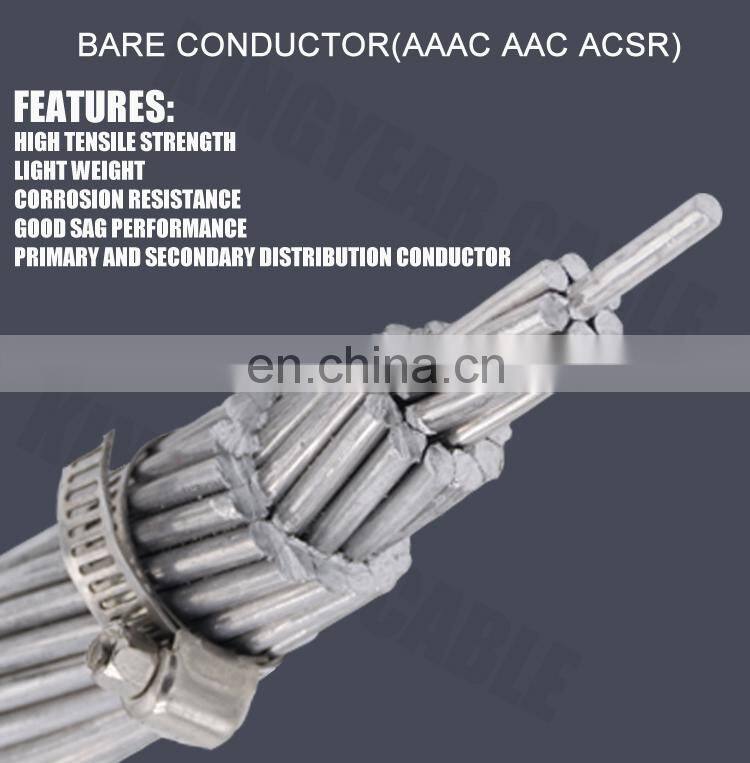

Applications:AAAC Aluminum Alloy Conductor is Used as bare overhead conductor for primary and secondary distribution. Designed utilizing a high-strength aluminum alloy to achieve a high strength-to-weight ratio; affords better sag characteristics. Aluminum alloy gives higher resistance to corrosion than ACSR. |
||||||||||||||||
COMPANY STRENGTH
COMPANY PROFILE
HENAN KINGYEAR GROUP was founded in 2006,located in the Gongyi industry area of Henan Province.Occupies more than 1200,000 square meters,more than 800 employees.Our company consists of 3 main subsidiaries,Business specialized in development,manufacture and distribution of aluminum and cable products.Mainly including aluminum plate,aluminum coil,bare aluminum conductor,aerial bundled cable,Low voltage and medium voltage power cable,Electrical wire,control cable,etc... CLICK MORE
PLANT AND OFFICE SHOWN:
3 workshops of ABC Cable,Bare Conductor. 1 office building of international trade.
TESTING MACHINE SHOWN:
AAAC Bare Conductor, ABC Cable testing :
CERTIFICATE SHOWN:
ISO,CE,CCC,ROHS,UL,VDE
CUSTOMER
After more than 20 years of development, our customers have spread to more than 40 countries and regions around the world, And more than 50% are old customers.The power cable,control cable,ABC cable,bare conductor(AAC/AAAC/ACSR) are more favorited by them.We are proud of our good quality---KINGYEAR CABLE.
PACKAGE
PACKAGING FLOW of ABC Cable, Bare Conductor as below,customized is accepted.
Some of our products packaging records shown:
They are about ABC cable,bare conductor,power cable.
FAQ
Q:I didn't find the AAAC Bare Conductor which I need in this page?
A:If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.
Q:What's your minimum order quantity?
A:It is not so sure, you can confirm it with us. Normally, it will be 1000 meters.
Q:What's your delivery time?
A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.
Q:How can I get a sample from your company? Is the sample free?
A:If you need the sample to check the quality, please contact us,we will send you the free sample, but the freight charge should be paid.
Q:How to ensure quality ?
A:For any quality problems, we will arrange the technical personnel to solve or return the goods as soon as possible, and bear the corresponding customer losses.
Q:What if the cable which we need have some differences on specifications from yours?
A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.
