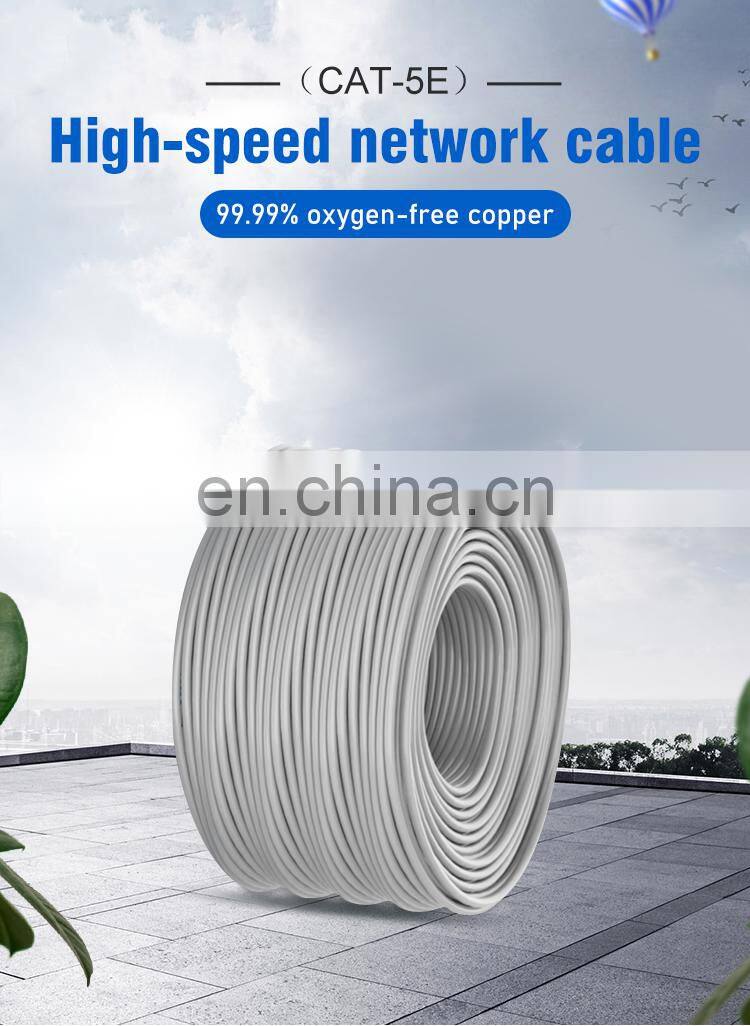

UTP-5E CAT 5E Cable 305m 8 Core Indoor Lan Network 1000FT Ethernet Communication Cables

Product Name:

NETWORK-250 (Category 5 Super Cable)

Model specification:

(UTP-5e) HSYV-5e 4*2*0.5

Product standard:

YD/T 1019-2013

product description

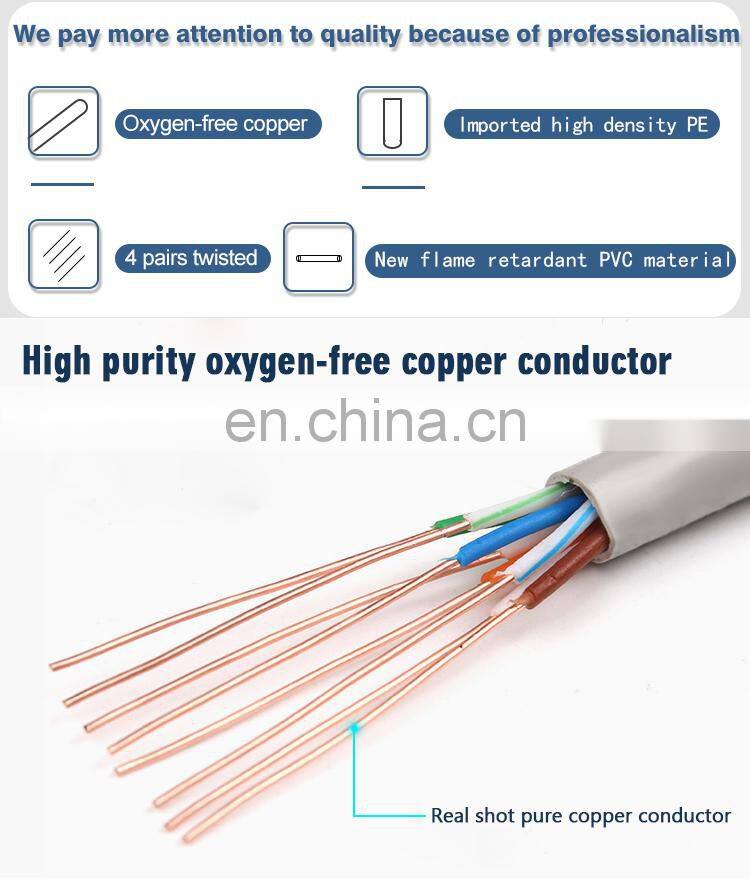

Conductor:

0.5 BC (OFC oxygen-free copper), high-purity oxygen-free copper conductor, to ensure low resistance (the standard is less than 29
ohms/305 meters for super five types; less than 21 ohms/305 meters for six types) to ensure accurate signal transmission, The
finished product can be extended in special circumstances (such as applications with ultra-standard wiring lengths of 150
meters/160 meters);

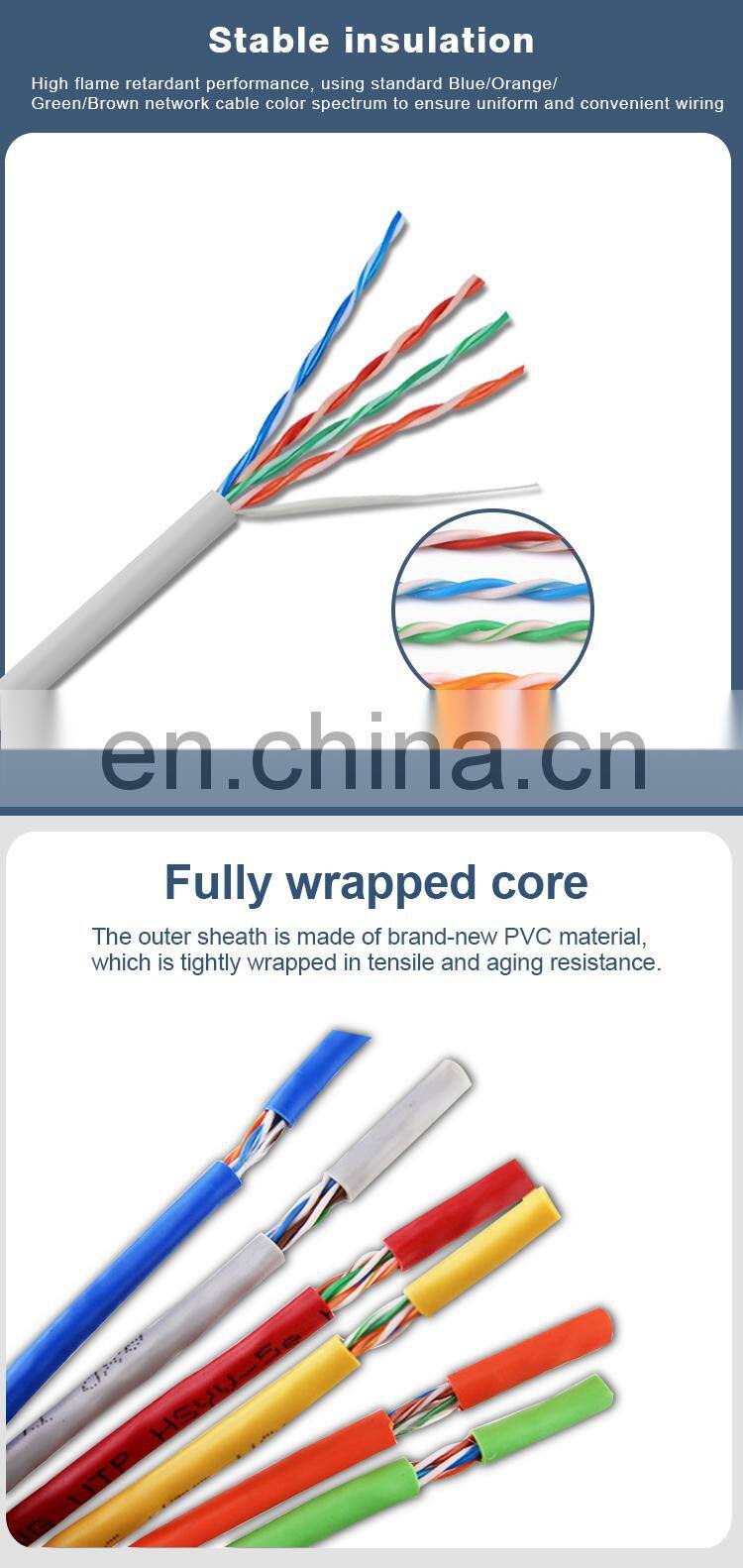

Insulation:

HDPE ID0.9 (imported high-density PE), excellent electrical performance; standard blue/orange/green/brown network cable
chromatogram to ensure uniform and convenient wiring;

Pair twist:

4 pairs, each pair has inconsistent pitch to ensure excellent crosstalk;

Cable formation:

4 pairs of twisting, increase the flexibility of the finished product and make it less deformed, and minimize the impact on the
final performance of the cable;

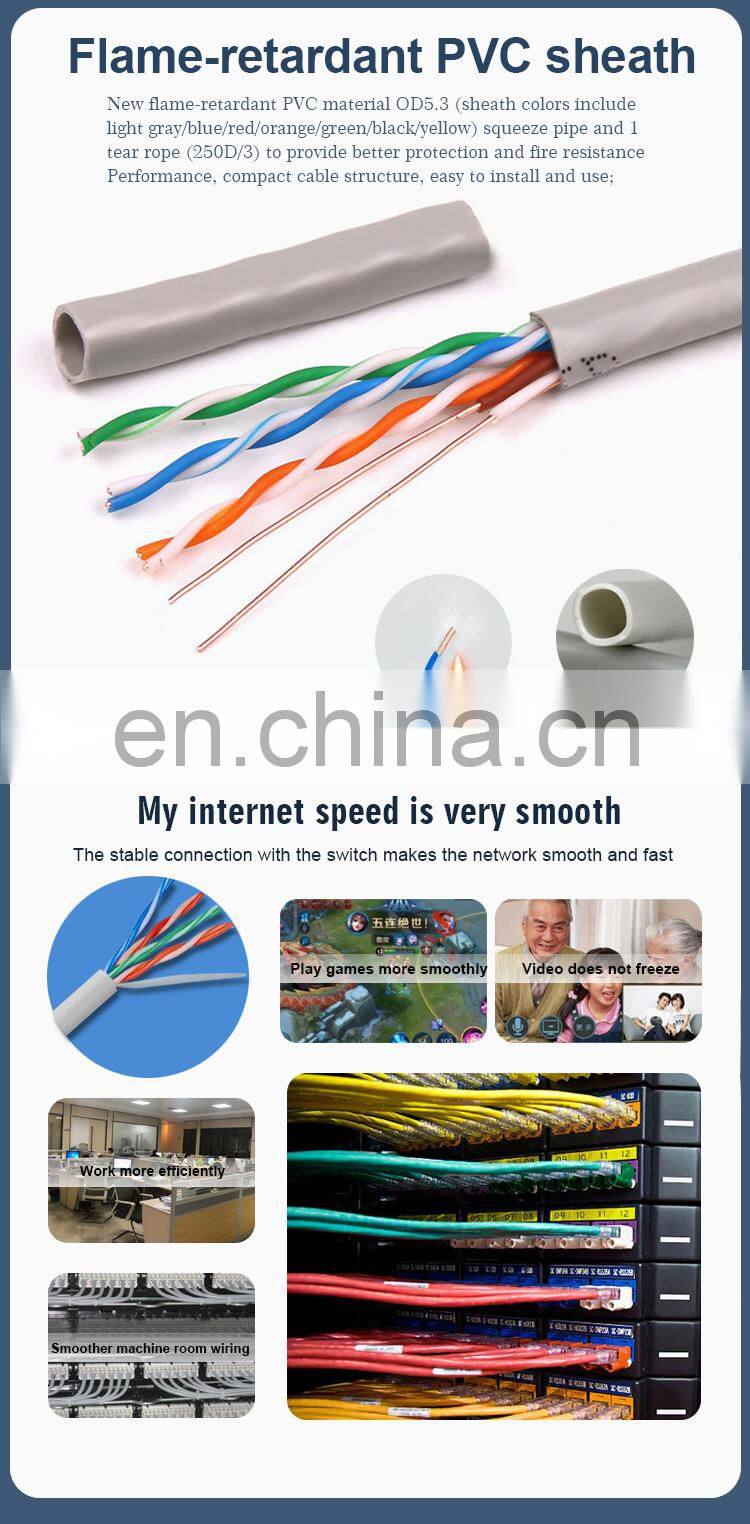

Sheath:

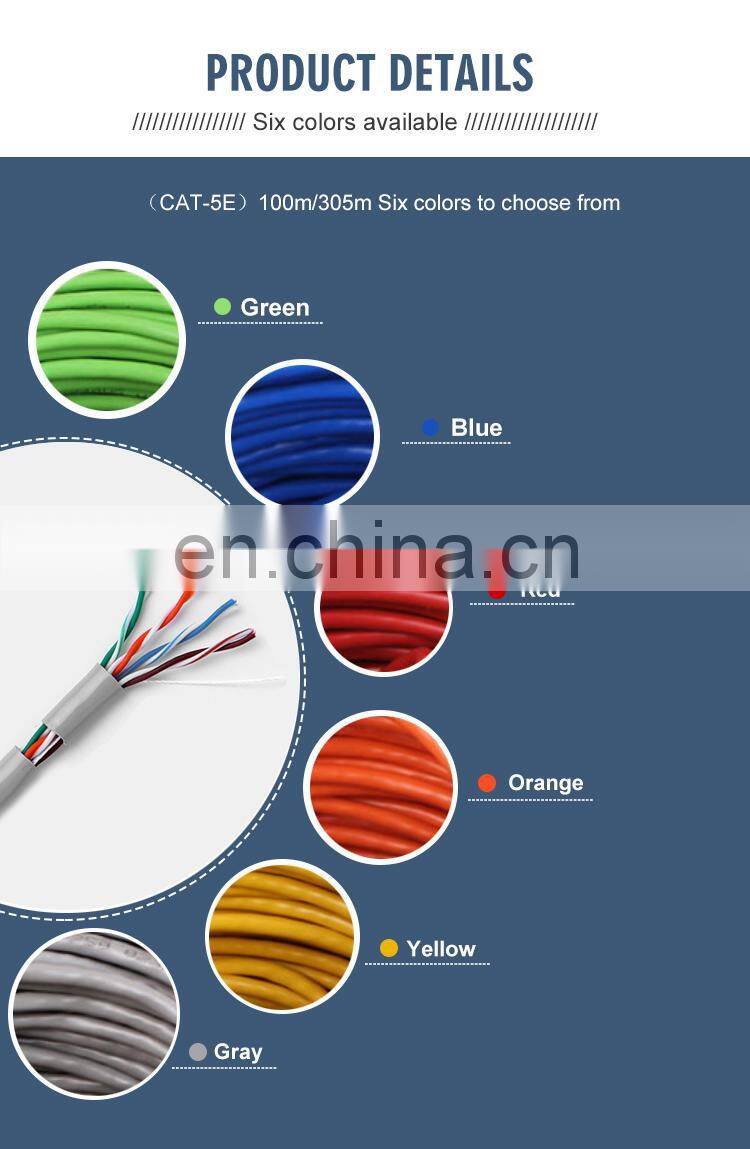

new flame-retardant PVC material OD5.3 (sheath color includes light gray/blue/red/orange/green/black/yellow) squeezed tube plus 1
tear rope (250D/3) to provide better protection and Fire-retardant performance, compact cable structure, easy to install and use;

Logo:

printing meter meter, one logo per meter, easy to measure and cut when using, while ensuring the product length is accurate;

Packing:

305m/box (1 000FT/conventional), 3 boxes/outer box (pieces), can be packed according to customer requirements.

Features:

The conductor is produced by Jiangxi Copper's oxygen-free copper rod through a wire-insulation integrated "series production cable
", with stable quality and high speed;
The insulation adopts imported high-performance high-density polyethylene plastic;
The twisting device is used for twisting to ensure stable and excellent performance of subsequent finished products;
The cabling adopts cantilever single twist, the structure is stable and consistent, and the speed is fast;
The sheath is made of flame-retardant polyvinyl chloride material, extruded tube type, with a built-in tear rope, which is
convenient for tearing off the sheath during construction;
The cable body logo adopts jet printing, jet printing meter meter, jet printing distance is 1 meter, 305 meters/carton packaging,
in cable with the international 1000 feet requirement (1000 feet is 304.8 meters);
The finished product has been sampled by "TFI-04 High Frequency Digital Cable Test System" and meets the requirements of Category
5e cables;
The product has passed the certification of China Taier Certification Center (TLC certification), which is equivalent to the
network access certification of the communications industry.
The overall packaging of the product (305 meters/box) is elegant and atmospheric.

Use range:

It is suitable for local area network (LAN) computer networking cable. When used, the product is terminated with a super five RJ45
crystal head or module. It can be used for Ethernet (1000BASE-T4) with a transmission frequency of up to 1000M. It is also called
"Gigabit" on the market network cable";
Twisted pair cable for HD video transmission for CCTV system;
Access control video intercom cable

Other series: UTP-5e/UTP-5/FTP-5e/FTP-5/S-UTP-5e/UTP-6/UTP-6a/ FTP-6a:4*2*0.5/4*2*0.511/4*2*0.6
UTP -5e:4*2*0.5/4*2*0.511/4*2*0.6/4*2*(7/0.2)
UTP -5:4*2*0.5/4*2*0.511/4*2*0.6/8*2*0.5/16*2*0.5/25*2*0.5
S -UTP -6:4*2*0.57
S / FTP -cat :4*2*0.57
