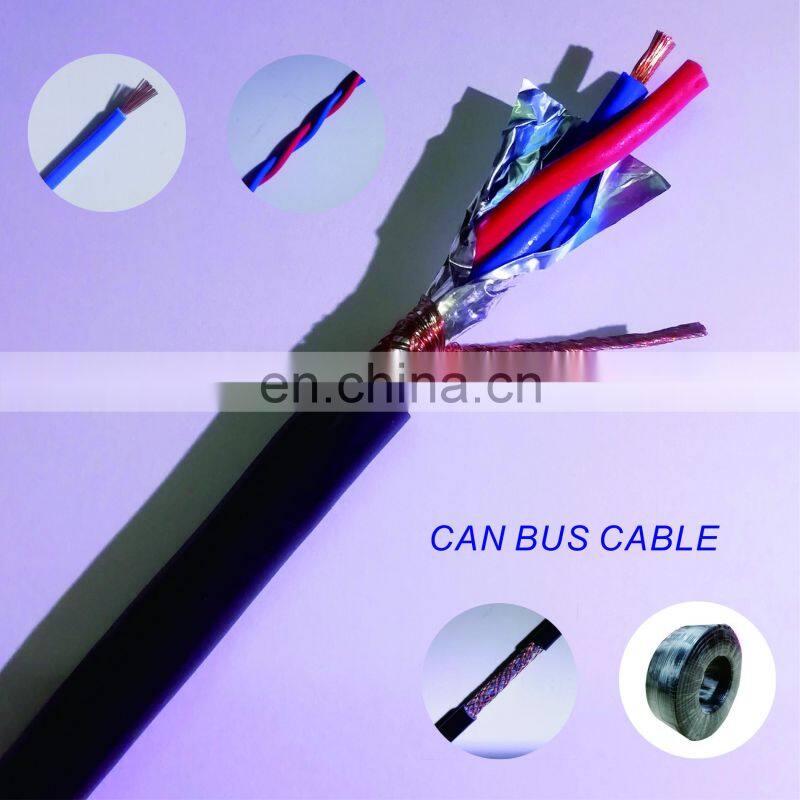

CAN BUS CABLE 18AWG Pair type shielded control signal transmission cable RVVPS
Product description
| Product name | pair stranded shielded wire |
| Model specification | RVVPS 2*0.75(part 64) |
| Product standard | (REF) JB/T 8734.5-2016 |
| Conductor | 24/0.2bc, OFC oxygen-free copper stranded, soft conductor structure, suitable for semi-mobile occasions and bending occasions |
| Insulation | PVC new material, ID2.4, insulation color: red | blue, full chromatographic identification, convenient wiring during installation |

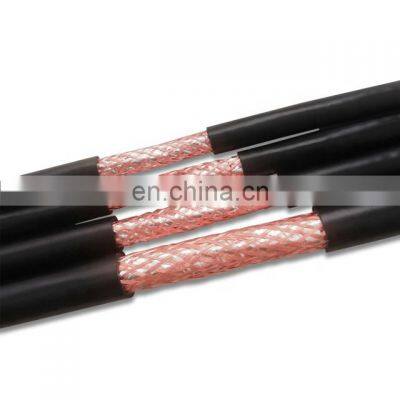

| Shielding | 100% aluminum foil shielding + braided net 64/0.1 BC pure copper structure, strong anti-interference ability |

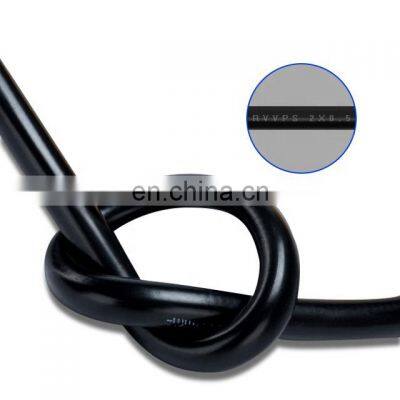

| Jacket | black new material PVC, OD6.5, extruded structure, to provide the best protection for the wire core |
| Packaging | 100m |
| Weight | 5.8 KG / 100 meters |
| Size | 32 * 32 * 8 cm/100m |
Product Feature
The conductor adopts 4N (99.99%) high purity oxygen-free copper, low resistance and low loss, and the transmission is faster and more stable.
Insulation using PVC new material, electrical performance is superior;
Wire pair stranding adopts standard bar distance, which is stable and consistent, and has excellent suppression of self-interference and external interference signals.
The shielding adopts 100% aluminum foil full shielding + high purity oxygen-free copper braid, which can effectively prevent external high frequency and low frequency interference;
The sheath is made of new PVC material to provide long-term protection.
Mark printing meter (meter mark in order), easy to install and use when the need to reduce the measurement;
Provide conventional 100 meters and 200 meters/roll packaging, not conventional packaging, please consult customer service.
Product usage:
Twisted shielded wire is suitable for power supply control signal transmission, the wire core adopts twisted structure, strong interference suppression ability, especially suitable for the transmission of RS485/RS422/RS232 industrial control signal, also known as "RVSP", "RVPS" or RS485 special transmission line.
Medium speed ball machine, high speed ball machine control line.
Industrial communication programming line.
UNITRONIC BUS CAN UL/CSA(CMX) 1x2x0.75mm2 (Lapp cable)
Characteristic impedance 120 ohms.
Series of conventional products have 1 pair of RVVPS 2*0.3 | RVVPS 2*0.5 | RVVPS 2*0.75 | RVVPS 2*1.0 | RVVPS 2*1.5 and 2 pairs of RVVPS 2*2*0.5 BBBPS 2*2*0.75 RVVPS 2*2*1.0, please choose according to the actual demand.
