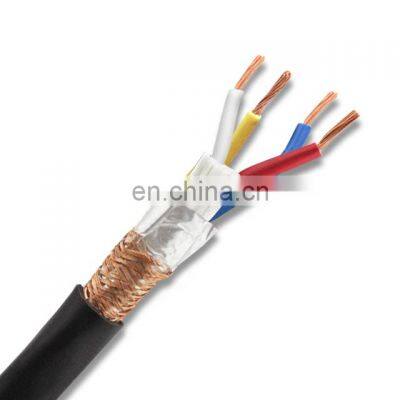

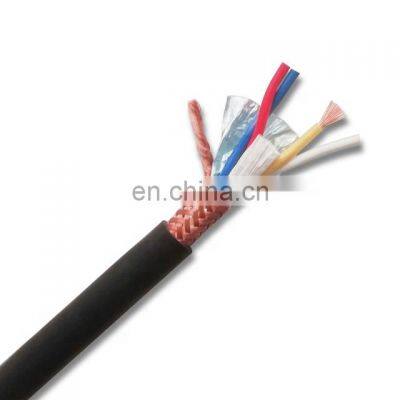

Wholesale twisted shielded wire PVC Insulated Flexible Electrical Cable Wire RVSP RVPS RS485 dedicated transmission cable Wire
|
Product name: |
Twisted shielded control signal transmission cable |
|
Product number: |
RVVPS 2X2X0.5 (80 series) |
|
Product Standards: |
(REF) JB/T 8734.5-2016 |
|
Conductor: |
16/0.2 BC, OFC oxygen-free copper stranded, soft conductor structure, suitable for semi-mobile occasions and bending occasions; |
|
Insulation: |
New material polyvinyl chloride, ID2.0, |
|
Insulation Color: |
New PVC material, ID2.0, insulation color: red/blue, white/yellow, full chromatographic identification, convenient for wiring distinction during installation; |
|
Twisted: |
Paired and twisted according to chromatogram, 2 pairs, small pitch twist (usually 8 times the outer diameter of the twist), which can effectively suppress self-interference and external noise interference during cable transmission; |
|
Cable: |
2 pairs of filling (flexible cotton yarn) twisted; |
|
Shield: |
100% aluminum foil shielding + woven mesh 64/0.1 BC pure copper structure, strong anti-interference ability; |
|
Jacket: |
Black new material PVC, OD8.8, extruded structure, to provide the best protection for the core; |
|
Size: |
26X26X12CM |
|
Weight: |
11.5KG |
|

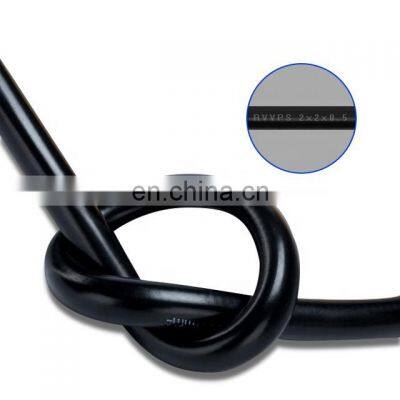

The meter is printed to ensure that the length is accurate, and it is convenient to measure and cut during installation and use; |
|
|
Package:
|

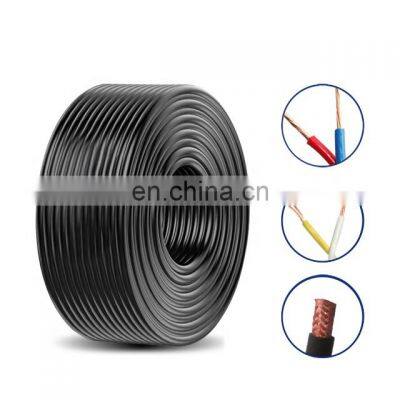

100 meters/roll or 200 meters/roll (conventional), can be packaged according to customer requirements; |
|
Product Usage: |
Medium-speed dome camera, high-speed dome camera control cable; pair-twisted shielded wire, suitable for power control signal transmission, the wire core adopts a pair-twisted structure, which has strong interference suppression ability, especially suitable for RS485/RS422/RS232 industrial control signal transmission , Also called "RVSP", "RVPS" or RS485 dedicated transmission cable.
|
|
RVVPS other series: RVVPS 2x0.3(80 series) ;RVVPS 2x0.5(64 series);RVVPS 2x0.75(64 series);RVVPS 2X1.0 (80 series) ;RVVPS 2X2X0.5 (80 series) ;RVVPS 2X2X0.75 (96 series) ;RVVPS 2*2*1.0 (120 series). |
|
