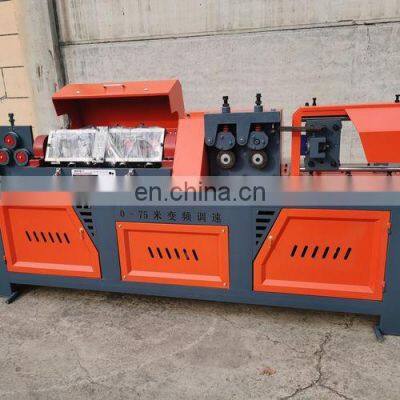

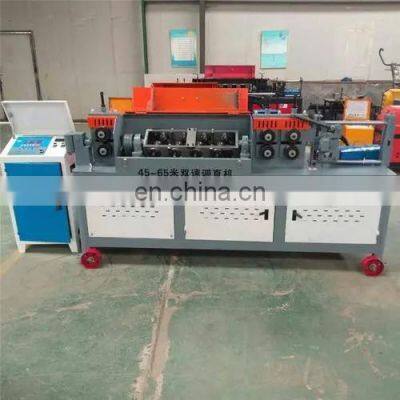

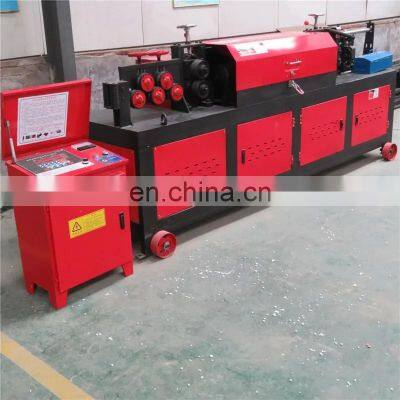

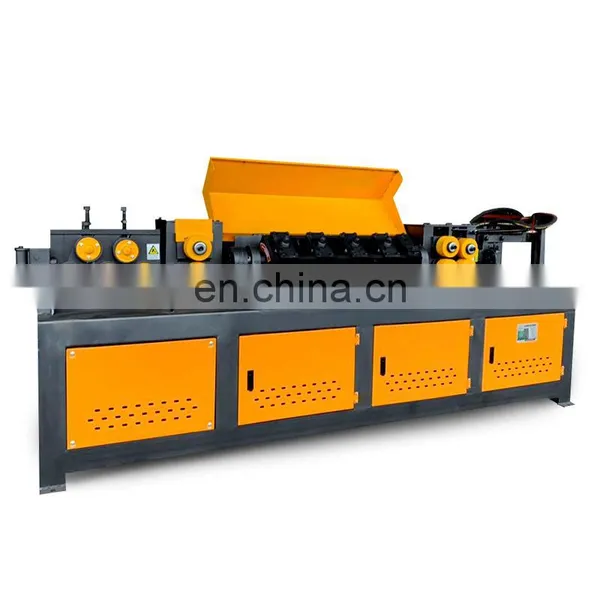

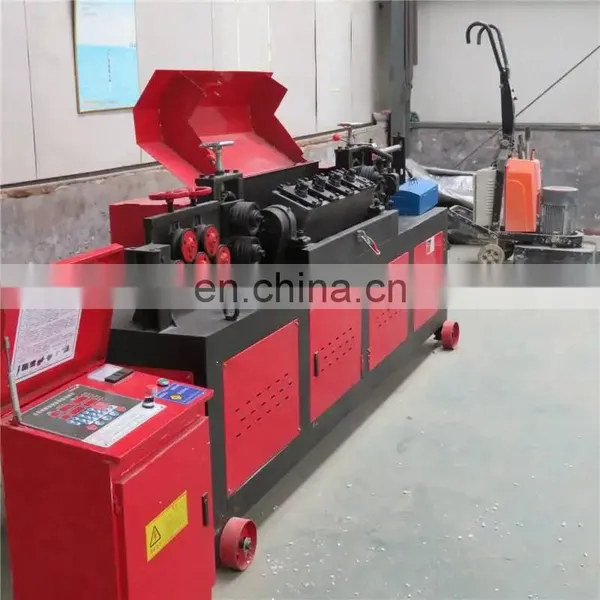

GT4-14 CNC Rebar Straightening and Cutting Machine Bar Steel Metal Straightening Machinery
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2004
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GT4-12 CNC Round Bar Steel Wire Straightening and Cutting Machine Rebar Straightener MachineNegotiableMOQ: 1 -
China 6-25mm Bar Steel Metal Straightening Machinery Cnc Automatic Rebar Cutting and Bending MachineNegotiableMOQ: 1
-
China Construction Machinery Bar Steel Rebar Bending Machine Cnc Automatic Rebar Straightening and Cutting MachineNegotiableMOQ: 1
-
China Construction Machinery Bar Steel Rebar Straightening Machine Automatic Cnc Rebar Bender and CutterNegotiableMOQ: 1
-
Metal Coil Deformed Bar Straightening Machine Steel Bar Straightening EquipmentNegotiableMOQ: 1
Products Description
Features of steel bar straightening and cutting machine:
1. steel straightening and cutting machine is widely applied to the straightening and cutting of steel rebar in engineering construction and steel processing sector.
2. After the steel bar straightening and cutting machine, the surface of the modulated steel bar is basically non-scratched, the strength loss is small, the straightness is good, the operation is simple and the adjustment is convenient.Cnc Straightening And Wire Cutting Machine Automatic Rebar Straightening Cutting Machine
3. Full automatic numerical control panel so that the steel rebar can be straightened and cut at the same time.
4. Hydraulic cutting, no clipper, more precise, more silent.
Model | Motor power | Motor speed | Working capacity | Straightening Speed | Voltage | Control system | Cutting length | Weight | Dimension (mm) | |||||||||
GT0-85 | 5.5+15KW | 1440r/min | 0-85m/min | 0-85m/min | 110V/ 220V/ 380V/ 415V/ customized | frequency conversion | 1-90mm | 900kgs | 2600x900x1200 | |||||||||
GT4-12 | 7.5KW | 4-10mm | 36m/min | PLC | 250kgs | 1500x600x900 | ||||||||||||
GT4-14 | 9KW | 4-12mm | 36m/min | PLC | 330kgs | 1800x650x950 | ||||||||||||
GT4-14B | 36m/min | PLC | 550kgs | 2100x700x1100 | ||||||||||||||
Remarks: 1. All machines could be customized for the color, voltage; 2. All machines working speed could be adjusted by your requirements. | ||||||||||||||||||
Rebar straightening And Cutting Machine
Rebar straightening and cutting machine is a tool used to straighten and cut steel bars, It is mainly used in civil engineering to cut off the fixed length of steel, is an essential part of the steel processing equipment. Compared with other equipments, has the advantages of light weight, low energy consumption, reliable work, high efficiency, so in the field of mechanical processing has been widely used, in the economic construction process has played an important role.
It is mainly used in housing construction, bridges, tunnels, power stations, large water conservancy projects on the cutting of steel bars; also suitable for construction projects on a variety of ordinary carbon steel, hot tied round steel, rebar cutting.
Rebar straightening and cutting machine is a tool used to straighten and cut steel bars, It is mainly used in civil engineering to cut off the fixed length of steel, is an essential part of the steel processing equipment. Compared with other equipments, has the advantages of light weight, low energy consumption, reliable work, high efficiency, so in the field of mechanical processing has been widely used, in the economic construction process has played an important role.
It is mainly used in housing construction, bridges, tunnels, power stations, large water conservancy projects on the cutting of steel bars; also suitable for construction projects on a variety of ordinary carbon steel, hot tied round steel, rebar cutting.
Operating procedures
1. Check the sensitivity of the power leakage protector and the integrity of the isolation switch before use.
2. The material frame and material trough should be installed straight and aligned with the centerline of the guide hole, straightening hole and lower cutter hole, and no objects should be stacked on the machine to prevent accidents caused by mechanical vibration.
3. Turn the flywheel by hand, check the transmission mechanism and work device, adjust the gap, fasten the bolts, confirm normal, then start the air rotation; check the bearings should be free of abnormal noise, gear meshing is good, and only after normal operation can work.
4. According to the diameter of the straightening machine, choose the appropriate straightening block and transmission speed. After debugging qualified, before feeding. Short than 2m or diameter greater than 9mm straightening steel, should be carried out at low speed.
5. Do not feed before the straightening block is fixed and the protective cover is not covered. It is strictly forbidden to open each guard and adjust the gap during operation.
6. The straightened material should be cut off before feeding. A 1m-long steel pipe should be installed in front of the guide hole, and the steel bar must be fed through the steel pipe and then into the guide hole of the straightening front.
7. After the steel bar is fed into the roller, the hand and the roller must be kept at a certain distance, not close. It is strictly forbidden to wear gloves.
8. When the steel is straightened until the end, the personnel must be out of the way to prevent the steel from electric injury.
9. The temperature of the shaft should be paid attention to frequently during the work, if the temperature rises above 60°, it should be stopped to find out the reason. After the operation, the straightening block should be loosened to return to the original position, while the pre-pressure spring must be returned to position.
10. Close the electric switch after operation, clear the debris around the equipment in time, stack the materials neatly and keep the construction site tidy.
11. Do regular maintenance and inspection of the equipment to ensure the cleanliness, lubrication and safe use of the equipment.
Technical Parameters Of Steel Bar straightening and Cutting Machine | ||
Type: | GT4-12/GT4-14/GT5-14 | |
Power: | 5-15 k w | |
Voltage: | 3 8 0 V | |
Rotating speed: | 1440 r／min | |
Volume size: | 1500×600×900mm | |
Total Weight: | 250-900kg | |
Product name: | Coiled steel bar straightening machine |
Project Solution Capability: | Total solution for projects |
Fit For Rebar Diameter: | 4-12 mm |
Market: | South&north America/Europe/ Asia/ Australia/Africa and etc. |
Application: | metal frame, profiled bar, wall mounting, sole plate, bracket, machines, beam, angle iron, track etc |
Trade Term: | FOB/CIF/CFR/CNF/EXW/DDU/DDP |
Our advantage: | One-stop shopping; High quality; Competitive price; Timely delivery; Technical support; |
Customized | OEM/ ODM |
Manufacturing Technique
Company Profile
Chongqing Grace Trading Co., Ltd.
Chongqing Grace Trading Co., Ltd. is a global e-commerce trading company located in the main urban area of Chongqing, dedicated to supporting services for the trade of steel bar connectors.
We adhere to the principle of "quality first, customer first", pay attention to mastering the global industry product information standards, have excellent technical research and development, after-sales and management teams in the industry, flexible and professional marketing service teams, and can provide customers with professional and comprehensive services.
On the basis of fully absorbing foreign advanced technology, our company has cooperated with large factories for many years, realizing the whole process supervision from raw materials to finished product delivery, supporting ODM & OEM special services,providing high-quality products to customers all over the world, and constantly innovating and serving customers. Provide more
cooperation options, determined to become a high-quality supplier well received by customers after years of hard work.
cooperation options, determined to become a high-quality supplier well received by customers after years of hard work.
Why Choose Us
What we offer:
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Best professional team of lifestyle consumer electronics.
5) Smooth communication
6) Effective OEM&ODM service
Sample Room
Our Certifications & Partner
More Products
FAQ
1. How can I know the quality of your rebar coupler?
We can send you FREE SAMPLE to do test, or you can send us your rebar, we link it with our rebar coupler, then send back to you, if the test result is bad, we will pay you for the courier charges.
2. Where is your company?
Our company is located in Chongqing, China. You are very welcome to visit us!
3. Are you trading company or manufacturer ?
We are manufacturer, you are welcome to visit our factory.
4.How long is your delivery time?
Generally it is within 5-10 days if the raw materials are in stock. Or it is within 15-20 days if the raw materials are not in stock, it is according to quantity.
5.Do you provide samples ? Is it free or extra ?
Yes, we could offer the sample for free charge.
6.What is your terms of payment ? What is your terms of payment?
A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc. Payment 100% in advance. Can communicate.
A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc. Payment 100% in advance. Can communicate.
B: All the payment go through Aliababa Onetouch or Alibaba assurance payment.
7. What’s your tensile strength and yield strength? Our standard rebar couplers can reach tensile strength over 620MPA; and yield strength over 420MPA. We also can manufacture super strength rebar couplers, just please tell us your
requirements.
requirements.
