Brand Name TOP&TWSL
Model Number TOP-350
Product Description

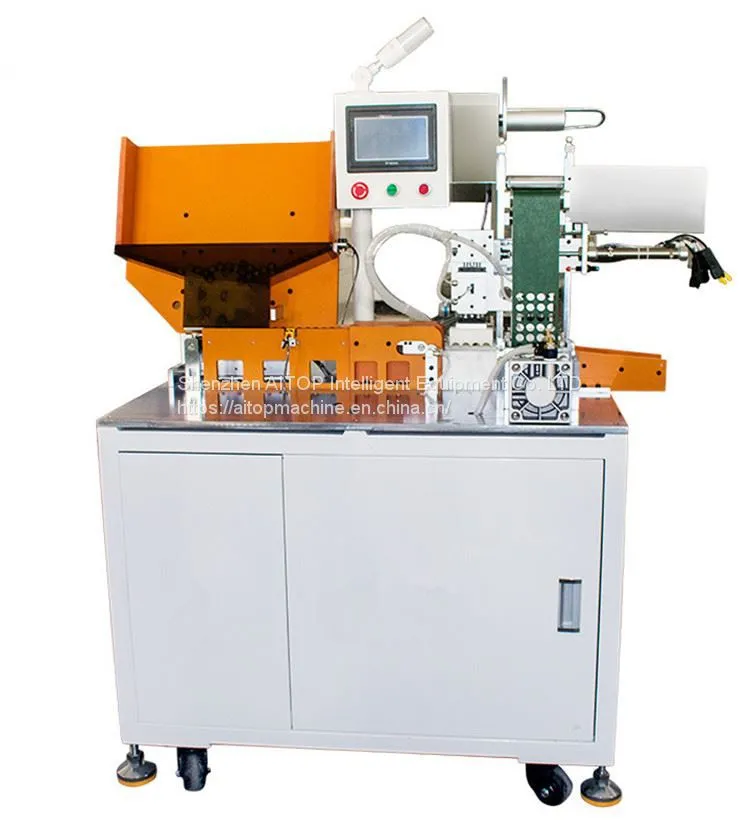

Automatic Lithium Battery Insulating Paper Pasting Sticking Machine Sticker Adhesive Label Labeling Machine for Cylindrical Cell
Features
This machine can use a big roll of barley paper or PVC to automatically paste cylindrical cells.
1. Stickers pasted stable, consistent, and long lasting.
2. Automatic failure alarm.
3. Easy to program, adjust, and operate for new hands.
4. High Efficiency, fully automatic, saving labor cost.

Performance Characteristics

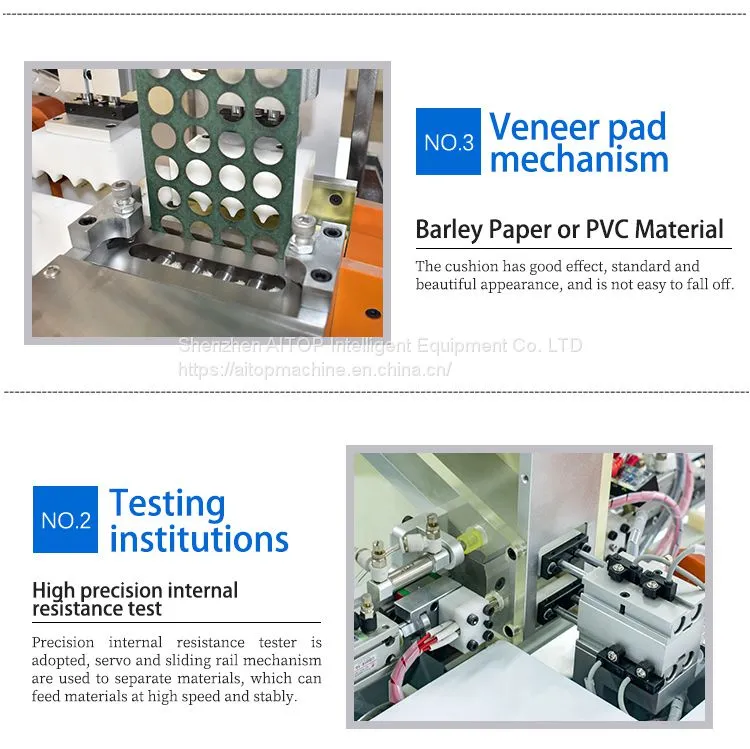

The battery automatic pasting highland barley paper machine is an automatic equipment for testing cylindrical batteries (18650 cells) before pasting highland barley paper. The equipment is controlled by PLC to complete the test and sorting of stepping motor and cylinder (optional), eliminate defective products, realize the function of pasting highland barley paper on qualified electric cores, and complete about 4500 cylindrical finished electric cores per hour. The mechanical structure design is simple and generous, and the system performance is stable. It is a cylindrical battery insulation highland barley paper equipment with the highest cost performance in the market.
1 Manually pour the electric core into the hopper of the automatic spot welder 2 Load the rolled highland barley paper into the equipment 3 The factory parameters have been set. Just press the reset button, no debugging is required for any parts, and then press the start button to start production. The electric core pasted with highland barley paper flows out from the rear section and is received and boxed manually.
Technical Parameters
Production Efficiency
4500pcs / hour
Equipment Power
220V 50HZ，1.5KW，220V AC input
Use Air Pressure
0.4-0.8mpa. When using the air source, there must be a filtering device to ensure that the air flow is free of water and
impurities
Adaptive Range

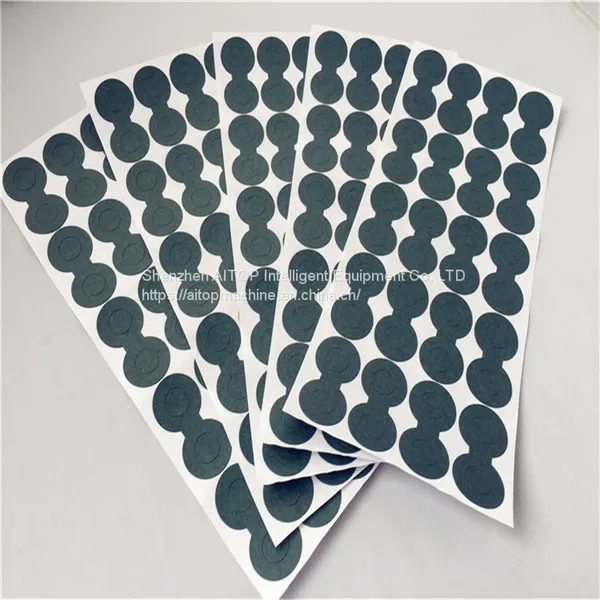

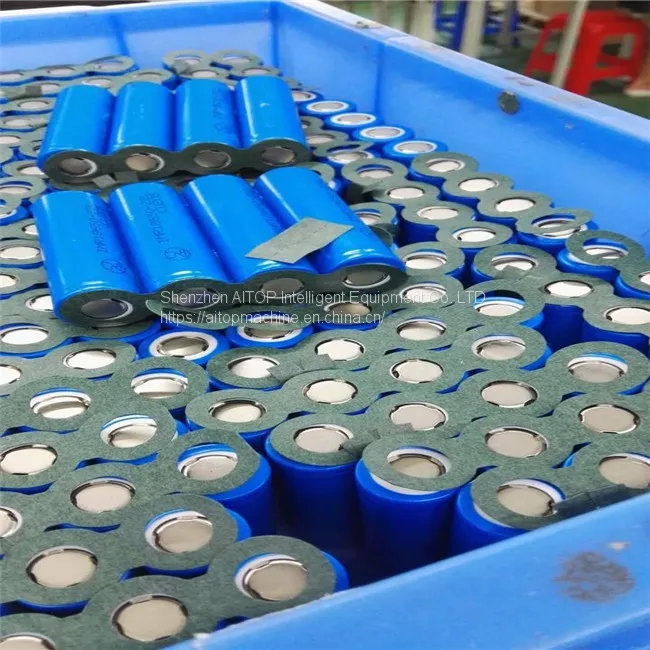

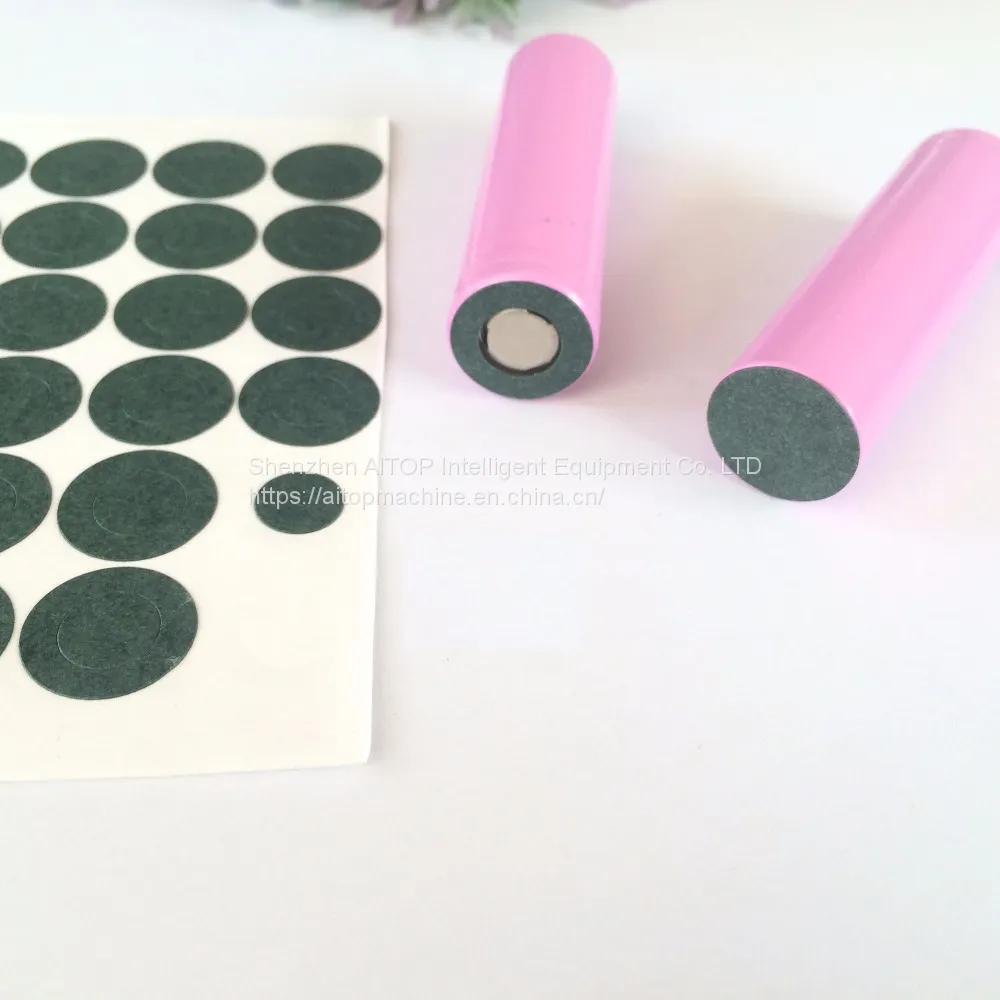

18650 electric core positive pole pasted with insulating highland barley paper
Suitable for Highland Barley Paper Width
100mm ± 0.5mm, inner diameter of coil 75mm, maximum outer diameter of coil 350mm
Suitable for Highland Barley Paper Thickness
0.1MM---0.3MM
Cushion Power
The 0.4KW variable frequency motor is debugged and equipped with buffer power to ensure no damage to the electric core
Cushion Effect
Good consistency, firm pasting and beautiful appearance
Control Device
7.5-inch touch screen, 2-axis stepper motor design, 42 point PLC programmer
Detailed Images

Techinical Parameters:


SPECIFICATION
Model TOP-350
Power Supply AC 220V, 50Hz
Power 200w
Efficiency 4000 pcs/h
Cells applied 18650 battery cells
Programming interface
LCD screen



WE AITOP specialized manufacturing machine for Lithium battery assembly line (Auto pvc peeling/ paste paper /sorting/test/Welding/injection molding/Labeling/bagging Machine ) more than 10 years.
1, Our machines can do 18650/26650/32650/21700 etc ,Cylindrical batteries testing, sorting and spot welding in great speed.
2, You can design your own voltage and internal resistance.
3, We have a complete production line for power battery packs.
4, Our machines are widely used in battery factories for mobile phone, power bank, laptop , ebikes and electric vehicle .

Any chance you like our products, please feel free to contact us.
We can provide you a perfect solution for power battery packs production!Such as attached Solutions.

we have strict quality control system and high efficiency work team and received a high evaluation and recognition of our customers.
