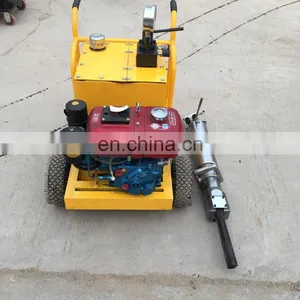

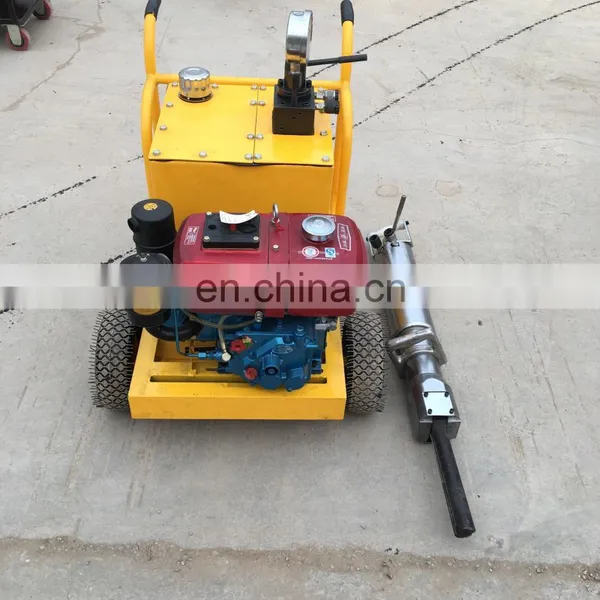

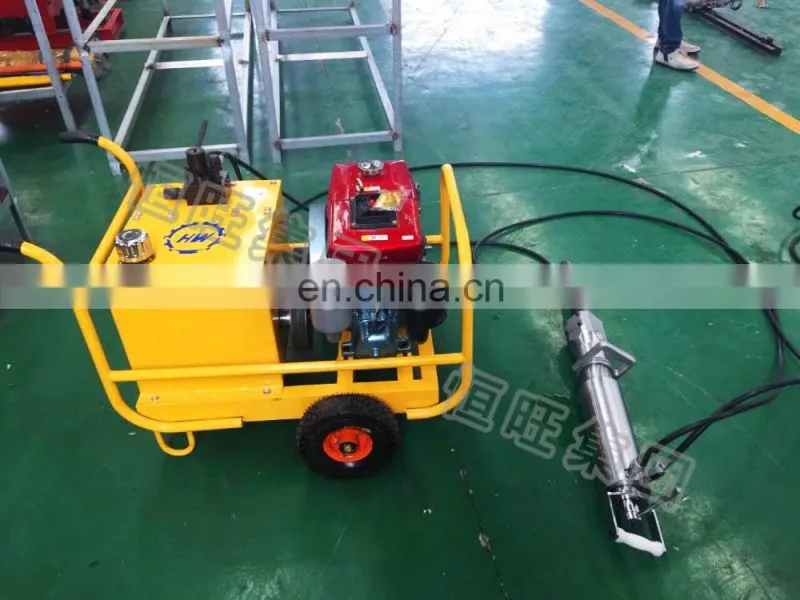

darda hydraulic manual rock splitter machine with gasoline engine
- 1000 per Month
- T/T Credit Card
You May Like
-
Hydraulic Diesel Small Portable Water Well Drilling Rig For Sale
-
Hydraulic Mobile Rotary Drilling Rig Well Drilling Machine price
-
400m Deep Portable Water Well Drilling Machines /pneumatic Water Well Drilling Rig
-
Truck mounted deep borehole water well drilling rig machine hot sale in Cambodia
-
Multi Functional Portable Hydraulic DTH Rock Water Bore Well Drilling Rig price
-
Electric crawler pile driver anchor screw driver
Product Description

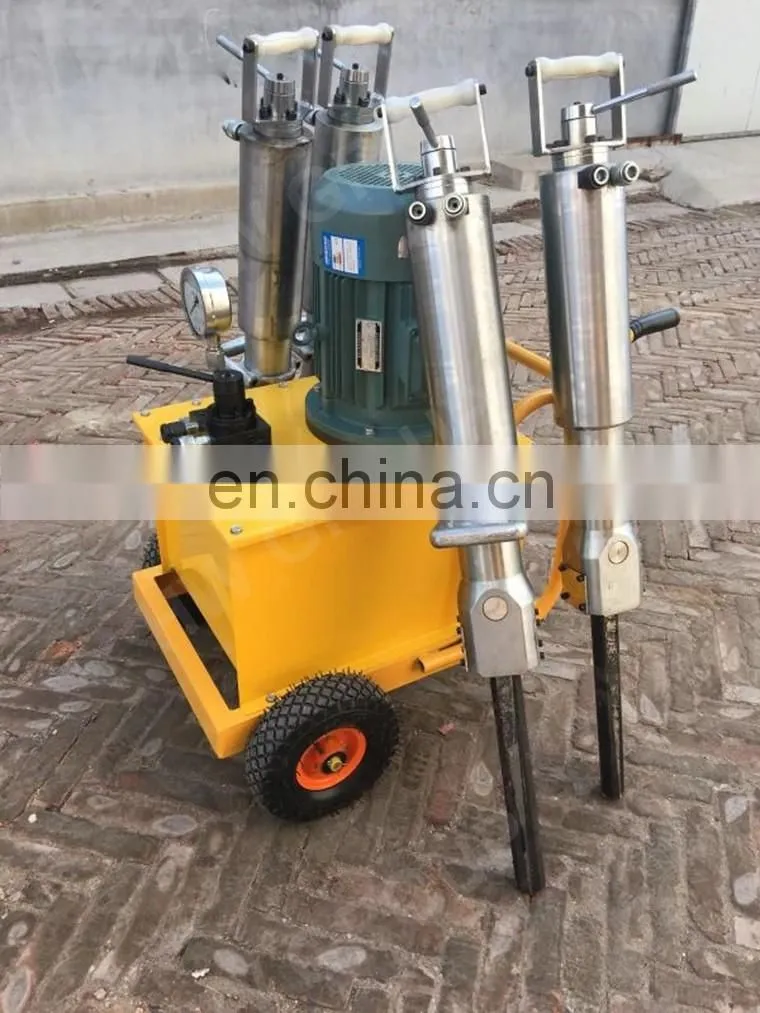

Darda type hydraulic rock splitter / stone used rock splitter Hydraulic concrete&rock splitter machine
Rocksplitter is our newly developed Product which is a powerful and extremely cost-effective alternative to other conventional demolition tools. Rock splitter can develop a very huge splitting force (Maximum 1000T) when it put into the pre-drill holes of rock or concrete, and crack it into pieces within several seconds.
Now it is widely used in mineral mining (cave mining), civil engineering construction and demolition.
It is also an indispensable tool in construction, river dredging, salvation etc. Our main Models of hydraulic pump and cylinder are as follows. If you are interested in, please let us know which type of pump and cylinder you need. We will offer a very competitive price for you.

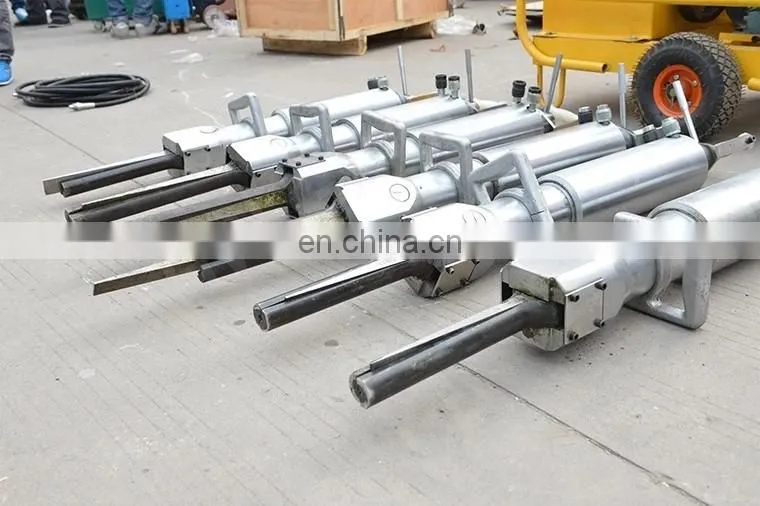

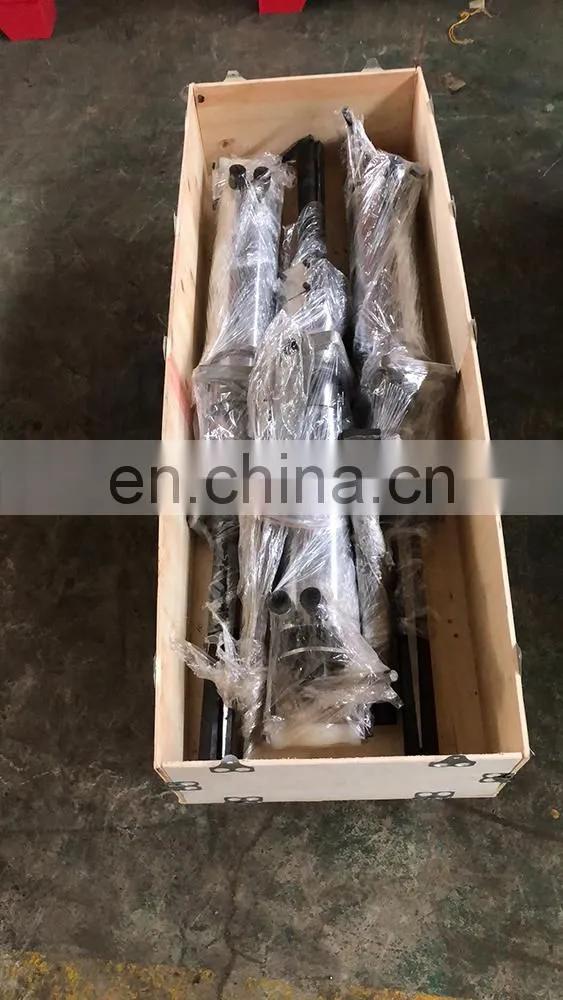

SPECIFICATIONS FOR ROCK SPLITTER GUN PARAMETER | |||||||||||
model | HW80-250 | HW80-350 | HW80-450 | HW90-250 | HW90-350 | HW90-450 | |||||
piston diameter | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm | |||||
drilling diameter | Φ42mm | Φ45mm | Φ50mm | Φ42mm | Φ45mm | Φ50mm | |||||
drilling depth | 500mm | 550mm | 600mm | 500mm | 550mm | 600mm | |||||
cheese block length | 250mm | 350mm | 450mm | 250mm | 350mm | 450mm | |||||
crack width | 10~40mm | 10~40mm | 10~40mm | 10~40mm | 10~40mm | 10~40mm | |||||
splitting time | 5~15s | 5~15s | 5~15s | 5~15s | 5~15s | 5~15s | |||||
Theory of separatist | 600T | 600T | 600T | 800T | 800T | 800T | |||||
The actul split force | 480T | 480T | 480T | 480T | 480T | 480T | |||||
weight | 28Kg | 29Kg | 30Kg | 31Kg | 32Kg | 33Kg |

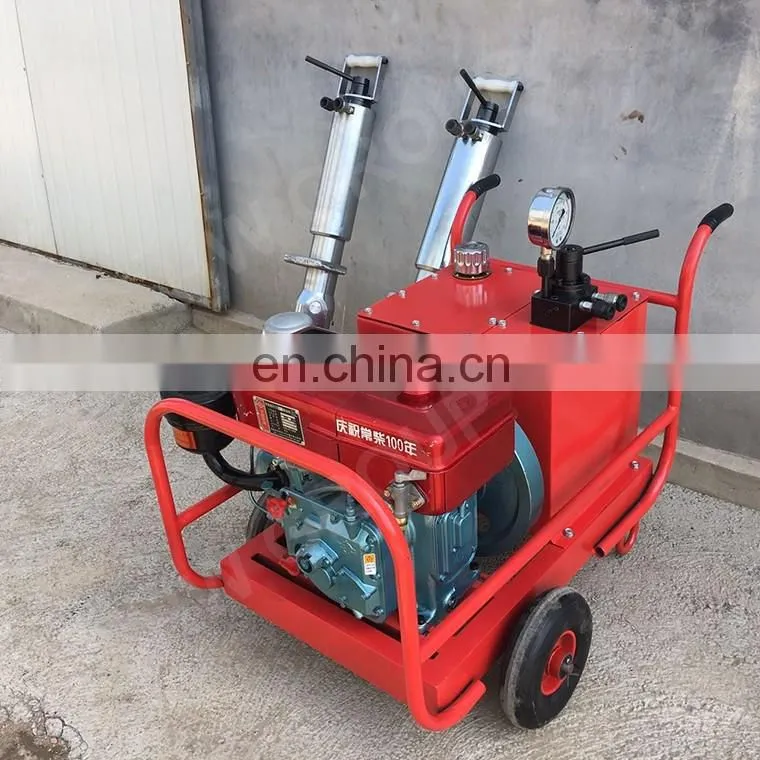

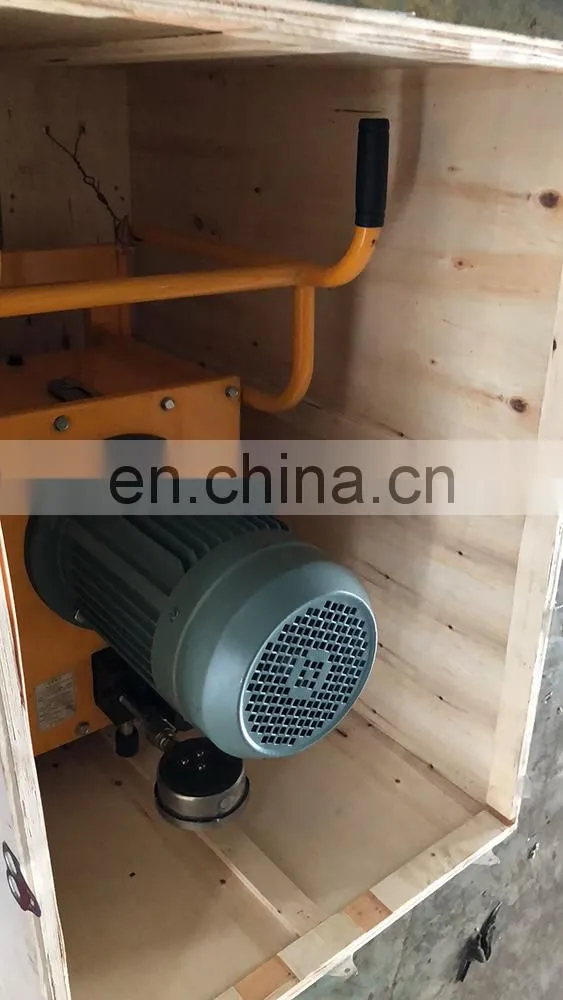

PUMP PACK PARAMETERS | PUMP PACK PARAMETERS | ||||||||
electric motor | gasoline engine | diesel engine | |||||||
100kg | 130kg | 140kg | |||||||
40L | 65L | 40L | |||||||
4KW | 7Hp | 8HP | |||||||
55-60 | 55-60 | 60Mpa | |||||||
2-13 | 2-13 | 2-13L/min | |||||||
2-7 | 3-8 | 1-8 |
Main Features

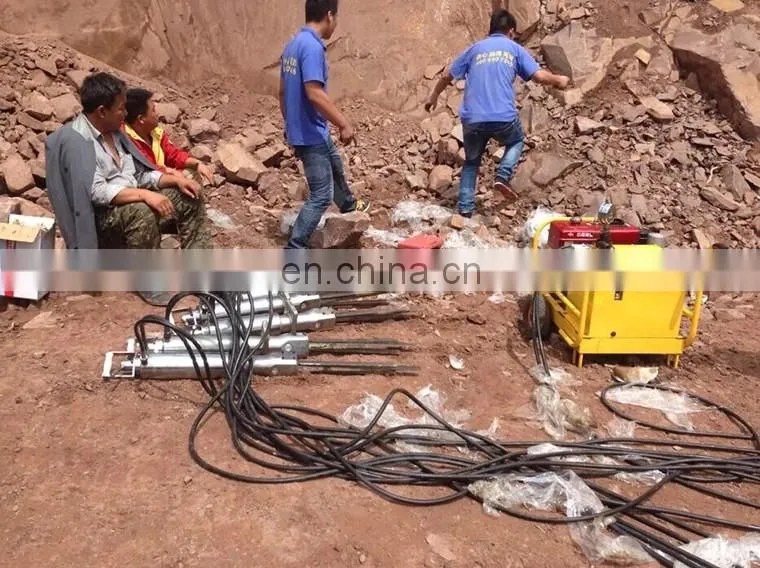

1. The quarrying and mining industry (mining chunk of blocks, chunks of blocks divided, remove chunks of waste rock, etc.)
2.Construction engineering (tunneling, underground tunnel excavation, artificial river mining, artificial rivers, rock digging ditches, etc.)
3.Demolition works (concrete and reinforced concrete demolition, demolition of old buildings, old pier demolition, etc.)
4.Chemical, metallurgical production and overhaul works (smelting furnace overhaul, various kiln bricks construction demolition materials engineering, etc.)
5, the various rescue and relief (earthquakes, mine clearing and other work, traffic accidents rescue work)
