Hydraulic Mobile Rotary Drilling Rig Well Drilling Machine Price

Hydraulic Mobile Rotary Drilling Rig Well Drilling Machine Price thumbnail-1
Hydraulic Mobile Rotary Drilling Rig Well Drilling Machine Price thumbnail-2
Hydraulic Mobile Rotary Drilling Rig Well Drilling Machine Price thumbnail-3
Hydraulic Mobile Rotary Drilling Rig Well Drilling Machine Price thumbnail-4
Hydraulic Mobile Rotary Drilling Rig Well Drilling Machine Price thumbnail-5
Hydraulic Mobile Rotary Drilling Rig Well Drilling Machine Price photo-1

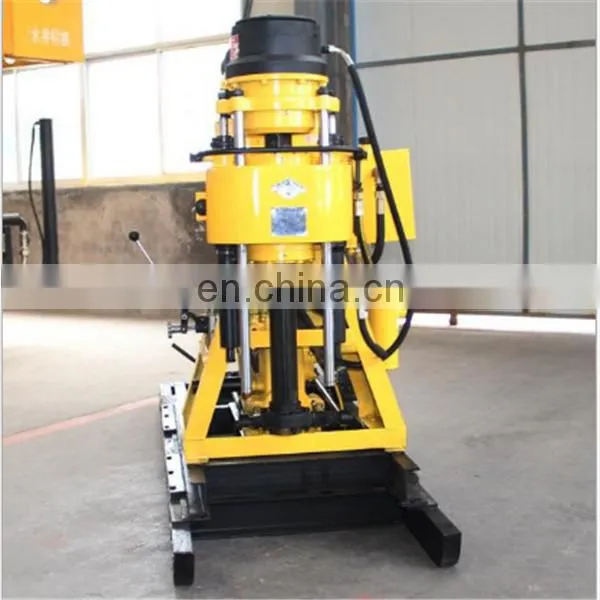

Hydraulic Mobile Rotary Drilling Rig Well Drilling Machine Price photo-2

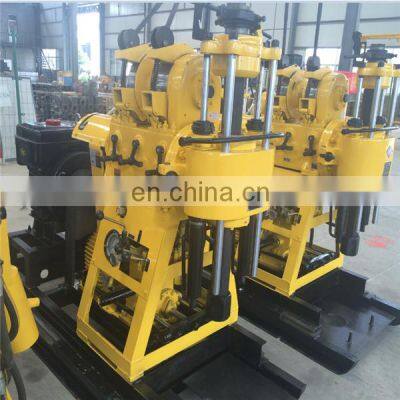

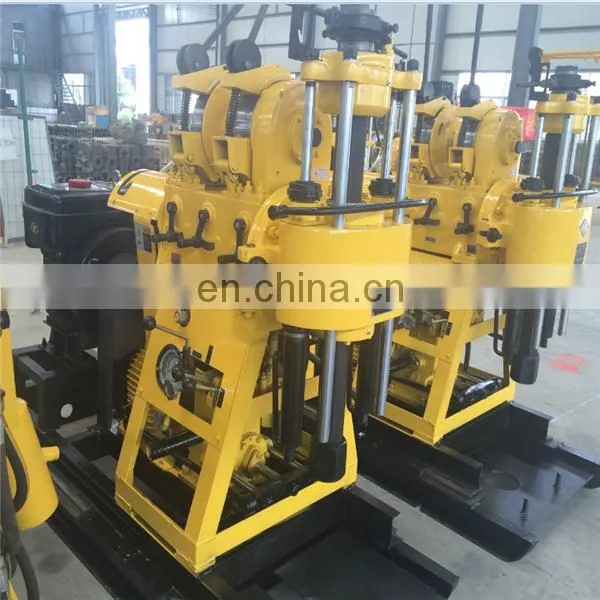

Hydraulic Mobile Rotary Drilling Rig Well Drilling Machine Price photo-3
Hydraulic Mobile Rotary Drilling Rig Well Drilling Machine Price photo-4

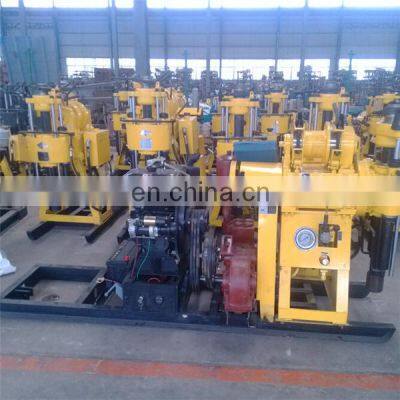

Hydraulic Mobile Rotary Drilling Rig Well Drilling Machine Price photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Shandong Hengwang Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

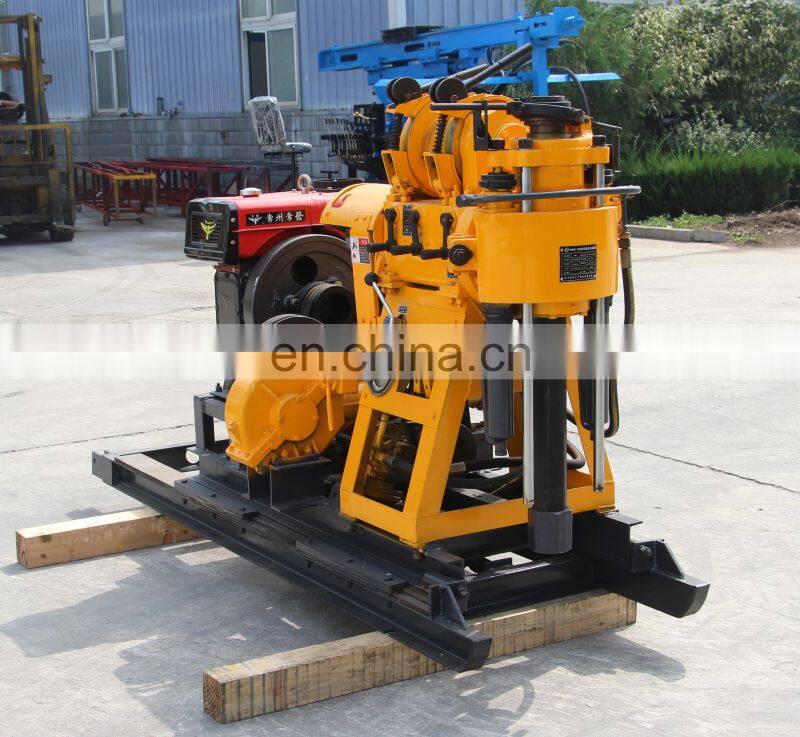

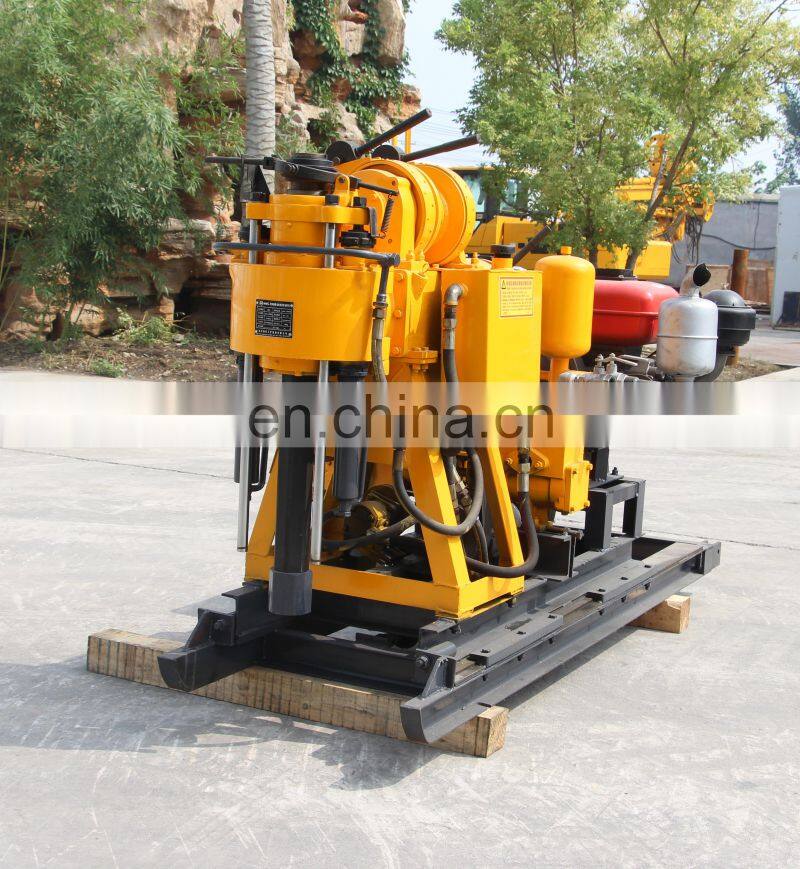

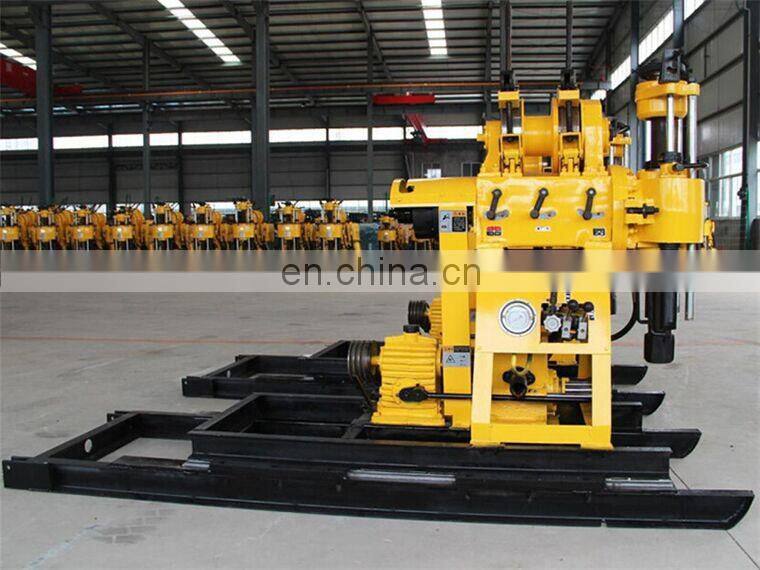

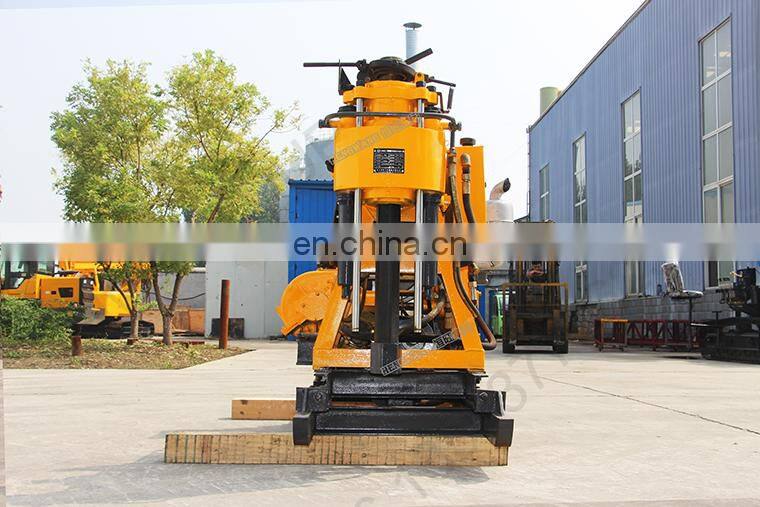

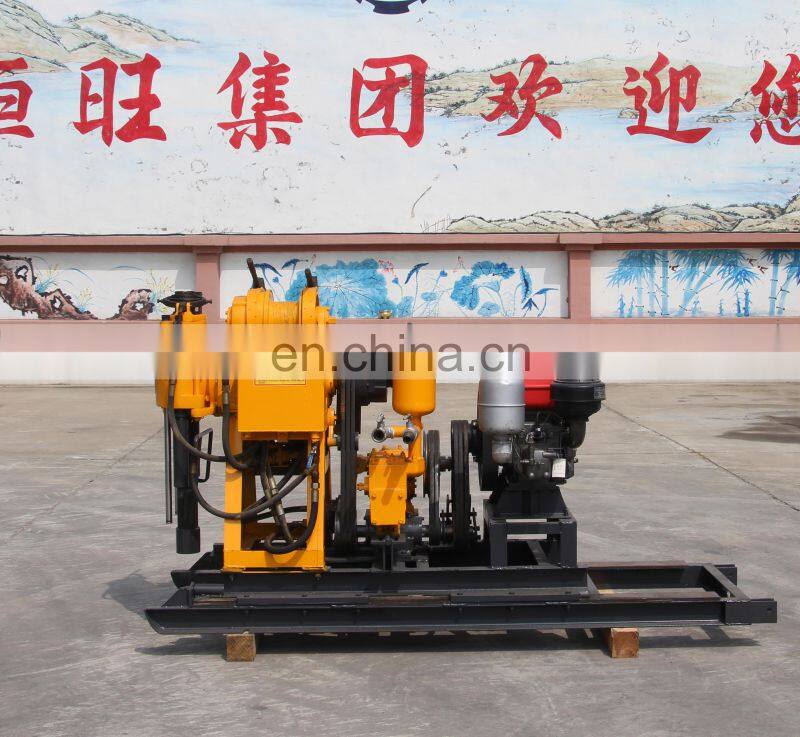

200M MAN PORTABLE CORE SAMPLE DEEP WATER WELL DRILLING DRILL RIG

Product Application00m man portable core sample deep water well drilling drill rigmall portable

Water well drilling rig is mainly used for geological general investigation and exploration, road and tall buliding foundation exploration, kinds of hole in concrete structure, river levees, subgrade grouting hole ,drilling and driect grouting, civil wells and earth temperature central air-conditioner,etc

 hydraulic core drilling rig main technical parameters






Tech parameter
Model
HW-160Y/160YY
HW-180Y/180YY
HW-230Y/230YY
Drilling depth(m)
160
180
230
0pen hole dia(mm)
220
220
325
End hole dia(mm)
75
75
75
Drill rod dia(mm)
42-60
42-60
42-60
Drill angle
90-75
90-75
90-75
power(Kw)
13.2
13.2
13.2
Weight without power(kg)
600/740
620/750
880/970
Dimension(m)
2.4*0.8*1.3
2.4*0.8*1.4
2.7*0.9*1.5

Spindle
Speed(r/min)
142/285/570
130/300/480/730/830/1045
64/128/287/557
Stroke(mm)
450
450
450

   Drill mast
Rated load(ton)
18
18
18
Height(m)
4.5
4.5
4.5



Mud pump
Flow(l/min)
95
95
145
Max pressure(MPa)
1.2
1.2
2
Time/min
93
93
93
Inlet hose dia(mm)
51
51
51
Outlet hose dia(mm)
32
32
32

Water well drilling rig Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Related Products

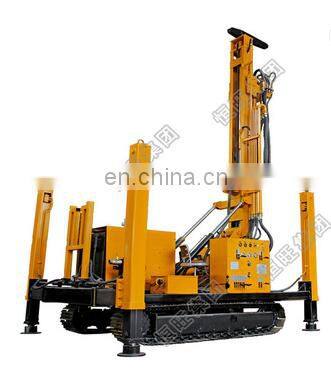

Crawler water well drill rig

91.8% Response Rate

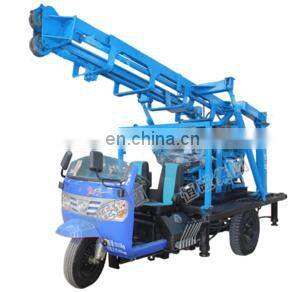

Tricycle water well drill rig

91.8% Response Rate

Portable water well drill rig

91.8% Response Rate

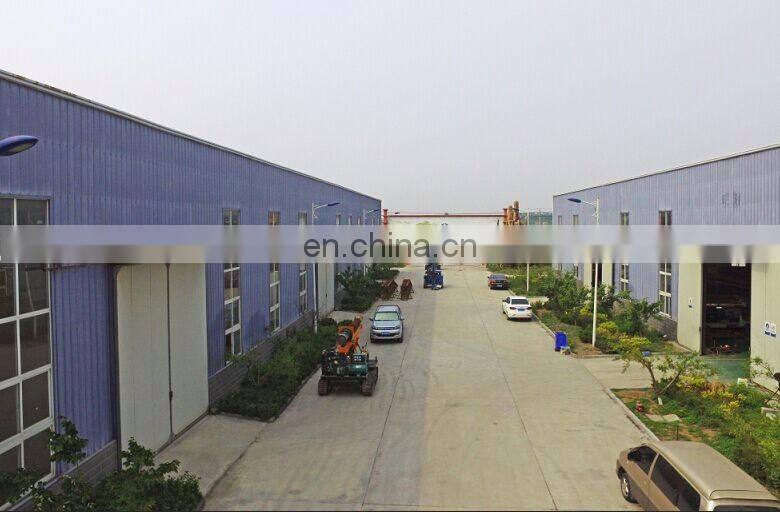

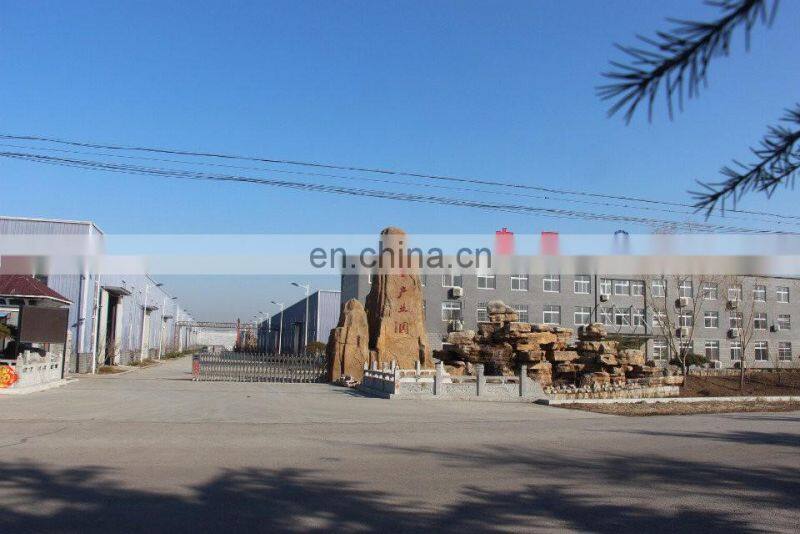

Our company
