Portable Borehole Small Water Well Drilling Rig Machine

Portable Borehole Small Water Well Drilling Rig Machine thumbnail-1
Portable Borehole Small Water Well Drilling Rig Machine thumbnail-2
Portable Borehole Small Water Well Drilling Rig Machine thumbnail-3
Portable Borehole Small Water Well Drilling Rig Machine thumbnail-4
Portable Borehole Small Water Well Drilling Rig Machine thumbnail-5
Portable Borehole Small Water Well Drilling Rig Machine photo-1

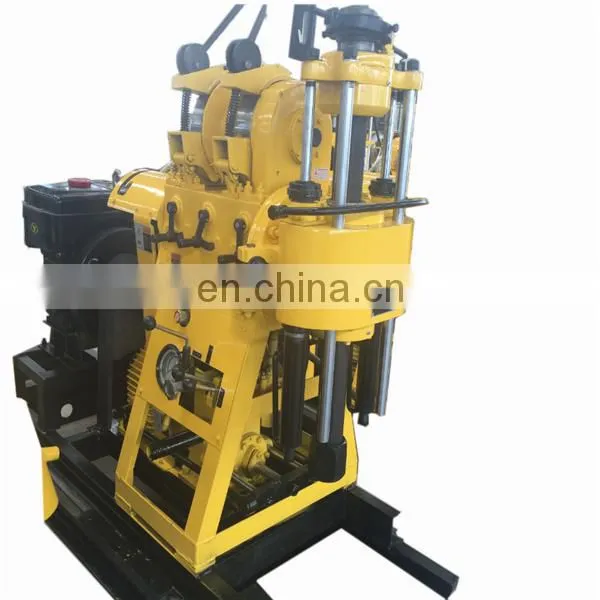

Portable Borehole Small Water Well Drilling Rig Machine photo-2

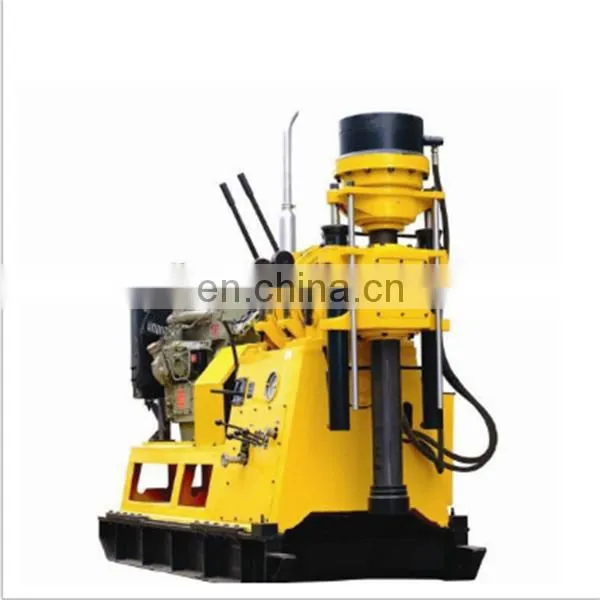

Portable Borehole Small Water Well Drilling Rig Machine photo-3

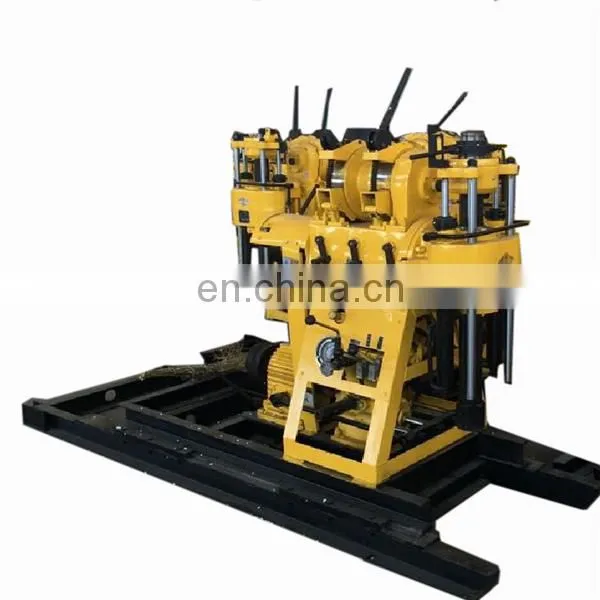

Portable Borehole Small Water Well Drilling Rig Machine photo-4

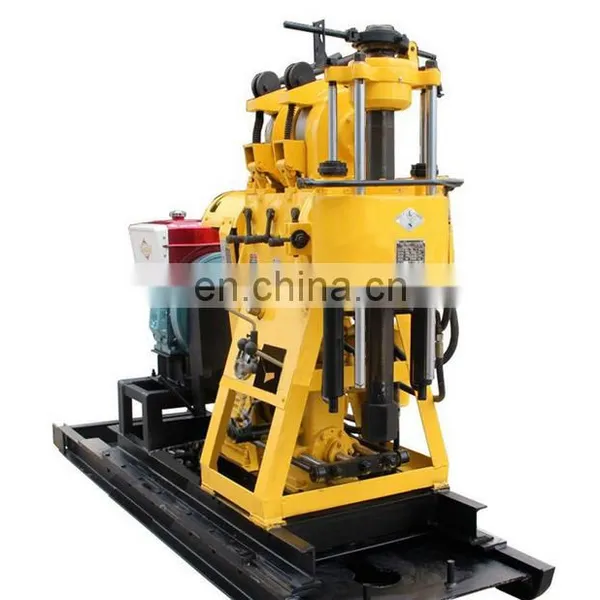

Portable Borehole Small Water Well Drilling Rig Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Shandong Hengwang Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

Portable Borehole Small Water Well DrillingRig Machine

Water well drilling rig is mainly used for geological general investigation and exploration, road and tall buliding foundation exploration, kinds of hole in concrete structure, river levees, subgrade grouting hole ,drilling and driect grouting, civil wells and earth temperature central air-conditioner,etc
Model
HW-160Y/160YY
HW-180Y/180YY
HW-230Y/230YY
Tech parameter
Drilling depth(m)
160
180
230
0pen hole dia(mm)
220
220
325
End hole dia(mm)
75
75
75
Drill rod dia(mm)
42-60
42-60
42-60
Drill angle
90-75
90-75
90-75
power(Kw)
13.2
13.2
13.2
Weight without
600/740
620/750
880/970
Dimension(m)
2.4*0.8*1.3
2.4*0.8*1.4
2.7*0.9*1.5
Spindle
Speed(r/min)
142/285/570
130/300/480/730/830/1045
64/128/287/557
Stroke(mm)
450
450
450
Drill mast
Rated load(ton)
18
18
18
Height(m)
4.5
4.5
4.5
Mud pump
Flow(l/min)
95
95
145
Max
1.2
1.2
2
Time/min
93
93
93
Inlet hose dia(mm)
51
51
51
Outlet hose
32
32
32

Water well drilling rig Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

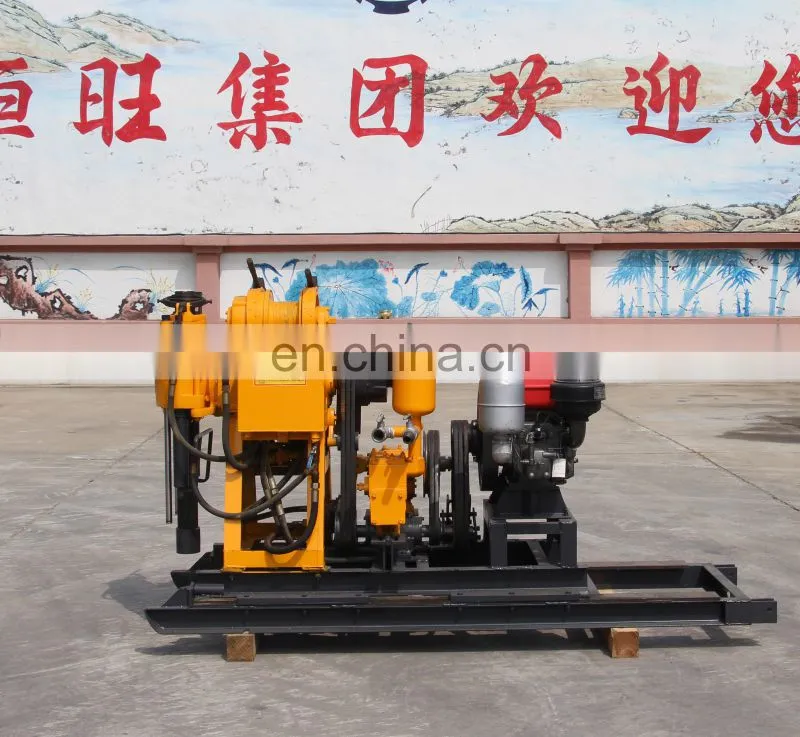

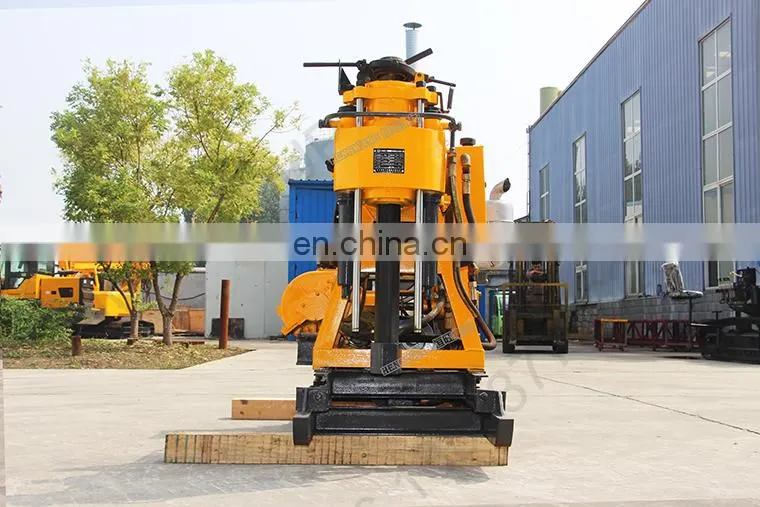

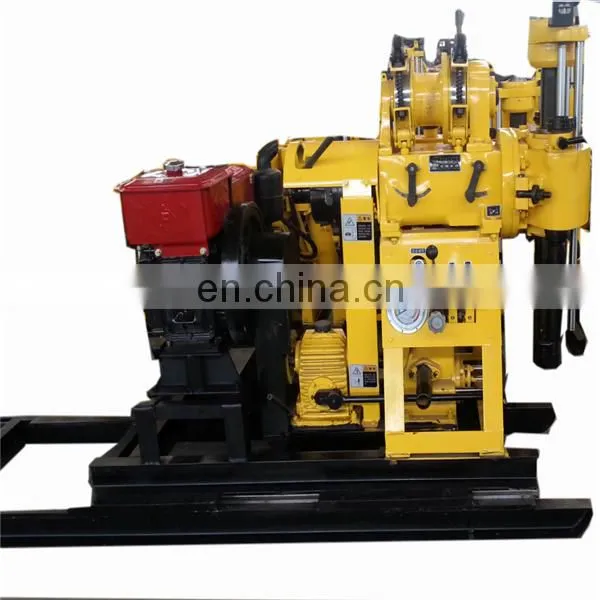

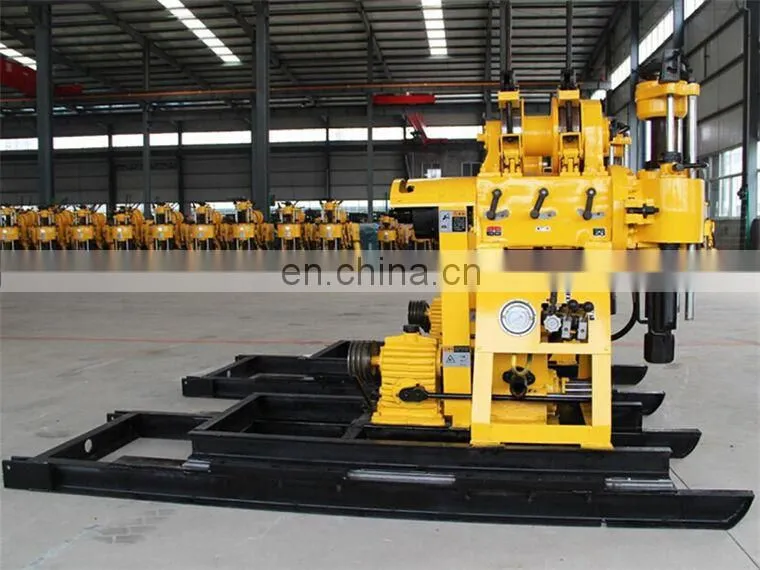

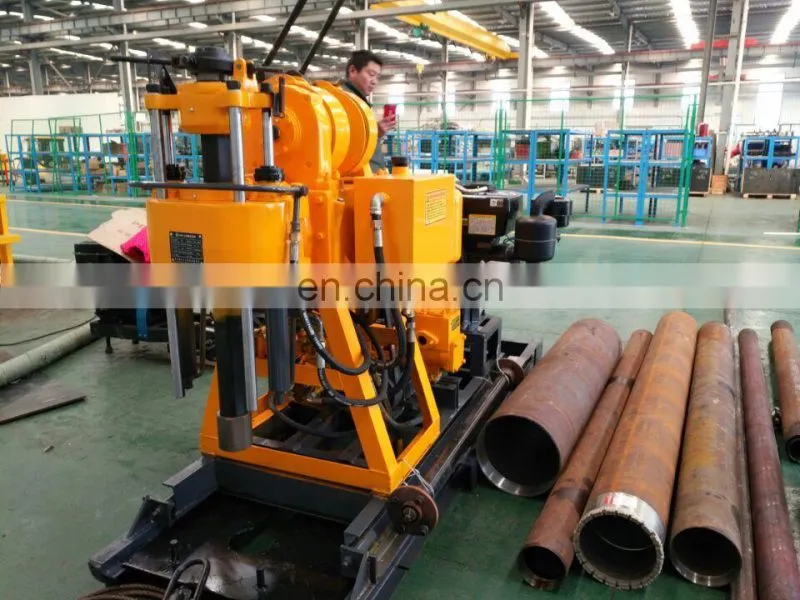

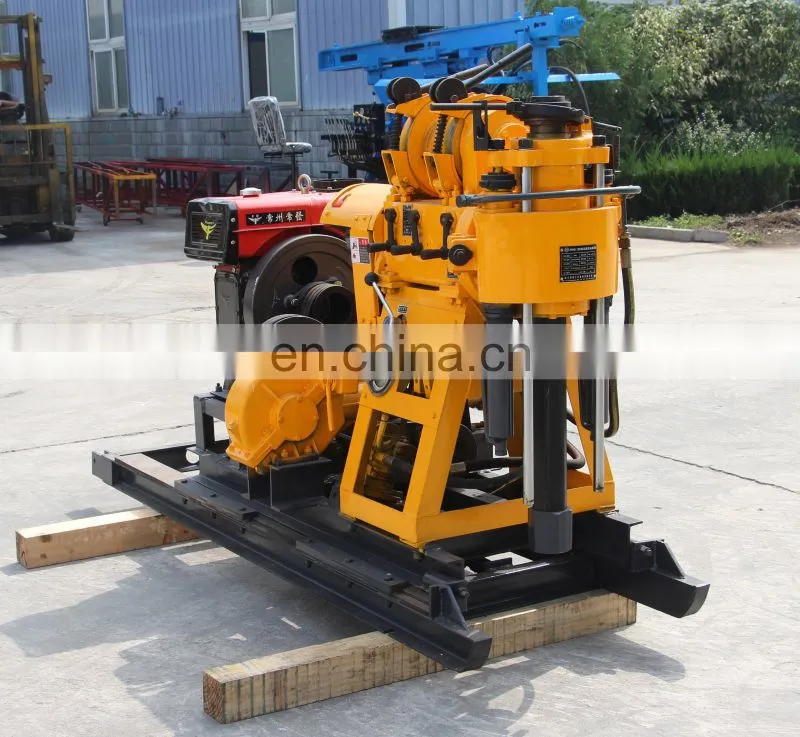

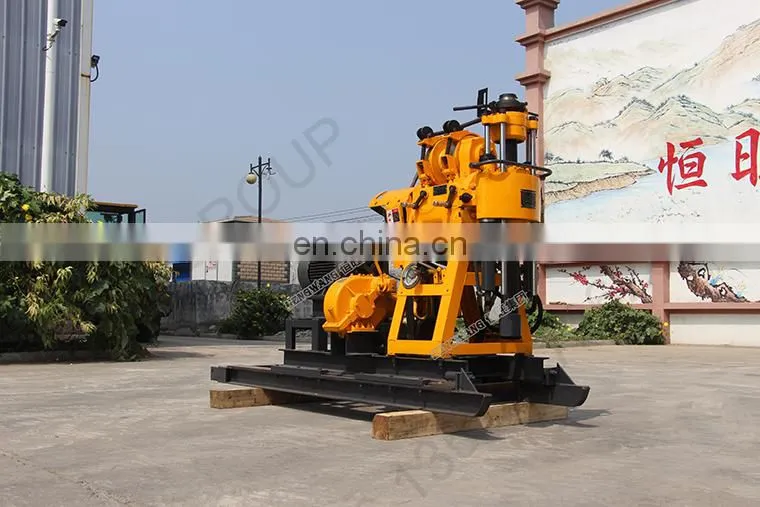

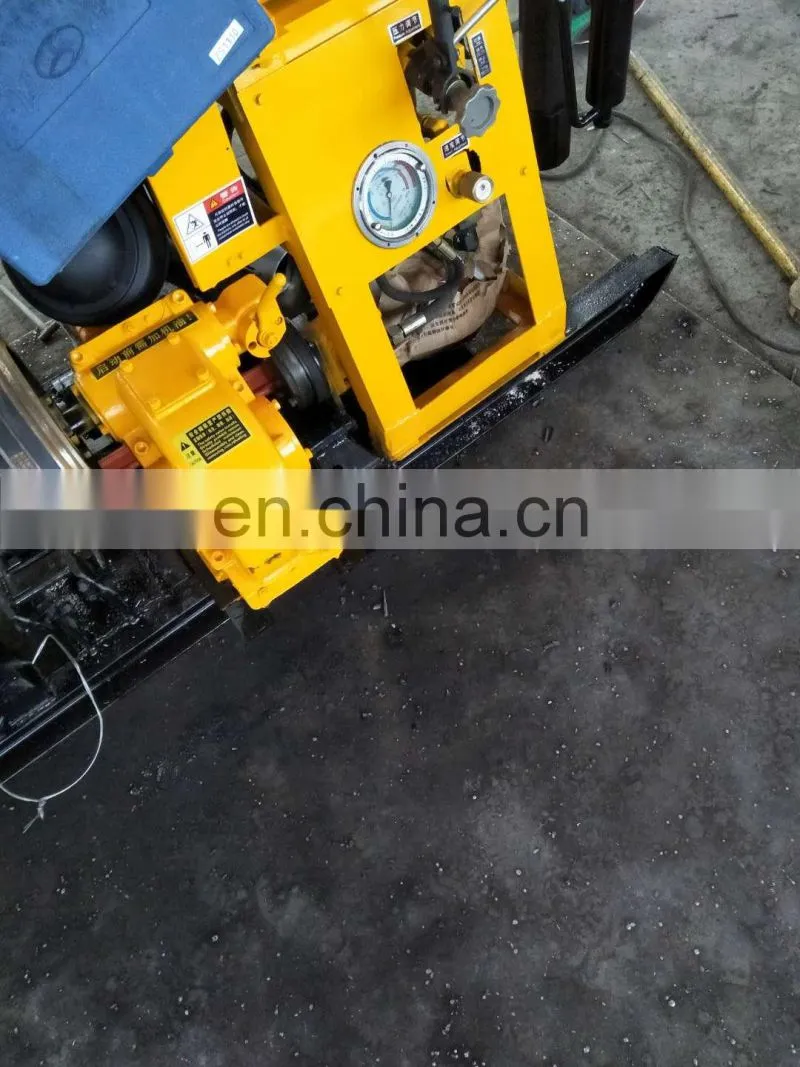

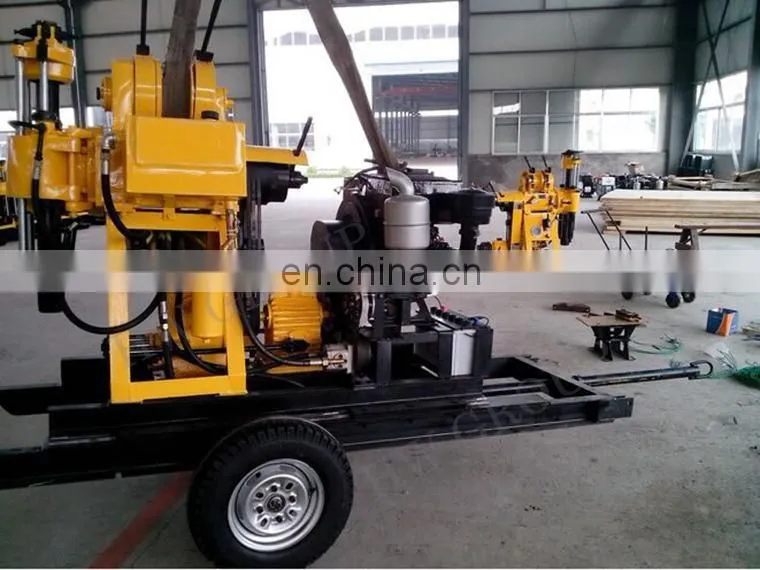

Detailed Images
Related Products

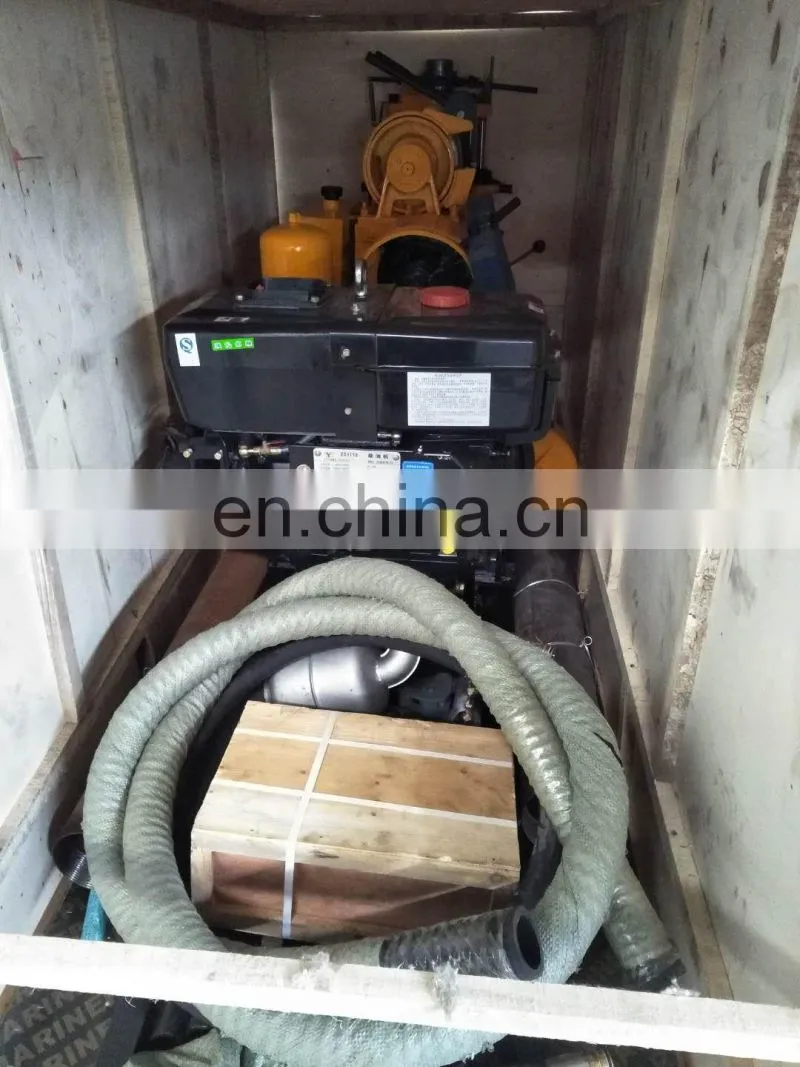

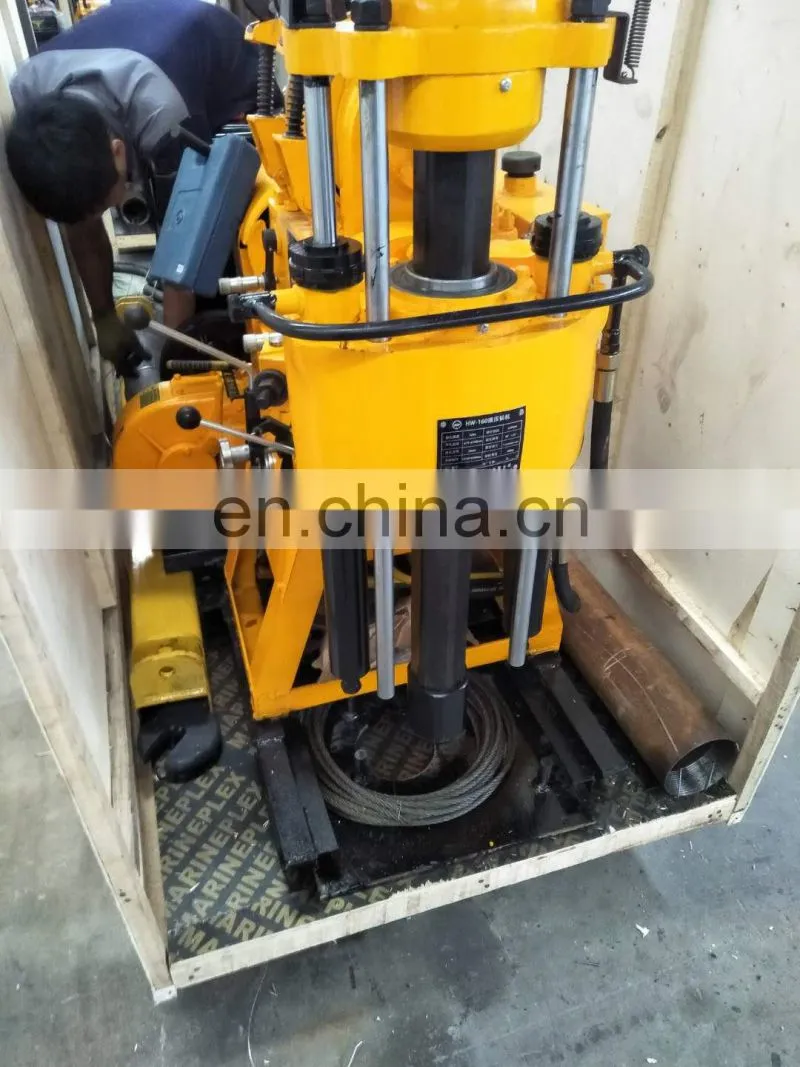

Packing&Shipping
After Sales Service
After Sales
1. We machine warranty is ONE year;

2. FREE spare parts are available;

3. Operating Video is available;

4. Engineers are available for field teaching and operating;

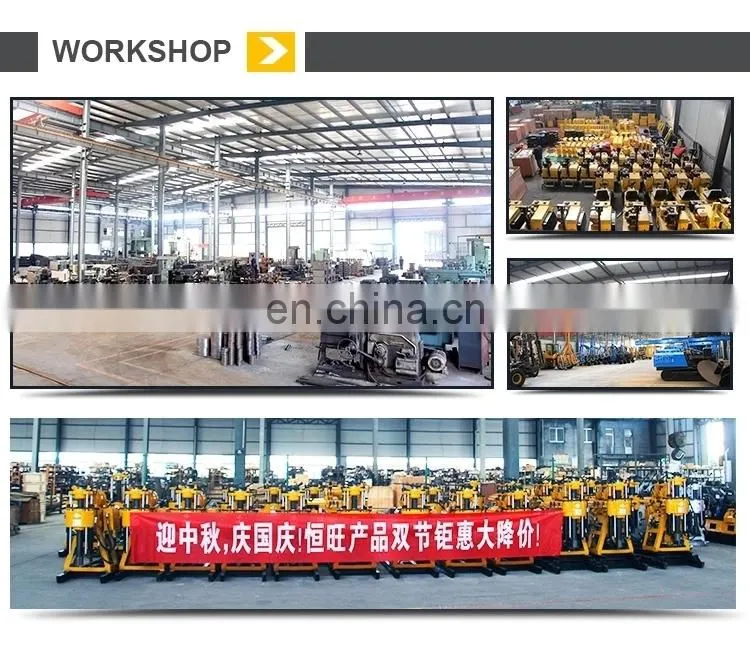

Company Introduction
FAQ

Q1. What is your terms of payment?

Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and

packages before you pay the balance.



Q2. What is your terms of delivery?

Ans.: EXW, FOB, CFR, CIF.



Q3. How about your delivery time?

Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.

The specific delivery time depends on the items and the quantity of your order.



Q4. What is the warranty of our machine?

Ans.:Our main machine enjoys a 1 year warranty, during this time all accessories

broken can be changed for a new one.And we provide videos for machine install and operation.



Q5. What is your terms of packing?

Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.



Q6. Do you test all your goods before delivery?

Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.



Q7.Do you Preferred provide wear parts for transacted clients?

Ans.: Yes, we have recor d s for your clients, and will  prefer  provid ing  accessories to clients.



Q8: How do you make our business long-term and good relationship?

Ans.: 1. We keep good quality and competitive price to ensure our customers benefits;                                            2. We respect every customer as our friend and we sincerely do business and make friends with them,

no matter where they come from.



Q9.Do you have any certificates for your machine?

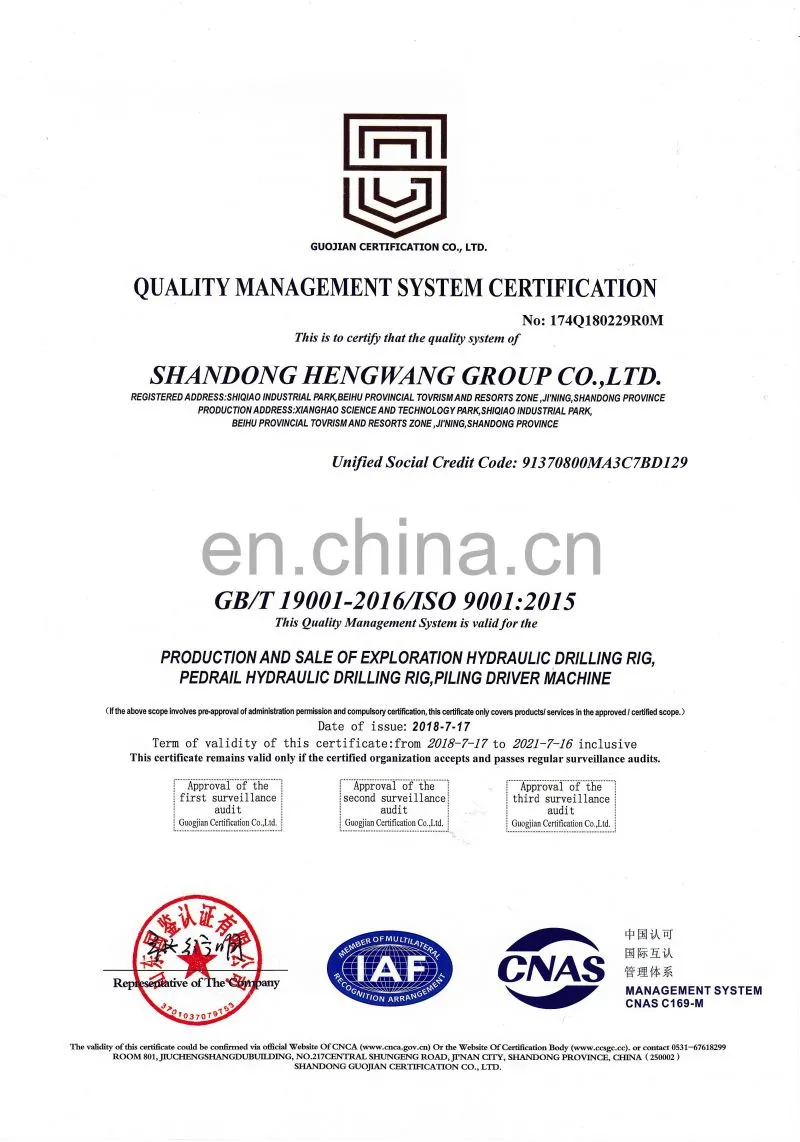

Ans.: All of our products coming with the certificates of CE, ISO9001.
