PZ-9 Concrete Spray Machine Shotcrete Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2008
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Eternoo RG130 Cement Grouting Pump With Diesel EngineNegotiableMOQ: 1 -
High Efficiency Concrete Grout Pumps for SaleNegotiableMOQ: 1
-
Stator Rotator Rubber Spare Parts for Cement Concrete Grouting Pump MachineNegotiableMOQ: 1
-
Hose Pump, Eternoo Peristaltic Pump for ConcreteNegotiableMOQ: 1
-
RX30 Dry-mixed Mortar Machine Cement Spraying Machine for WallNegotiableMOQ: 1

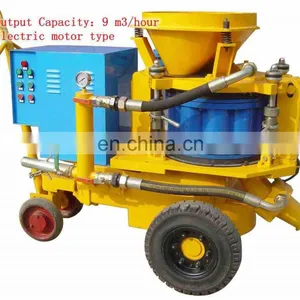

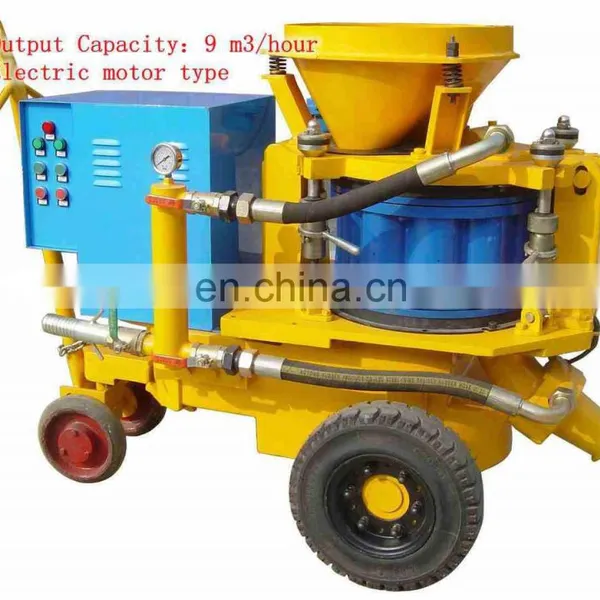

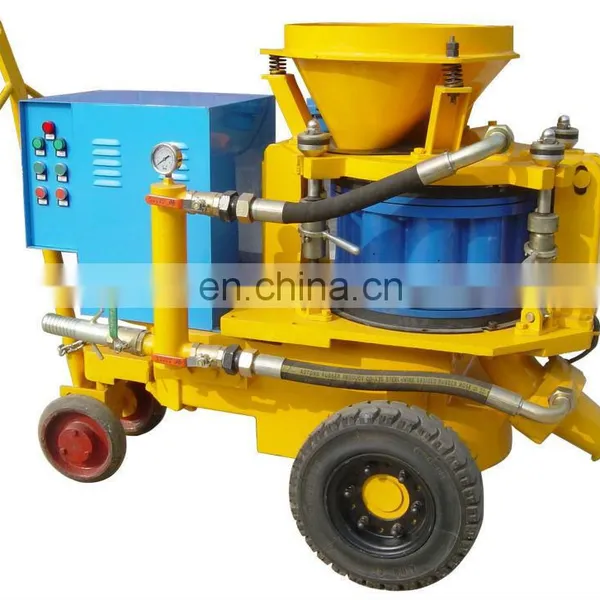

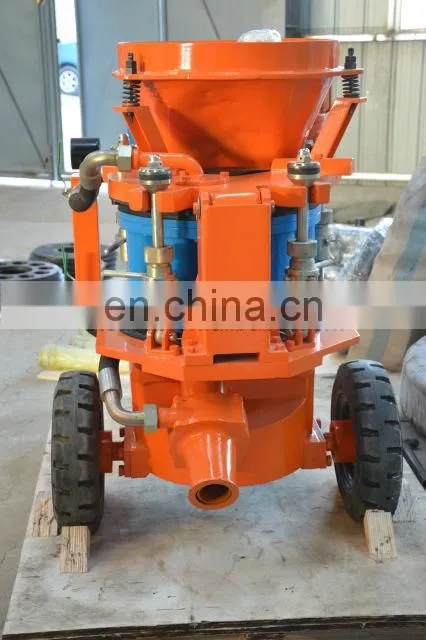

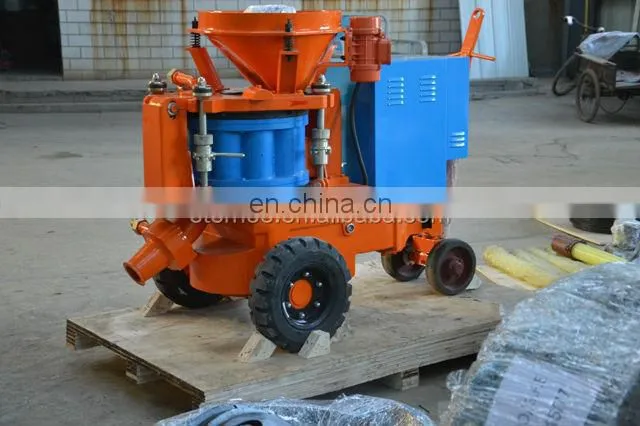

PZ-9 dry-mix shotcrete machine
Applications fields of shotcrete machine

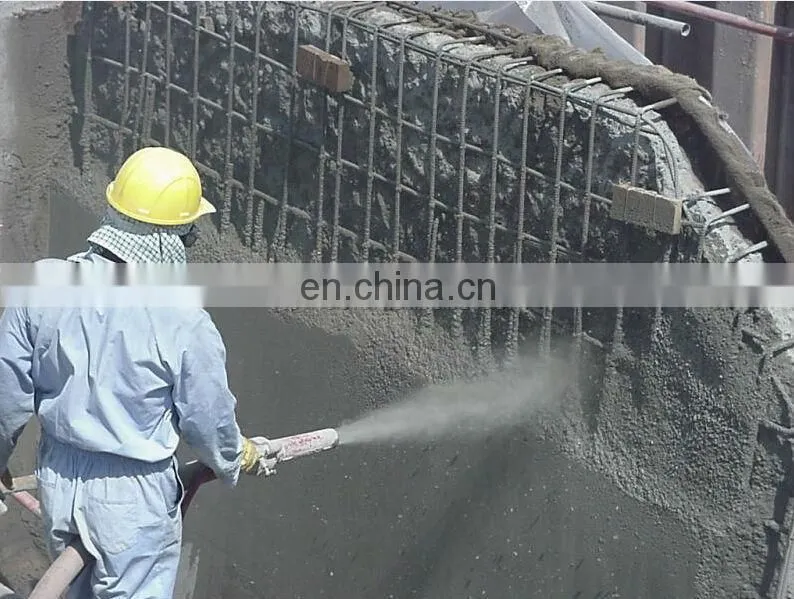

Shotcrete/concrete spraying/gunite for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.
Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface
Refractory material spraying and repair for industrial kilns’ inner liner.
Features of shotcrete machine :
- Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
- Thin follow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
- Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
- Particularly used for dry, damp mix and steel (polymer) fibre reinforced shotcrete.
- Three drive models: by Electric motor, air motor or diesel engine.
- For the most specific risks of this machine, safety and compliance with the essential requirements of the Directive has been based on elements of EN ISO 12100-1:2003, EN ISO 12100-2:2003/A1:1995, EN 60204-1:2006 and EN 1050:1997.
Technical parameter of shotcrete machine
Output |
9 m3/h |
Max. convey distance |
150 m |
Water cement ratio |
<0.35 |
Max. aggregate size |
20mm |
Hose inner size |
Φ64mm |
Operating air pressure |
0.2~0.6MPa |
Air consumption |
9~10m3/min |
Motor power |
7.5kw(10hp) |
Voltage |
380V,440V,660V,1140V 50Hz/60Hz |
Basic chassis |
Options: tire , skid or rail-wheel |
