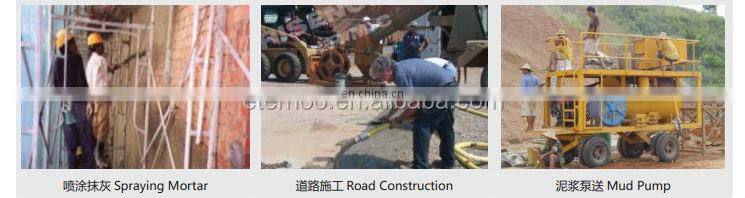

Applications of peristaltic pump
Heavy duty peristaltic pump can convey high viscosity slurry. It can be used for pressure grouting and spring on the surface, and it also can act as metering pump.
RH series heavy-duty peristaltic pump is widely used in the following field:
Architecture
Mortar, plaster, architectural coating, refractory, accelerator
Chemical
Corrosive, caustic material
Food and beverage
Milk, confiture, salad, syrup, chocolate
Brewing
Yeast, diatomaceous-earth, flocculant
Other applications
Paper, ceramics, pharmaceutics, agriculture, mining, print, water and waste treatment

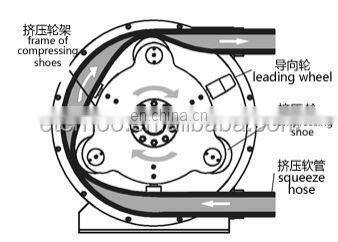

Working principle of peristaltic pump
A composite, reinforced flexible hose is rolled and squeezed along a predetermined length, positively displacing the fluid contained within the hose. The peristaltic pump employs a drive-coupled rotor with mounted shoes or rollers, which continually compress and occlude some portion of the hose. This action moves the fluid through the hose with a constant rate of displacement for each revolution of the rotor, providing a precise volume of fluid pumped through the hose. A specially developed lubricant contained within the pump head reduces hose wear as a result of contact with the pressing shoes or rollers.
Character of peristaltic pump
- Ø Reversibility
- Ø Abrasion resistance
- Ø Self priming with high suction
- Ø Hose is the only consumption part
- Ø Easy for maintenance
Technical data sheet of peristaltic pump
|
|
Output |
Pressure |
Hose ID |
Rev. |
Max. particle Dia. |
Max. Suct. left |
Motor power |
|
|
l/h |
MPa |
mm |
r/min |
mm |
m |
Kw |
|
|
|
RH10 |
60 |
0.6 |
10 |
45 |
2 |
2 |
0.37 |
|
|
RH10B |
100 |
0.6 |
10 |
80 |
2 |
2 |
0.37 |
|
|
RH15 |
210 |
0.6 |
15 |
45 |
2 |
2 |
0.55 |
|
|
RH15B |
300 |
0.6 |
15 |
75 |
2 |
2 |
0.55 |
|
|
RH25 |
800 |
1.5 |
25 |
50 |
3 |
3 |
1.1 |
|
|
RH25B |
1300 |
1.5 |
25 |
80 |
3 |
3 |
1.1 |
|
|
RH32 |
1300 |
1.5 |
32 |
50 |
3 |
4 |
2.2 |
|
|
RH32B |
1800 |
1.5 |
32 |
75 |
3 |
4 |
2.2 |
|
|
RH38 |
2000 |
.5 |
38 |
40 |
5 |
4 |
2.2 |
|
|
RH38B |
2700 |
1.5 |
38 |
55 |
5 |
4 |
2.2 |
|
|
RH38C |
3500 |
1.5 |
38 |
70 |
5 |
4 |
4.0 |
|
|
RH50-558 |
4200 |
1.5 |
51 |
35 |
6 |
5 |
4.0 |
|
|
RH50-558B |
5400 |
1.5 |
51 |
45 |
6 |
5 |
5.5 |
|
|
RH50-680 |
6300 |
1.5 |
51 |
35 |
6 |
5 |
7.5 |
|
|
RH50-680B |
8000 |
1.5 |
51 |
45 |
6 |
5 |
7.5 |
|
|
RH65-680 |
9200 |
1.2 |
64 |
40 |
8 |
5 |
7.5 |
|
|
RH65-680B |
12000 |
1.5 |
64 |
45 |
8 |
5 |
11.0 |
|
|
RH65-770 |
13500 |
1.2 |
64 |
45 |
8 |
5 |
11.0 |
|
|
RH65-770B |
16500 |
1.0 |
64 |
55 |
8 |
5 |
11.0 |
|
|
RH76-770 |
18000 |
1.0 |
76 |
45 |
10 |
5 |
11.0 |
|
|
RH76-770B |
22000 |
1.0 |
76 |
55 |
10 |
5 |
15.0 |
|
|
RH76-915 |
24000 |
1.0 |
76 |
50 |
10 |
5 |
15.0 |
|
|
RH76-915B |
28000 |
1.0 |
76 |
40 |
10 |
5 |
18.0 |
|
|
RH100 |
33500 |
1.0 |
102 |
35 |
15 |
5 |
18.0 |
|
|
RH100B |
42000 |
0.75 |
102 |
45 |
15 |
5 |
18.0 |
|
l The protection degree of electric motor: IP55
l The pump’s output is determined with water.
l Pump can be produced according to client’s special requirement.
