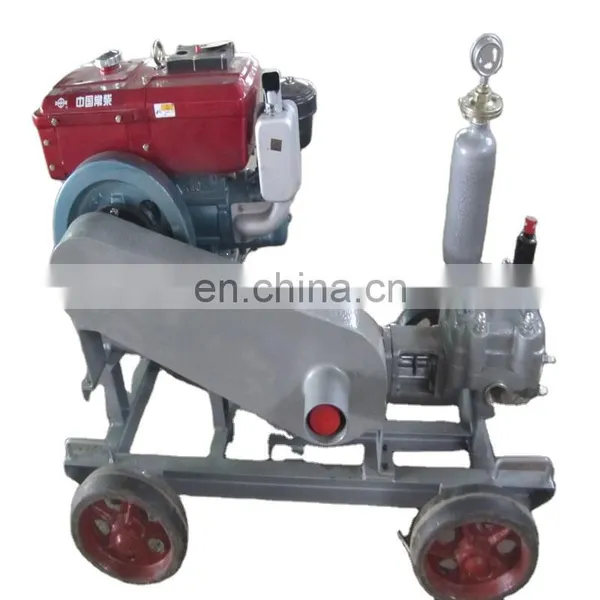

RG130/20 is a piston grouting pump for the processing of pressure grouting.
The machine is suitable for grouting with either of single slurry and two different slurries.
It can be widely used for tunnels, slope, mining, bridge and all sorts of underground engineering etc.
Features:
Compact &light weight: The pump is so compact that it even can go into the boot of car. Body of pump is made of aluminum, lighter than iron casting made by other supplier.
Powerful & durable: With a discharged pressure of 20 kg/cm2. This pump is ideal for almost all soil drilling operations.
Economical & easy: simple design makes maintenance easy and economical
Maintenance: Easy availability of parts at reasonable price
Technical data
|
Type |
Single piston double acting with balls in valve plate |
|
Clutch |
Dog clutch |
|
Pressure |
20kg/cm2 |
|
Stroke |
85mm |
|
Speed |
180rpm |
|
Suction port |
51mm |
|
Delivery port |
42mm |
|
Liner bore diameter |
75mm |
|
Transmission |
Pulley &vee belt |
|
Mounting |
Skid mounted |
|
Flow |
130L/min |
|
Engine |
5.5kw(electric motor) ; 10HP(diesel engine) |
|
Weight |
260kg |
|
Dimensions |
1680*570*980mm |
