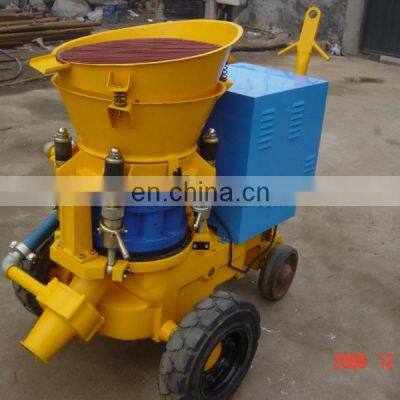

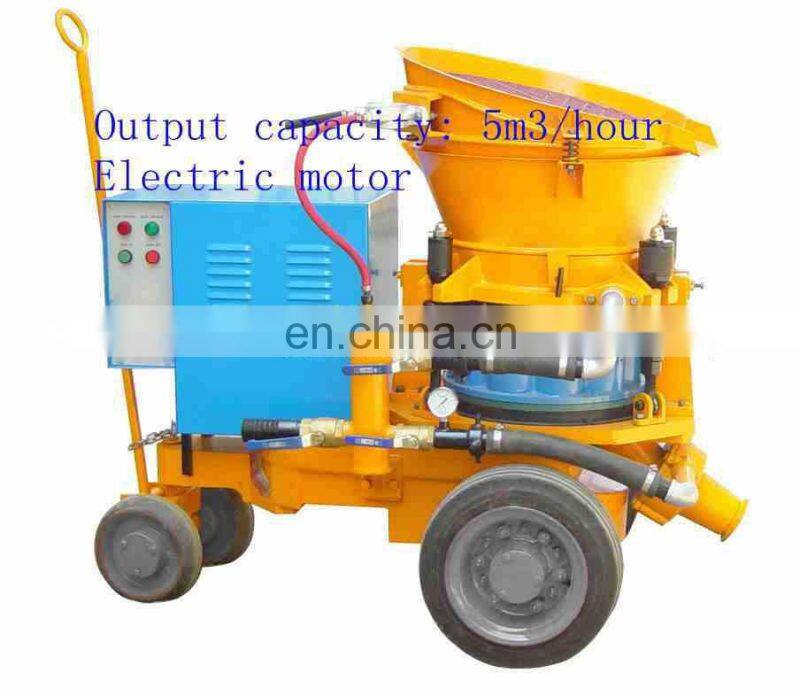

PZ-5 rotor pump concrete small shotcrete machine

Name: PZ-5 rotor pump concrete small shotcrete machine
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Product Description

Ø Shotcrete/concrete spraying/gunite for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.
Ø Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface
Ø Refractory material spraying and repair for industrial kilns’ inner liner.

Output	5.5 m³/h
Max. convey distance	200 m
Water cement ratio	<0.4
Max. aggregate size	15mm
Hose inner size	Φ50mm
Operating air pressure	0.2~0.6MPa
Air consumption	7~8m³/min
Motor power	5.5kw(7.5hp)
Voltage	380V,440V,660V,1140V 50Hz/60Hz
Basic chassis	Options: tire , skid or rail-wheel

PZ-5 rotor pump concrete small shotcrete machine
