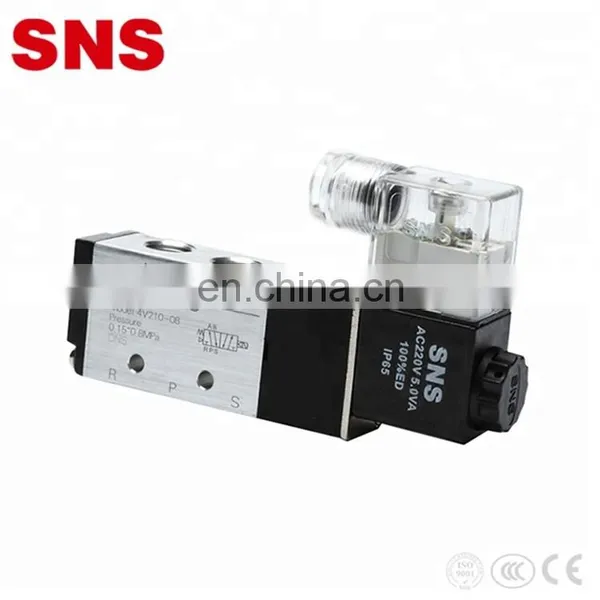

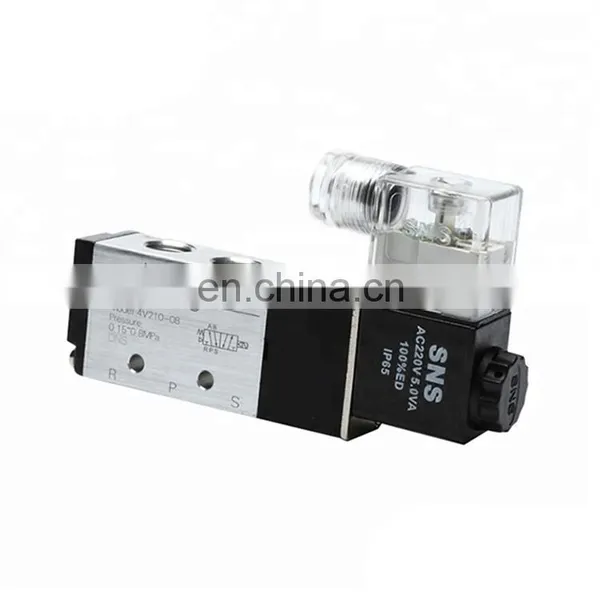

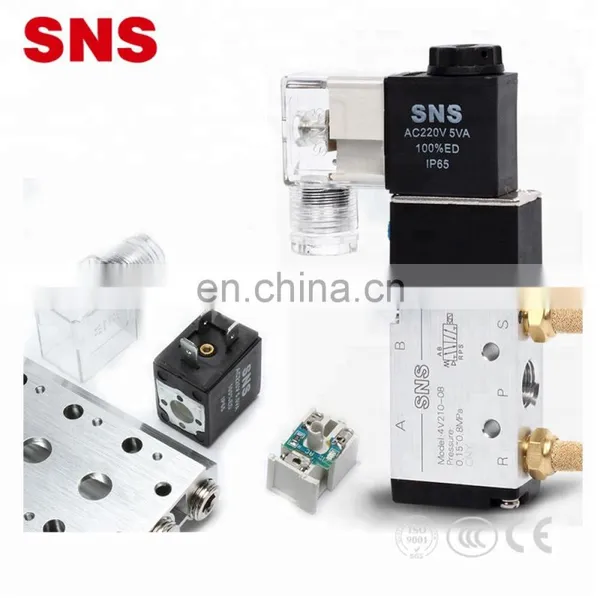

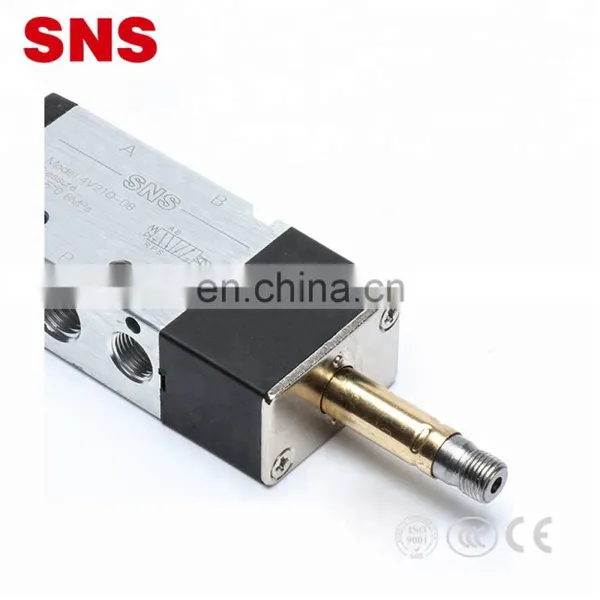

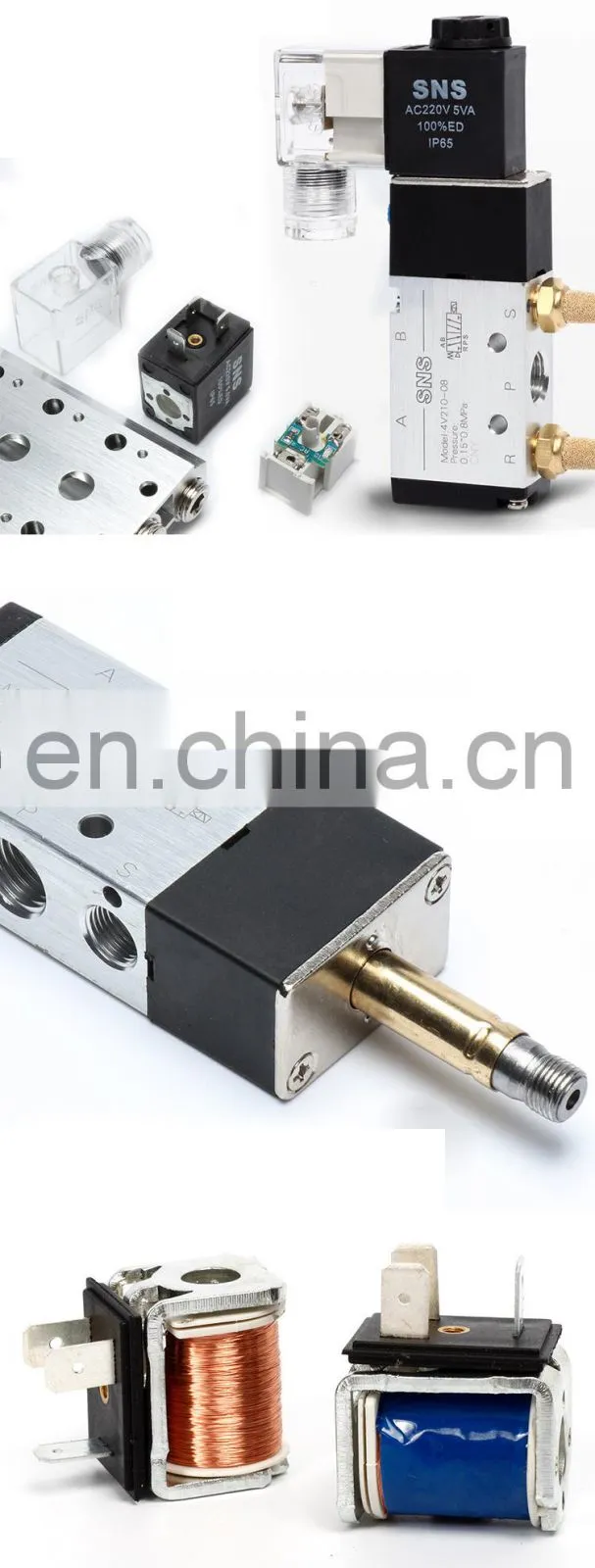

Help CenterSNS 4V Series Bistable 12 Volt 24vdc Solenoid Valve
Related Products
-
SNS 2W350-35 Pneumatic 1/4\" Brass 1 Inch Solenoid Water Air ValveNegotiableMOQ: 1 -
SNS (BC/BUC/BL/BUL Series) Plastic Brass Pneumatic Air Control Hand ValveNegotiableMOQ: 1
-
SNS 3V Series Solenoid Valve Electric 3 Way Control ValveNegotiableMOQ: 1
-
SNS Professional Air Compressor Pressure Relief Safety Brass ValveNegotiableMOQ: 1
-
SNS 2WBK Stainless Steel Normally Opened Solenoid Control Valve PneumaticNegotiableMOQ: 1
bistable solenoid valve(4V Series) 4 way
| Model |
SNS210-06 4V210-06 |
SNS220-06 4V220-06 |
SNS230C-06 4V230C-06 |
SNS230E-06 |
SNS230P-06 4V230P-06 |
SNS210-08 4V210-08 |
SNS220-08 4V220-08 |
SNS220C-08 4V230C-08 |
SNS230E-08 4V230E-08 |
SNS230P-08 4V230P-08 |
|
| Working medium | Air | ||||||||||
| Action method | Internal pilot | ||||||||||
| Number of places | Two five-pass | Three positions | Two five-pass | Three positions | |||||||
| Effective cross-sectional area | 14.00mm²(Cv=0.78) | 12.00mm²(Cv=0.67) | 16.00mm²(Cv=0.89) | 12.00mm²(Cv=0.67) | |||||||
| Take over the caliber | Intake = outgassing = exhaust =G18 | Intake = outgassed =G1/4 exhaust =G1/8 | |||||||||
| Lubricating | Need not | ||||||||||
| USE pressure | 0.15∼0.8MPa | ||||||||||
| Maximum pressure resistance | 1.0MPa | ||||||||||
| Operating temperature | 0∼60℃ | ||||||||||
| Voltage range | ±10% | ||||||||||
| Power consumption | AC:5.5VA DC:4.8W | ||||||||||
| Insulation class | Class F | ||||||||||
| Protection level | IP65(DINA40050) | ||||||||||
| Electrical connection | Terminal type | ||||||||||
| Maximum operating frequency | 5 times/second | 3 times/second | 5 times/second | 3 times/second | |||||||
| Shortest excitation time | 0.05 second | ||||||||||
| Main accessories material | Ontology | Aluminum alloy | |||||||||
| Seals | NBR | ||||||||||

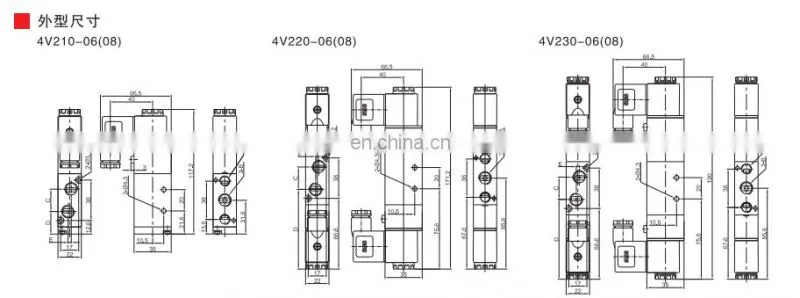

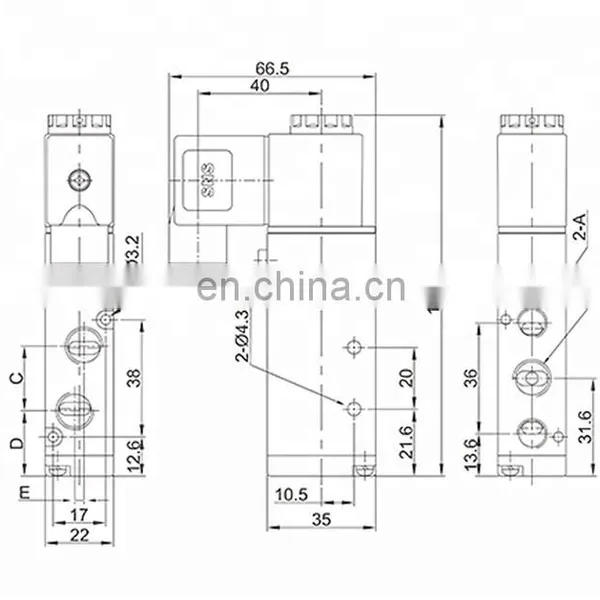

| Model | A | B | C | D | E |
| 4V210-06 | G1/8 | G1/G8 | 18 | 22.6 | 0 |
| 4V210-08 | G1/8 | G1/4 | 21 | 21 | 3 |
| 4V220-06 | G1/8 | G1/8 | 18 | 76.8 | 0 |
| 4V220-08 | G1/8 | G1/4 | 21 | 75.2 | 3 |
| 4V230-06 | G1/8 | G1/8 | 18 | 76.8 | 0 |
| 4V230-08 | G1/8 | G1/4 | 21 | 75.2 | 3 |
Q1. Are you a manufacturer or a trading company?A1. We are a leading manufacturer of all pneumatic products. Welcome to visit our factory at any time.
Q2. What’s the payment term?A2. T/T, MasterCard, VISA, E-Checking, Boleto, Pay Later.
Q3. How about the delivery time ?A3. 1-3 days for normal models. For big orders, it takes about 10-15 days.
Q4. What is the standard of package?A4. Export standard package or special package according to customers' requirement.
Q5. What kind of product quality does your factory offer?A5. We are top 3 supplier in Chinese market. We offer top quality to our clients.
Q6. Do you accept OEM business?A6. We do OEM .
Q7. What market do you already sell to?A7. We already ship to Asia, Europe, North America, South America, Africa, Oceania.
Q8. What kind of certificate do you have ?A8. We have ISO9001, CE, CCC, etc.
