Home > Industrial Equipment & Components > Valve > Ball Valve > SNS 3V Series Solenoid Valve Electric 3 Way Control Valve

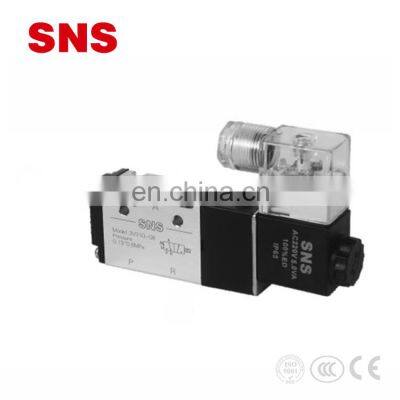

SNS 3V Series Solenoid Valve Electric 3 Way Control Valve
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1990
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SNS Professional Air Compressor Pressure Relief Safety Brass ValveNegotiableMOQ: 1 -
SNS 2WBK Stainless Steel Normally Opened Solenoid Control Valve PneumaticNegotiableMOQ: 1
-
SNS 2W400-40 Pneumatic Water Solenoid ValveNegotiableMOQ: 1
-
SNS (4A Series) Air Control Pneumatic Solenoid ValveNegotiableMOQ: 1
-
SNS ASC Series Manual Pneumatic One Way Flow Speed Throttle Valve Air Control ValveNegotiableMOQ: 1

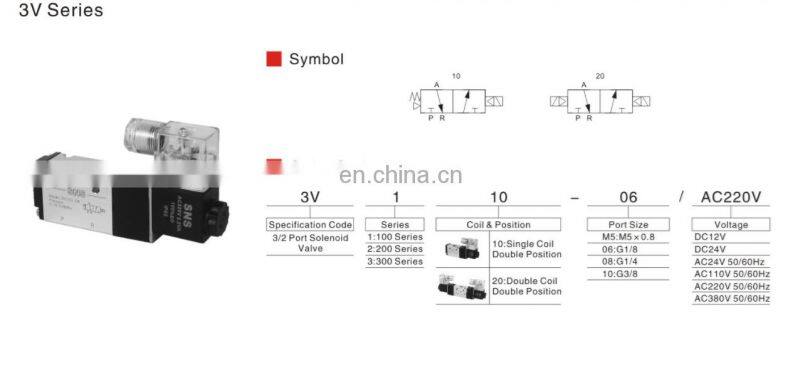

SNS 3V series solenoid valve electric 3 way control valve
Banner
Product Description
| Model | 3V110-M5 | 3V120-M5 | 3V110-06 | 3V120-06 | 3V210-06 | 3V220-06 | |
| Working Media | Air | ||||||
| Action Mode | Internal Pilot Type | ||||||
| Position | 3/2Port | ||||||
| Effective Sectional Area | 5.5mm²(Cv=0.31) | 12.0mm²(Cv=0.67) | 14.0mm²(Cv=0.78) | ||||
| Port Size | InPut=OutPut=M5×0.8 | InPut=OutPut=G1/8 | |||||
| Lubrication | No Need | ||||||
| Working Pressure | 0.15~0.8MPa | ||||||
| Proof Pressure | 1.0MPa | ||||||
| Working Temperature | 0~60℃ | ||||||
| Voltage Range | ±10% | ||||||
| Power Consumption | AC:2.8VA DC:2.8W | AC:5.5VA DC:4.8W | |||||
| Insulation Grade | F Level | ||||||
| Protection Class | IP56(DIN40050) | ||||||
| Connecting Type | Wiring Type/Plug Type | ||||||
| Max.Operating Frequency | 5 Cycle/Sec | ||||||
| Min.Excitation Time | 0.5Ses | ||||||
| Material | Body | Aluminum Alloy | |||||
| Seal | NBR | ||||||
| Model | 3V210-08 | 3V220-08 | 3V310-08 | 3V320-08 | 3V310-10 | 3V320-08 | |
| Working Media | Air | ||||||
| Action Mode | Internal Pilot Type | ||||||
| Position | 3/2Port | ||||||
| Effective Sectional Area | 16.0mm²(Cv=0.89) | 25.0mm²(Cv=1.39) | 30.0mm²(Cv=1.67) | ||||
| Port Size | InPut=OutPut=G1/4 | InPut=OutPut=G3/8 | |||||
| Lubrication | No Need | ||||||
| Working Pressure | 0.15~0.8MPa | ||||||
| Proof Pressure | 1.0MPa | ||||||
| Working Temperature | 0~60℃ | ||||||
| Voltage Range | ±10% | ||||||
| Power Consumption | AC:5.5VA DC:4.8W | ||||||
| Insulation Grade | F Level | ||||||
| Protection Class | IP56(DIN40050) | ||||||
| Connecting Type | Wiring Type/Plug Type | ||||||
| Max.Operating Frequency | 5 Cycle/Sec | ||||||
| Min.Excitation Time | 0.5Ses | ||||||
| Material | Body | Aluminum Alloy | |||||
| Seal | NBR | ||||||
Certificate
Packaging & Shipping
FAQ
Q1. Are you a manufacturer or a trading company?A1. We are a leading manufacturer of all pneumatic products. Welcome to visit our factory at any time.
Q2. What’s the payment term?A2. T/T, MasterCard, VISA, E-Checking, Boleto, Pay Later.
Q3. How about the delivery time ?A3. 1-3 days for normal models. For big orders, it takes about 10-15 days.
Q4. What is the standard of package?A4. Export standard package or special package according to customers' requirement.
Q5. What kind of product quality does your factory offer?A5. We are top 3 supplier in Chinese market. We offer top quality to our clients.
Q6. Do you accept OEM business?A6. We do OEM .
Q7. What market do you already sell to?A7. We already ship to Asia, Europe, North America, South America, Africa, Oceania.
Q8. What kind of certificate do you have ?A8. We have ISO9001, CE, CCC, etc.
