SNS 2WBK Stainless Steel Normally Opened Solenoid Control Valve Pneumatic
| Model | 2WBK160-15 | 2WBK200-20 | 2WBK250-25 | 2WBK350-35 | 2WBK400-40 | 2WBK500-50 | |
| Fluid | Air/Water/Oil | ||||||
| Action Mode | Pilot-operated Type | ||||||
| Type | Normal Open | ||||||
| Port Diameter(mm^2) | 16 | 20 | 25 | 35 | 40 | 50 | |
| CV Value | 4.8 | 7.6 | 12 | 24 | 29 | 48 | |
| Port Size | G1/2 | G3/4 | G1 | G11/4 | G1 1/2 | G2 | |
| Fluid Viscosity | Under 20CS | ||||||
| Working Pressure | Water/Oil: 0-0.5MPa Air: 0-0.7MPa | ||||||
| Proof Pressure | 1.0MPa | ||||||
| Temperature | -5-85℃ | ||||||
| Working Voltage Range | ±10% | ||||||
| Material | Body | Stainless Steel 304 | |||||
| Seal | NBR | ||||||
| Coil Power | 20VA | ||||||

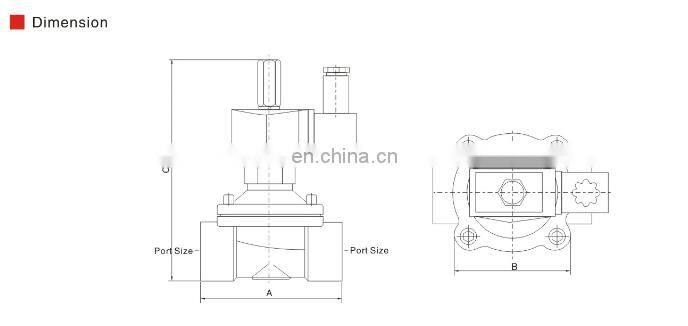

| Model | Port Size | A | B | C |
| 2WBK160-15 | G1/2 | 69 | 56 | 125 |
| 2WBK200-20 | G3/4 | 71 | 56 | 131 |
| 2WBK250-25 | G1 | 98 | 76 | 140 |
| 2WBK350-35 | G1 1/4 | 116 | 87 | 146 |
| 2WBK400-40 | G1 1/2 | 122 | 94 | 158 |
| 2WBK500-50 | G2 | 129 | 95 | 170 |
Q1. Are you a manufacturer or a trading company?A1. We are a leading manufacturer of all pneumatic products. Welcome to visit our factory at any time.
Q2. What’s the payment term?A2. T/T, MasterCard, VISA, E-Checking, Boleto, Pay Later.
Q3. How about the delivery time ?A3. 1-3 days for normal models. For big orders, it takes about 10-15 days.
Q4. What is the standard of package?A4. Export standard package or special package according to customers' requirement.
Q5. What kind of product quality does your factory offer?A5. We are top 3 supplier in Chinese market. We offer top quality to our clients.
Q6. Do you accept OEM business?A6. We do OEM .
Q7. What market do you already sell to?A7. We already ship to Asia, Europe, North America, South America, Africa, Oceania.
Q8. What kind of certificate do you have ?A8. We have ISO9001, CE, CCC, etc.
