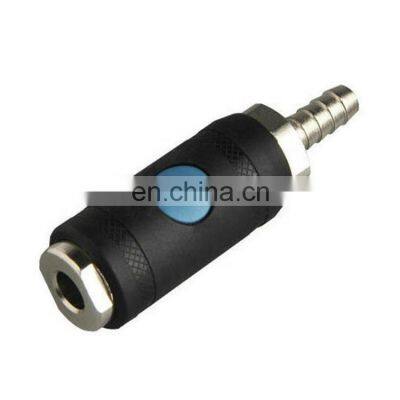

Supplier in China Pneumatic Female Socket Pneumatic Safety Push Button Coupling
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Push Button Prevents Air Circulation and Release Plug Push Button Safety Air Plug Coupler
-
Pneumatic Safety Push Button Coupling Push-Button Type Pneumatic Quick Coupling
-
ISO 6150 C Standard Push Botton Safety Air Coupler 1/2\" Male Nitto Type Prevents Air Circulation and Release Plug
-
EURO Standard Push Button Safety Coupler S-99706 Parker Push Button Couplings for Cooling System
-
Blind Mate Thermal Management Quick Couplings CGO Staubli Quick and Dry Disconnect Couplings Staubli Fluid Connectors
-
Staubli Fluid Connectors Blind Mate Thermal Management Quick Couplings CGO Staubli
Product Description
Product Description
Free Fit Safety Quick Coupling Series 29X is a safety coupling with pushing button integrating self-venting system according to ISO6150 B, ISO 6150 C and EURO. The self-venting takes place during disconnection in 2 steps – no risk of pressurized hoses being tossed around. When the pushing buttind is pressed one time, the plug is released yet remains locked in. The coupling valve closes and the air is vented from the air line at the same time. Only then, by pressing the button again, can uncoupling take place safely. The system fulfils the requirements of ISO 4414 – increased safety standards in the work place and make the use easy.
Specifications
Socket material | Stainless steel SUS316 |
Plug material | Stainless steel SUS316 |
Temperature range | -20℃ to +100℃ |
Max working pressure | 1.6Mpa |
Standard | ISO 6150-C |
Features:
1. One-hand operated
2. Push-button release device
How to work
Double click to engage properly.
Firstly click locks couplers and plug.The second click engages the air pressure.
To disconnect push the button twice. The first push relieve air pressure, the second push disconnect coupler and plug.
